Quick Specs

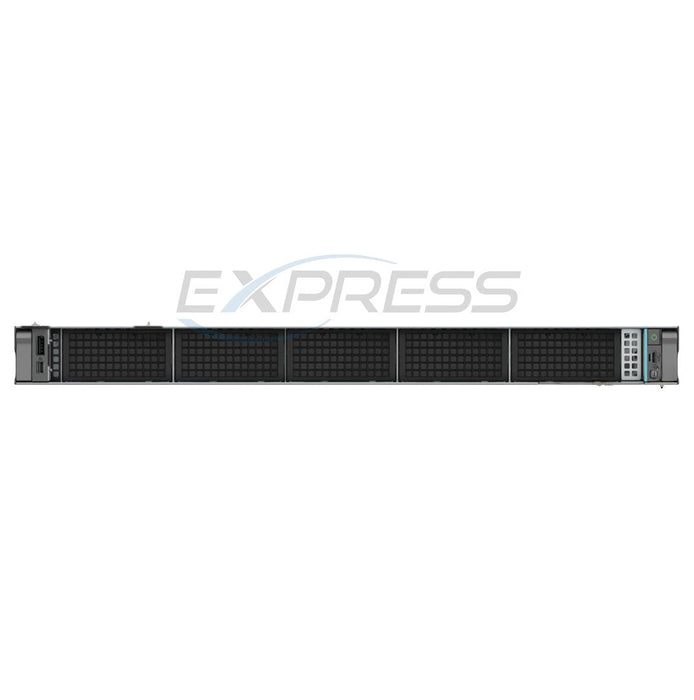

Form Factor:1U rack server
Processor | Max: 144 E-Cores / 88 P-Cores1x Intel Xeon 6 E-Core / P-Core
Memory | Max: 8TB16 ECC DDR5 RDIMM 6400Mhz
Supports registered ECC DDR5 DIMMs only

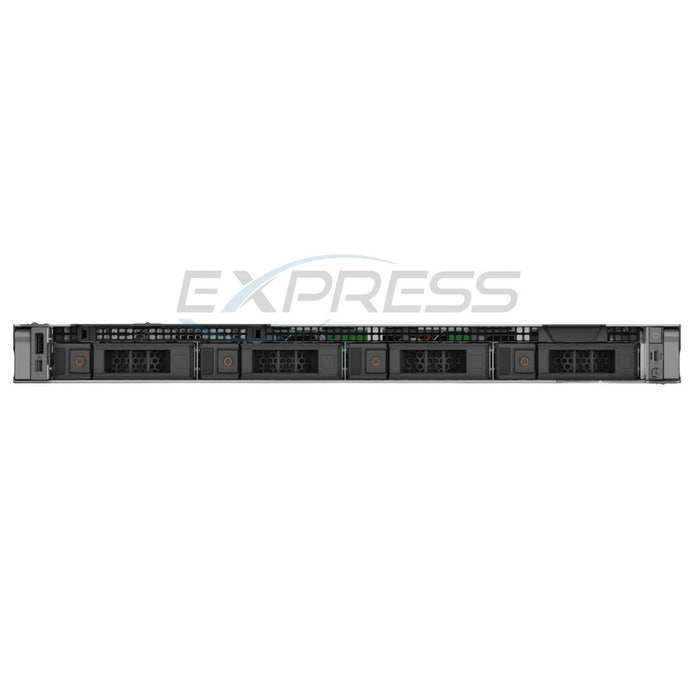

4x 3.5" (SATA)

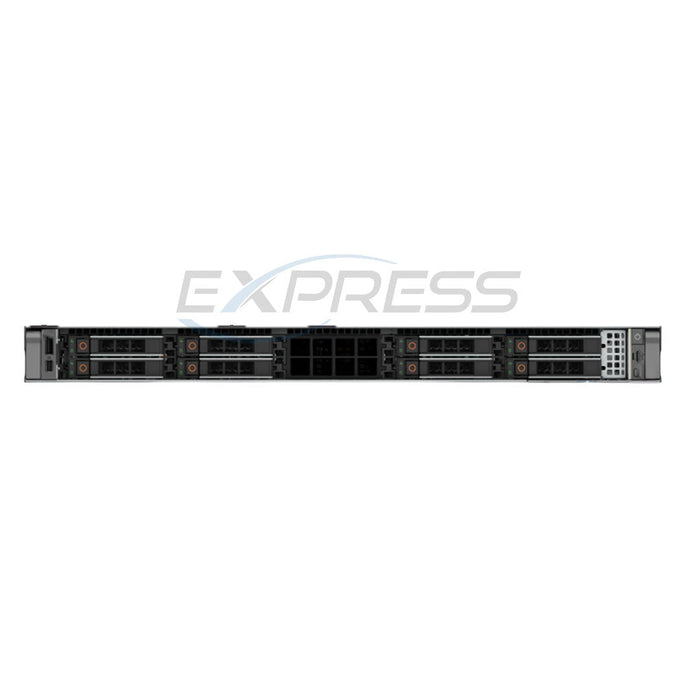

8x 2.5" (SAS/SATA/NVMe)

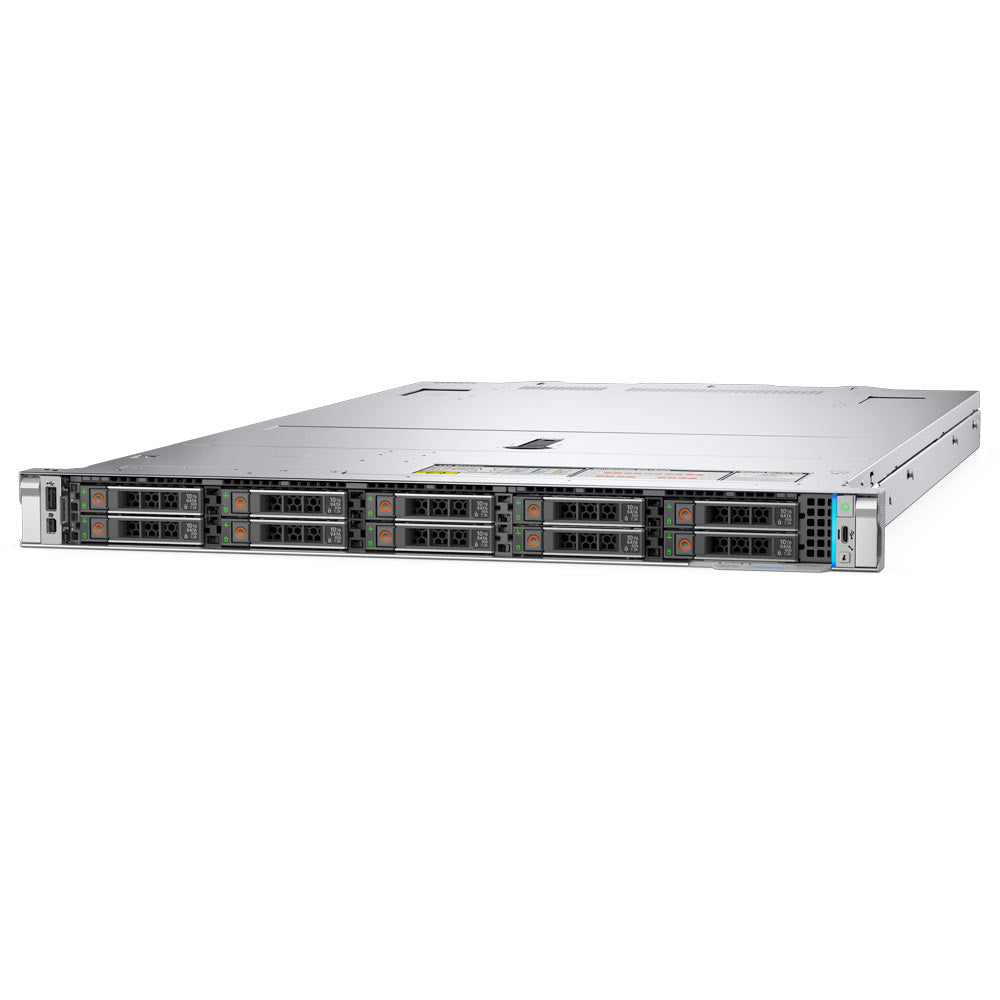

10x 2.5" (SAS/SATA/NVMe)

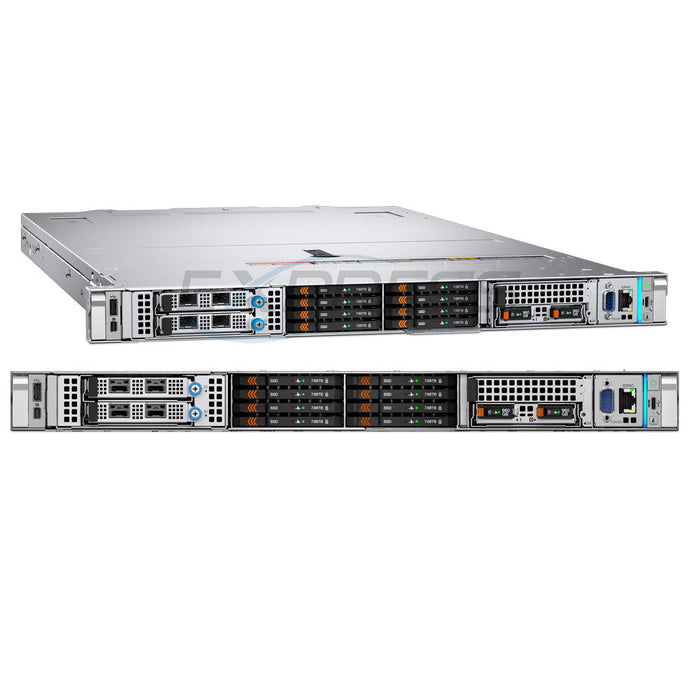

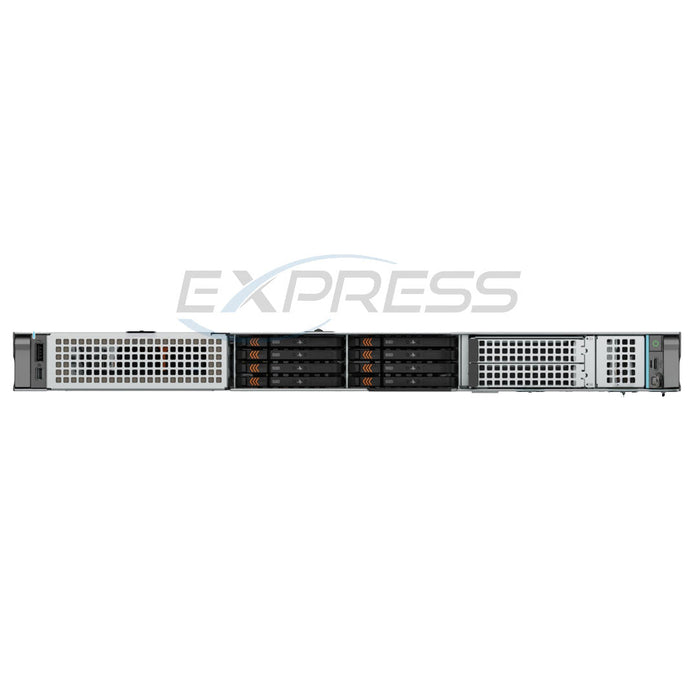

8x EDSFF E3.S NVMe (G5) Max:
491.52TB

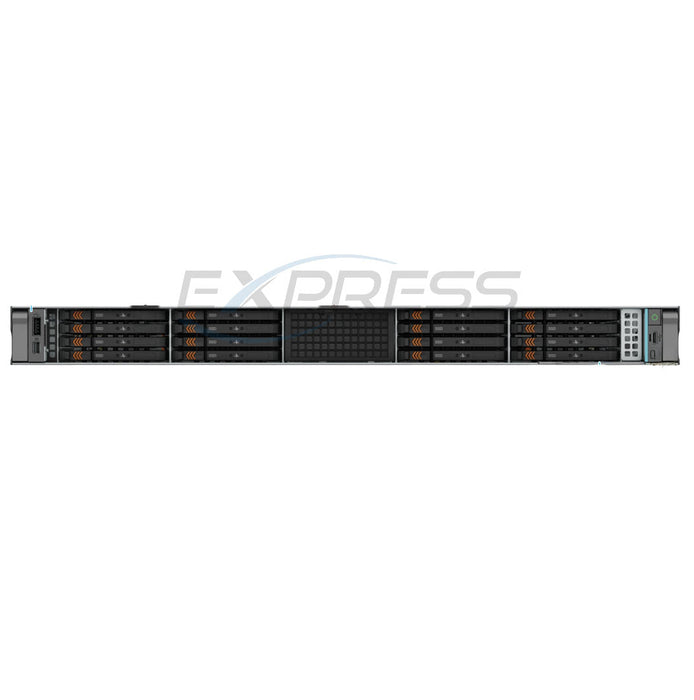

16x EDSFF E3.S NVMe (G5) Max: 983.04TB
Up to 2 x EDSFF E3.S Gen5 NVMe (Mandatory for LFF Chassis)
Storage Controller:H365i, H965i,
H965e, HBA465e
BOSS-N1
BOSS-N1 DC-MHS
USB
Front I/O supports 2x OCP 3.0
Rear I/O Supports 2x OCP 3.0 + 2x 1GbE LOM
iDRAC
PCIe Slots:Front I/O, 2 x16 (G5)
4 x16 Gen5 PCIe slots
Up to 4 x 75 W SW
Other Versions
(Click to View)
Ideal for:
- Cloud-Native Applications
- Database
- Virtualization

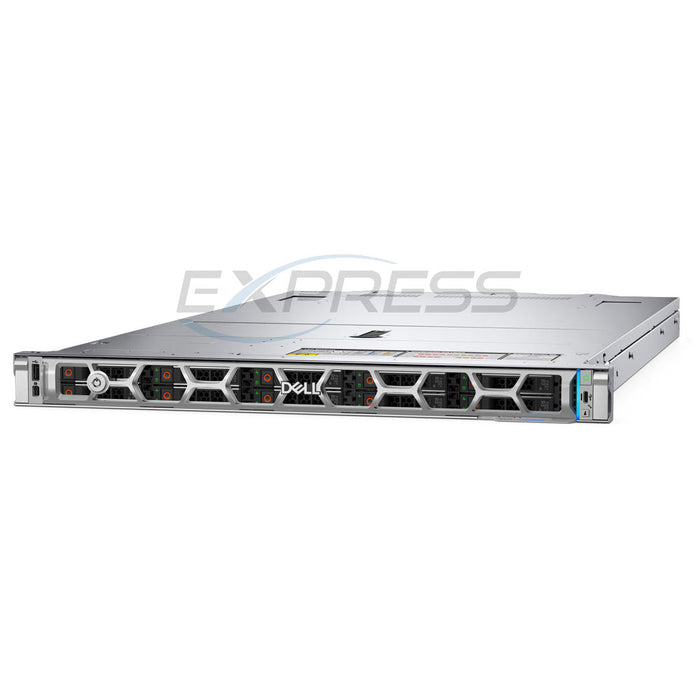

The Dell PowerEdge R470 is a 1U, single-socket rack server engineered for high-performance computing with optimal power efficiency and balanced performance, driving cost savings and boosting data center productivity. Its advanced design maximizes rack utilization by offering more cores in a single socket enabling better performance in a smaller footprint while minimizing energy consumption. This makes it ideal for workloads like cloud scale web and app microservices, data services, virtualization, and scale-out database
Max Performance:
Purpose-built for enterprise and scalable infrastructures, the PowerEdge R470 seamlessly integrates into existing environments. Equipped with an Intel® Xeon® processor with E-cores that are tailored for energy efficiency and performance-per-watt, offering both improved power efficiency and higher rack density. With GPU support, it further enhances computational power while reducing overall operational costs, especially on energy consumption impact.
Air-cooled at peak performanceThe server is available in rear I/O hot aisle and front I/O cold aisle configurations, with the front I/O cold aisle improving serviceability, reducing maintenance time, and enhancing overall efficiency, reliability, and uptime. Dell’s Smart Power and Cooling Technology, optimized for air cooling, significantly reduces energy consumption, delivering long-term operational savings and supporting sustainability goals
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factoryto-site integrity assurance. The Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls safeguard trusted operations.
Intel Xeon 6th GenThe Intel® Xeon® 6 series of processors offers both E-Core and P-Core processors. Mixing of CPUs is not supported.
Xeon E-Cores
The Intel® Xeon® 6 series single threaded processor stack is comprised entirely of efficiency cores (E-Cores) providing ultra-high core counts optimized for power efficient operations.
• Optimized for single-threaded workloads
• Up to 144 cores at 330 W TDP
• 6400 MT/s DDR5 memory
• Up to four 24 GT/s UPI 2.0
• PCIe 5.0 with up to 88 lanes per CPU
• Security features (SGX)
Xeon P-Cores
The Intel® Xeon® 6 series processor stack is comprised entirely of performance cores (P-Cores), providing high core counts optimized for power and performance.
• Optimized for multi-threaded applications and workloads
• Up to 86 cores at 350 W TDP
• 6400 MT/s DDR5 memory
• Up to four 24 GT/s UPI 2.0
• PCIe 5.0 with up to 88 lanes per CPU
• Security features (SGX)
Cooling Options

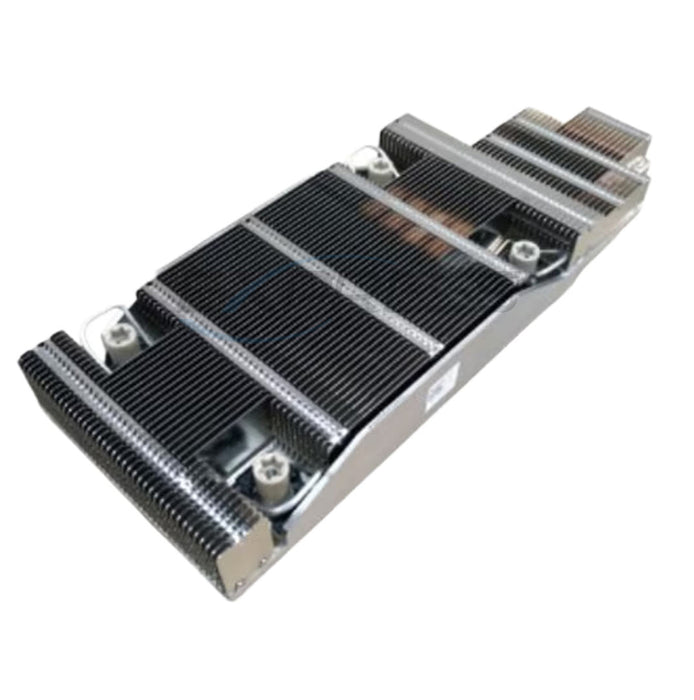

1U Ext Heatsink | TDP < 250 W

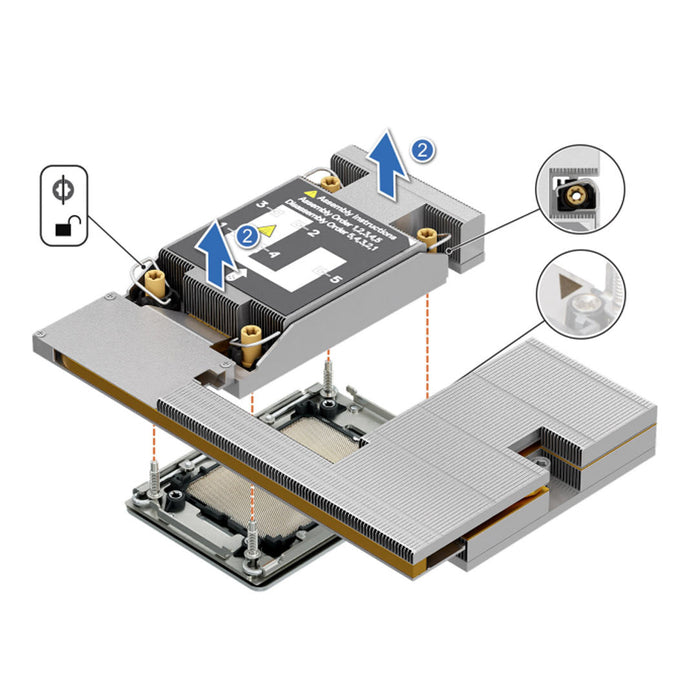

Remote Heatsink | TDP >= 350 W

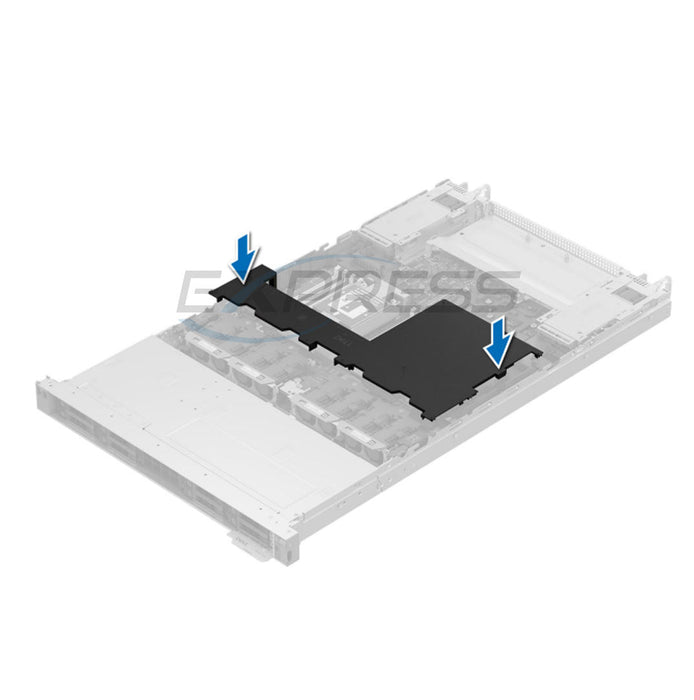

Air Shroud for 1U Air Cooling
Standard Fan
- Supports up to 4 set Standard (STD) hot-swappable cooling fans, each consisting of a dual fan module.
- Supports up to 4 set high-performance silver (HPR SLVR) hot-swappable cooling fans, each consisting of a dual fan module.
TDP up to 250w
- Extended heatsink and shroud can support CPU TDP up to 250 W.
TDP 350w
- Remote heatsink and HPR SLVR fan is required for 350 W CPU TDP

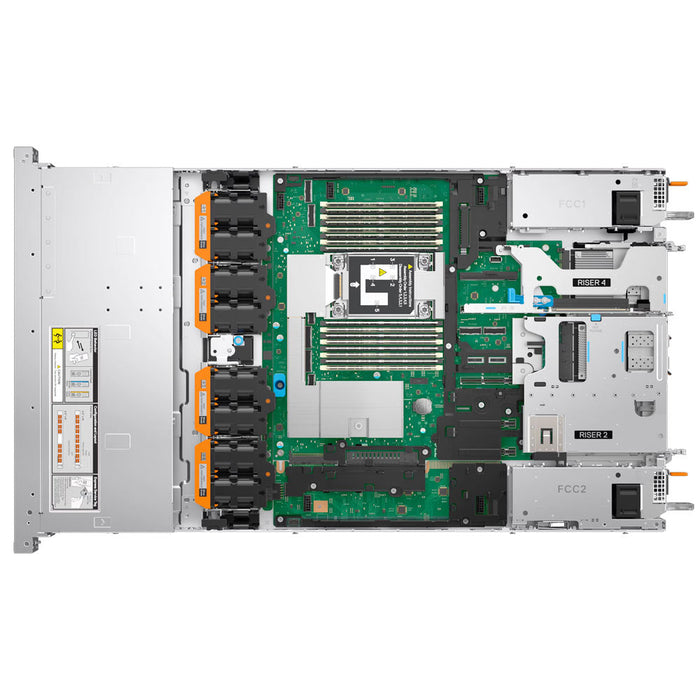

The Dell PowerEdge R470 holds up to 16x DDR5 DIMMs
| DIMM type | Rank | Capacity | DIMM voltage and speed | E-core processor | P-core processor | ||
|---|---|---|---|---|---|---|---|
| 1 DIMM per channel (DPC) | 2 DIMM per channel (DPC) | 1 DIMM per channel (DPC) | 2 DIMM per channel (DPC) | ||||
| RDIMM | 1R | 16 GB | DDR5 (1.1 V), 6400 MT/s | N/A | N/A | Up to 6400 MT/s | N/A |
| 2R | 32 GB | DDR5 (1.1 V), 6400 MT/s | Up to 6400 MT/s | N/A | Up to 6400 MT/s | Up to 5200 MT/s | |
| 64 GB | DDR5 (1.1 V), 6400 MT/s | Up to 6400 MT/s | Up to 5200 MT/s | Up to 6400 MT/s | Up to 5200 MT/s | ||
| 96 GB | DDR5 (1.1 V), 6400 MT/s | N/A | N/A | Up to 6400 MT/s | Up to 5200 MT/s | ||
| 128 GB | DDR5 (1.1 V), 6400 MT/s | N/A | N/A | Up to 6400 MT/s | Up to 5200 MT/s | ||
| 8R | 256 GB | DDR5 (1.1 V), 6400 MT/s | N/A | N/A | N/A | Up to 5200 MT/s | |
Front H965i DC-MHS
- RAID: 0, 1, 5, 6, 10, 50, and 60
- Non–RAID: Yes
- Host bus type: PCIe 4.0 x16
- Processor: Broadcom RAID-on-chip, SAS4116W chipset
- Power Backup unit: Battery
- Cache memory: 8 GB DDR4 3200 MT/s cache
- Cache function: Write-back, read-ahead, write-through, always write-back, no read-ahead
- Supported Drive Types: 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe
-
maximum SAS/SATA: w/o SAS Expander: 16 drives per controller
With SAS Expander: 240 SAS/SATA -
maximum NVMe: w/o PCIe Switch Expander: 8 drives per controller
With PCIe Switch Expander: 24 NVMe
Front H365i DC-MHS
- RAID: 0, 1, and 10
- Non–RAID: Yes
- Host bus type: PCIe 4.0 x8 @ 16Gbps
- Processor: Broadcom RAID-on-chip, SAS4016 chipset
- Power Backup unit: No
- Cache memory: No
- Cache function: Write-through
- Supported Drive Types: 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe
-
Maximum SAS/SATA: w/o SAS Expander: 16 drives
w/ SAS Expander: Depends on your PowerEdge server model. -
Maximum NVMe: w/o PCIe Switch Expander: 8/16 drives
w/ PCIe Switch Expander: 32 drives
The system supports either Front I/O configuration (system with front risers) or Rear I/O configuration (system with rear risers).
RF1c Riser
RF1d Riser
R2k Riser
R2q Riser
R2t Riser
R2u Riser
R2v Riser
R4a Riser
R4b Riser
Rear 2 x E3.S EDSFF
| Config No. | Riser configuration | No. of Processors | PERC type supported | Rear storage possible |
|---|---|---|---|---|
| 0 | NO RSR | 1 | Front PERC | No |
| 1 | R2u + R4a | 1 | Adpt PERC | 2 x E3.S EDSFF |
| 2 | RF1c | 1 | N/A | No |
| 3 | RF1d (front OCP cage) | 1 | N/A | No |
| 4 | Rf1c + R2t + R4b | 1 | N/A | No |
| 5 | Rf1d + R2t + R4b | 1 | N/A | No |
| 6 | R2q + R4b | 1 | Front PERC | No |
| 7 | R2k + R4a | 1 | Front PERC | No |
| 8 | R2v + R4a | 1 | Front PERC | No |
Intel Xeon 6 processor P-core R1S processors provide a higher number of PCIe lanes compared to standard Intel® Xeon 6 processor P-core processors.
Notes:- Risers RC4, RC5, and RC7 support only R1S processors.
- Risers RC0, RC1, RC2, RC3, RC6, and RC8 support both R1S and standard processors.
- Riser F1c and riser R2t supports DPU cards.
Front I/O
- Riser RF1d support up to 2x OCP 3.0 slots
- Install OCP Blank or Riser Blank if the R1Fb is not installed.
- 1 Dedicated Slot
- Riser R2k supplys one more OCP 3.0 Slot
- 1 GbE x 4
- 10 GbE x 2 or 4
- 25 GbE x 2 or 4
- 100 GbE x 2
I/O Supports either front or back, not both.
OCP is also supported in front of the system for some configurations, called the Floating OCP Paddle Card (FLOP). Additionally, the Front I/O OCP supports both internal latch and thumbscrew versions, providing flexibility in installation and maintenance.
Boot Options
BOSS-N1 DC-MHS
BOSS-N1 Interposer
Internal USB Boot
Control Panel Options (LCP)
Secondary blank (Default)
Secondary w/ optional KVM
Secondary w/ optional Quick Sync 2.0
Power Supply Units (PSU)
Not sure what power supply to use. Dell has a calculator for you
| Form factor | Output | Power cord |
|---|---|---|
| 60 mm | 800 W mixed mode | C13 |
| 1100 W mixed mode | C13 | |
| 1400 W -48 VDC | Lotes RN5T2 | |
| 1500 W mixed mode | C13 | |
| 1500 W mixed mode 277Vac & HVDC | APP/Saf-D-Grid |
- Width: 19"
- Length: 32.09"
- Height: 1.69"
- Diskless 17 kg (37 lbs)
- 4 x 3.5" SATA 18.78 kg (41.40 pound)
- 8 x 2.5" SAS/SATA drives 17.03 kg (37.54 pound)
- 8 x EDSFF E3.S 19.11 kg (42.13 pound)
- 10 x 2.5" SAS/SATA 17.53 kg (38.64 pound)
- 16 x EDSFF E3.S drives 17.66 kg (38.93 pound)
