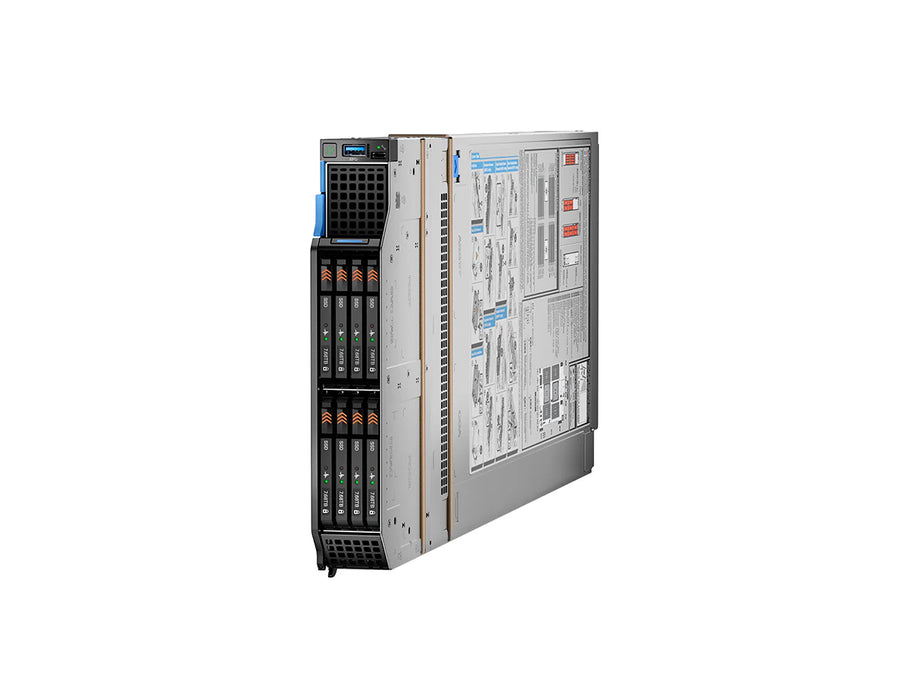

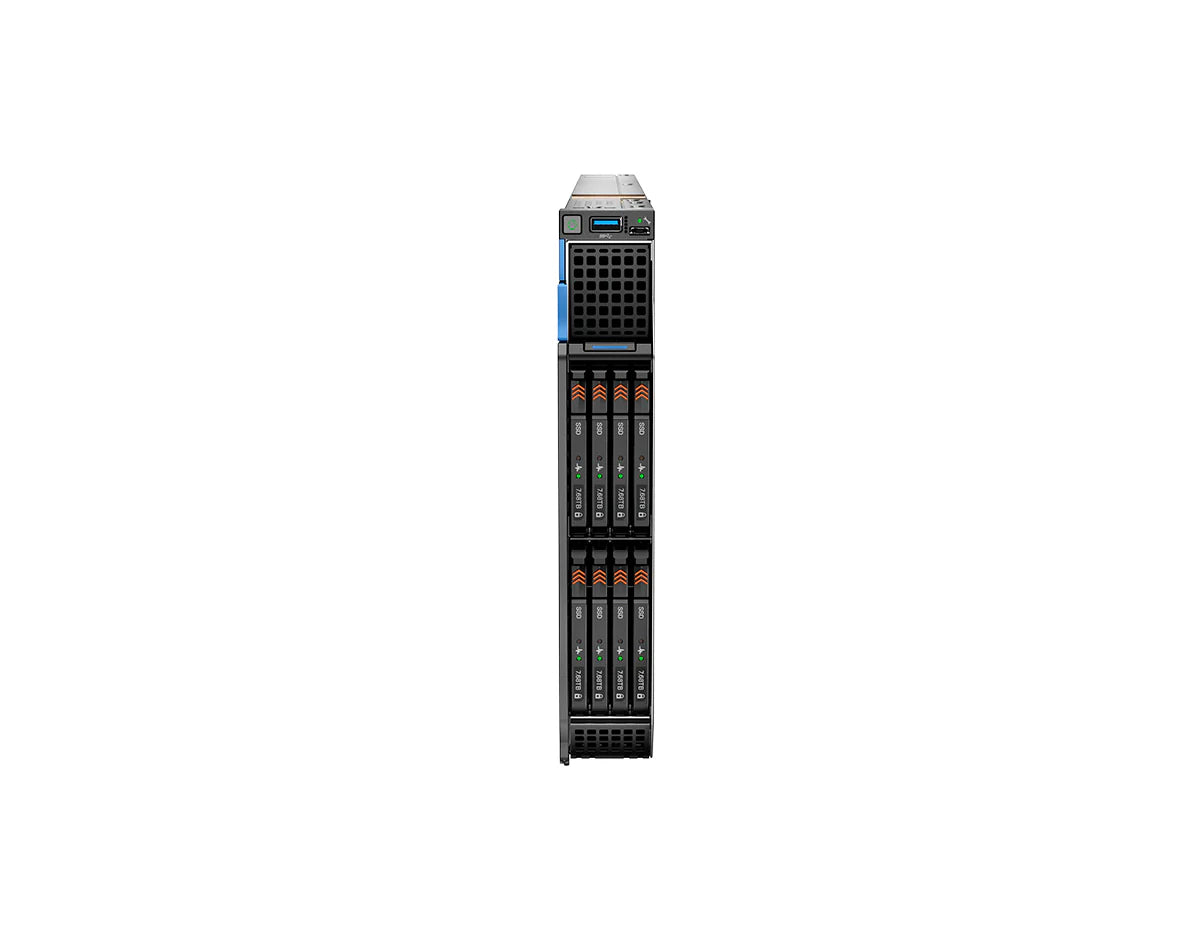

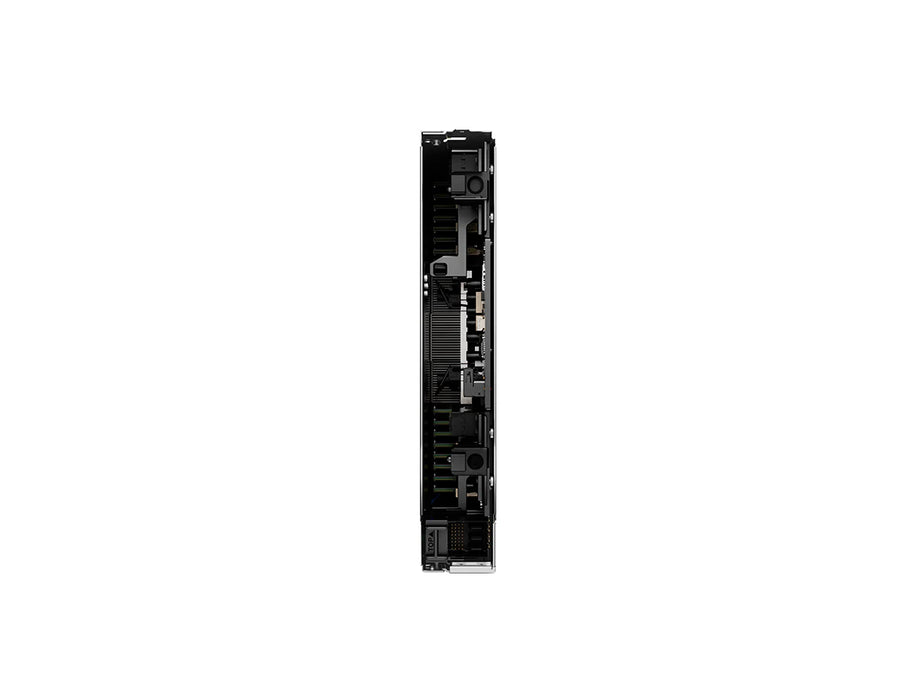

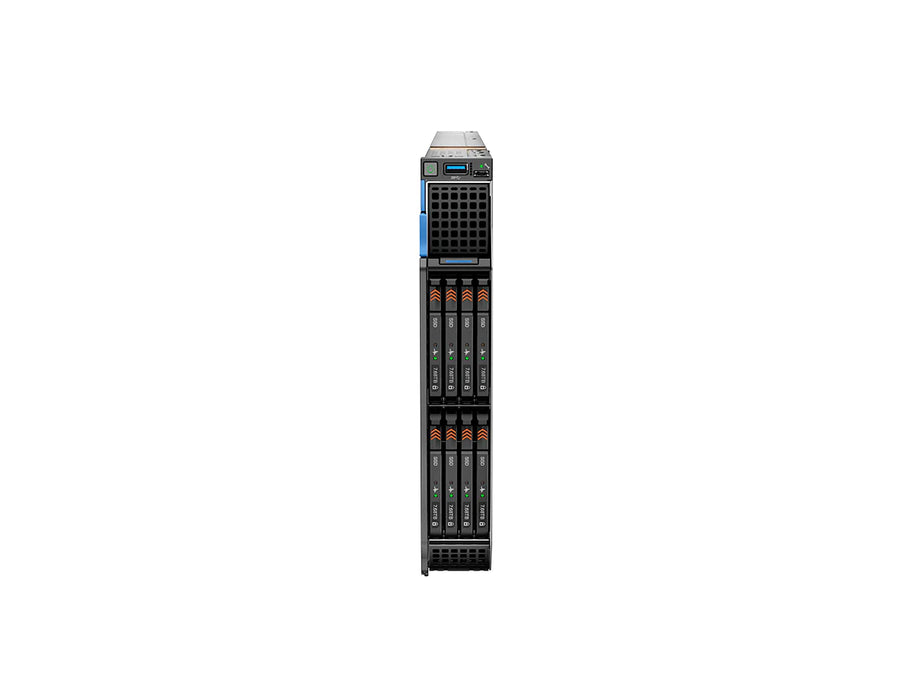

Dell PowerEdge MX760c Modular Compute Sled
Clique ou role para ampliar
Toque ou belisque para ampliar
Dell PowerEdge MX760c Modular Compute Sled
Clique ou role para ampliar
Toque ou belisque para ampliar
Dell PowerEdge MX760c Modular Compute Sled
Dell PowerEdge MX760c Modular Compute Sled

Dell PowerEdge MX760c Modular Compute Sled

por Dell
R$ 0,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]Modular compute sled, up to two Xeon CPUs, DDR5 memory, MX7000 chassis, NVMe storage[/shortdesc]

[properties]

Brand Dell
Model PowerEdge MX760c
SKU MX760c
Product Type Modular compute sled
Series PowerEdge MX
Form Factor Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis
Processor Support Up to two 4th Generation or 5th Generation Intel Xeon Scalable processors
Memory 32 DDR5 DIMM slots, supports RDIMM max 8 TB
Drive Bays Up to 4 x 2.5-inch SAS/SATA, up to 6 x 2.5-inch SAS/SATA, up to 6 x 2.5-inch NVMe/SAS/SATA, or up to 8 x E3.s NVMe PCIe Gen 5 SSD
Dimensions 51.0 mm H x 257.0 mm W x 631.77 mm D
Weight 8.59 kg

[/properties]

[specifications]

Processor Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor; up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
Chipset Intel C741 chipset with optional Intel QuickAssist Technology
Memory Speed Up to 5600 MT/s
Memory Type Supports registered ECC DDR5 DIMMs only
Storage Controllers PERC H755 MX, PERC H9651 MX, HBA3501 MX
Internal Boot USB or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 SSDs 480 GB or 960 GB
Software RAID S160
Drive Capacity Up to 61 TB with 4 x 2.5-inch SAS/SATA; up to 46.08 TB with 6 x 2.5-inch SAS/SATA; up to 92 TB with 6 x 2.5-inch NVMe/SAS/SATA; up to 61 TB with 8 x E3.s NVMe PCIe Gen 5 SSD
Power Supplies MX7000 chassis: up to six 3000 W AC Platinum PSU and grid redundancy support
Fans MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy (Gen 2 fan required)
Embedded Management OpenManage Enterprise Modular Edition, iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
Security Features Cryptographically signed firmware, Data at Rest Encryption, Secure Boot, Secured Component Verification, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Front Ports 1 x iDRAC Direct port (Micro-AB USB), 1 x USB 3.0
Internal Port 1 x USB 3.0
Networking Options Up to 25 Gb CNA/NIC or 100 Gb NIC per port for Mezz A/B, 32 Gb Fibre Channel
PCIe One x16 PCIe Gen4 slot for PERC, one x16 PCIe Gen4 slot for Mezz A, one x16 PCIe Gen5 slot for Mezz B, one x16 PCIe Gen4 slot for Mini Mezz, four x8 PCIe Gen5 connectors for NVMe drive, one x4 PCIe Gen4 for BOSS-N1 HWRAID card
Operating Systems Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSAN/ESXi

[/specifications]

The Dell PowerEdge MX760c is a high-performance modular compute sled designed for the PowerEdge MX7000 chassis. Built for dense compute environments, it supports demanding workloads such as virtualization, cloud, software-defined infrastructure, big data analytics, and AI inferencing.

  • Supports up to two 4th or 5th Generation Intel Xeon Scalable processors for dense modular compute.
  • Offers 32 DDR5 DIMM slots with RDIMM support and memory speeds up to 5600 MT/s.
  • Provides flexible storage options including SAS, SATA, NVMe, and E3.s NVMe PCIe Gen5 SSD configurations.
  • Integrates with Dell OpenManage Enterprise Modular Edition for centralized chassis-level management.
  • Includes security features such as Secure Boot, Silicon Root of Trust, Secure Erase, and cryptographically signed firmware.
  • Virtualization and cloud infrastructure deployments
  • Software-defined data center environments
  • Big data analytics workloads
  • AI inferencing applications
  • High-density enterprise compute within MX7000 chassis environments
  • Brand: Dell
  • Model: PowerEdge MX760c
  • Product Type: Modular compute sled
  • Processor Support: Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor or up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
  • Chipset: Intel C741 chipset with optional Intel QuickAssist Technology
  • Memory: 32 DDR5 DIMM slots, RDIMM support, maximum 8 TB, speeds up to 5600 MT/s
  • Drive Bays: Up to 4 x 2.5 inch SAS/SATA, up to 6 x 2.5 inch SAS/SATA, up to 6 x 2.5 inch NVMe/SAS/SATA, or up to 8 x E3.s NVMe PCIe Gen5 SSD
  • Management: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
  • Networking Options: Up to 25 Gb CNA/NIC or 100 Gb NIC per port for Mezz A/B, 32 Gb Fibre Channel
  • Form Factor: Up to 8 independent hot-swappable, 1U single-width compute sleds in an MX7000 chassis

Choose the Dell PowerEdge MX760c for scalable compute density, flexible storage options, centralized management, and secure enterprise infrastructure within the MX7000 modular platform.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]Modular compute sled, up to two Xeon CPUs, DDR5 memory, MX7000 chassis, NVMe storage[/shortdesc]

[properties]

Brand Dell
Model PowerEdge MX760c
SKU MX760c
Product Type Modular compute sled
Series PowerEdge MX
Form Factor Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis
Processor Support Up to two 4th Generation or 5th Generation Intel Xeon Scalable processors
Memory 32 DDR5 DIMM slots, supports RDIMM max 8 TB
Drive Bays Up to 4 x 2.5-inch SAS/SATA, up to 6 x 2.5-inch SAS/SATA, up to 6 x 2.5-inch NVMe/SAS/SATA, or up to 8 x E3.s NVMe PCIe Gen 5 SSD
Dimensions 51.0 mm H x 257.0 mm W x 631.77 mm D
Weight 8.59 kg

[/properties]

[specifications]

Processor Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor; up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
Chipset Intel C741 chipset with optional Intel QuickAssist Technology
Memory Speed Up to 5600 MT/s
Memory Type Supports registered ECC DDR5 DIMMs only
Storage Controllers PERC H755 MX, PERC H9651 MX, HBA3501 MX
Internal Boot USB or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 SSDs 480 GB or 960 GB
Software RAID S160
Drive Capacity Up to 61 TB with 4 x 2.5-inch SAS/SATA; up to 46.08 TB with 6 x 2.5-inch SAS/SATA; up to 92 TB with 6 x 2.5-inch NVMe/SAS/SATA; up to 61 TB with 8 x E3.s NVMe PCIe Gen 5 SSD
Power Supplies MX7000 chassis: up to six 3000 W AC Platinum PSU and grid redundancy support
Fans MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy (Gen 2 fan required)
Embedded Management OpenManage Enterprise Modular Edition, iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
Security Features Cryptographically signed firmware, Data at Rest Encryption, Secure Boot, Secured Component Verification, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Front Ports 1 x iDRAC Direct port (Micro-AB USB), 1 x USB 3.0
Internal Port 1 x USB 3.0
Networking Options Up to 25 Gb CNA/NIC or 100 Gb NIC per port for Mezz A/B, 32 Gb Fibre Channel
PCIe One x16 PCIe Gen4 slot for PERC, one x16 PCIe Gen4 slot for Mezz A, one x16 PCIe Gen5 slot for Mezz B, one x16 PCIe Gen4 slot for Mini Mezz, four x8 PCIe Gen5 connectors for NVMe drive, one x4 PCIe Gen4 for BOSS-N1 HWRAID card
Operating Systems Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSAN/ESXi

[/specifications]

Dense Modular Compute for Scalable Data Center Workloads

The Dell PowerEdge MX760c is a high-performance modular compute sled designed for the PowerEdge MX7000 chassis. Built for dense compute environments, it supports demanding workloads such as virtualization, cloud, software-defined infrastructure, big data analytics, and AI inferencing.

Key Benefits and Features
  • Supports up to two 4th or 5th Generation Intel Xeon Scalable processors for dense modular compute.
  • Offers 32 DDR5 DIMM slots with RDIMM support and memory speeds up to 5600 MT/s.
  • Provides flexible storage options including SAS, SATA, NVMe, and E3.s NVMe PCIe Gen5 SSD configurations.
  • Integrates with Dell OpenManage Enterprise Modular Edition for centralized chassis-level management.
  • Includes security features such as Secure Boot, Silicon Root of Trust, Secure Erase, and cryptographically signed firmware.
Ideal Use Cases
  • Virtualization and cloud infrastructure deployments
  • Software-defined data center environments
  • Big data analytics workloads
  • AI inferencing applications
  • High-density enterprise compute within MX7000 chassis environments
Technical Specifications
  • Brand: Dell
  • Model: PowerEdge MX760c
  • Product Type: Modular compute sled
  • Processor Support: Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor or up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
  • Chipset: Intel C741 chipset with optional Intel QuickAssist Technology
  • Memory: 32 DDR5 DIMM slots, RDIMM support, maximum 8 TB, speeds up to 5600 MT/s
  • Drive Bays: Up to 4 x 2.5 inch SAS/SATA, up to 6 x 2.5 inch SAS/SATA, up to 6 x 2.5 inch NVMe/SAS/SATA, or up to 8 x E3.s NVMe PCIe Gen5 SSD
  • Management: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
  • Networking Options: Up to 25 Gb CNA/NIC or 100 Gb NIC per port for Mezz A/B, 32 Gb Fibre Channel
  • Form Factor: Up to 8 independent hot-swappable, 1U single-width compute sleds in an MX7000 chassis
Upgrade Modular Compute Capacity with Dell MX760c

Choose the Dell PowerEdge MX760c for scalable compute density, flexible storage options, centralized management, and secure enterprise infrastructure within the MX7000 modular platform.
