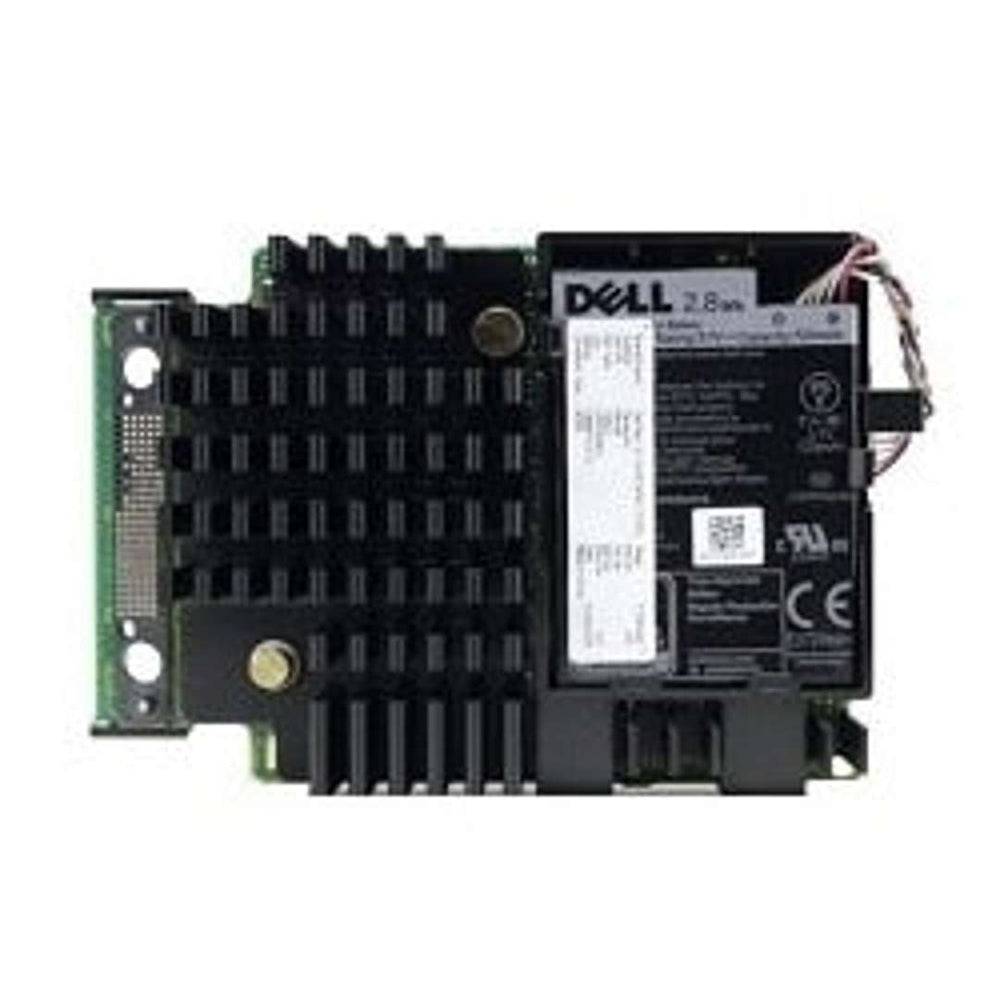

Dell PERC 10 H740P 12Gb SAS 8GB Mini Mono RAID Controller | 0878M
Clique ou role para ampliar
Toque ou belisque para ampliar
Dell PERC 10 H740P 12Gb SAS 8GB Mini Mono RAID Controller | 0878M
Dell PERC 10 H740P 12Gb SAS 8GB Mini Mono RAID Controller | 0878M

Dell PERC 10 H740P 12Gb SAS 8GB Mini Mono RAID Controller | 0878M

por Dell
R$ 1.044,89
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
Quick Specs
  • Models: Drive Types
  • Drive Types: 12 Gb/s SAS, 6 Gb/s SAS/SATA
  • PCI Support: PCI-e 3.0
  • SAS Connectors: 2x4 External
  • Cache Memory: 8 GB NV
  • Write Back Cache: Flash Backed Cache
  • RAID Levels: 0, 1, 5, 6, 10, 50, 60
  • Max Drive Support: 32
  • RAID Support: Hardware
 Part Number:
  • Mini Mono: 4R84R
  • Mini Mono: 0878M
  • Mini Mono: 5FMY4
  • Mini Mono: GP6RN
  • FH: 39M19
  • LP: 3JH35
  • LP: 1M71J
 The Dell PERC 10 H740P 8GB SAS 12Gb Mini Mono RAID Controller provides superior performance and reliability for Dell servers. Featuring an 8 GB non-volatile cache and dual SAS 12Gbps module channels, it ensures fast, stable storage connectivity for demanding enterprise workloads.
Supporting RAID levels 0, 1, 5, 6, 10, 50, and 60, and managing up to 32 drives, the H740P is engineered to tolerate disk subsystem failures and maximize server system uptime. Validated by Dell Technical Support, it integrates seamlessly into Dell infrastructures requiring powerful and flexible RAID storage solutions. H740P PERC Series Options View PCIe VersionView H740P PCIe Adapter Enclosures per port

0

Cache:

8 GB DDR4 2133MT/s

RAID Level:

0, 1, 5, 6, 10, 50, 60

Non-RAID:

Yes

PCIe:

Gen 3

Supported Drives:

  • 6 Gbps SATA/SAS
  • 12 Gbps SAS
Max SAS/SATA disks:

  • 8 drives per controller
  • w/ SAS Expander: Limited by platform offerings
Max NVMe drives:

  • Not Supported
Max physical disks:

  • 32 SAS/SATA
 Click to view the Mini Mono Version View Front H740P Mini Mono Enclosures per port

0

Cache:

8 GB DDR4 2133MT/s

RAID Level:

0, 1, 5, 6, 10, 50, 60

Non-RAID:

Yes

PCIe:

Gen 3

Supported Drives:

  • 6 Gbps SATA/SAS
  • 12 Gbps SAS
Max SAS/SATA disks:

  • 8 drives per controller
  • w/ SAS Expander: Limited by platform offerings
Max NVMe drives:

  • Not Supported
Max physical disks:

  • 32 SAS/SATA
 Summary of RAID levelsSummary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:
  • RAID 0

    Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.

  • RAID 1

    Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.

  • RAID 5

    Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.

  • RAID 6

    Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.

  • RAID 10

    Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.

  • RAID 50

    Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.

  • RAID 60

    Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
Quick Specs
  • Models: Drive Types
  • Drive Types: 12 Gb/s SAS, 6 Gb/s SAS/SATA
  • PCI Support: PCI-e 3.0
  • SAS Connectors: 2x4 External
  • Cache Memory: 8 GB NV
  • Write Back Cache: Flash Backed Cache
  • RAID Levels: 0, 1, 5, 6, 10, 50, 60
  • Max Drive Support: 32
  • RAID Support: Hardware
 Part Number:
  • Mini Mono: 4R84R
  • Mini Mono: 0878M
  • Mini Mono: 5FMY4
  • Mini Mono: GP6RN
  • FH: 39M19
  • LP: 3JH35
  • LP: 1M71J
 The Dell PERC 10 H740P 8GB SAS 12Gb Mini Mono RAID Controller provides superior performance and reliability for Dell servers. Featuring an 8 GB non-volatile cache and dual SAS 12Gbps module channels, it ensures fast, stable storage connectivity for demanding enterprise workloads.
Supporting RAID levels 0, 1, 5, 6, 10, 50, and 60, and managing up to 32 drives, the H740P is engineered to tolerate disk subsystem failures and maximize server system uptime. Validated by Dell Technical Support, it integrates seamlessly into Dell infrastructures requiring powerful and flexible RAID storage solutions. H740P PERC Series Options View PCIe VersionView H740P PCIe Adapter Enclosures per port

0

Cache:

8 GB DDR4 2133MT/s

RAID Level:

0, 1, 5, 6, 10, 50, 60

Non-RAID:

Yes

PCIe:

Gen 3

Supported Drives:

  • 6 Gbps SATA/SAS
  • 12 Gbps SAS
Max SAS/SATA disks:

  • 8 drives per controller
  • w/ SAS Expander: Limited by platform offerings
Max NVMe drives:

  • Not Supported
Max physical disks:

  • 32 SAS/SATA
 Click to view the Mini Mono Version View Front H740P Mini Mono Enclosures per port

0

Cache:

8 GB DDR4 2133MT/s

RAID Level:

0, 1, 5, 6, 10, 50, 60

Non-RAID:

Yes

PCIe:

Gen 3

Supported Drives:

  • 6 Gbps SATA/SAS
  • 12 Gbps SAS
Max SAS/SATA disks:

  • 8 drives per controller
  • w/ SAS Expander: Limited by platform offerings
Max NVMe drives:

  • Not Supported
Max physical disks:

  • 32 SAS/SATA
 Summary of RAID levelsSummary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:
  • RAID 0

    Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.

  • RAID 1

    Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.

  • RAID 5

    Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.

  • RAID 6

    Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.

  • RAID 10

    Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.

  • RAID 50

    Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.

  • RAID 60

    Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.
