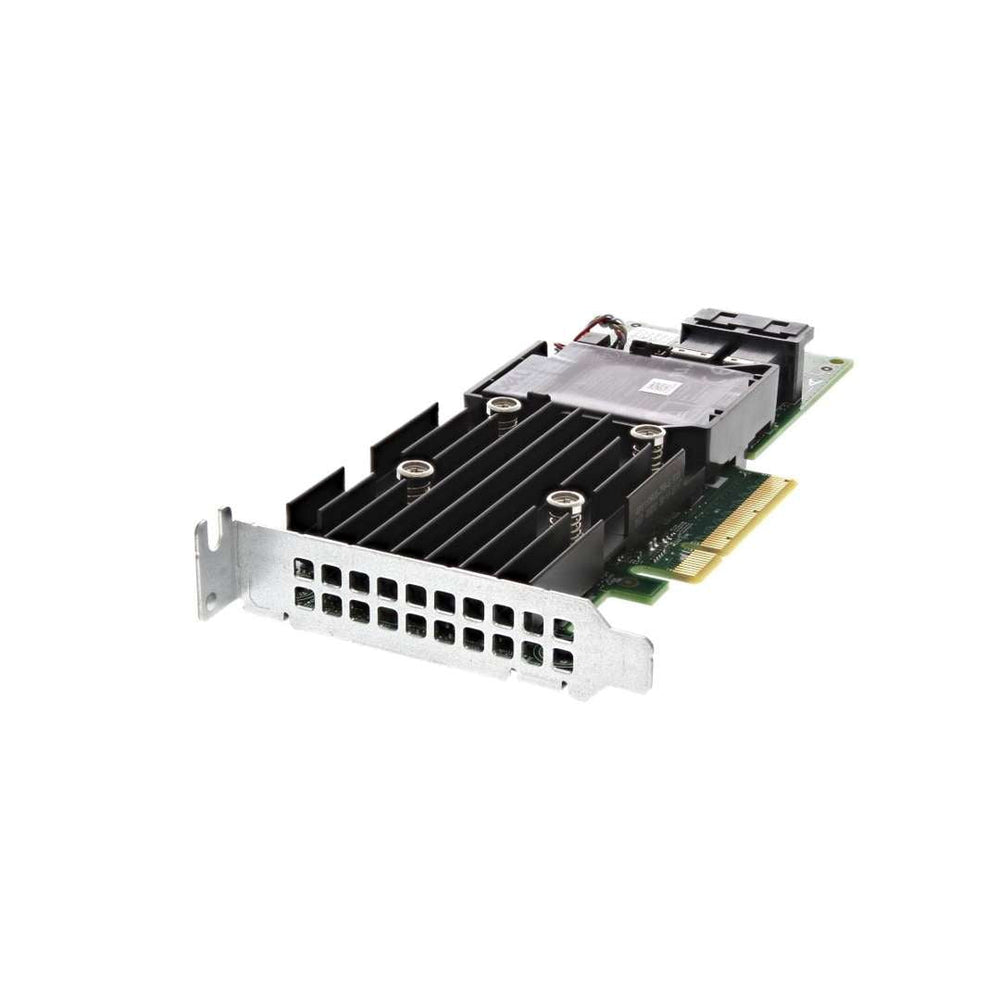

Dell PERC 10 H740P 12Gb SAS 8GB LP RAID Controller | DPNHJ
Clique ou role para ampliar
Toque ou belisque para ampliar
Dell PERC 10 H740P 12Gb SAS 8GB LP RAID Controller | DPNHJ
Dell PERC 10 H740P 12Gb SAS 8GB LP RAID Controller | DPNHJ

Dell PERC 10 H740P 12Gb SAS 8GB LP RAID Controller | DPNHJ

por Dell
R$ 2.144,89
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
Quick Specs ModelsDrive Types

12 Gb/s SAS
6 Gb/s SAS/SATA

PCI Support

PCI-e 3.0

SAS Connectors

2x4 External

Cache Memory

8 GB NV

Write Back Cache

Flash Backed Cache

RAID Levels

0,1,5,6,10,50,60

Max Drive Support

32

RAID Support

Hardware

 Part Numbers:
  • 03JH35
  • 39M19
  • 1M71J
  • DPNHJ
 The PERC H740P RAID Controller from Dell offers reliability and performance in addition to providing management with tolerant disk subsystem failures. This RAID controller improves the performance of your server systems. The double module channel provides high-speed connectivity. This product has been tested and validated on Dell systems to ensure compatibility with your computer. It is supported by Dell Technical Support when used with a Dell system. H740P PERC Series Options

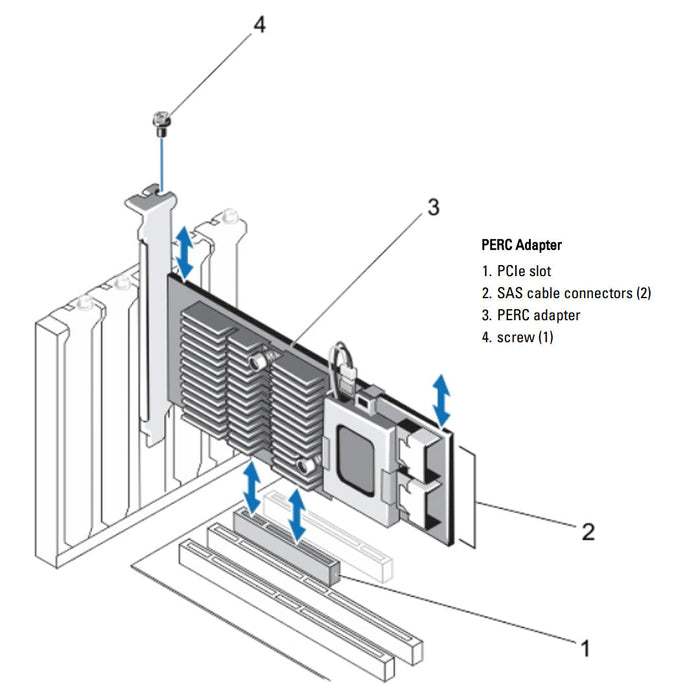

H740P Adapter View PERC

Enclosures per port

0

Cache:

8 GB DDR4 2133MT/s

RAID Level:

0, 1, 5, 6, 10, 50, 60

Non-RAID:

Yes

PCIe:

Gen 3

Supported Drives:



  • 6 Gbps SATA/SAS
  • 12 Gbps SAS
Max SAS/SATA disks:



  • 8 drives per controller
  • w/ SAS Expander: Limited by platform offerings
Max NVMe drives:
  • Not Supported
Max physical disks:
  • 32 SAS/SATA

Front H740P Mini Mono View PERC

Enclosures per port

0

Cache:

8 GB DDR4 2133MT/s

RAID Level:

0, 1, 5, 6, 10, 50, 60

Non-RAID:

Yes

PCIe:

Gen 3

Supported Drives:



  • 6 Gbps SATA/SAS
  • 12 Gbps SAS
Max SAS/SATA disks:



  • 8 drives per controller
  • w/ SAS Expander: Limited by platform offerings
Max NVMe drives:



  • Not Supported
Max physical disks:



  • 32 SAS/SATA
 Summary of RAID levels Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:
  • RAID 0 Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.
  • RAID 1 Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.
  • RAID 5 Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.
  • RAID 6 Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.
  • RAID 10 Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.
  • RAID 50 Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.
  • RAID 60 Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
Quick Specs ModelsDrive Types

12 Gb/s SAS
6 Gb/s SAS/SATA

PCI Support

PCI-e 3.0

SAS Connectors

2x4 External

Cache Memory

8 GB NV

Write Back Cache

Flash Backed Cache

RAID Levels

0,1,5,6,10,50,60

Max Drive Support

32

RAID Support

Hardware

 Part Numbers:
  • 03JH35
  • 39M19
  • 1M71J
  • DPNHJ
 The PERC H740P RAID Controller from Dell offers reliability and performance in addition to providing management with tolerant disk subsystem failures. This RAID controller improves the performance of your server systems. The double module channel provides high-speed connectivity. This product has been tested and validated on Dell systems to ensure compatibility with your computer. It is supported by Dell Technical Support when used with a Dell system. H740P PERC Series Options

H740P Adapter View PERC

Enclosures per port

0

Cache:

8 GB DDR4 2133MT/s

RAID Level:

0, 1, 5, 6, 10, 50, 60

Non-RAID:

Yes

PCIe:

Gen 3

Supported Drives:



  • 6 Gbps SATA/SAS
  • 12 Gbps SAS
Max SAS/SATA disks:



  • 8 drives per controller
  • w/ SAS Expander: Limited by platform offerings
Max NVMe drives:
  • Not Supported
Max physical disks:
  • 32 SAS/SATA

Front H740P Mini Mono View PERC

Enclosures per port

0

Cache:

8 GB DDR4 2133MT/s

RAID Level:

0, 1, 5, 6, 10, 50, 60

Non-RAID:

Yes

PCIe:

Gen 3

Supported Drives:



  • 6 Gbps SATA/SAS
  • 12 Gbps SAS
Max SAS/SATA disks:



  • 8 drives per controller
  • w/ SAS Expander: Limited by platform offerings
Max NVMe drives:



  • Not Supported
Max physical disks:



  • 32 SAS/SATA
 Summary of RAID levels Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:
  • RAID 0 Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.
  • RAID 1 Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.
  • RAID 5 Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.
  • RAID 6 Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.
  • RAID 10 Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.
  • RAID 50 Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.
  • RAID 60 Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.
