Dell EMC Unity 500 Hybrid
Clique ou role para ampliar
Toque ou belisque para ampliar
Dell EMC Unity 500 Hybrid
Clique ou role para ampliar
Toque ou belisque para ampliar
Dell EMC Unity 500 Hybrid
Clique ou role para ampliar
Toque ou belisque para ampliar
Dell EMC Unity 500 Hybrid
Dell EMC Unity 500 Hybrid

Dell EMC Unity 500 Hybrid

por Dell
R$ 0,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
Quick Specs Form Factor: 2U
Max Drives: 5/500
Max. raw capacity (PB): 8PB
Drives Supported: SAS, NL-SAS and Flash
Max DAE: 33
RAID Options: 1/0, 5, 6
Max Memory: 128GB
Supported Back-End I/O modules: Four-port 12-Gb/s SAS
I/O Supported:
Support for File, Block (FC, iSCSI & FCoE) and Unified

 12-drive DPE:
3.4” high x 17.5” wide x 27” deep (8.64 cm x 44.45 cm x 68.58 cm)
65 lb (29 kg)
25-drive DPE:
3.4” high x 17.5” wide x 24.17” deep (8.64 cm x 44.45 cm x 61.39 cm)
44 lb (20 kg)
Disk Array Enclosure (DAE)

The Dell EMC Unity 500 supports all three types of DAE’s with a max being either 33 DAE’s or 500 drives. When calculating the number of drives make sure to count the DPE drives as well in the total.

  • 2U 25-drive DAE with 2.5-inch drives FLASH and SAS
  • 3U 15-drive DAE with 3.5-inch drives FLASH, SAS and NL-SAS
  • 3U 80-drive DAE with 2.5-inch drives FLASH and SAS

If you are looking for rich features and absolute simplicity in a small footprint, if you are cost-conscious and need the best from the best, Dell EMC Unity Hybrid Flash is for you. Designed for flash with rich data services, it delivers flash performance with the cost advantage of disk.

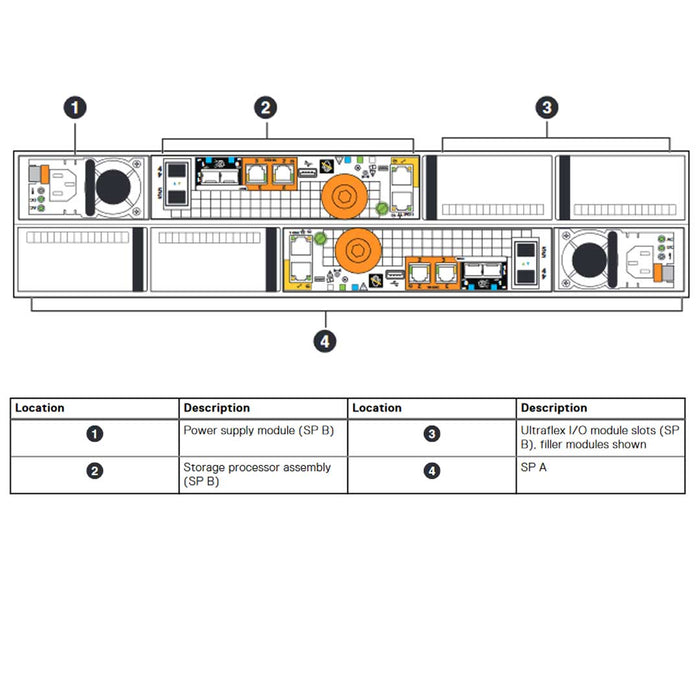

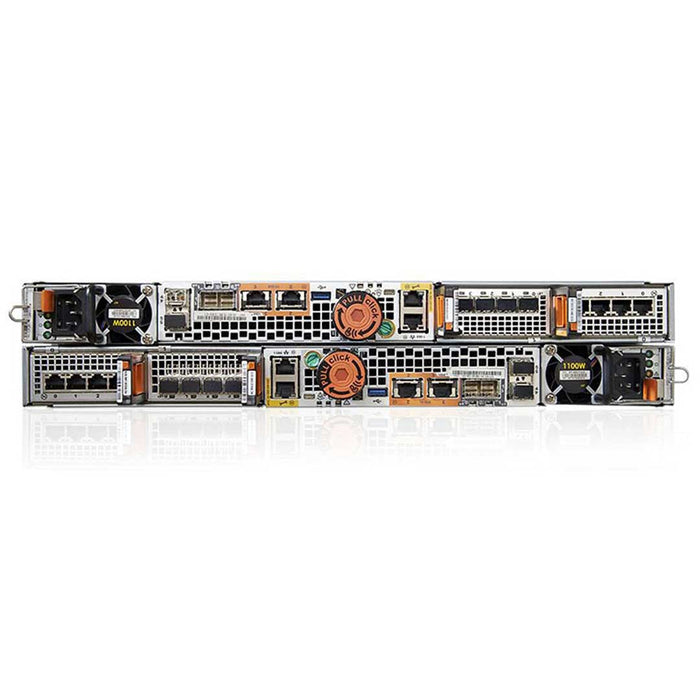

All Hybrid Models support 2 Drive Carrier types. The 12x3.5” and the 25x2.5”. Flash models only support the 25x2.5” model. Each unit has 2 Storage Processors (SP’s) in the rear with each 2 configurable ports and 2 Module slots that can hold up to 6 different modules.

The Dell EMC Unity hybrid models are the only ones to support FAST and FAST VP technology which helps with tiered storage and accessibility to high-frequency data.

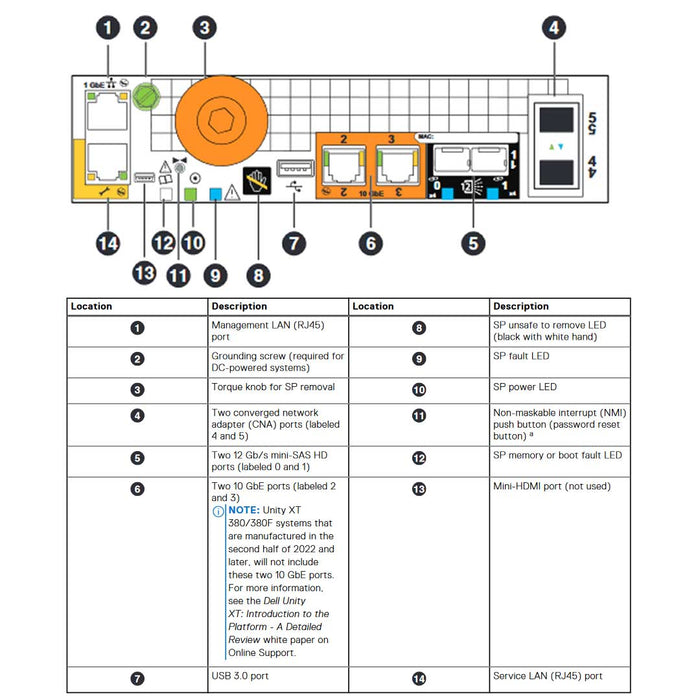

Storage Processor (SP):

The Dell EMC Unity 300 has 2 Storage Processors.

Each SP comes with:

  • Intel Xeon E5-2660 10-Core 2.6 GHz processor.
  • 4 16GB DDR4 DIMM for a total of 64GB Per SP
  • 2 embedded CNA ports (4 configurations possible)
  • 2 10GbaseT ports
  • 6 (2 embedded and 4 I/O mini-HD SAS ports)
  • 2 PCI 3.0, x8 lane I/O module slots (6 Modules supported)
CNA Ports:

Each SP contains two integrated CNA ports (labeled 4 and 5). These ports are PCI Express 3.0 x4 adapters that provide interfaces that can be configured as Ethernet, or Fibre Channel, but once set to a protocol, cannot be changed. If CNA ports are set to Ethernet, you can use 1Gb/s, 10Gb/s SFPs, Twin-AX for File (IP), or iSCSI Block access. If the ports are set to Fibre Channel, then you can use SFPs supporting 4, 8, 16 Gb/s FC multi-mode, or single-mode SFPs supporting 16Gb/s only.

2 ports, configurable as either:

  • 8/16 Gb Fibre Channel
  • 4/8/16 Gb Fibre Channel
  • 16 Gb Fibre Channel (single mode)
  • 1/10 Gb IP/iSCSI

Note: The four CNA ports cannot be configured independently; they must all be configured with the same network protocol.

I/O Modules:

Each SP has two slots that can support 6 different options.

  • Four-port 12-Gb/s SAS I/O module
  • Four-port 16-Gb/s Fibre Channel I/O module
  • Four-port 10-Gb/s optical I/O module
  • Four-port 10GBASE-T I/O module
  • Four-port 1GBASE-T I/O module
  • Two-port 10Gb/s optical I/O module

Note: When adding new I/O modules, always install I/O modules in pairs—one module in SP A and one module in SP B. Both SPs must have the same type of I/O modules in the same slots. Please read the manual below for more details to each module listed above.

Standby Power Supply
12 DPE

AC 100 to 240 VAC ± 10%, single phase, 47 to 63 Hz
DC Line Voltage -39 to -72 V DC (Nominal -48V or -60V power systems)

25 DPE

AC 100 to 240 VAC ± 10%, single phase, 47 to 63 Hz
DC Line Voltage -39 to -72 V DC (Nominal -48V or -60V power systems)

FAST Cache:

A feature that allows Flash drives to be configured as a large-capacity secondary cache for the pools on the system. Only allowed in a Hybrid Dell EMC Unity.

FAST VP:

Accelerates the performance of a specific storage pool by automatically moving data within that pool to the appropriate drive technology, based on data access patterns. For applications which are continuously active, consider configuring FAST VP relocations to run constantly.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
Quick Specs Form Factor: 2U
Max Drives: 5/500
Max. raw capacity (PB): 8PB
Drives Supported: SAS, NL-SAS and Flash
Max DAE: 33
RAID Options: 1/0, 5, 6
Max Memory: 128GB
Supported Back-End I/O modules: Four-port 12-Gb/s SAS
I/O Supported:
Support for File, Block (FC, iSCSI & FCoE) and Unified

 12-drive DPE:
3.4” high x 17.5” wide x 27” deep (8.64 cm x 44.45 cm x 68.58 cm)
65 lb (29 kg)
25-drive DPE:
3.4” high x 17.5” wide x 24.17” deep (8.64 cm x 44.45 cm x 61.39 cm)
44 lb (20 kg)
Disk Array Enclosure (DAE)

The Dell EMC Unity 500 supports all three types of DAE’s with a max being either 33 DAE’s or 500 drives. When calculating the number of drives make sure to count the DPE drives as well in the total.

  • 2U 25-drive DAE with 2.5-inch drives FLASH and SAS
  • 3U 15-drive DAE with 3.5-inch drives FLASH, SAS and NL-SAS
  • 3U 80-drive DAE with 2.5-inch drives FLASH and SAS

If you are looking for rich features and absolute simplicity in a small footprint, if you are cost-conscious and need the best from the best, Dell EMC Unity Hybrid Flash is for you. Designed for flash with rich data services, it delivers flash performance with the cost advantage of disk.

All Hybrid Models support 2 Drive Carrier types. The 12x3.5” and the 25x2.5”. Flash models only support the 25x2.5” model. Each unit has 2 Storage Processors (SP’s) in the rear with each 2 configurable ports and 2 Module slots that can hold up to 6 different modules.

The Dell EMC Unity hybrid models are the only ones to support FAST and FAST VP technology which helps with tiered storage and accessibility to high-frequency data.

Storage Processor (SP):

The Dell EMC Unity 300 has 2 Storage Processors.

Each SP comes with:

  • Intel Xeon E5-2660 10-Core 2.6 GHz processor.
  • 4 16GB DDR4 DIMM for a total of 64GB Per SP
  • 2 embedded CNA ports (4 configurations possible)
  • 2 10GbaseT ports
  • 6 (2 embedded and 4 I/O mini-HD SAS ports)
  • 2 PCI 3.0, x8 lane I/O module slots (6 Modules supported)
CNA Ports:

Each SP contains two integrated CNA ports (labeled 4 and 5). These ports are PCI Express 3.0 x4 adapters that provide interfaces that can be configured as Ethernet, or Fibre Channel, but once set to a protocol, cannot be changed. If CNA ports are set to Ethernet, you can use 1Gb/s, 10Gb/s SFPs, Twin-AX for File (IP), or iSCSI Block access. If the ports are set to Fibre Channel, then you can use SFPs supporting 4, 8, 16 Gb/s FC multi-mode, or single-mode SFPs supporting 16Gb/s only.

2 ports, configurable as either:

  • 8/16 Gb Fibre Channel
  • 4/8/16 Gb Fibre Channel
  • 16 Gb Fibre Channel (single mode)
  • 1/10 Gb IP/iSCSI

Note: The four CNA ports cannot be configured independently; they must all be configured with the same network protocol.

I/O Modules:

Each SP has two slots that can support 6 different options.

  • Four-port 12-Gb/s SAS I/O module
  • Four-port 16-Gb/s Fibre Channel I/O module
  • Four-port 10-Gb/s optical I/O module
  • Four-port 10GBASE-T I/O module
  • Four-port 1GBASE-T I/O module
  • Two-port 10Gb/s optical I/O module

Note: When adding new I/O modules, always install I/O modules in pairs—one module in SP A and one module in SP B. Both SPs must have the same type of I/O modules in the same slots. Please read the manual below for more details to each module listed above.

Standby Power Supply
12 DPE

AC 100 to 240 VAC ± 10%, single phase, 47 to 63 Hz
DC Line Voltage -39 to -72 V DC (Nominal -48V or -60V power systems)

25 DPE

AC 100 to 240 VAC ± 10%, single phase, 47 to 63 Hz
DC Line Voltage -39 to -72 V DC (Nominal -48V or -60V power systems)

FAST Cache:

A feature that allows Flash drives to be configured as a large-capacity secondary cache for the pools on the system. Only allowed in a Hybrid Dell EMC Unity.

FAST VP:

Accelerates the performance of a specific storage pool by automatically moving data within that pool to the appropriate drive technology, based on data access patterns. For applications which are continuously active, consider configuring FAST VP relocations to run constantly.
