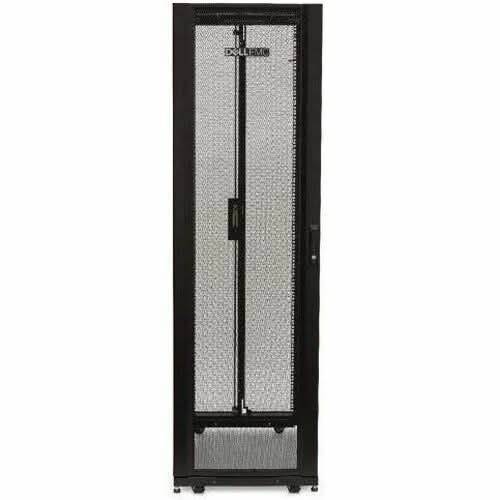

Dell AR3100X717 NetShelter SX Rack Cabinet
Dell cooling, power distribution, and cable management products work seamlessly with IT enclosures to provide a complete infrastructure support system. It is compatible with a variety of Dell rack accessory products to provide the ability to create a complete rack system.
NetShelter SX enclosures are optimized for use with high capacity cable management systems that attach to equipment mounting rails inside enclosures aligning with equipment mounting u-spaces and provide channels for routing and managing cabling.
Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor. Roof includes openings with brush strips pre-installed in locations biased towards the front of the enclosure to allow for data cable passthrough and provisions for air containment.
No need to spend hours choosing from and compiling dozens of part numbers to create a single enclosure. Dell has made it easy by handling the details and providing complete enclosures with single part numbers.
Perforated front and rear doors provide ample ventilation for servers and networking equipment. Front door perforated area is optimized with a curved profile to provide greater surface area and allowance of more perforation coverage and higher perforation rating.
Half-height quick release side panels reduce size and weight for easy handling and access to equipment. Side panels are lockable utilizing a single key with the doors. Now available are side panel options integrated with pass-through holes and brush strips for routing cabling to adjacent racks in a row while still maintaining proper airfow.
Roof can be removed with simple pull-pin hinges for access during equipment installation or even with cabling already in place and routed through the cable openings. Once removed the roof is reversible to reposition the larger cable openings for power distribution plugs and connectors.
- Rack Cabinet offers practical and convenient storage and organization solutions that are adaptable to your space
- Comes in black color for a sophisticated and dazzling loo
- Network Equipment application, usage offers maximum items, valuables, equipment organizational, storage, placement reliability
- Adjustable Depth feature for maximum items, valuables, equipment organizational, storage, placement efficiency, and convenience
|
| Application/Usage: Network Equipment,Server,PDU |
Package Contents:
- NetShelter SX Rack Cabinet
- Rack casters kit
- Rack leveling feet
- Side panels
- Front door
- Adjustable vertical mounting rails
- Keys
- Split perforated rear door
- Baying hardware
|
| Product Type: Rack Cabinet |
| Manufacturer Part Number: AR3100X717 |
| Manufacturer Website Address: http://www.delltechnologies.com |
| Packaged Quantity: 1 |
| Limited Warranty: 5 Year |
| Ventilation: Yes |
| Weight (Approximate): 275.58 lb |
| Features: Adjustable Depth,Cable Management,Perforated Door,Rear Door,Front Door,Lockable Side Panel,Key Lock,Leveling Feet,Casters |
| Manufacturer: Dell Technologies |
| Product Name: NetShelter SX Rack Cabinet |
| Product Line: NetShelter SX |
| Rack Width: 19" |
| Rack Height: 42U |
| Brand Name: Dell |
| Maximum Weight Capacity: 3007 lb |
| Product Color: Black |
| Color Family: Black |
| Rack Type: Enclosed Cabinet |
| Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
*
