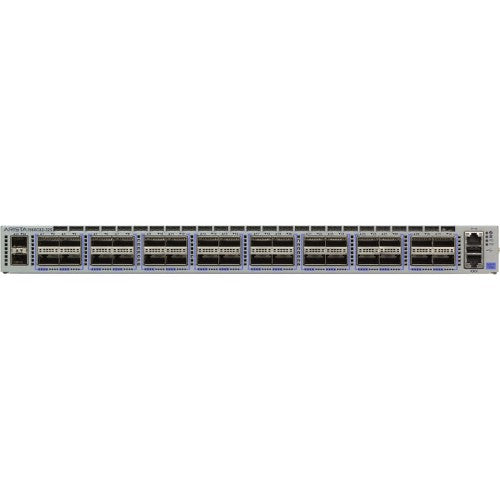

The Arista 7060CX2 is a high-performance data center switch featuring 32x 100GbE QSFP ports and 2x 10GbE SFP+ ports, delivering ultra-low latency, high switching capacity, and wire-speed Layer 2 and Layer 3 forwarding. Designed for cloud-scale networking, enterprise infrastructure, and hyperscale data centers, this switch supports flexible port configurations, including 100GbE, 40GbE, 4x10GbE, 4x25GbE, and 2x50GbE per port. Engineered for efficient thermal management, it features a back-to-front airflow design, ensuring optimal cooling for high-density networking environments. Powered by Arista EOS, the 7060CX2 integrates advanced telemetry, VXLAN, EVPN, Precision Time Protocol (PTP), CloudVision automation, and Zero Touch Provisioning (ZTP), making it a robust solution for scalable, next-generation network architectures.
| Specification |
Details |
| Model Number |
DCS-7060CX2-32S-R |
| Description |
High-capacity, fixed-configuration data center switch |
| Port Configuration |
- 32 x 100GbE QSFP ports
- 2 x 10GbE SFP+ ports |
| Performance |
- Switching capacity: Up to 6.4 Tbps
- Forwarding rate: Up to 3.3 billion packets per second
- Latency: As low as 450 nanoseconds
- Packet Buffer: 22 MB shared packet buffer |
| Design |
- Compact 1U form factor
- Rear-to-front airflow for efficient cooling
- Dimensions: 19 x 1.75 x 20.6 inches (48.3 x 4.4 x 52.3 cm)
- Weight: Approximately 22 lbs (10 kg) |
| Power Consumption |
Typical power consumption of under 7W per 100GbE port |
| Operating System |
Arista Extensible Operating System (EOS) |
| Advanced Features |
- Wire-speed L2 and L3 forwarding
- Support for 100GbE, 40GbE, 4x10GbE, 4x25GbE, and 2x50GbE per port
- Network virtualization support
- Advanced monitoring and network analysis tools
- Redundant and hot-swappable power supplies and fans
- VXLAN routing, bridging, and gateway capabilities
- LANZ for microburst detection
- DANZ for advanced mirroring and TAP aggregation
- Zero Touch Provisioning (ZTP) for simplified deployment
- Accelerated sFlow for enhanced network monitoring
- CloudVision for network-wide workload orchestration and workflow automation
- Precision Time Protocol (PTP) support for accurate time synchronization
- Designed for NEBS compliance
- Tool-less rails for simple installation
- Over 93% efficient power supplies |
| Compliance and Certifications |
- IEEE 802.3ba 40GbE and 100GbE
- RoHS-6 compliant |
FAQs:
What port configurations are supported by the Arista DCS-7060CX2-32S-R?
The switch offers 32 QSFP ports that can each support 100GbE, 40GbE, 4x10GbE, 4x25GbE, or 2x50GbE connections, providing flexible options for various network requirements. Additionally, it includes 2 SFP+ ports for 10GbE connectivity.
What is the latency of the DCS-7060CX2-32S-R switch?
The switch delivers low latency, with performance as low as 450 nanoseconds, making it suitable for high-performance computing and latency-sensitive applications.
Does the DCS-7060CX2-32S-R support network virtualization?
Yes, the switch supports network virtualization features, enabling seamless integration into modern virtualized data center environments.
What are the airflow options available for the DCS-7060CX2-32S-R?
The switch is designed with rear-to-front airflow, ensuring efficient cooling in data center deployments.
Is the DCS-7060CX2-32S-R suitable for high-density data center deployments?
Yes, with its compact 1U form factor and high port density, the switch is ideal for high-density data center environments requiring scalable and flexible network solutions.
