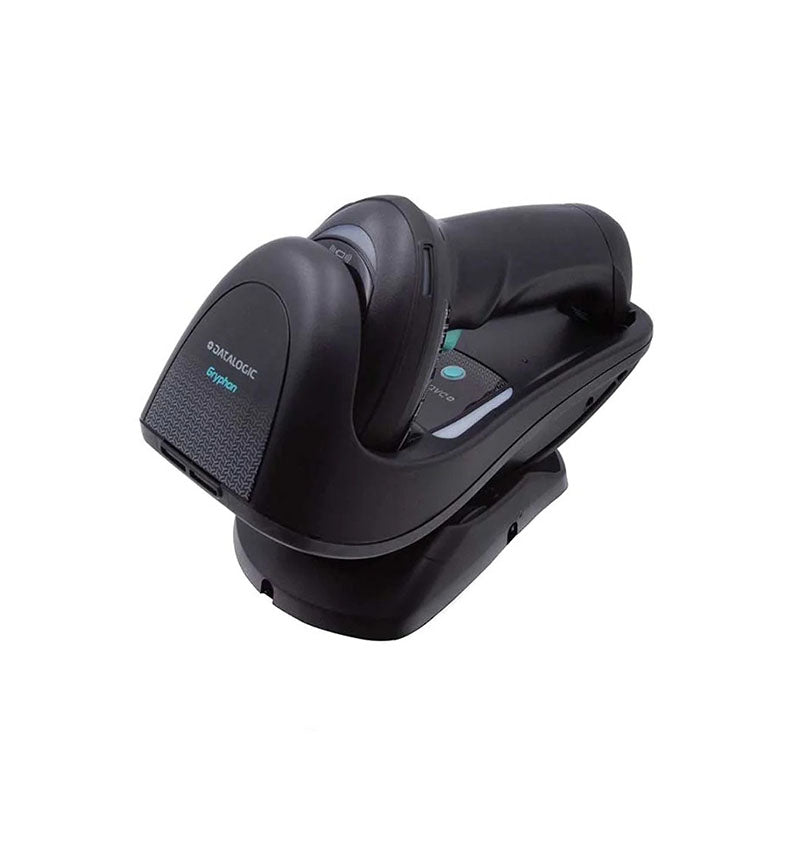

Datalogic Gryphon GM4500 2D-Imager Standard Range Omnidirectional USB, RF 910MHz Handheld Barcode Scanner - GM4500-BK-910K1

The Datalogic Gryphon GM4500-BK-910K1 is a cordless 2D area imager barcode scanner combining omnidirectional scanning, 910MHz RF wireless communication, and USB connectivity for high-throughput retail, warehouse, and light industrial scanning applications.

Key Features

• 2D area imager for omnidirectional scanning of 1D and 2D barcodes including QR and Data Matrix
• 910MHz RF wireless with up to 33-foot (10m) range from base station
• USB interface for plug-and-play connectivity with POS and inventory systems
• Datalogic's patented Green Spot visual feedback for good-read confirmation
• Ergonomic pistol-grip design for extended shift comfort

Product Specifications

• Part Number: GM4500-BK-910K1
• Manufacturer: Datalogic
• Scanner Type: 2D Area Imager (Omnidirectional)
• Wireless Technology: 910MHz RF
• Interface: USB (via base station)
• Color: Black

Communication Specifications

• Wireless Frequency: 910 MHz
• Wireless Range: Up to 10 meters (33 feet) line-of-sight
• Base Station: Included (cradle/charger with USB output)
• Battery: Rechargeable Li-Ion (charges in cradle)
• Battery Life: Up to 60,000 scans per charge
• Scan Rate: Up to 800 scans/second

Use Cases

• Retail point-of-sale scanning for 1D and 2D barcodes
• Warehouse receiving and inventory management with wireless mobility
• Light manufacturing parts tracking and work-in-process scanning
• Healthcare asset tracking requiring cordless 2D scan capability

Compatibility

• Compatible with standard USB HID and COM port emulation modes
• Works with major POS and WMS platforms including SAP, Oracle, and Microsoft Dynamics
• Compatible with Datalogic Aladdin configuration software for scanner customization
• Reads standard 1D (Code 39, Code 128, EAN, UPC) and 2D (QR, Data Matrix, PDF417) symbologies

Frequently Asked Questions

What is the range of the 910MHz wireless connection?

The Gryphon GM4500 operates up to 10 meters (33 feet) from the base station under line-of-sight conditions. Obstacles may reduce effective range.

Does the GM4500-BK-910K1 include a base station and cable?

Yes — the -910K1 configuration includes the scanner, 910MHz RF base station with USB cable, and rechargeable battery.

Can the GM4500 read damaged or poorly printed barcodes?

Yes — Datalogic's omnidirectional 2D imager with advanced decoding algorithms handles damaged, low-contrast, and poorly printed barcodes better than traditional laser scanners.

Built for scanning environments where speed, accuracy, and mobility matter, the Datalogic Gryphon GM4500-BK-910K1 delivers professional-grade 2D imaging performance with the freedom of 910MHz wireless — a reliable upgrade over tethered or 1D-only scanning solutions.
