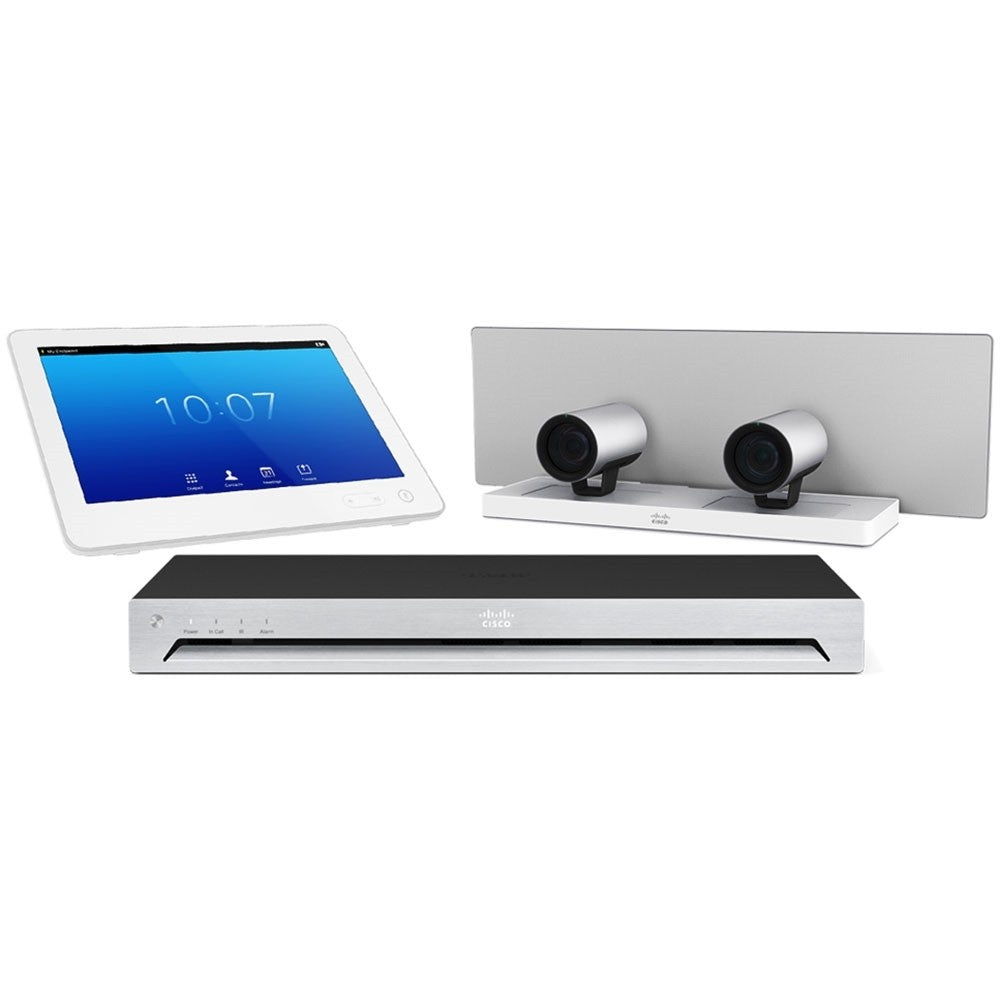

The Cisco TelePresence SX80 with SpeakerTrack 60 (CTS-SX80-IPST60-K9) is a premium enterprise-grade video conferencing solution designed for large boardrooms, executive meeting rooms, and high-profile collaboration spaces. This integrated solution combines the powerful SX80 Codec, the intelligent SpeakerTrack 60 dual-camera system, an integrated microphone array, and the intuitive Cisco Touch 10 controller to deliver an immersive and highly professional meeting experience.
At the core of the system is the SpeakerTrack 60, a dual-camera setup that automatically detects and frames active speakers in real time. With 1080p60 Full HD video, 10x optical zoom per camera, and a wide 83° field of view, participants are presented clearly and naturally, creating a cinematic, in-room experience for remote attendees. Automatic camera switching ensures meetings stay focused on the speaker without manual intervention.
The SX80 codec provides extensive professional AV connectivity, including multiple HDMI, VGA, and HD-SDI inputs, dual HDMI outputs, and eight balanced microphone inputs, making it ideal for complex room integrations. The integrated beam-forming microphone array, combined with advanced acoustic echo cancellation and noise reduction, ensures crystal-clear audio even in large spaces.
Supporting SIP and H.323 standards, the system interoperates seamlessly with Cisco Webex and third-party video conferencing platforms. The Cisco Touch 10 controller offers a simple, intuitive user experience, while enterprise-grade security features such as secure boot, TPM, HTTPS/SSH management, and 802.1X authentication protect communications and device access.
Designed for reliability, scalability, and professional collaboration, the Cisco SX80 with SpeakerTrack 60 is an ideal solution for organizations that require intelligent speaker tracking, superior audio quality, and robust integration capabilities in mission-critical meeting environments.
Product Specifications – Cisco TelePresence SX80 with SpeakerTrack 60 (CTS-SX80-IPST60-K9)
CLICK HERE FOR DATA SHEET
| Category |
Specification Details |
| Product Name |
Cisco TelePresence SX80 with SpeakerTrack 60 |
| Model Number |
CTS-SX80-IPST60-K9 |
| Product Series |
Cisco TelePresence SX Series |
| Product Type |
High-End Video Conferencing System |
| Target Deployment |
Large Conference Rooms, Boardrooms, Executive Meeting Spaces |
| System Components Included |
SX80 Codec, SpeakerTrack 60 Camera, Microphone Array, Touch 10 Controller |
| Camera System |
SpeakerTrack 60 Dual-Camera Intelligent Tracking System |
| Camera Resolution |
Full HD 1080p at 60 fps |
| Optical Zoom |
10× Optical Zoom (per camera) |
| Field of View (H / V) |
83° Horizontal / 51° Vertical |
| Speaker Tracking |
Automatic Active Speaker Detection & Switching |
| Camera Control |
Fully Automatic (Manual override supported) |
| Audio Capture |
Integrated Beam-Forming Microphone Array |
| Audio Processing |
Acoustic Echo Cancellation, Noise Reduction, Automatic Gain Control |
| Audio Inputs (Codec) |
8 × Balanced Microphone/Line Inputs (Phoenix) |
| Audio Outputs |
Balanced Line Out, HDMI Audio, S/PDIF |
| Video Inputs (Codec) |
3 × HDMI, 2 × VGA, 2 × HD-SDI |
| Video Outputs (Codec) |
2 × HDMI |
| Additional Audio Interfaces |
HDMI Audio Input, USB Audio |
| Network Interfaces |
2 × Gigabit Ethernet |
| Call Signaling Protocols |
SIP, H.323 |
| Video Standards & Codecs |
H.264, H.263 |
| Content Sharing Protocols |
H.239 (H.323), BFCP (SIP) |
| Dual Stream Support |
Yes (Video + Presentation) |
| Touch Controller |
Cisco Touch 10 (10-inch Capacitive Touchscreen) |
| Control Connectivity |
Ethernet / PoE |
| Custom UI & API Support |
Yes |
| Security Features |
Secure Boot, TPM, HTTPS, SSH |
| Network Security |
IEEE 802.1X Authentication |
| Power Supply |
100–240V AC, 50/60 Hz |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Operating Humidity |
10% to 90% (Non-Condensing) |
| Mounting Options |
Wall Mount or Table Placement |
| System Form Factor |
Modular, Professional AV Design |
| Interoperability |
Cisco Webex, SIP/H.323 Third-Party Platforms |
| Management Interfaces |
Web GUI, API, Cisco Management Tools |
| High Availability |
Dual Network Ports, Professional-Grade Components |
| Use Case – Boardroom |
Executive Video Conferencing |
| Use Case – Collaboration |
Intelligent Speaker Framing & Audio Clarity |
| Use Case – Enterprise |
Mission-Critical Video Collaboration |
| Package Contents |
SX80 Codec, SpeakerTrack 60 Cameras, Microphones, Touch 10, Power Accessories |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs for CTS-SX80-IPST60-K9:
What makes SpeakerTrack 60 different from regular PTZ cameras?
SpeakerTrack 60 uses dual cameras and facial recognition to automatically track and switch to the active speaker, creating a dynamic, immersive conferencing experience.
Can the SX80 Codec support multiple displays?
Yes, the codec supports dual-display output for simultaneous content and speaker views.
Is this system compatible with Cisco Webex?
Yes, it integrates with Cisco Webex and other SIP/H.323 standards-compliant platforms.
Can the system be ceiling-mounted?
While the SpeakerTrack 60 is typically wall-mounted, custom ceiling mounts are possible with third-party solutions.
Does it require a separate audio DSP?
No, the SX80 includes built-in audio processing with echo cancellation and beamforming mic support.
