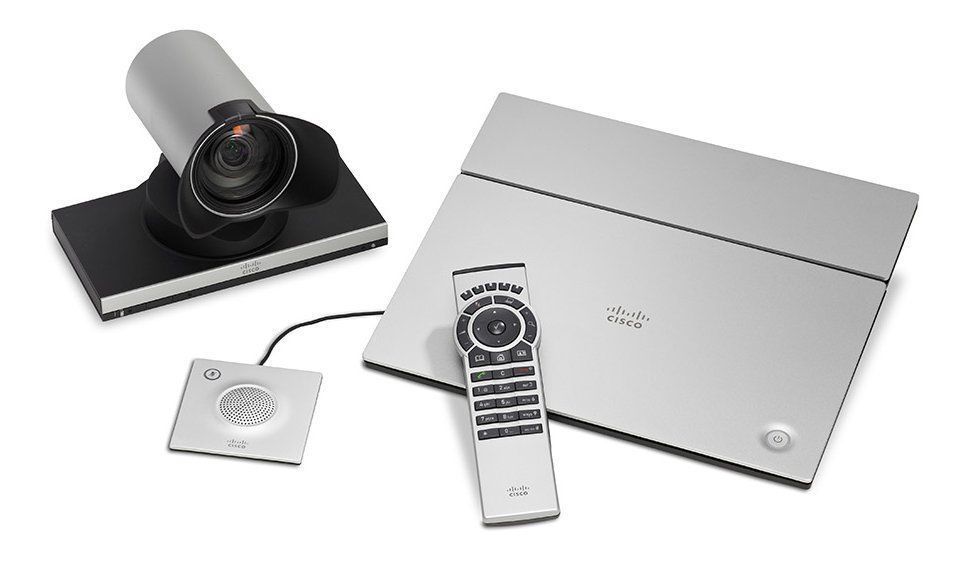

The Cisco CTS-SX20N-P40-K9 TelePresence SX20 Quick Set transforms any flat-panel display into a professional-grade video conferencing system. Designed for small to medium meeting rooms, this solution combines the powerful SX20 codec with the Precision 40 camera to deliver crystal-clear 1080p60 Full HD video, smooth content sharing, and seamless collaboration.
The Precision 40 camera provides a wide 70° field of view and 4× optical zoom, ensuring every participant is clearly visible. With support for SIP and H.323 protocols, dual-display capability, and high-definition content sharing via H.239 and BFCP, the SX20 Quick Set enables immersive and productive meetings across global teams.
Engineered for flexibility, the system supports dual screens, multiple audio inputs, and integration with Cisco collaboration platforms including CUCM, VCS, and Webex. Advanced audio processing with echo cancellation and noise reduction ensures clear communication, while encrypted signaling and media provide enterprise-grade security.
Ideal for corporate conference rooms, team collaboration spaces, and remote business meetings, the Cisco SX20 Quick Set delivers reliable performance, intuitive control, and professional video quality in a compact, easy-to-deploy solution.
Product Specifications – Cisco CTS-SX20N-P40-K9 Video Conferencing System
| Specification Category |
Details |
| Product Name |
Cisco TelePresence SX20 Quick Set with Precision 40 Camera |
| Model Number |
CTS-SX20N-P40-K9 |
| Manufacturer |
Cisco Systems |
| Product Type |
Video Conferencing Codec & Camera Kit |
| System Components |
SX20 Codec, Precision 40 Camera, TRC6 Remote Control |
| Ideal Room Size |
Small to medium meeting rooms |
| Video Resolution |
Up to 1080p60 Full HD |
| Camera Model |
Precision 40 (P40) |
| Camera Zoom |
4× optical zoom / 8× total zoom |
| Field of View |
70° horizontal |
| Camera Mounting Options |
Wall mount, display mount, shelf placement |
| Video Inputs |
1 × HDMI (camera), 1 × DVI-I (PC/content) |
| Video Outputs |
2 × HDMI (dual display support) |
| Content Sharing |
H.239 & BFCP content sharing up to 1080p15 |
| Audio Inputs |
2 × 3.5mm microphone inputs, 1 × HDMI audio, 1 × stereo line-in |
| Audio Outputs |
HDMI audio output, line-level audio output |
| Audio Features |
Acoustic echo cancellation, automatic gain control, noise reduction |
| Protocols Supported |
SIP, H.323, Cisco Unified Communications Manager (CUCM) |
| Network Interface |
1 × 10/100/1000 Gigabit Ethernet |
| Dual Display Support |
Yes (license key required for second display) |
| Remote Control |
TRC6 Infrared Remote |
| Control Options |
Remote control, web interface, Touch controller (optional) |
| Registration Options |
Cisco VCS, CUCM, Cisco Webex Cloud |
| Security Features |
Encrypted signaling & media, HTTPS management, secure provisioning |
| Power Supply |
External power adapter |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Mounting & Installation |
Wall, shelf, or behind-display mounting |
| Design |
Compact codec with low-profile camera |
| Interoperability |
Compatible with Cisco collaboration endpoints & third-party SIP/H.323 systems |
| Use Cases |
Conference rooms, team collaboration spaces, remote meetings, executive communications |
Additional Notes:
The SX20 Quick Set platform supports optional Cisco Touch controllers, additional microphones, and integration with Cisco collaboration infrastructure for enhanced meeting control and scalability.
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs:
Q1. What is the difference between the Precision 40 and the Precision 12 camera?
The Precision 40 (included in this kit) features a 4x optical zoom, suitable for small to medium rooms. The Precision 12 camera offers a 12x optical zoom, designed for larger boardrooms where participants are seated further from the screen.
Q2. Does the SX20 support MultiSite (calling multiple people at once)?
Yes, but it requires a separate MultiSite (MS) option license key. Once activated, the SX20 can host an internal bridge for up to 4 participants (at 576p resolution).
Q3. Can I use this with Zoom or Microsoft Teams?
While natively a SIP/H.323 device, you can connect the SX20 to Zoom or Teams via a cloud interoperability service (like Cisco Webex Video Integration, Pexip, or BlueJeans).
Q4. Does this kit include a microphone?
Typically, the SX20 Quick Set includes one Cisco Table Microphone 20. It is always best to verify with your supplier if the microphone is bundled in the specific "N" (New) package.
Q5. Is the TRC6 remote different from the older TRC5?
Yes, the TRC6 features a more ergonomic design and a simplified button layout specifically optimized for the newer Cisco Collaboration Endpoint software.
