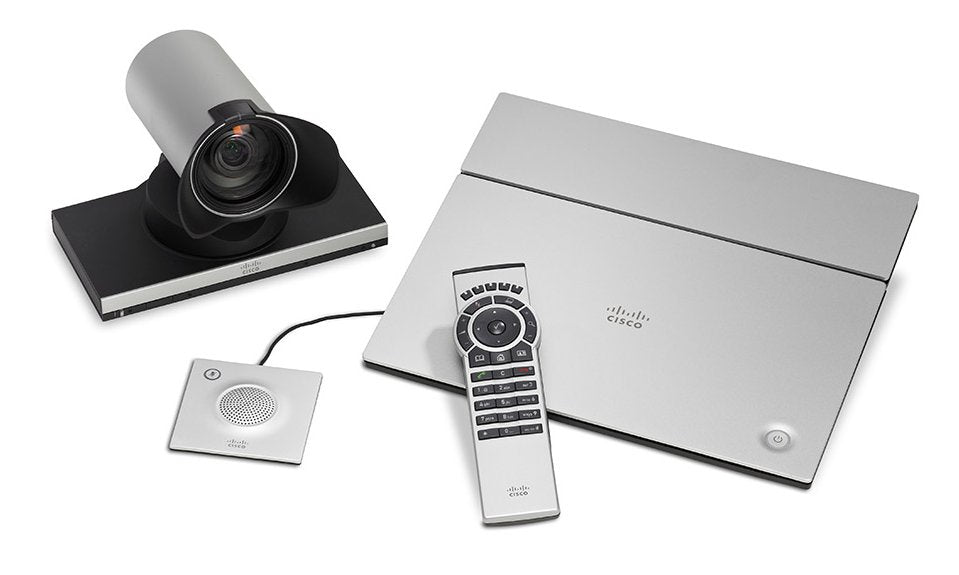

The Cisco TelePresence SX20 Quick Set with PrecisionHD 4x Camera (CTS-SX20-PHD4X-K9) is a compact, high-quality video conferencing solution designed for small to medium-sized meeting rooms. It transforms any standard flat-panel display into a professional-grade collaboration system, delivering crystal-clear 1080p60 HD video, rich audio, and seamless content sharing.
Powered by the reliable Cisco TelePresence SX20 codec and running Cisco TC7 software, the SX20 Quick Set supports industry-standard SIP and H.323 protocols, ensuring broad interoperability with Cisco and third-party video conferencing platforms. The included PrecisionHD 1080p 4x optical zoom camera provides a wide 70° field of view, smooth pan/tilt control, and both near-end and far-end camera management - ideal for dynamic meeting environments.
The system supports dual display operation, allowing simultaneous presentation of people and content, with 1080p presentation sharing via HDMI or DVI. Advanced audio processing - including wideband audio, echo cancellation, and an integrated audio mixer - ensures natural, distraction-free conversations. Compatibility with Cisco Table Microphone 20 and 60 provides flexibility for different room sizes and layouts.
Designed for ease of deployment, the SX20 features a compact form factor, flexible wall or VESA mounting options, and intuitive control via the included Cisco TRC5 remote or web-based management interface. Secure management and firewall traversal capabilities make it suitable for enterprise networks with strict security requirements.
With its balance of performance, simplicity, and standards-based interoperability, the Cisco TelePresence SX20 Quick Set is an ideal solution for organizations seeking reliable HD video collaboration without the complexity of large room systems.
Product Specifications – Cisco TelePresence SX20 Quick Set with PrecisionHD 4x Camera (CTS-SX20-PHD4X-K9)
CLICK HERE FOR DATA SHEET
| Category |
Specification Details |
| Product Name |
Cisco TelePresence SX20 Quick Set |
| Model Number |
CTS-SX20-PHD4X-K9 |
| Product Series |
Cisco TelePresence SX Series |
| Product Type |
Video Conferencing Endpoint |
| Target Deployment |
Small to Medium Meeting Rooms |
| Form Factor |
Compact Codec + External Camera |
| Camera Model |
Cisco PrecisionHD 1080p 4x Camera |
| Camera Zoom |
4x Optical Zoom |
| Video Resolution |
Up to 1080p at 60 fps |
| Field of View (Horizontal) |
70° |
| Pan / Tilt |
Supported (Remote-Controlled) |
| Camera Control |
Near-End and Far-End Control |
| Video Codec |
Cisco TelePresence SX20 Codec |
| Video Inputs |
1 × HDMI, 1 × DVI-I |
| Video Outputs |
1 × HDMI (Main Display) |
| Dual Display Support |
Yes |
| Presentation Resolution |
1080p @ 5 fps |
| Content Sharing Protocols |
H.239 (H.323), BFCP (SIP) |
| Audio Inputs |
2 × Microphone Inputs, 1 × Line-In |
| Audio Outputs |
1 × Line-Out (HDMI Audio Supported) |
| Audio Features |
Wideband Audio, Echo Cancellation, Integrated Audio Mixer |
| Microphone Support |
Cisco Table Microphone 20, Cisco Table Microphone 60 |
| Network Interface |
1 × 10/100/1000 Mbps Ethernet |
| Supported Protocols |
SIP, H.323 |
| Interoperability |
Standards-Based, Multi-Vendor Compatible |
| Software Platform |
Cisco TC7 Software |
| Remote Control |
Cisco TRC5 Remote (Included) |
| Web Interface |
Supported |
| Management Protocols |
SNMP, SSH, XML API, Web GUI |
| Firewall Traversal |
H.460.18, H.460.19 |
| Secure Management |
HTTPS, SSH |
| Software Upgrades |
Via Cisco TMS or Web GUI |
| Mounting Options |
Wall Mount, VESA Screen Mount |
| Display Compatibility |
Works with Most HD Flat-Panel Displays |
| Power Input |
100–240 VAC, 50/60 Hz |
| Typical Power Consumption |
~20 W (Excluding Display) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Operating Humidity |
10% to 90% (Non-Condensing) |
| Security Features |
Encrypted Signaling, Secure Management |
| Ease of Deployment |
Plug-and-Play, Compact Design |
| Use Case – Collaboration |
HD Video Meetings & Presentations |
| Use Case – Enterprise |
Conference Rooms, Huddle Spaces |
| Package Contents |
SX20 Codec, PrecisionHD 4x Camera, TRC5 Remote, Cables, Power Supply, Mounting Accessories |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs for CTS-SX20-PHD4X-K9:
What’s the main difference between the SX20 and SX10?
The SX20 offers higher resolution, camera zoom, and input/output flexibility compared to the SX10, which is more basic.
Does this bundle include a display screen?
No, the bundle includes the codec, camera, and remote. A compatible display must be purchased separately.
Can I use it with third-party conferencing platforms?
Yes, the SX20 supports industry-standard SIP and H.323 protocols for broad interoperability.
Is the camera detachable or fixed?
The PrecisionHD 4x camera is a separate unit connected to the codec and can be mounted independently.
Does it support dual displays?
Yes, the SX20 supports dual monitor setups for simultaneous video and content sharing.
