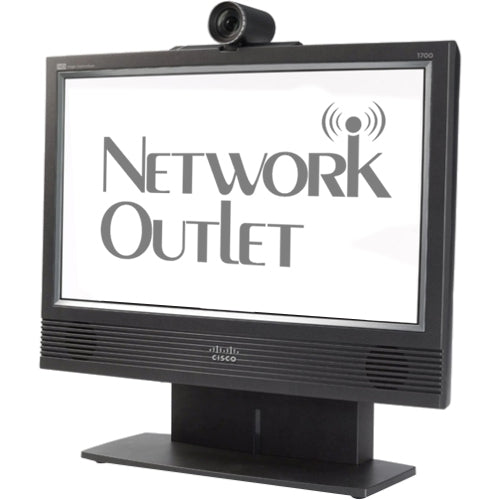

The Cisco CTS-1700-K9 TelePresence 1700 MXP is a professional video conferencing system designed for executive offices, boardrooms, enterprise collaboration, and distributed business teams. Featuring an integrated 20-inch widescreen display and HD camera, it delivers high-quality video and professional audio for reliable face-to-face communication. The system supports SIP and H.323 conferencing protocols and integrates with compatible Cisco TelePresence and collaboration infrastructure.
Supporting H.261, H.263, and H.264 video codecs, the CTS-1700-K9 provides resolutions up to 720p, along with PC presentation capabilities and dual-stream content sharing through DuoVideo, H.239, and BFCP. Its audio capabilities include G.711, G.722, G.722.1, G.728, and AAC-LD, complemented by acoustic echo cancellation, automatic gain control, and noise reduction. Optional MultiSite functionality supports conferencing across multiple video and audio sites.
The Cisco CTS-1700-K9 TelePresence 1700 MXP is an ideal solution for enterprise video conferencing, executive boardrooms, corporate collaboration, remote meetings, government communication, and distance learning. Its standards-based interoperability, content-sharing capabilities, integrated security features, and Cisco infrastructure compatibility make it suitable for organizations maintaining or expanding professional video collaboration environments.
Product Specifications - Cisco CTS-1700-K9 TelePresence System 1700 MXP Video Conferencing System
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco CTS-1700-K9 TelePresence System 1700 MXP |
| Manufacturer |
Cisco Systems |
| Part Number |
CTS-1700-K9 |
| Product Series |
Cisco TelePresence MXP Series |
| Product Type |
TelePresence Video Conferencing System |
| System Design |
All-in-One Executive Collaboration System |
| Display |
Integrated 20-inch Widescreen LCD |
| Camera |
Compact HD Camera |
| Video Codec |
H.261, H.263, H.264 |
| Maximum Video Resolution |
Up to 720p, System/Call Rate Dependent |
| Video Frame Rate |
Up to 30 fps at 168 kbps and above; up to 60 fields/sec at 336 kbps and above |
| Video Standards |
H.261, H.263, H.264 |
| Supported Video Resolutions |
CIF, 4CIF, 4SIF, VGA, SVGA, XGA, WXGA, w288p, w448p, w576p and w720p |
| Native PC Resolution |
XGA 1024 × 768 |
| PC Resolutions |
VGA 640 × 480, SVGA 800 × 600, XGA 1024 × 768, WXGA 1280 × 768 |
| Audio Standards |
G.711, G.722, G.722.1, G.728 and MPEG-4 AAC-LD |
| Audio Quality |
CD-Quality 20 kHz Mono and Stereo |
| Built-in Microphones |
2 |
| Audio Processing |
Acoustic Echo Cancellation, Automatic Gain Control and Automatic Noise Reduction |
| Audio Inputs |
PC Audio Input, Headset Microphone |
| Audio Outputs |
Headset Loudspeaker and Integrated Audio System |
| Dual Stream |
DuoVideo, H.239 and BFCP |
| Presentation Support |
PC Presentation and Dual-Stream Content Sharing |
| MultiSite |
Up to 4 Video Sites + 3 Audio Sites with Embedded MultiSite Option |
| MultiSite Transcoding |
Supported with Embedded MultiSite |
| Maximum H.323 Bandwidth |
Up to 2 Mbps |
| Maximum SIP Bandwidth |
Up to 2 Mbps |
| Maximum MultiSite Bandwidth |
Up to 2.3 Mbps Total |
| Call Protocols |
H.323 and SIP |
| Telephony / VoIP |
Supported |
| URI Dialing |
Supported |
| Direct DNS Dialing |
Supported |
| Network Features |
Dynamic Bandwidth Adjustment, IP Downspeeding and Programmable Network Profiles |
| Call Management |
Intelligent Call Management and Maximum Call Length Timer |
| Encryption |
Integrated Encryption Support |
| Authentication |
H.235 and IEEE 802.1X |
| Network Interface |
Ethernet |
| Video Interfaces |
Video and PC Presentation Interfaces, System Configuration Dependent |
| Audio Interfaces |
Analog Audio Inputs/Outputs and Headset Connectivity |
| Cisco Management |
Cisco Unified Communications / Cisco VCS Integration |
| Collaboration Infrastructure |
Cisco TelePresence Infrastructure |
| Software |
Cisco TelePresence MXP Software |
| Unified Communications |
Cisco Unified Communications Environment Support |
| VCS Compatibility |
Cisco Video Communication Server (VCS) |
| CUCM Compatibility |
Cisco Unified Communications Manager, Software/Deployment Dependent |
| Interoperability |
SIP, H.323 and Cisco TelePresence Endpoints |
| Content Sharing |
Supported |
| Security |
Encrypted Communications and Network Authentication |
| Installation |
Executive Office / Boardroom Collaboration System |
| Deployment |
Enterprise Collaboration and Video Conferencing |
| Application |
Executive Video Conferencing, Remote Collaboration and Distance Learning |
| Condition |
Refurbished |
| Use Cases |
Executive Boardrooms, Enterprise Video Conferencing, Corporate Collaboration, Remote Meetings, Government Communication, Educational Distance Learning |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs
Q1. What is the Cisco CTS-1700-K9?
The Cisco CTS-1700-K9 is a Cisco TelePresence System 1700 MXP designed to provide enterprise-grade high-definition video conferencing, secure collaboration, and interoperability with Cisco Unified Communications environments.
Q2. Who should buy the Cisco CTS-1700-K9?
The Cisco CTS-1700-K9 is ideal for enterprises, government agencies, healthcare organizations, educational institutions, and businesses requiring professional video conferencing and secure collaboration.
Q3. Is a refurbished Cisco CTS-1700-K9 worth buying?
Yes. A professionally refurbished Cisco CTS-1700-K9 provides reliable enterprise video conferencing capabilities at a significantly lower cost, making it a practical choice for organizations expanding collaboration infrastructure.
Q4. Which communication protocols does the Cisco CTS-1700-K9 support?
The Cisco CTS-1700-K9 supports industry-standard SIP and H.323 protocols, enabling interoperability with Cisco collaboration platforms and compatible third-party conferencing solutions.
Q5. Is the Cisco CTS-1700-K9 still supported by Cisco?
The Cisco CTS-1700-K9 has reached end-of-life status, and Cisco recommends migration to newer TelePresence endpoints such as the Cisco EX Series for continued support and enhanced collaboration capabilities.
