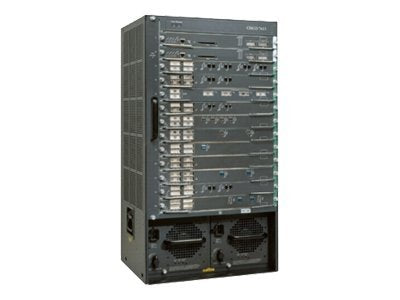

The Cisco CISCO7613 is a high-performance 13-slot modular router chassis from the renowned Cisco 7600 Series, engineered for service provider edge networks, enterprise WAN aggregation, Metro Ethernet services, and large-scale backbone infrastructures. Designed to deliver carrier-grade reliability, scalability, and high throughput, the Cisco 7613 provides a flexible platform capable of supporting demanding data, voice, and video applications.
Featuring a modular architecture with up to 12 interface slots and a dedicated route processor slot, the CISCO7613 enables organizations to deploy a customized networking solution using a wide range of Cisco line cards, service modules, and supervisor engines. Its scalable design allows businesses and service providers to expand network capacity as requirements evolve.
Powered by the RSP720 Route Switch Processor, the chassis can deliver up to 720 Gbps switching capacity and support distributed forwarding performance of up to 400 million packets per second (Mpps). This high-performance architecture ensures efficient traffic handling for bandwidth-intensive enterprise and carrier applications.
The Cisco 7613 supports advanced networking technologies including MPLS, IPv4, IPv6, Quality of Service (QoS), hardware-based forwarding, traffic engineering, and service integration modules. Organizations can further enhance network functionality with optional firewall, VPN, intrusion prevention, and content services modules.
Built for mission-critical environments, the chassis offers 1+1 route processor redundancy, redundant power supplies, integrated cooling systems, and hot-swappable components, ensuring maximum uptime and operational continuity. Its carrier-class design makes it ideal for deployments where network availability and reliability are essential.
Running on Cisco IOS Software, the Cisco CISCO7613 provides comprehensive management, security, and routing capabilities for complex enterprise and service provider networks.
Ideal for service provider edge routing, enterprise WAN aggregation, Metro Ethernet networks, data center interconnects, and high-capacity backbone infrastructures, the Cisco CISCO7613 Router Chassis delivers the scalability, performance, and reliability required for modern mission-critical networking environments.
Product Specifications – Cisco CISCO7613 7600 Series 13-Slot Modular Router Chassis
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco CISCO7613 7600 Series Router Chassis |
| Manufacturer |
Cisco Systems |
| Part Number |
CISCO7613 |
| Product Series |
Cisco 7600 Series |
| Product Type |
Modular Router Chassis |
| Chassis Slots |
13-Slot Modular Chassis |
| Usable Slots |
Up to 12 Interface Slots + 1 Route Processor Slot |
| Architecture |
Modular Chassis-Based Routing Architecture |
| Switching Capacity |
Up to 720 Gbps (with RSP720) |
| Forwarding Performance |
Up to 400 Mpps Distributed Forwarding |
| Supervisor / Route Processor Support |
RSP720 and Compatible Supervisor Engines |
| Interface Support |
Ethernet, WAN, MAN, Metro Ethernet, MPLS Interfaces |
| Line Card Support |
Wide Range of Cisco 7600 Series Line Cards |
| Service Module Support |
Firewall, IDS/IPS, VPN, Content Services Modules |
| Layer Support |
Layer 2 and Layer 3 Services |
| MPLS Support |
Yes |
| IPv4 Support |
Yes |
| IPv6 Support |
Yes |
| QoS Features |
Advanced Traffic Classification, Shaping and Prioritization |
| Security Features |
ACLs, QoS Policies, Hardware-Based Forwarding, Service Modules |
| Redundancy |
1+1 Route Processor and Power Supply Redundancy |
| High Availability |
Stateful Failover and Redundant Components |
| Cooling System |
Integrated Fan Tray |
| Airflow Design |
Side-to-Side Airflow |
| Power Supply Options |
AC and DC Power Supplies Supported |
| Hot-Swappable Components |
Line Cards, Power Supplies, Fan Trays |
| Operating System |
Cisco IOS |
| Management |
CLI, SNMP, Cisco Network Management Tools |
| Form Factor |
Rack-Mountable Chassis (~18RU) |
| Deployment Type |
Core, Aggregation, Service Provider Edge |
| Application |
WAN Aggregation, Metro Ethernet, Enterprise Core Routing |
| SD-WAN Support |
Not Applicable |
| Region Variant |
Global |
| Environment |
Enterprise, Telecom, ISP Networks |
| Reliability |
Carrier-Grade Availability |
| Condition |
New / Refurbished / Cisco Certified |
| Use Cases |
Service Provider Edge, Enterprise WAN, Metro Networks, Backbone Infrastructure |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs
Q1. How many slots does the Cisco 7613 chassis have?
It has 13 slots, with up to 12 usable for interface modules.
Q2. What is the maximum throughput?
It supports up to 720 Gbps with appropriate processors.
Q3. Is this chassis modular?
Yes, it is fully modular, allowing different line cards and modules based on needs.
Q4. Does it support redundancy?
Yes, it supports redundant processors, power supplies, and cooling systems.
Q5. What environments is it best suited for?
It is ideal for service provider networks, enterprise cores, and WAN aggregation deployments.
