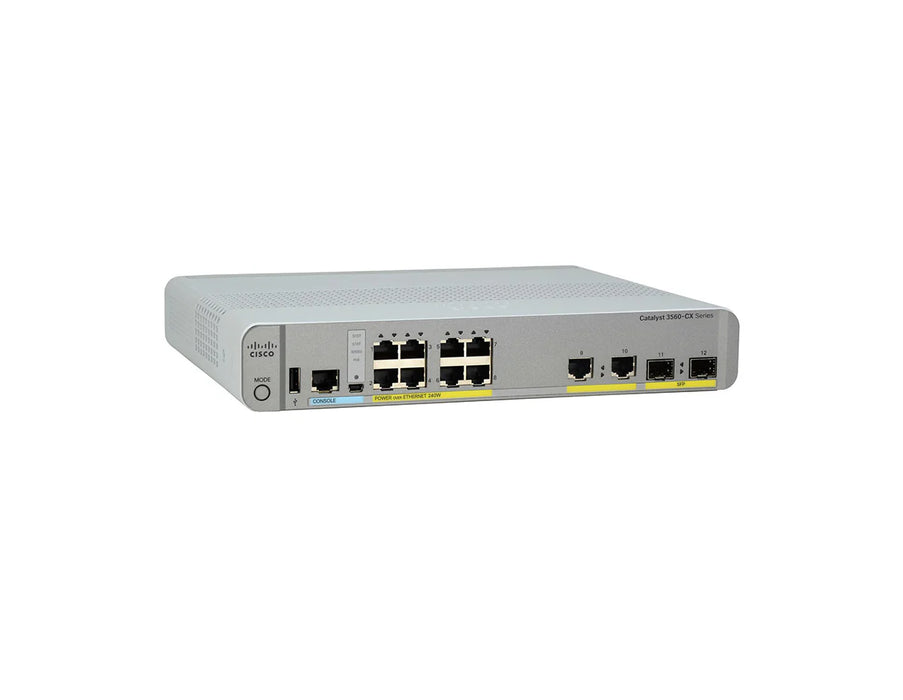

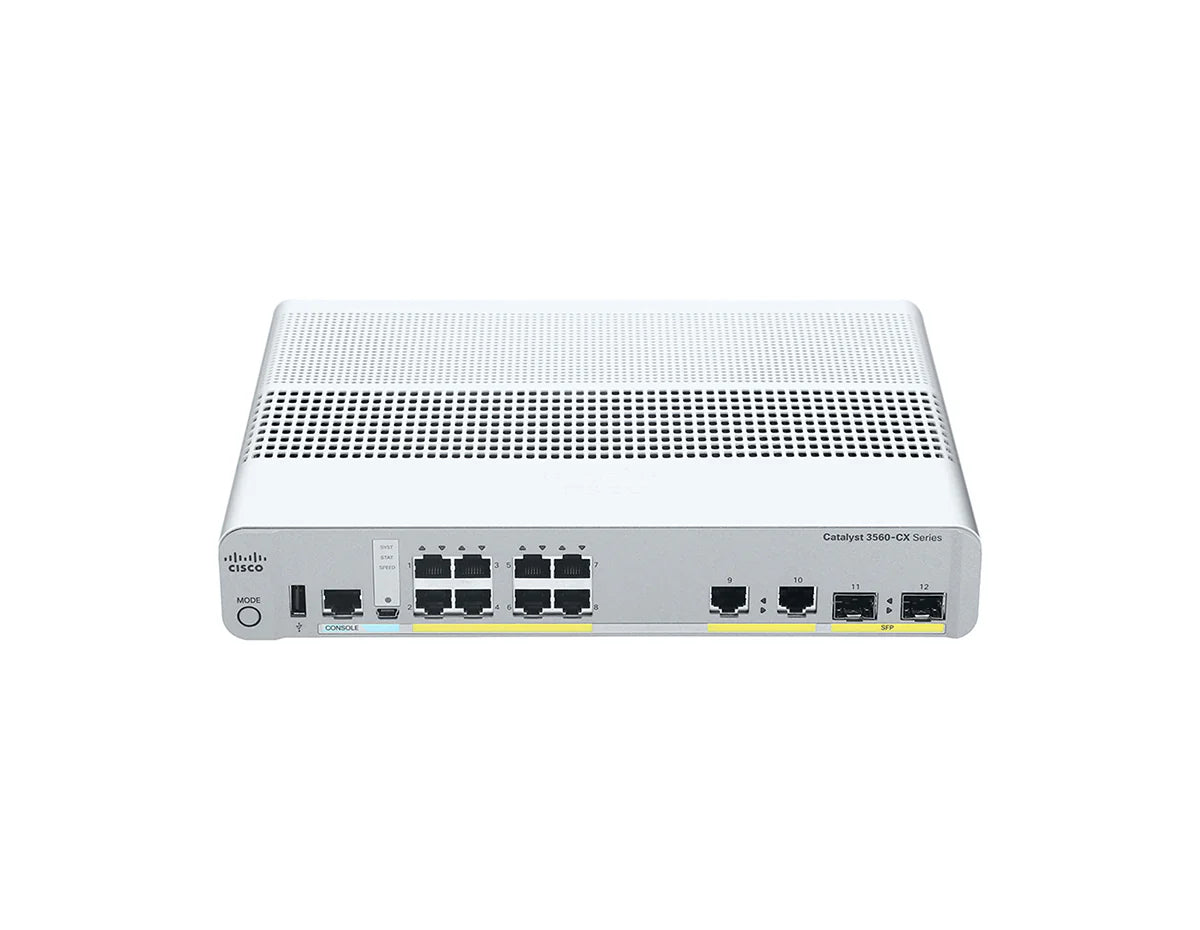

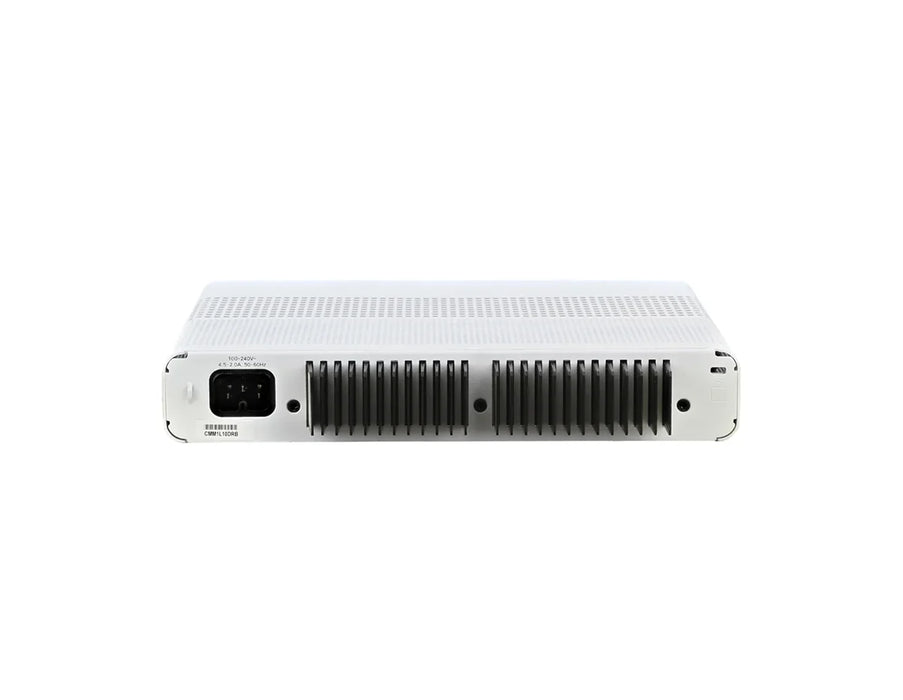

Cisco WS-C3560CX-8XPD-S Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco WS-C3560CX-8XPD-S Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco WS-C3560CX-8XPD-S Switch
Cisco WS-C3560CX-8XPD-S Switch

Cisco WS-C3560CX-8XPD-S Switch

por Cisco
Desconto de 45%
R$ 48.744,60
R$ 26.820,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Managed, Fanless, 6 x 1G ports + 2 x Multigigabit ports, 2 x 10G SFP+ Uplinks, PoE+ (240W), Layer 3
    [/shortdesc]

[properties]

Properties WS-C3560CX-8XPD-S
Description 3560-CX Switch 6 GE PoE+, 2 MultiGE PoE+, uplinks: 2 x 10G SFP+, IP Base
Product Family Catalyst 3560
Product Type Ethernet Switch
Ethernet Ports 6 x 10/100/1000 Gigabit Ethernet plus 2 Multigigabit Ethernet 100/2500/5000/10000
PoE Output Ports 8 PoE+
Available PoE Power 240W
Uplinks 2 x 10G SFP+
Default Software IP Base (IP Services with RTU License)
AC/DC input voltage and current 18-60VDC, 3.25-1.5A
Dimensions in. 1.75 x 10.6 x 10.4

[/properties][specifications]

Specifications WS-C3560CX-8XPD-S
DRAM 512 MB
Flash Memory 128 MB
Forwarding Rate 68.4 mpps
Switching Bandwith 92 Gbps
Max VLANs 1023
VLAN IDs 4000
Jumbo frames 9198 bytes
MTBF 528,48
Operating Temperature
Up to 5,000 ft (1500 m)		 -5 to 35 degree C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5 to 35 degree C
Safety ● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
EMC: emissions ● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia
Environmental Reduction of Hazardous Substances (RoHS) 6
Telco Common Language Equipment Identifier (CLEI) code
Telnet - SSH Yes
TACACS+ Yes

[/specifications][accesories]

PWR-CLP= Power clip for the 3560-CX and 2960-CX compact switches
PWR-ADPT= AC-DC power adapter for the WS-C3560CX-8PT-S compact switch
PWR-ADPT-DC= DC-DC power adapter for the WS-C3560CX-8PT-S compact switch
PWR-ADPT-BRKT= Power adapter bracket for the WS-C3560CX-8PT-S compact switch (needs either CMPCT-DIN-MNT= or CMPCT-MGNT-TRAY =) to work
CMPCT-CBLE-GRD= Cable guard for the 3560-CX and 2960-CX compact switches
CMPCT-MGNT-TRAY = Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches
CMPCT-DIN-MNT= DIN Rail Mount for 3560-CX and 2960-CX compact switches
RCKMNT-19-CMPCT= 19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches
RCKMNT-23-CMPCT= 23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches

[/accesories]

Cisco Catalyst WS-C3560CX-8XPD-S Switch

The Cisco Catalyst WS-C3560CX-8XPD-S Switch offers robust, high-speed connectivity with 6 Gigabit Ethernet ports and 2 Multigigabit Ethernet PoE+ ports. With 2 SFP+ uplinks, this switch is ideal for networks requiring both gigabit and multigigabit connectivity while ensuring flexibility for future growth. Its compact, fanless design makes it perfect for noise-sensitive environments, and its Power over Ethernet Plus (PoE+) capabilities enable the switch to power connected devices such as IP phones and wireless access points.

  • 6 x Gigabit Ethernet Ports and 2 x Multigigabit PoE+ Ports: Supports up to 240W of PoE+ power to connected devices.
  • 2 x 10G SFP+ Uplinks: Ensures high-speed fiber connectivity for seamless network scalability.
  • Fanless Design: Provides silent operation, making it suitable for office and quiet work environments.
  • Layer 3 IP Base: Supports advanced routing protocols, including OSPF, EIGRP, and VRF-Lite for enhanced network management.
  • Energy Efficient: Complies with IEEE 802.3az standards, reducing power consumption without compromising performance.
  • Recommended for: Offices, small to medium-sized businesses, and branch locations.
  • Ports: 6 x 10/100/1000 Mbps Gigabit Ethernet ports and 2 x Multigigabit Ethernet PoE+ ports.
  • Uplink Modules: 2 x 10G SFP+ uplinks.
  • Switching Capacity: 92 Gbps.
  • Forwarding Rate: 68.4 Mpps.
  • Layer 3 Features: OSPF, EIGRP, and VRF-Lite.
  • Management: Web-based UI, CLI, SNMP, and Cisco DNA Center.
  • Licensing: IP Base.
  • Energy Efficiency: Complies with IEEE 802.3az for energy-saving operations.

You can check the related tab for the WS-C3560CX-8XPD-S datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Managed, Fanless, 6 x 1G ports + 2 x Multigigabit ports, 2 x 10G SFP+ Uplinks, PoE+ (240W), Layer 3
    [/shortdesc]

[properties]

Properties WS-C3560CX-8XPD-S
Description 3560-CX Switch 6 GE PoE+, 2 MultiGE PoE+, uplinks: 2 x 10G SFP+, IP Base
Product Family Catalyst 3560
Product Type Ethernet Switch
Ethernet Ports 6 x 10/100/1000 Gigabit Ethernet plus 2 Multigigabit Ethernet 100/2500/5000/10000
PoE Output Ports 8 PoE+
Available PoE Power 240W
Uplinks 2 x 10G SFP+
Default Software IP Base (IP Services with RTU License)
AC/DC input voltage and current 18-60VDC, 3.25-1.5A
Dimensions in. 1.75 x 10.6 x 10.4

[/properties][specifications]

Specifications WS-C3560CX-8XPD-S
DRAM 512 MB
Flash Memory 128 MB
Forwarding Rate 68.4 mpps
Switching Bandwith 92 Gbps
Max VLANs 1023
VLAN IDs 4000
Jumbo frames 9198 bytes
MTBF 528,48
Operating Temperature
Up to 5,000 ft (1500 m)		 -5 to 35 degree C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5 to 35 degree C
Safety ● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
EMC: emissions ● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia
Environmental Reduction of Hazardous Substances (RoHS) 6
Telco Common Language Equipment Identifier (CLEI) code
Telnet - SSH Yes
TACACS+ Yes

[/specifications][accesories]

PWR-CLP= Power clip for the 3560-CX and 2960-CX compact switches
PWR-ADPT= AC-DC power adapter for the WS-C3560CX-8PT-S compact switch
PWR-ADPT-DC= DC-DC power adapter for the WS-C3560CX-8PT-S compact switch
PWR-ADPT-BRKT= Power adapter bracket for the WS-C3560CX-8PT-S compact switch (needs either CMPCT-DIN-MNT= or CMPCT-MGNT-TRAY =) to work
CMPCT-CBLE-GRD= Cable guard for the 3560-CX and 2960-CX compact switches
CMPCT-MGNT-TRAY = Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches
CMPCT-DIN-MNT= DIN Rail Mount for 3560-CX and 2960-CX compact switches
RCKMNT-19-CMPCT= 19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches
RCKMNT-23-CMPCT= 23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches

[/accesories]

Cisco Catalyst WS-C3560CX-8XPD-S Switch

The Cisco Catalyst WS-C3560CX-8XPD-S Switch offers robust, high-speed connectivity with 6 Gigabit Ethernet ports and 2 Multigigabit Ethernet PoE+ ports. With 2 SFP+ uplinks, this switch is ideal for networks requiring both gigabit and multigigabit connectivity while ensuring flexibility for future growth. Its compact, fanless design makes it perfect for noise-sensitive environments, and its Power over Ethernet Plus (PoE+) capabilities enable the switch to power connected devices such as IP phones and wireless access points.

Key Features:
  • 6 x Gigabit Ethernet Ports and 2 x Multigigabit PoE+ Ports: Supports up to 240W of PoE+ power to connected devices.
  • 2 x 10G SFP+ Uplinks: Ensures high-speed fiber connectivity for seamless network scalability.
  • Fanless Design: Provides silent operation, making it suitable for office and quiet work environments.
  • Layer 3 IP Base: Supports advanced routing protocols, including OSPF, EIGRP, and VRF-Lite for enhanced network management.
  • Energy Efficient: Complies with IEEE 802.3az standards, reducing power consumption without compromising performance.
Technical Overview:
  • Recommended for: Offices, small to medium-sized businesses, and branch locations.
  • Ports: 6 x 10/100/1000 Mbps Gigabit Ethernet ports and 2 x Multigigabit Ethernet PoE+ ports.
  • Uplink Modules: 2 x 10G SFP+ uplinks.
  • Switching Capacity: 92 Gbps.
  • Forwarding Rate: 68.4 Mpps.
  • Layer 3 Features: OSPF, EIGRP, and VRF-Lite.
  • Management: Web-based UI, CLI, SNMP, and Cisco DNA Center.
  • Licensing: IP Base.
  • Energy Efficiency: Complies with IEEE 802.3az for energy-saving operations.

You can check the related tab for the WS-C3560CX-8XPD-S datasheet.
