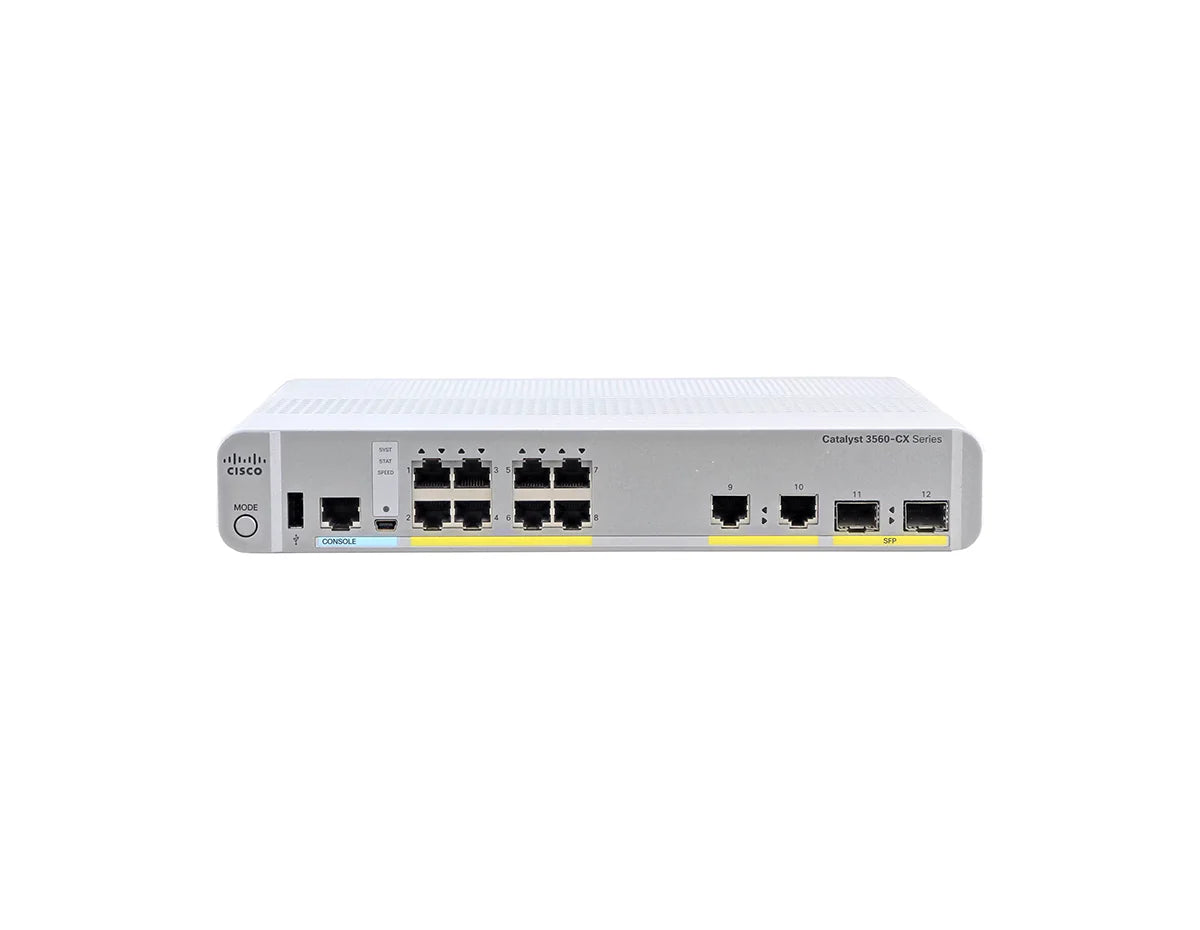

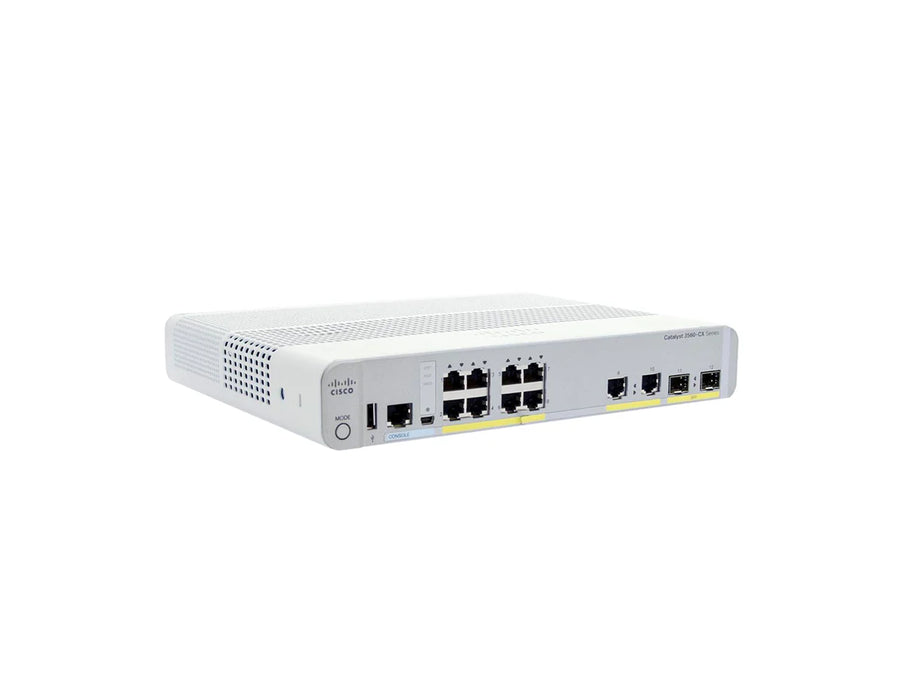

Cisco WS-C3560CX-8TC-S Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco WS-C3560CX-8TC-S Switch
Cisco WS-C3560CX-8TC-S Switch

Cisco WS-C3560CX-8TC-S Switch

por Cisco
Desconto de 40%
R$ 25.056,00
R$ 15.033,60
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Managed, Fanless, 8 x 1G ports, 2 x 1G SFP + 2 x 1G Copper Uplinks, No PoE (Data Only), Layer 3
[/shortdesc]

[properties]

Properties WS-C3560CX-8TC-S
Description 3560-CX Switch 8 GE, uplinks: 2 x 1G SFP and 2 x 1G copper, IP Base
Product Family Catalyst 3560
Product Type Ethernet Switch
Ethernet Ports 8 x 10/100/1000 Gigabit Ethernet
PoE Output Ports NA
Available PoE Power -
Uplinks 2 x 1G copper plus 2 x 1G SFP
Default Software IP Base (IP Services with RTU License)
AC/DC input voltage and current 100-240 VAC, 0.5- 0.2A
Dimensions in. 1.75 x 10.6 x 8.4

[/properties][specifications]

Specifications WS-C3560CX-8TC-S
DRAM 512 MB
Flash Memory 128 MB
Forwarding Rate 17.9 mpps
Switching Bandwith 32 Gbps
Max VLANs 1023
VLAN IDs 4000
Jumbo frames 9198 bytes
MTBF 756,26
Operating Temperature
Up to 5,000 ft (1500 m)		 -5 to 45 degree C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5 to 45 degree C
Safety ● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
EMC: emissions ● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia
Environmental Reduction of Hazardous Substances (RoHS) 6
Telco Common Language Equipment Identifier (CLEI) code
Telnet - SSH Yes
TACACS+ Yes

[/specifications][accesories]

PWR-CLP= Power clip for the 3560-CX and 2960-CX compact switches
CMPCT-CBLE-GRD= Cable guard for the 3560-CX and 2960-CX compact switches
CMPCT-MGNT-TRAY = Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches
CMPCT-DIN-MNT= DIN Rail Mount for 3560-CX and 2960-CX compact switches
RCKMNT-19-CMPCT= 19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches
RCKMNT-23-CMPCT= 23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches

[/accesories]

Cisco Catalyst WS-C3560CX-8TC-S Switch

The Cisco Catalyst WS-C3560CX-8TC-S Switch is a compact and powerful solution designed for modern business environments that need reliable and high-speed connectivity. This fanless switch features 8 Gigabit Ethernet ports and 2 SFP uplinks, providing flexible deployment options for small to medium-sized networks. Its compact design and quiet operation make it ideal for office and branch locations.

  • 8 x Gigabit Ethernet Ports: Provides fast and reliable connections for multiple devices.
  • 2 SFP Uplinks: Offers high-speed fiber connections, ensuring scalable network expansion.
  • Fanless Design: Silent operation suitable for office and noise-sensitive environments.
  • Energy Efficient: Complies with IEEE 802.3az, reducing energy consumption while maintaining performance.
  • Layer 3 IP Base: Supports advanced Layer 3 features like OSPF, EIGRP, and VRF-Lite.
  • Recommended for: Small to medium-sized businesses, branch offices, and retail environments.
  • Ports: 8 x 10/100/1000 Mbps Gigabit Ethernet ports.
  • Uplink Modules: 2 x 1G SFP uplinks.
  • Switching Capacity: 32 Gbps.
  • Forwarding Rate: 17.9 Mpps.
  • Layer 3 Features: OSPF, EIGRP, VRF-Lite for advanced routing.
  • Management: Web UI, CLI, SNMP, and Cisco DNA Center.
  • Licensing: IP Base.
  • Energy Efficiency: Supports IEEE 802.3az standards for energy-saving operations.

You can check the related tab for the WS-C3560CX-8TC-S datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Managed, Fanless, 8 x 1G ports, 2 x 1G SFP + 2 x 1G Copper Uplinks, No PoE (Data Only), Layer 3
[/shortdesc]

[properties]

Properties WS-C3560CX-8TC-S
Description 3560-CX Switch 8 GE, uplinks: 2 x 1G SFP and 2 x 1G copper, IP Base
Product Family Catalyst 3560
Product Type Ethernet Switch
Ethernet Ports 8 x 10/100/1000 Gigabit Ethernet
PoE Output Ports NA
Available PoE Power -
Uplinks 2 x 1G copper plus 2 x 1G SFP
Default Software IP Base (IP Services with RTU License)
AC/DC input voltage and current 100-240 VAC, 0.5- 0.2A
Dimensions in. 1.75 x 10.6 x 8.4

[/properties][specifications]

Specifications WS-C3560CX-8TC-S
DRAM 512 MB
Flash Memory 128 MB
Forwarding Rate 17.9 mpps
Switching Bandwith 32 Gbps
Max VLANs 1023
VLAN IDs 4000
Jumbo frames 9198 bytes
MTBF 756,26
Operating Temperature
Up to 5,000 ft (1500 m)		 -5 to 45 degree C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5 to 45 degree C
Safety ● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
EMC: emissions ● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia
Environmental Reduction of Hazardous Substances (RoHS) 6
Telco Common Language Equipment Identifier (CLEI) code
Telnet - SSH Yes
TACACS+ Yes

[/specifications][accesories]

PWR-CLP= Power clip for the 3560-CX and 2960-CX compact switches
CMPCT-CBLE-GRD= Cable guard for the 3560-CX and 2960-CX compact switches
CMPCT-MGNT-TRAY = Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches
CMPCT-DIN-MNT= DIN Rail Mount for 3560-CX and 2960-CX compact switches
RCKMNT-19-CMPCT= 19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches
RCKMNT-23-CMPCT= 23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches

[/accesories]

Cisco Catalyst WS-C3560CX-8TC-S Switch

The Cisco Catalyst WS-C3560CX-8TC-S Switch is a compact and powerful solution designed for modern business environments that need reliable and high-speed connectivity. This fanless switch features 8 Gigabit Ethernet ports and 2 SFP uplinks, providing flexible deployment options for small to medium-sized networks. Its compact design and quiet operation make it ideal for office and branch locations.

Key Features:
  • 8 x Gigabit Ethernet Ports: Provides fast and reliable connections for multiple devices.
  • 2 SFP Uplinks: Offers high-speed fiber connections, ensuring scalable network expansion.
  • Fanless Design: Silent operation suitable for office and noise-sensitive environments.
  • Energy Efficient: Complies with IEEE 802.3az, reducing energy consumption while maintaining performance.
  • Layer 3 IP Base: Supports advanced Layer 3 features like OSPF, EIGRP, and VRF-Lite.
Technical Overview:
  • Recommended for: Small to medium-sized businesses, branch offices, and retail environments.
  • Ports: 8 x 10/100/1000 Mbps Gigabit Ethernet ports.
  • Uplink Modules: 2 x 1G SFP uplinks.
  • Switching Capacity: 32 Gbps.
  • Forwarding Rate: 17.9 Mpps.
  • Layer 3 Features: OSPF, EIGRP, VRF-Lite for advanced routing.
  • Management: Web UI, CLI, SNMP, and Cisco DNA Center.
  • Licensing: IP Base.
  • Energy Efficiency: Supports IEEE 802.3az standards for energy-saving operations.

You can check the related tab for the WS-C3560CX-8TC-S datasheet.
