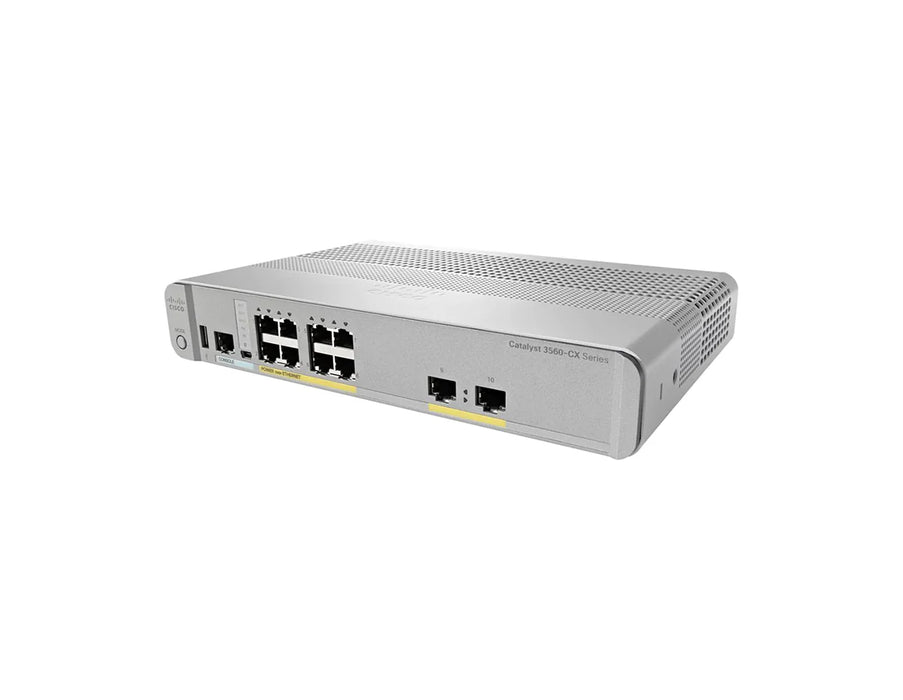

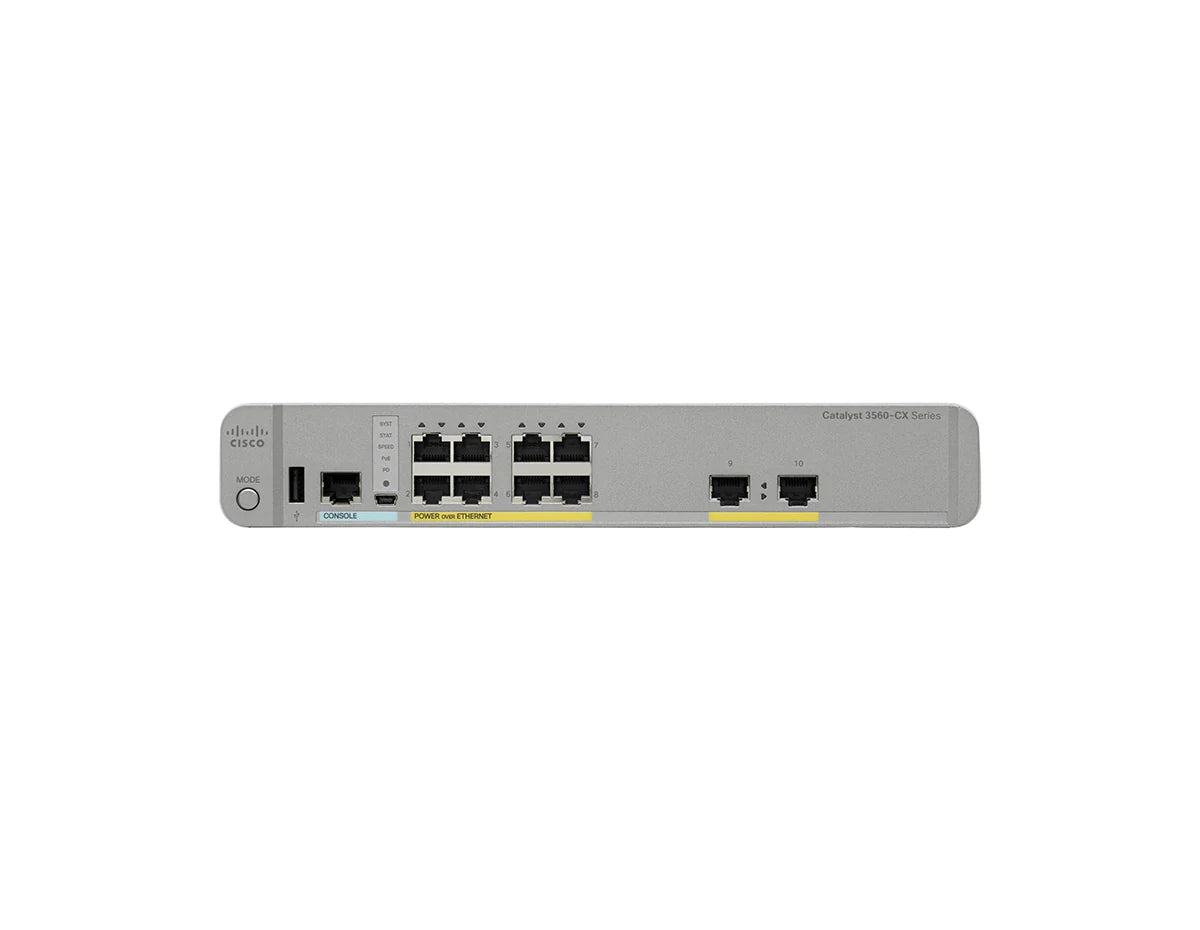

Cisco WS-C3560CX-8PT-S Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco WS-C3560CX-8PT-S Switch
Cisco WS-C3560CX-8PT-S Switch

Cisco WS-C3560CX-8PT-S Switch

por Cisco
Desconto de 85%
R$ 31.723,08
R$ 4.680,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Power Adapter is sold separately.
  • Switch
  • Managed
  • 10 x 10/100/1000 (PoE+)
  • desktop
  • rack-mountable
  • DIN Rail Mountable
  • wall-mountable
  • PoE+ (146 W)
[/shortdesc]

[properties]

Properties WS-C3560CX-8PT-S
Description 3560-CX PD PSE Switch 8 GE PoE+, uplinks: 2 x 1G copper (Cisco UPOE powered input), IP Base
Product Family Catalyst 3560
Product Type Ethernet Switch
Ethernet Ports 8 x 10/100/1000 Gigabit Ethernet
PoE Output Ports 8 PoE+
Available PoE Power Up to 146W
Uplinks 2 x 1G copper (Cisco UPOE+ uplinks)
Default Software IP Base (IP Services with RTU License)
AC/DC input voltage and current 18-60VDC, 6.0-1.6A
Dimensions in. 1.75 x 10.6 x 7.0

[/properties][specifications]

Specifications WS-C3560CX-8PT-S
DRAM 512 MB
Flash Memory 128 MB
Forwarding Rate 14.9 mpps
Switching Bandwith 32 Gbps
Max VLANs 1023
VLAN IDs 4000
Jumbo frames 9198 bytes
MTBF 737,74
Operating Temperature
Up to 5,000 ft (1500 m)		 -5 to 45 degree C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5 to 45 degree C
Safety ● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
EMC: emissions ● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia
Environmental Reduction of Hazardous Substances (RoHS) 6
Telco Common Language Equipment Identifier (CLEI) code
Telnet - SSH Yes
TACACS+ Yes
Warranty An enhanced limited lifetime hardware warranty that includes 90 days of Cisco Technical Assistance Center (TAC) support and next-business-day hardware replacement free of change

[/specifications][accesories]

PWR-CLP= Power clip for the 3560-CX and 2960-CX compact switches
PWR-ADPT= AC-DC power adapter for the WS-C3560CX-8PT-S compact switch
PWR-ADPT-DC= DC-DC power adapter for the WS-C3560CX-8PT-S compact switch
PWR-ADPT-BRKT= Power adapter bracket for the WS-C3560CX-8PT-S compact switch (needs either CMPCT-DIN-MNT= or CMPCT-MGNT-TRAY =) to work
CMPCT-CBLE-GRD= Cable guard for the 3560-CX and 2960-CX compact switches
CMPCT-MGNT-TRAY = Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches
CMPCT-DIN-MNT= DIN Rail Mount for 3560-CX and 2960-CX compact switches
RCKMNT-19-CMPCT= 19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches
RCKMNT-23-CMPCT= 23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches

[/accesories]

The Cisco Catalyst 3560-CX Series Switches make it easy to expand your Ethernet and Multigigabit Ethernet infrastructure beyond the wiring closet, allowing you to create new workspaces, extend wireless LANs, and connect PoE devices. With eight downlink ports and two Cisco UPOE input ports, the Cisco Catalyst WS-C3560CX-8PT-S can be powered by another switch, eliminating the need for a separate power supply. These switches are highly flexible and available for deployment because they receive power over the uplink from an upstream PoE or Cisco UPOE device.

Key Features:

  • 2 x 1G copper (Cisco UPOE+ uplinks)
  • 8 PoE+
  • Optional external AC-DC or DC-DC power adapter

The tabs contain the Cisco WS-C3560CX-8PT-S datasheet with all the specifics you need.
