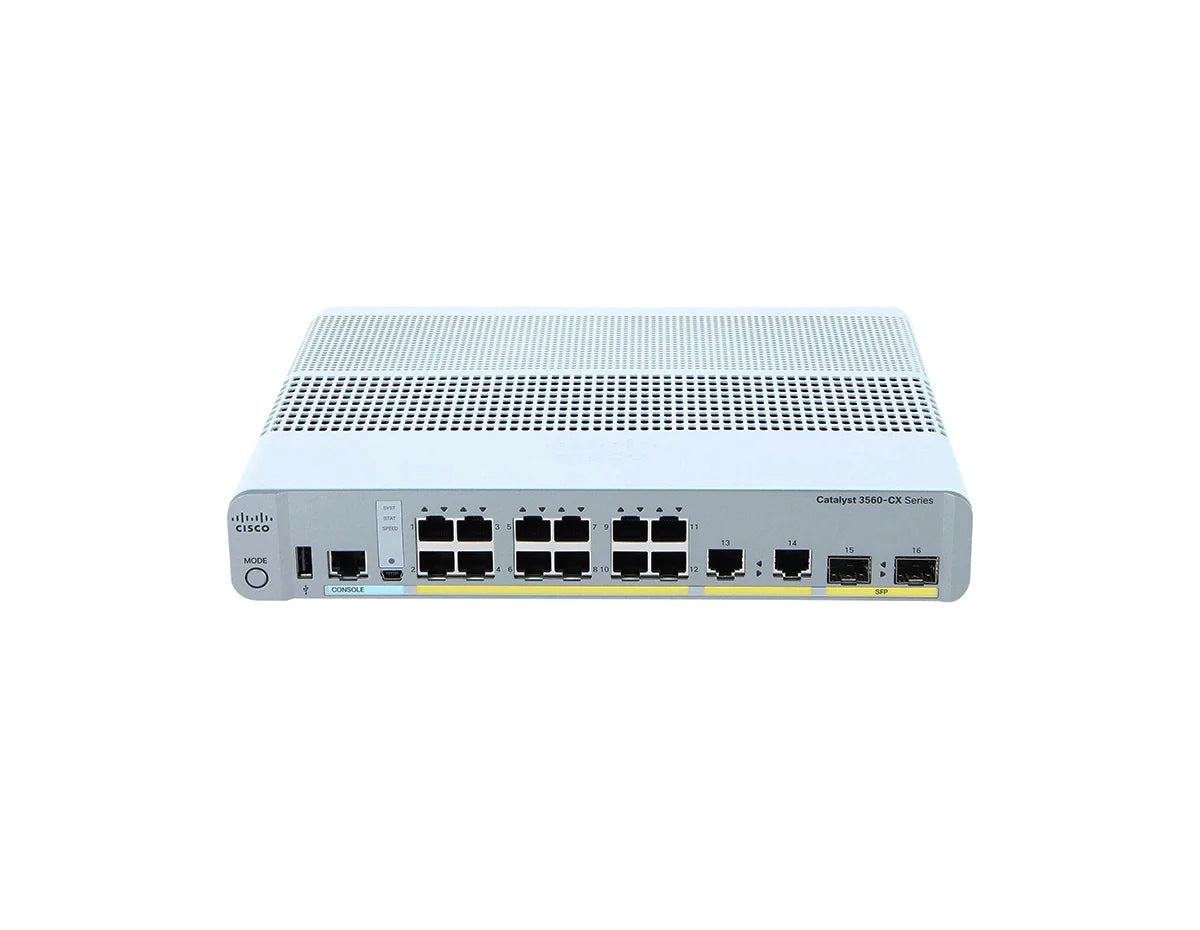

Cisco WS-C3560CX-12PC-S Switch
Clique ou role para ampliar
Toque ou belisque para ampliar

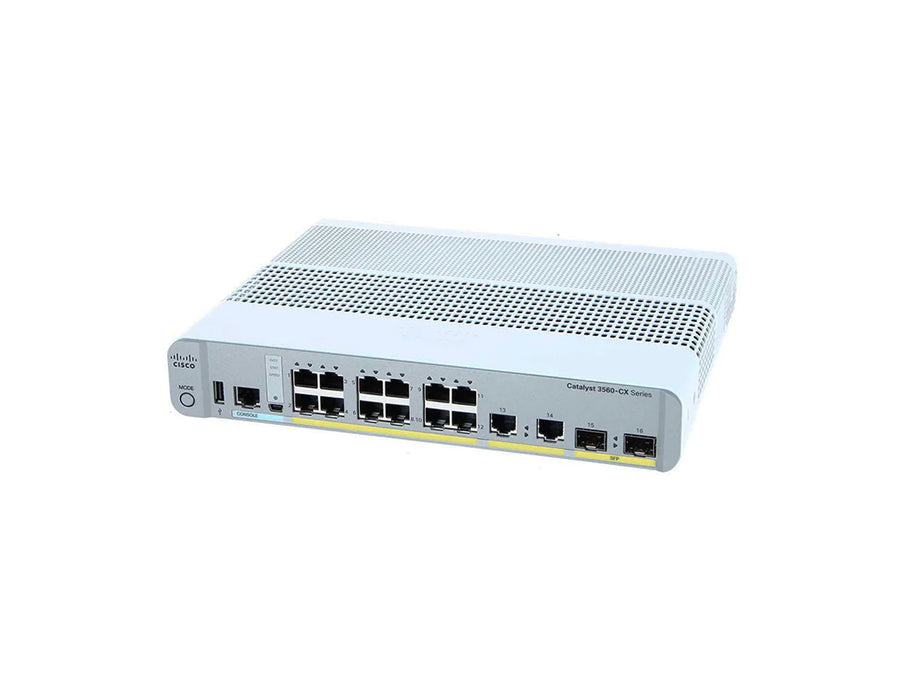

Cisco WS-C3560CX-12PC-S Switch
Clique ou role para ampliar
Toque ou belisque para ampliar

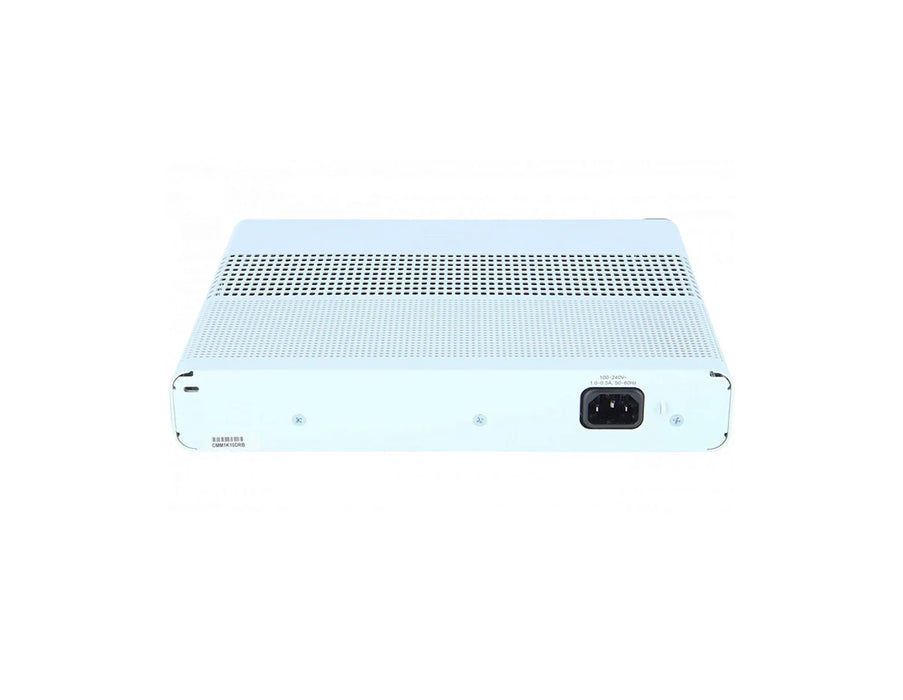

Cisco WS-C3560CX-12PC-S Switch
Cisco WS-C3560CX-12PC-S Switch

Cisco WS-C3560CX-12PC-S Switch

por Cisco
Desconto de 79%
R$ 36.238,20
R$ 7.500,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Managed, Fanless, 12 x 1G ports, 2 x 1G SFP Uplinks, PoE+ (240W), Layer 3
[/shortdesc]

[properties]

Properties WS-C3560CX-12PC-S
Description 3560-CX Switch 12 GE PoE+, uplinks: 2 x 1G SFP and 2 x 1G copper, IP Base
Product Family Catalyst 3560
Product Type Ethernet Switch
Ethernet Ports 12 x 10/100/1000 Gigabit Ethernet
PoE Output Ports 12 PoE+
Available PoE Power 240W
Uplinks 2 x 1G copper plus 2 x 1G SFP
Default Software IP Base (IP Services with RTU License)
AC/DC input voltage and current 100-240 VAC, 3.25-1.5A
Dimensions in. 1.75 x 10.6 x 9.4

[/properties][specifications]

Specifications WS-C3560CX-12PC-S
DRAM 512 MB
Flash Memory 128 MB
Forwarding Rate 23.8 mpps
Switching Bandwith 32 Gbps
Max VLANs 1023
VLAN IDs 4000
Jumbo frames 9198 bytes
MTBF 553,14
Operating Temperature
Up to 5,000 ft (1500 m)		 -5 to 45 degree C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5 to 45 degree C
Safety ● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
EMC: emissions ● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia
Environmental Reduction of Hazardous Substances (RoHS) 6
Telco Common Language Equipment Identifier (CLEI) code
Telnet - SSH Yes
TACACS+ Yes

[/specifications][accesories]

PWR-CLP= Power clip for the 3560-CX and 2960-CX compact switches
CMPCT-CBLE-GRD= Cable guard for the 3560-CX and 2960-CX compact switches
CMPCT-MGNT-TRAY = Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches
CMPCT-DIN-MNT= DIN Rail Mount for 3560-CX and 2960-CX compact switches
RCKMNT-19-CMPCT= 19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches
RCKMNT-23-CMPCT= 23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches

[/accesories]

Cisco Catalyst WS-C3560CX-12PC-S Switch

The Cisco Catalyst WS-C3560CX-12PC-S Switch provides a compact, high-performance solution for businesses needing Gigabit Ethernet connectivity with Power over Ethernet Plus (PoE+). With 12 PoE+ Gigabit Ethernet ports and 2 SFP uplinks, this fanless switch offers silent operation, making it ideal for environments like offices and branch networks. Powered by Cisco’s IP Base software, this switch supports advanced Layer 3 features, ensuring efficient and scalable network management.

  • 12 x PoE+ Gigabit Ethernet Ports: Delivers up to 240W of PoE+ power to connected devices such as IP phones and cameras.
  • 2 x 1G SFP Uplinks: Offers flexible, high-speed uplink connectivity for network expansion.
  • Fanless Design: Ensures silent operation, perfect for office and noise-sensitive environments.
  • Layer 3 IP Base: Includes advanced routing protocols such as OSPF, EIGRP, and VRF-Lite for enhanced network control.
  • Energy-Efficient: Complies with IEEE 802.3az for reduced power consumption without compromising performance.
  • Recommended for: Offices, branch locations, and retail environments.
  • Ports: 12 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports.
  • Uplink Modules: 2 x 1G SFP uplinks.
  • Switching Capacity: 32 Gbps.
  • Forwarding Rate: 23.8 Mpps.
  • Layer 3 Features: OSPF, EIGRP, BGP, and VRF-Lite.
  • Management: Web-based UI, CLI, SNMP, and Cisco DNA Center.
  • Licensing: IP Base.
  • Energy Efficiency: Supports IEEE 802.3az for energy-saving operations.

You can check the related tab for the WS-C3560CX-12PC-S datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Managed, Fanless, 12 x 1G ports, 2 x 1G SFP Uplinks, PoE+ (240W), Layer 3
[/shortdesc]

[properties]

Properties WS-C3560CX-12PC-S
Description 3560-CX Switch 12 GE PoE+, uplinks: 2 x 1G SFP and 2 x 1G copper, IP Base
Product Family Catalyst 3560
Product Type Ethernet Switch
Ethernet Ports 12 x 10/100/1000 Gigabit Ethernet
PoE Output Ports 12 PoE+
Available PoE Power 240W
Uplinks 2 x 1G copper plus 2 x 1G SFP
Default Software IP Base (IP Services with RTU License)
AC/DC input voltage and current 100-240 VAC, 3.25-1.5A
Dimensions in. 1.75 x 10.6 x 9.4

[/properties][specifications]

Specifications WS-C3560CX-12PC-S
DRAM 512 MB
Flash Memory 128 MB
Forwarding Rate 23.8 mpps
Switching Bandwith 32 Gbps
Max VLANs 1023
VLAN IDs 4000
Jumbo frames 9198 bytes
MTBF 553,14
Operating Temperature
Up to 5,000 ft (1500 m)		 -5 to 45 degree C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5 to 45 degree C
Safety ● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
EMC: emissions ● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia
Environmental Reduction of Hazardous Substances (RoHS) 6
Telco Common Language Equipment Identifier (CLEI) code
Telnet - SSH Yes
TACACS+ Yes

[/specifications][accesories]

PWR-CLP= Power clip for the 3560-CX and 2960-CX compact switches
CMPCT-CBLE-GRD= Cable guard for the 3560-CX and 2960-CX compact switches
CMPCT-MGNT-TRAY = Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches
CMPCT-DIN-MNT= DIN Rail Mount for 3560-CX and 2960-CX compact switches
RCKMNT-19-CMPCT= 19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches
RCKMNT-23-CMPCT= 23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches

[/accesories]

Cisco Catalyst WS-C3560CX-12PC-S Switch

The Cisco Catalyst WS-C3560CX-12PC-S Switch provides a compact, high-performance solution for businesses needing Gigabit Ethernet connectivity with Power over Ethernet Plus (PoE+). With 12 PoE+ Gigabit Ethernet ports and 2 SFP uplinks, this fanless switch offers silent operation, making it ideal for environments like offices and branch networks. Powered by Cisco’s IP Base software, this switch supports advanced Layer 3 features, ensuring efficient and scalable network management.

Key Features:
  • 12 x PoE+ Gigabit Ethernet Ports: Delivers up to 240W of PoE+ power to connected devices such as IP phones and cameras.
  • 2 x 1G SFP Uplinks: Offers flexible, high-speed uplink connectivity for network expansion.
  • Fanless Design: Ensures silent operation, perfect for office and noise-sensitive environments.
  • Layer 3 IP Base: Includes advanced routing protocols such as OSPF, EIGRP, and VRF-Lite for enhanced network control.
  • Energy-Efficient: Complies with IEEE 802.3az for reduced power consumption without compromising performance.
Technical Overview:
  • Recommended for: Offices, branch locations, and retail environments.
  • Ports: 12 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports.
  • Uplink Modules: 2 x 1G SFP uplinks.
  • Switching Capacity: 32 Gbps.
  • Forwarding Rate: 23.8 Mpps.
  • Layer 3 Features: OSPF, EIGRP, BGP, and VRF-Lite.
  • Management: Web-based UI, CLI, SNMP, and Cisco DNA Center.
  • Licensing: IP Base.
  • Energy Efficiency: Supports IEEE 802.3az for energy-saving operations.

You can check the related tab for the WS-C3560CX-12PC-S datasheet.
