- (2) Intel Xeon 3rd Gen Scalable Processors
- (32) 3200MT/s DDR4 DIMMs
- Support for Intel® Optane™ Persistent Memory (PMem)
- (12) LFF Drives SAS only
- (4) Mid Drives SAS only (LFF Chassis)
- (4) Rear Drives SAS/SATA/NVMeA
- Up to (4) NVMe Supported
- (8) PCIe 4.0 Slots
- (5) GPU Support
- Dedicated mLOM Slot
- Dedicated Cisco 12G SAS Modular RAID controller Slot
- Embedded 2 x 10GBASE-T LAN-on-motherboard (LOM)
- (6) Hot Swap Fans
- PCIe NVMe drives are controlled directly from the CPUs
- There is no RAID support for NVMe drives.
Other Versions
- Cisco C220 M4 | M5 | M6 | M7
- Cisco C240 M4 | M5 | M6
(Click to View)
Ideal for:- Artificial Intelligence (AI)
- Big Data Analytics
- Cloud Servers
- Data Analytics
- Database
- Deep Learning (DL)
- High-Performance Computing (HPC)
- Machine Learning (ML)
- Virtualization

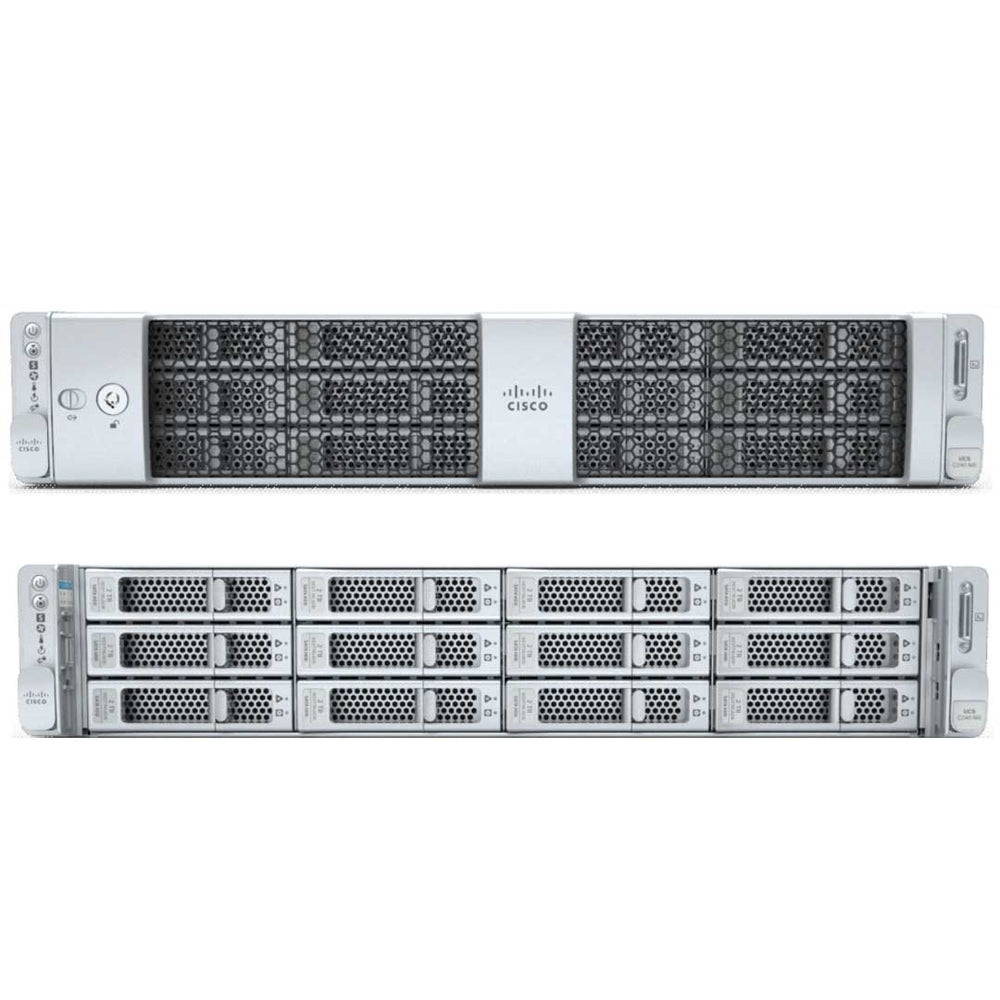

The Cisco UCS C240 M6 Rack Server is a 2-socket, 2-Rack-Unit (2RU) rack server offering industry-leading performance and expandability. It supports a wide range of storage and I/O-intensive infrastructure workloads, from big data and analytics to collaboration. Cisco UCS C-Series M6 Rack Servers can be deployed as standalone servers or as part of a Cisco Unified Computing System (Cisco UCS) managed environment, and now with Cisco Intersight is able to take advantage of Cisco’s standards-based unified computing innovations that help reduce customers’ Total Cost of Ownership (TCO) and increase their business agility.

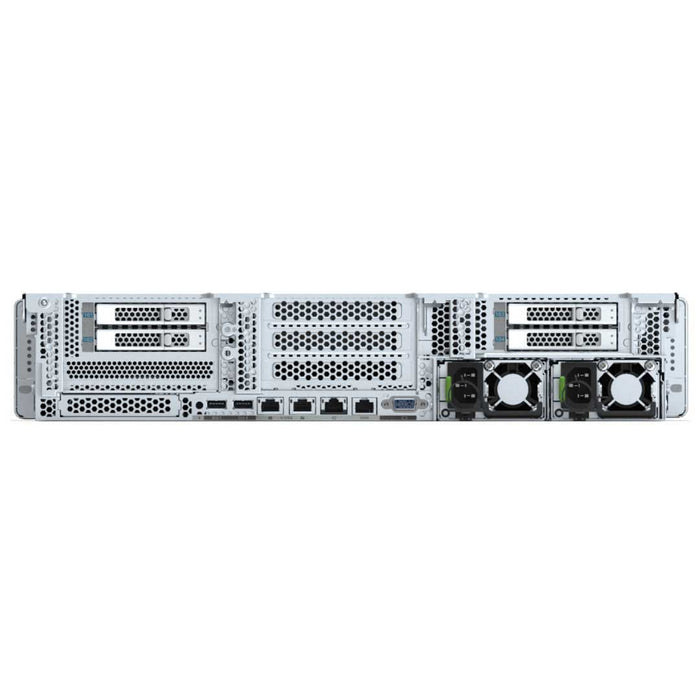

The server accommodates up to 12 front facing SAS-only LFF drives, up to 4 mid-plane SAS-only LFF drives, and up to 4 rear-facing SFF drives (SAS or SATA or NVMe).
If a Midplane is installed GPUs are not supported.
Chassis Options
UCS C240 C-Series M6 12 LFFUCSC-C240-M6L
(12) LFF SAS/SATA Drives
(4) Midplane LFF SAS Drives
Up to (4) Rear SFF SAS/SATA/NVMe Drives
Mid Drives & GPUs cant be installed together
Risers Option
1B, 2A, 3B
View C240 M6 LFF CTO
Drive Rules and Limitations
- You can mix HDDs and SSDs as long as you keep all HDDs in their own RAID volume and all SSDs in their own RAID volume.
- You can mix SAS HDDs and SAS/SATA SSDs when using the Cisco 12G SAS RAID controller or Cisco 12G SAS HBA.
- If you order any SFF NVMe rear drives, you must also order two CPUs.
- SED drives can be mixed with non-SED drives in Table 11 on page 27
- 2.5-inch SFF NVMe drives are connected directly to the CPU, and are not managed by the RAID controller or SAS HBA.
- You cannot mix SAS/SATA with NVMe rear drives. They must be all SAS/SATA or all NVMe

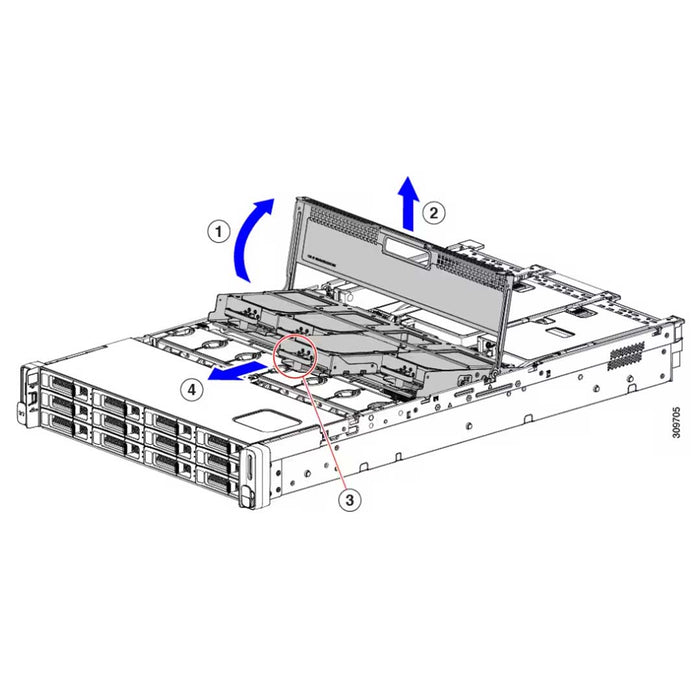

- A midplane kit (PID UCSC-MPSTOM6L-KIT) is required
- If a Midplane is installed GPUs are not supported.
- Intel® VROC is only supported with Intel drives
- Intel® VROC enablement key factory pre-provisioned to BIOS - no additional licensing required.
- Small Form Factor (SFF) drive support (only)
- No battery backup (BBU) or external SuperCap needed
- Software-based solution utilizing Intel SFF NVMe direct connected to Intel CPU
- RAID 0/1/5/10 support
- Windows, Linux, VMware OS support.
- Host Tools- Windows GUI/CLI, Linux CLI.
- UEFI Support- HII Utility, OBSE.
- Intel VROC NVMe operates in UEFI mode only
UCS C240 M6 12 SFF UCSC-C240-M6S
(12) SAS/SATA Drives
(1-4) SAS/SATA/NVMe
(5-12) SAS/SATA
(2) Rear SFF SAS/SATA/NVMe
SATA Interposer installed, supports up to 8 SATA-only
Optional media drive
I/O Centric Risers
1A, 2A, 3A, 3C
Storage Centric Risers
1A, 2A, 3B, 3C
View C240 M6 SFF CTO
UCS C240 M6 24 SFF UCSC-C240-M6SX
(24) SAS/SATA/NVMe Drives
Drives (1-4) support SAS/SATA/NVMe
Drives (5-24) support SAS/SATA
Up to (2 or 4) Rear SFF SAS/SATA/NVMe Drives
I/O Centric Risers
1A, 2A, 3A, 3C
Storage Centric Risers
1B, 3B, 3C
View C240 M6 SFF CTO
UCS C240 M6 12 NVMe Drive UCSC-C240-M6N
(12) NVMe Drives
Up to (2) Rear NVMe Only
Optional media drive
I/O Centric Risers
1A, 2A
Storage Centric Risers
1B
View C240 M6 SFF CTO
UCS C240 M6 24 NVMe UCSC-C240-M6SN
(24) NVMe Drives
Up to (2) Rear NVMe Only
I/O Centric Risers
1A, 2A
Storage Centric Risers
1B
View C240 M6 SFF CTO
Memory Options32 DDR4 DIMM slots: 16, 32, 64, 128 and 256 GB up to 3200 MHz Support for the Intel Optane DC persistent memory (128G, 256G, 512G). DIMM mixing is not allowed when PMem are installed; in these cases, all DIMMs must be the same type and size.
Supported Memory- Clock speed: 3200 MHz
- Ranks per DIMM: 1, 2, 4, or 8
- Operational voltage: 1.2 V
- Registered ECC DDR4 DIMMS (RDIMMs), Load-reduced DIMMs (LRDIMMs), or Intel® Optane™ Persistent Memory Modules (PMem).
- 4 TB: 32 x 128 GB DDR4 DIMMs
- 10 TB: 16 x 128 GB DDR4 DIMMs and 16 x 512 GB Intel® Optane™ Persistent Memory Modules (PMem).

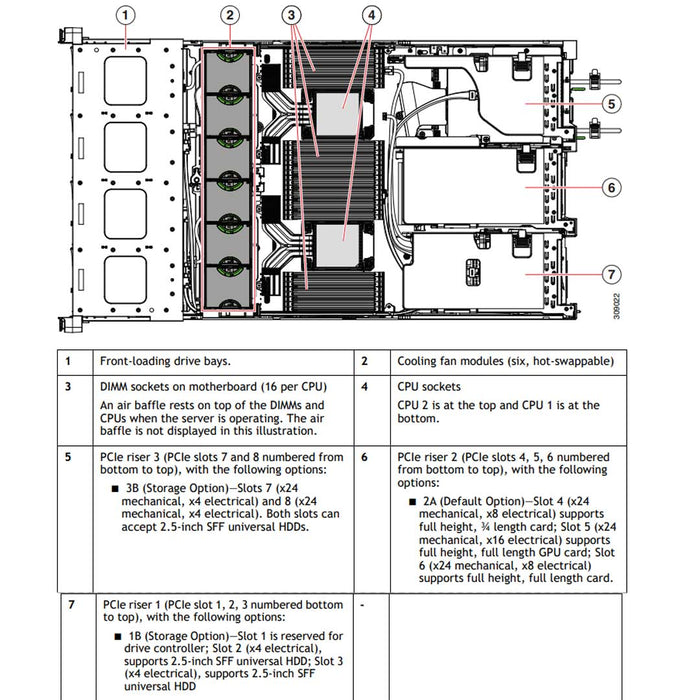

8 PCIe 4.0 slots, 1 dedicated 12-Gbps RAID controller slot and 1 dedicated mLOM slot. With 8PCIe slots the system is able to support up to 5 A10 Single Wide GPUs. Slots 4, 5, and 6 on riser card 2A accommodate single-wide GPUs.
Riser 2 and 3 connect to CPU 2 and if they are not installed then you will need to add the Riser Filler Blanks for optimal air flow.
- Riser 2 Blank UCSC-FBRS2-C240M6
- Riser 3 Blank UCSC-FBRS3-C240M6
| Product ID (PID) | Description |
|---|---|
| PCIe Riser 1B (controlled with CPU1) | |
| UCSC-RIS1B-240M6 |
|
| PCIe Riser 2A (controlled with CPU2) | |
| UCSC-RIS2A-240M6 | Supports three PCIe slots:
|
| PCIe Riser 3B (controlled with CPU2) | |
| UCSC-RIS3B-240M6 | Supports three PCIe slots:
|

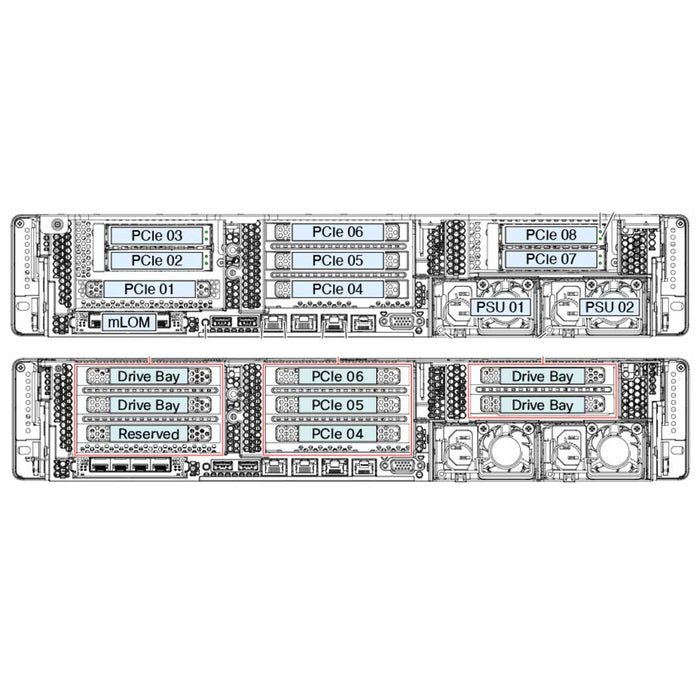

Not all risers are available in every server configuration option
Riser 1A
Slot 1 is full-height, 3/4 length, x8, NCSI
Slot 2 is full-height, full-length, x16, NCSI
Slot 3 is full-height, full-length, x8, no NCSI
I/O-centric
Riser 1B
Slot 1 is reserved
Slot 2 (drive bay 102), x4
Slot 3 (drive bay 101), x4
Supports SAS/SATA/NVMe
Storage-centric
Riser 2A
Slot 4 is full-height, 3/4 length, x8
Slot 5 is full-height, full-length, x16
Slot 6 is full-height, full-length, x8
I/O-centric
Riser 3A
Slot 7 is full-height, full-length, x8
Slot 8 is full-height, full-length, x8
I/O-centric
Riser 3B
Slot 7 (drive bay 104), x4
Slot 8 (drive bay 103), x4
Supports SAS/SATA/NVMe
Storage-centric
Riser 3C
Slot 7 supports one FH, FL, DW GPU, x16
Slot 8 blocked w/ a DW GPU is installed
GPU Support
GPU256 GB DIMMs cannot be combined with GPU cards. When a GPU is ordered, the server comes with low-profile heatsinks PID (UCSC-HSLP-M6=) and needs to select a special air duct PID (UCSC-ADGPU-240M6=) for GPUs.
Power & Fan UnitsThe chassis is equipped with six fans and two power supplies. In a server with two power supplies, both power supplies must be identical. Hot-pluggable, redundant 1050W AC, 1050W DC, 1600W AC, and 2300W AC
Dimensions & Weight Height3.42 in. (8.7 cm)
Width(Not including slam latches) 16.9 in.(42.9 cm)
Width(including slam latches) 18.9 in.(48.0 cm)
Depth30 in. (76.2 cm)
Weightwith the following options and no rail kit:
- 0 HDD, 0 CPU, 0 DIMM, and 1 2400 W power supply 39.13 lbs (17.8 kg)
- 0 HDD, 0 CPU, 0 DIMM, and 1 2400 W power supply 47.44 lbs (21.5 kg)
- 1 HDD, 1 CPU, 1 DIMM, and 1 2400 W power supply 41.95 lbs (19 kg)
- 1 HDD, 1 CPU, 1 DIMM, and 1 2400 W power supply 50.26 lbs (22.8 kg)
- 12 HDDs, 2 CPUs, 32 DIMMs, and 2 2400 W power supplies 61.7 lbs (28 kg)
- 12 HDDs, 2 CPUs, 32 DIMMs, and 2 2400 W power supplies 66.75 lbs (30.3 kg)
