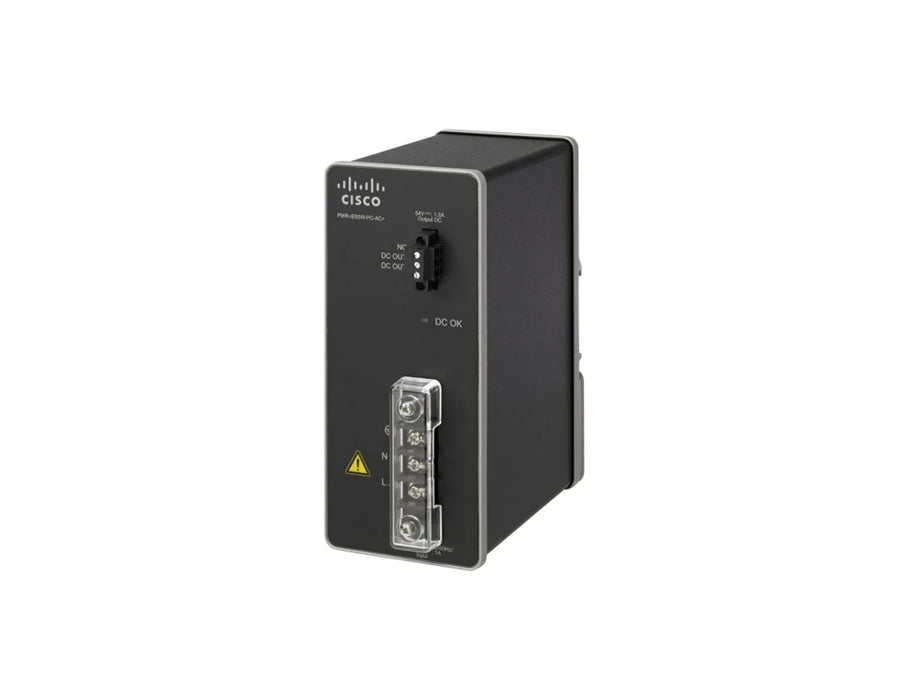

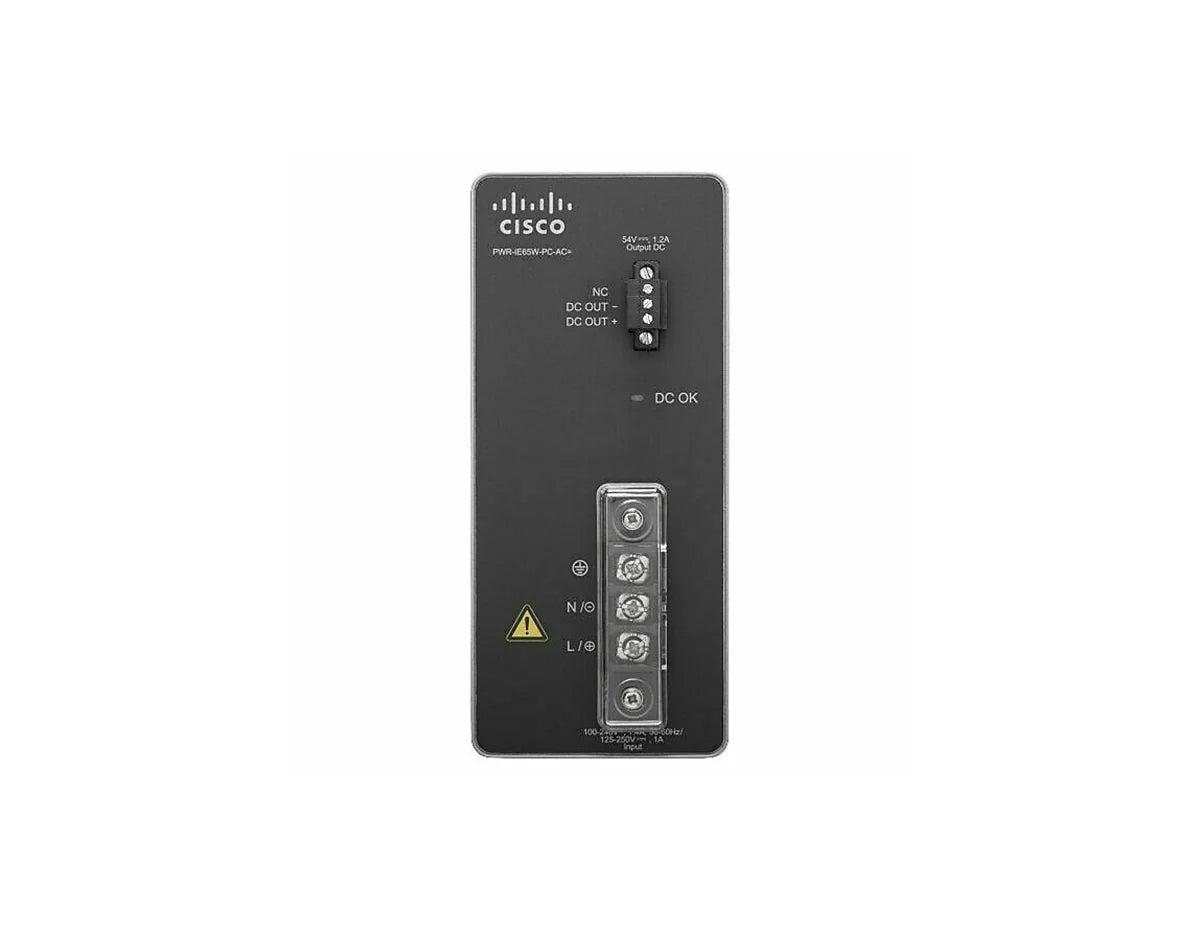

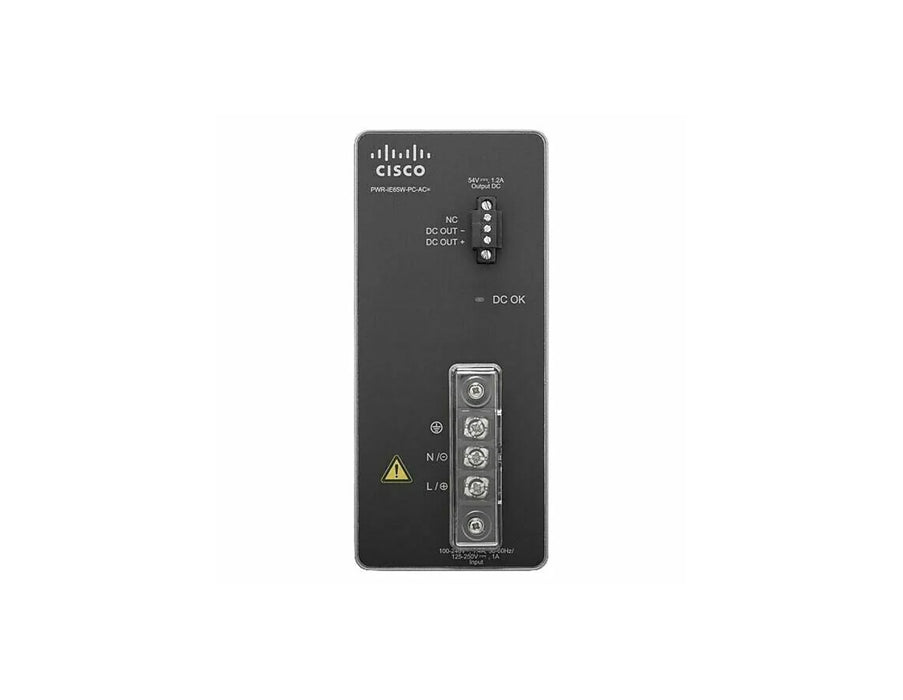

Cisco PWR-IE65W-PC-AC Power Supply
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco PWR-IE65W-PC-AC Power Supply
Cisco PWR-IE65W-PC-AC Power Supply

Cisco PWR-IE65W-PC-AC Power Supply

por Cisco
Desconto de 53%
R$ 7.265,28
R$ 3.420,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Power adapter (DIN Rail Mountable)
  • AC 110-220/ DC 88-300 V
  • 65 Watt
  • for Industrial Ethernet 1000/2000/3000/4000 Series
[/shortdesc]

[properties]

Properties Cisco PWR-IE65W-PC-AC
Description AC-DC, 54VDC power module to support 65 watts for PoE/PoE+ modules
Product Family Industrial Ethernet 3000
Product Type Power Supply
Configurations AC-DC Power Module for PoE solution, Input AC 100-240V/1.4A, 50-60Hz, DIN-Rail Mount
Dimensions (HxWxD) Inches 2.6W x 5.9H x 4.6D (66mm W x 150mm H x 117mm D)
Weight 2.7 (1.24 Kg)
Input voltage and currents supported 100-240VAC/1.4A or 125-250V/1A
Output 54VDC/1.2A

[/properties][specifications]

Specifications PWR-IE65W-PC-AC
Mean Time Between Failures (MTBF) 2,488,401
Operating Temperature -40C to +75C
-40C to +70C (Vented Enclosure 40 LFM Air Flow)
-40C to +60C (Sealed Enclosure 0 LFM Air Flow)
-24C to +75C (Fan or Blower equipped Enclosure 200 LFM Air Flow)
-40C to +85C (IEC 60068-2-2 Environmental Type Testing 16 hours)
Storage Temperature -40 C to +85 C
Operating Altitude Up to 13,000 ft (3963m)
Storage Altitude Up to 15,000 ft (4573m)
Standard safety certifications UL 60950-1
CSA C22.2 No. 60950-1
TUV/GS to EN 60950-1
CB to IEC 60950-1 with all country deviations
NOM
Electromagnetic emissions FCC Part 15 Class A
EN 55022
CISPR 22
CISPR11
VCCI Class A
AS/NZS 3548 Class A
CNS 13438 Class A
KN 22 Class A
Electromagnetic immunity EN 55024
AS/NZS CISPR 24
KN 24
IEC/EN 61000-4-2 (Electro Static Discharge)
IEC/EN 61000-4-3 (Radiated Immunity)
IEC/EN 61000-4-4 (Fast Transients)
IEC/EN 61000-4-5 (Surge)
IEC/EN 61000-4-6 (Conducted Immunity)
IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity)
IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity)
IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity)
IEC/EN 61000-4-11 (AC power Voltage Immunity)
IEC/EN 61000-4-16 (Low Frequency Conducted CM Disturbances)
IEC/EN 61000-4-17 (Ripple on DC Input Power)
IEC/EN 61000-4-18 (Damped Oscillatory Wave)
IEC/EN 61000-4-29 (Voltage Dips Immunity, DC power)
IEEE C37.90 (Surge)
IEEE C37.90.1 (Fast Transients)
IEEE C37.90.2 (Radiated Immunity)
IEEE C37.90.3 (Electro Static Discharge)
Mechanical stability IEC 60628-2-27 Shock 20g (operational), 30g (nonoperational)
Industry specifications EN 61131-2 Programmable Controllers (EMC/EMI, environmental, mechanical)
IEEE 1613 Power Station and Substation Networking Devices
IEC 61850-3 Power Station and Substation Communication Networks and Systems
EN 61326-1 Electrical Equipment for Measurement, Control and Laboratory Use - EMC
EN 61000-6-1 Immunity for Light Industrial Environments
EN 61000-6-2 Immunity for Industrial Environments
EN 61000-6-4 Emissions for Industrial Environments
TS 61000-6-5 EMC Immunity for Power Station and Substation
EN 50155 Railway, Electronic Equipment on Rolling Stock (EMI/EMC, environmental, mechanical)
EN 50121-3-2 Railway, Electromagnetic Compatibility on Rolling Stock
EN 50121-4 Railway, Emission and Immunity of Signaling and Telecommunications Apparatus
EN 60945 Maritime Navigation and Radio-communication Equipment and Systems
IEC 60533 Shipboard Electrical and Electronic Installation EMC
Marine Type Approval (BV, DNV, Korean Register, Lloyd Register)
NEMA TS-2 (EMC, environmental, mechanical)
ABB Industrial IT certification
ODVA Industrial EtherNet/IP support
PROFINETv2 support
Directive 2011/65/EU RoHS
IP20
Hazardous locations UL/CSA 60079-0, -15 (Class 1, Div 2 A-D) (requires cabinet enclosure)
EN 60079-0, -15 ATEX Certification (Class 1, Zone 2 A-D) (requires cabinet enclosure)
IEC 60079-0, -15 (Test report only) (requires cabinet enclosure)
UL 508
CSA C22.2 No. 142
Humidity Relative humidity: 5% to 95% non-condensing

[/specifications]

Cisco offers high capacity industrial din rail power supplies for networking equipment. They come in AC/DC and are rugged, reliable, and compact. The PWR-IE65W-PC-AC is AC to DC or High DC to DC power supply for Cisco IE3000 series switches, suitable for POE, delivering 65 watts, DIN rail-mountable, and compatible with the Cisco IE4000 series.

Key Features:

  • 65W
  • High-capacity PoE
  • For Cisco IE3000 series

For detailed specifications, refer to the Cisco PWR-IE65W-PC-AC datasheet in the tabs.


Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Power adapter (DIN Rail Mountable)
  • AC 110-220/ DC 88-300 V
  • 65 Watt
  • for Industrial Ethernet 1000/2000/3000/4000 Series
[/shortdesc]

[properties]

Properties Cisco PWR-IE65W-PC-AC
Description AC-DC, 54VDC power module to support 65 watts for PoE/PoE+ modules
Product Family Industrial Ethernet 3000
Product Type Power Supply
Configurations AC-DC Power Module for PoE solution, Input AC 100-240V/1.4A, 50-60Hz, DIN-Rail Mount
Dimensions (HxWxD) Inches 2.6W x 5.9H x 4.6D (66mm W x 150mm H x 117mm D)
Weight 2.7 (1.24 Kg)
Input voltage and currents supported 100-240VAC/1.4A or 125-250V/1A
Output 54VDC/1.2A

[/properties][specifications]

Specifications PWR-IE65W-PC-AC
Mean Time Between Failures (MTBF) 2,488,401
Operating Temperature -40C to +75C
-40C to +70C (Vented Enclosure 40 LFM Air Flow)
-40C to +60C (Sealed Enclosure 0 LFM Air Flow)
-24C to +75C (Fan or Blower equipped Enclosure 200 LFM Air Flow)
-40C to +85C (IEC 60068-2-2 Environmental Type Testing 16 hours)
Storage Temperature -40 C to +85 C
Operating Altitude Up to 13,000 ft (3963m)
Storage Altitude Up to 15,000 ft (4573m)
Standard safety certifications UL 60950-1
CSA C22.2 No. 60950-1
TUV/GS to EN 60950-1
CB to IEC 60950-1 with all country deviations
NOM
Electromagnetic emissions FCC Part 15 Class A
EN 55022
CISPR 22
CISPR11
VCCI Class A
AS/NZS 3548 Class A
CNS 13438 Class A
KN 22 Class A
Electromagnetic immunity EN 55024
AS/NZS CISPR 24
KN 24
IEC/EN 61000-4-2 (Electro Static Discharge)
IEC/EN 61000-4-3 (Radiated Immunity)
IEC/EN 61000-4-4 (Fast Transients)
IEC/EN 61000-4-5 (Surge)
IEC/EN 61000-4-6 (Conducted Immunity)
IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity)
IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity)
IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity)
IEC/EN 61000-4-11 (AC power Voltage Immunity)
IEC/EN 61000-4-16 (Low Frequency Conducted CM Disturbances)
IEC/EN 61000-4-17 (Ripple on DC Input Power)
IEC/EN 61000-4-18 (Damped Oscillatory Wave)
IEC/EN 61000-4-29 (Voltage Dips Immunity, DC power)
IEEE C37.90 (Surge)
IEEE C37.90.1 (Fast Transients)
IEEE C37.90.2 (Radiated Immunity)
IEEE C37.90.3 (Electro Static Discharge)
Mechanical stability IEC 60628-2-27 Shock 20g (operational), 30g (nonoperational)
Industry specifications EN 61131-2 Programmable Controllers (EMC/EMI, environmental, mechanical)
IEEE 1613 Power Station and Substation Networking Devices
IEC 61850-3 Power Station and Substation Communication Networks and Systems
EN 61326-1 Electrical Equipment for Measurement, Control and Laboratory Use - EMC
EN 61000-6-1 Immunity for Light Industrial Environments
EN 61000-6-2 Immunity for Industrial Environments
EN 61000-6-4 Emissions for Industrial Environments
TS 61000-6-5 EMC Immunity for Power Station and Substation
EN 50155 Railway, Electronic Equipment on Rolling Stock (EMI/EMC, environmental, mechanical)
EN 50121-3-2 Railway, Electromagnetic Compatibility on Rolling Stock
EN 50121-4 Railway, Emission and Immunity of Signaling and Telecommunications Apparatus
EN 60945 Maritime Navigation and Radio-communication Equipment and Systems
IEC 60533 Shipboard Electrical and Electronic Installation EMC
Marine Type Approval (BV, DNV, Korean Register, Lloyd Register)
NEMA TS-2 (EMC, environmental, mechanical)
ABB Industrial IT certification
ODVA Industrial EtherNet/IP support
PROFINETv2 support
Directive 2011/65/EU RoHS
IP20
Hazardous locations UL/CSA 60079-0, -15 (Class 1, Div 2 A-D) (requires cabinet enclosure)
EN 60079-0, -15 ATEX Certification (Class 1, Zone 2 A-D) (requires cabinet enclosure)
IEC 60079-0, -15 (Test report only) (requires cabinet enclosure)
UL 508
CSA C22.2 No. 142
Humidity Relative humidity: 5% to 95% non-condensing

[/specifications]

Cisco PWR-IE65W-PC-AC Power Supply

Cisco offers high capacity industrial din rail power supplies for networking equipment. They come in AC/DC and are rugged, reliable, and compact. The PWR-IE65W-PC-AC is AC to DC or High DC to DC power supply for Cisco IE3000 series switches, suitable for POE, delivering 65 watts, DIN rail-mountable, and compatible with the Cisco IE4000 series.

Key Features:

  • 65W
  • High-capacity PoE
  • For Cisco IE3000 series

For detailed specifications, refer to the Cisco PWR-IE65W-PC-AC datasheet in the tabs.
