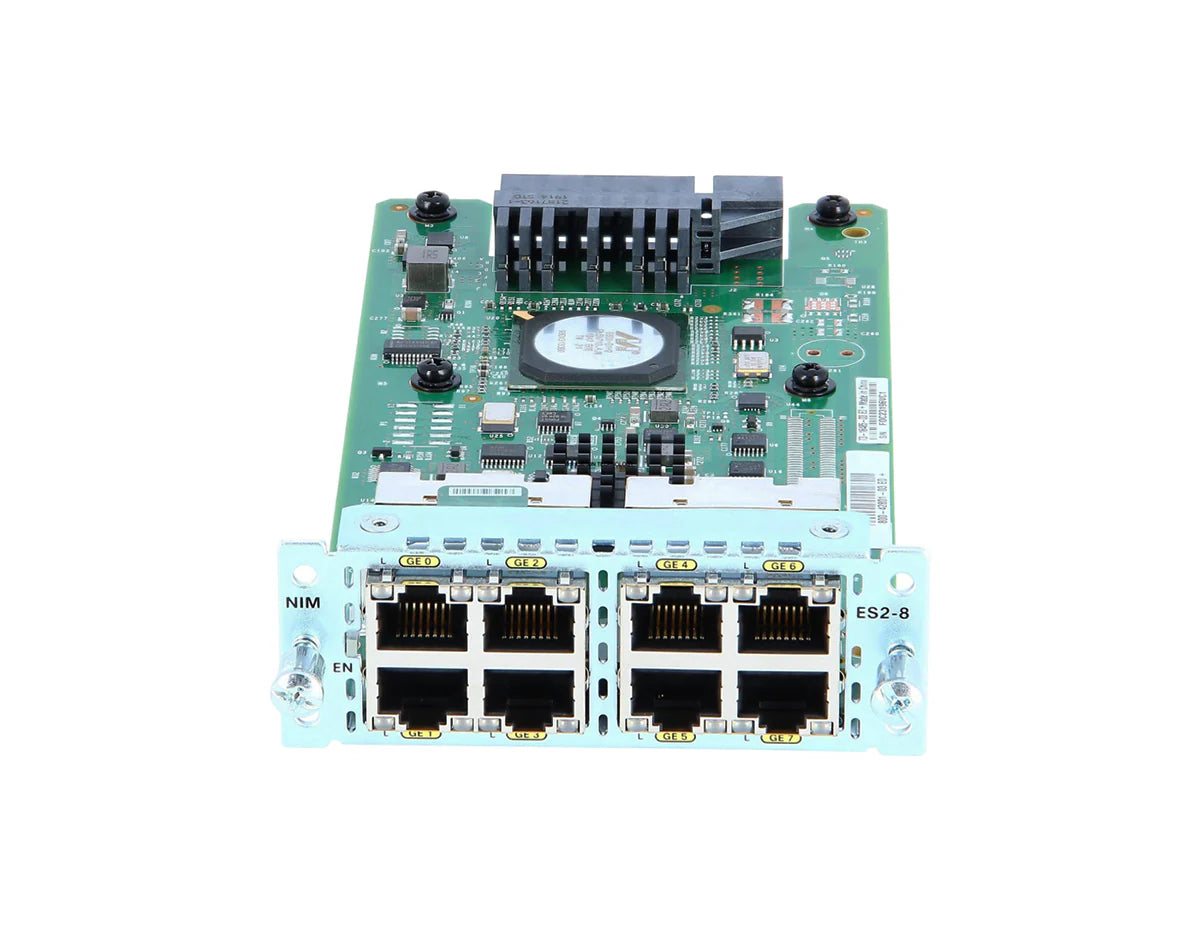

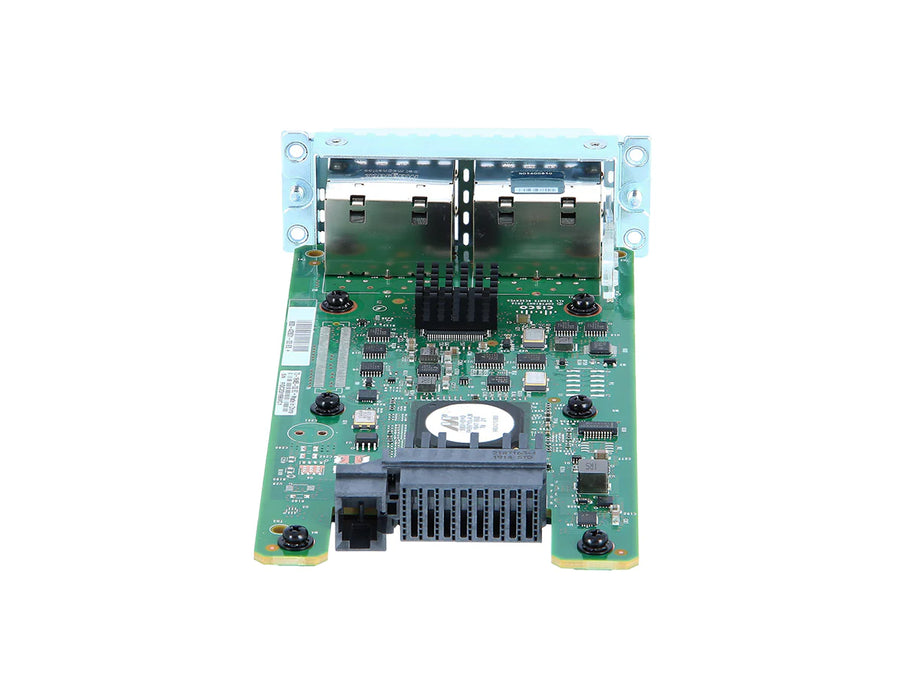

Cisco NIM-ES2-8 Expansion Module
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco NIM-ES2-8 Expansion Module
Cisco NIM-ES2-8 Expansion Module

Cisco NIM-ES2-8 Expansion Module

por Cisco
Desconto de 45%
R$ 16.269,12
R$ 8.952,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Expansion module
  • Gigabit Ethernet x 8
  • For Cisco 4451-X
[/shortdesc]

[specifications]

IEEE protocols Gigabit Ethernet: IEEE 802.3 and 10BASE-T

Gigabit Ethernet: IEEE 802.3u, 100BASE-TX, and 1000BASE-TX

IEEE 802.1d Spanning Tree Protocol

IEEE 802.1p CoS for Traffic Prioritization

IEEE 802.1q VLAN

IEEE 802.1X Security

IEEE 802.3x Full-Duplex

IEEE 802.3af Power over Gigabit Ethernet Standard
RFC RFC 2284, PPP Extensible Authentication Protocol (EAP)
MIBs RFC 1213

IF MIB

RFC 2037 ENTITY MIB

CISCO-CDP-MIB

CISCO-IMAGE-MIB

CISCO-FLASH-MIB

OLD-CISCO-CHASSIS-MIB

CISCO-VTP-MIB

CISCO-HSRP-MIB

OLD-CISCO-TS-MIB

CISCO-ENTITY-ASSET-MIB

CISCO-ENTITY-FRU-CONTROL-MIB

BRIDGE MIB (RFC 1493)

CISCO-VLAN-MEMBERSHIP-MIB

CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB

RMON1-MIB

PIM-MIB

CISCO-STP-EXTENSIONS-MIB

OSPF MIB (RFC 1253)

IPMROUTE-MIB

CISCO-MEMORY-POOL-MIB

ETHER-LIKE-MIB (RFC 1643)

CISCO-ENTITY-FRU-CONTROL-MIB.my

CISCO-RTTMON-MIB

CISCO-PROCESS-MIB

CISCO-COPS-CLIENT-MIB
Manageability SNMP and Telnet interface support delivers comprehensive in-band management, and a CLI management console provides detailed out-of-band management.

An embedded RMON software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis.

A SPAN port can mirror traffic from one or many ports to another port for monitoring all eight RMON groups with an RMON probe or network analyzer.

Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location.

Two LEDs per port provide a convenient visual indication of the port link and PoE status.

Crash information support enables a switch to generate a crash file for improved troubleshooting.

Show-interface capabilities provide information about the configuration capabilities of any interface.
Connectors and cabling 10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 unshielded twisted pair (UTP) cabling

100BASE-TX ports: RJ-45 connectors; two-pair Category 5 UTP cabling

1000BASE-TX ports: RJ-45 connectors; two-pair Category 5e and Category 6 UTP cabling
LED indicators Link status LED: One LED per port for indicating link status

PoE LED: One LED per port system for PoE status indication
Internal power supply Optional PoE system power supply available for all Cisco 4000 Series routers
Internal redundant power supply For the Cisco 4431 and 4451 routers only
DC power support DC system power input available on the Cisco 4351, 4431, and 4451 routers

PoE option not available with DC system power input
Software support Minimum Cisco IOS-XE Software Release 3.15 for Cisco 4000 Series routers: IP Base License of the Universal image
Operating temperature 32 to 104F (0 to 40C)
Operating humidity 10 to 90 percent, noncondensing
Nonoperating temperature -4 to 149F (-20 to 65C)
Operating altitude 15,000 ft (4,570m)
Regulatory compliance, safety, and EMC When installed in a Cisco 4000 Series router, the Cisco Gigabit Ethernet LAN Switch NIM meets the standards (regulatory compliance, safety, and EMC) of the router itself. Refer to the data sheets for the Cisco 4000 Series routers for more details.

[/specifications]

The Cisco NIM-ES2-8 8-Port Layer 2 Gigabit EtherSwitch Network Interface Modules connect Cisco IP phones, Cisco wireless access point workstations, and other network devices such as video devices, routers, switches, and other network components.

Key Features:

  • Single-wide NIM form factor
  • For Cisco ISR 4000 Series
  • Inline power on IP phones –30 V power

The tabs contain the Cisco NIM-ES2-8 datasheet with all the specifics you need.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Expansion module
  • Gigabit Ethernet x 8
  • For Cisco 4451-X
[/shortdesc]

[specifications]

IEEE protocols Gigabit Ethernet: IEEE 802.3 and 10BASE-T

Gigabit Ethernet: IEEE 802.3u, 100BASE-TX, and 1000BASE-TX

IEEE 802.1d Spanning Tree Protocol

IEEE 802.1p CoS for Traffic Prioritization

IEEE 802.1q VLAN

IEEE 802.1X Security

IEEE 802.3x Full-Duplex

IEEE 802.3af Power over Gigabit Ethernet Standard
RFC RFC 2284, PPP Extensible Authentication Protocol (EAP)
MIBs RFC 1213

IF MIB

RFC 2037 ENTITY MIB

CISCO-CDP-MIB

CISCO-IMAGE-MIB

CISCO-FLASH-MIB

OLD-CISCO-CHASSIS-MIB

CISCO-VTP-MIB

CISCO-HSRP-MIB

OLD-CISCO-TS-MIB

CISCO-ENTITY-ASSET-MIB

CISCO-ENTITY-FRU-CONTROL-MIB

BRIDGE MIB (RFC 1493)

CISCO-VLAN-MEMBERSHIP-MIB

CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB

RMON1-MIB

PIM-MIB

CISCO-STP-EXTENSIONS-MIB

OSPF MIB (RFC 1253)

IPMROUTE-MIB

CISCO-MEMORY-POOL-MIB

ETHER-LIKE-MIB (RFC 1643)

CISCO-ENTITY-FRU-CONTROL-MIB.my

CISCO-RTTMON-MIB

CISCO-PROCESS-MIB

CISCO-COPS-CLIENT-MIB
Manageability SNMP and Telnet interface support delivers comprehensive in-band management, and a CLI management console provides detailed out-of-band management.

An embedded RMON software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis.

A SPAN port can mirror traffic from one or many ports to another port for monitoring all eight RMON groups with an RMON probe or network analyzer.

Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location.

Two LEDs per port provide a convenient visual indication of the port link and PoE status.

Crash information support enables a switch to generate a crash file for improved troubleshooting.

Show-interface capabilities provide information about the configuration capabilities of any interface.
Connectors and cabling 10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 unshielded twisted pair (UTP) cabling

100BASE-TX ports: RJ-45 connectors; two-pair Category 5 UTP cabling

1000BASE-TX ports: RJ-45 connectors; two-pair Category 5e and Category 6 UTP cabling
LED indicators Link status LED: One LED per port for indicating link status

PoE LED: One LED per port system for PoE status indication
Internal power supply Optional PoE system power supply available for all Cisco 4000 Series routers
Internal redundant power supply For the Cisco 4431 and 4451 routers only
DC power support DC system power input available on the Cisco 4351, 4431, and 4451 routers

PoE option not available with DC system power input
Software support Minimum Cisco IOS-XE Software Release 3.15 for Cisco 4000 Series routers: IP Base License of the Universal image
Operating temperature 32 to 104F (0 to 40C)
Operating humidity 10 to 90 percent, noncondensing
Nonoperating temperature -4 to 149F (-20 to 65C)
Operating altitude 15,000 ft (4,570m)
Regulatory compliance, safety, and EMC When installed in a Cisco 4000 Series router, the Cisco Gigabit Ethernet LAN Switch NIM meets the standards (regulatory compliance, safety, and EMC) of the router itself. Refer to the data sheets for the Cisco 4000 Series routers for more details.

[/specifications]

Cisco NIM-ES2-8 Expansion Module

The Cisco NIM-ES2-8 8-Port Layer 2 Gigabit EtherSwitch Network Interface Modules connect Cisco IP phones, Cisco wireless access point workstations, and other network devices such as video devices, routers, switches, and other network components.

Key Features:

  • Single-wide NIM form factor
  • For Cisco ISR 4000 Series
  • Inline power on IP phones –30 V power

The tabs contain the Cisco NIM-ES2-8 datasheet with all the specifics you need.
