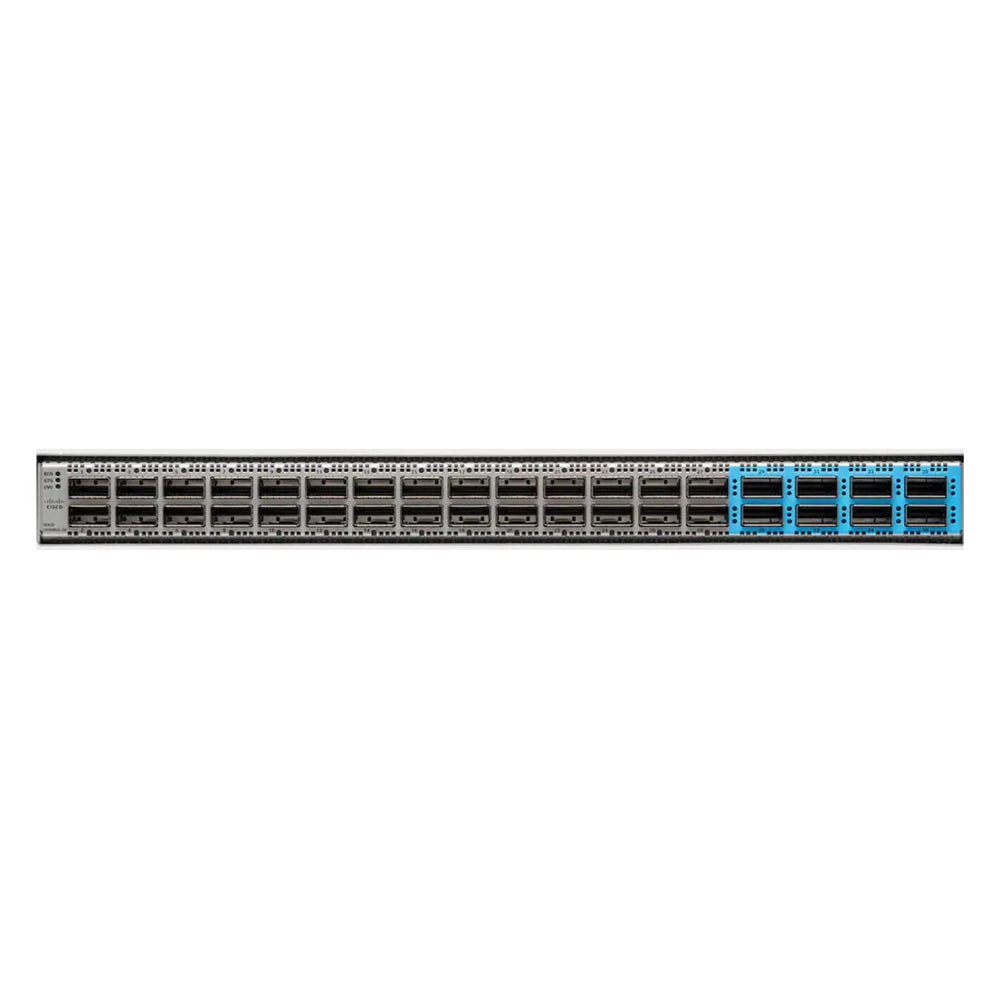

Cisco Nexus 9300-GX Series 36-Ports Managed Switch (N9K-C93600CD-GX)
Cisco Nexus 9300-GX Series 36-Ports Managed Switch (N9K-C93600CD-GX)

Cisco Nexus 9300-GX Series 36-Ports Managed Switch (N9K-C93600CD-GX)

por Cisco
Desconto de 45%
R$ 696.172,20
R$ 382.896,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Cisco Nexus 9300-GX Series 36x Ports Managed Switch N9K-C93600CD-GX is a high-performance, next-generation data center switch with 28x 100/40G QSFP28 and 8x 400/100G QSFP-DD ports for scalable networking

[/shortdesc]

[properties]
Property
Model N9K-C93600CD-GX
Product Type Spine and Leaf Data Center Switch
Port Configuration 28 x 100/40G QSFP28 and 8 x 400/100G QSFP-DD
Form Factor 1RU
Throughput Not specified (based on ports, >25 Tbps expected)
Buffer Size 80 MB centralized
Operating System Cisco NX-OS or Cisco ACI
CPU Broadwell-DE, 4 cores
System Memory 16 GB (NX-OS) / 24 GB (ACI)
SSD Storage 128 GB
USB Port 1
Serial Console Port 1 x RS-232
Management Ports 1 x 10/100/1000BASE-T and 1 x 1G SFP+
Dimensions (H x W x D) 1.72 x 17.37 x 25.5 in (4.37 x 44.13 x 64.8 cm)

[/properties]



[specifications]
Specification
Power Supply Support Up to 2 x 1100W (AC/DC/HVDC) – hot-swappable, redundant
Typical Power Consumption 590W
Voltage Input Range 100–240V AC, –40 to –72V DC, 200–277V HVAC, –240 to –380V HVDC
Frequency 50–60 Hz
Operating Temperature 0 to 40°C (32 to 104°F)
Storage Temperature –40 to 70°C (–40 to 158°F)
Humidity 5% to 85% (non-condensing)
Altitude 0 to 4000 m (0 to 13,123 ft)
Max IPv4 Routes (LPM) 896
Max IPv4 Hosts 896
Max MAC Addresses 256
Max Multicast Routes 32
IGMP Snooping Groups 32
ACL Entries 20,000 ingress / 8,000 egress (max)
VLAN Support Up to 3967
VRF Instances Up to 16,000
ECMP Paths 64-way
Port Channels Up to 512
Links per Port Channel Up to 32
SPAN Sessions Up to 4
NAT Entries 1023
MST Instances 64
RPVST Instances 3967
HSRP Groups 490
Flow Table Size 64,000 entries

[/specifications]



[accesories]
Accessory
NXA-FAN-35CFM-PI 35 CFM fan module
NXA-FAN-35CFM-PE 35 CFM fan module
NXA-PAC-1100W-PI2 1100W AC power supply
NXA-PAC-1100W-PE2 1100W AC power supply
NXA-PDC-1100W-PI 1100W DC power supply
NXA-PDC-1100W-PE 1100W DC power supply
NXA-PHV-1100W-PI 1100W HVAC/HVDC power supply
NXA-PHV-1100W-PE 1100W HVAC/HVDC power supply
N9K-C9300-RMK Rack mount kit
N9K-C9300-ACK Fixed accessory kit

[/accesories]

Cisco Nexus 9300-GX Series 36-Ports Managed Switch (N9K-C93600CD-GX)

The Cisco Nexus 9300-GX Series N9K-C93600CD-GX is a high-density, high-speed spine-and-leaf data center switch built for next-generation cloud and enterprise networks. Designed to support scalable and flexible deployments, it features 28x 100/40G QSFP28 ports and 8x 400/100G QSFP-DD ports, enabling seamless migration to 400G networking. Based on Cisco Cloud Scale technology, this switch offers high-performance Layer 2 and Layer 3 scalability, making it ideal for virtualized data centers, automated cloud environments, and large-scale network infrastructures.

  • High-Density 100G & 400G Connectivity: 28x 100/40G QSFP28 ports and 8x 400/100G QSFP-DD ports.
  • Next-Generation Scalability: Supports Cisco ACI or NX-OS mode for flexible deployment options.
  • Advanced Layer 2/3 Features: Optimized for high-performance switching and routing.
  • High-Speed Data Processing: Powered by a Broadwell-DE CPU with 4 cores.
  • Robust Storage & Memory: 16GB NX-OS, 24GB ACI, and 128GB SSD for efficient data management.
  • Flexible Management & Connectivity: Includes 1 USB port, 1 RS-232 serial console port, and 2 management ports (1GBASE-T and 1G SFP+).
  • Optimized for Cloud & AI Workloads: Delivers ultra-low latency and high bandwidth for demanding applications.
  • Model Number: N9K-C93600CD-GX
  • Ports: 28x 100/40G QSFP28 and 8x 400/100G QSFP-DD
  • CPU: Broadwell-DE, 4 cores
  • Memory: 16GB NX-OS, 24GB ACI
  • Storage: 128GB SSD
  • Management Ports: 1x USB, 1x RS-232 serial console, 2x (1GBASE-T & 1G SFP+)
  • Packet Buffer: 80MB centralized buffer
  • Cooling System: 5+1 redundant fans, hot-swappable
  • Power Supply: Dual 1100W AC/DC redundant power supplies
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Dimensions (H x W x D): 1.72 x 17.37 x 25.5 inches (4.37 x 44.13 x 64.8 cm)
  • Weight: Varies based on configuration
  • Software Support: Cisco ACI, NX-OS mode

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Cisco Nexus 9300-GX Series 36x Ports Managed Switch N9K-C93600CD-GX is a high-performance, next-generation data center switch with 28x 100/40G QSFP28 and 8x 400/100G QSFP-DD ports for scalable networking

[/shortdesc]

[properties]
Property
Model N9K-C93600CD-GX
Product Type Spine and Leaf Data Center Switch
Port Configuration 28 x 100/40G QSFP28 and 8 x 400/100G QSFP-DD
Form Factor 1RU
Throughput Not specified (based on ports, >25 Tbps expected)
Buffer Size 80 MB centralized
Operating System Cisco NX-OS or Cisco ACI
CPU Broadwell-DE, 4 cores
System Memory 16 GB (NX-OS) / 24 GB (ACI)
SSD Storage 128 GB
USB Port 1
Serial Console Port 1 x RS-232
Management Ports 1 x 10/100/1000BASE-T and 1 x 1G SFP+
Dimensions (H x W x D) 1.72 x 17.37 x 25.5 in (4.37 x 44.13 x 64.8 cm)

[/properties]



[specifications]
Specification
Power Supply Support Up to 2 x 1100W (AC/DC/HVDC) – hot-swappable, redundant
Typical Power Consumption 590W
Voltage Input Range 100–240V AC, –40 to –72V DC, 200–277V HVAC, –240 to –380V HVDC
Frequency 50–60 Hz
Operating Temperature 0 to 40°C (32 to 104°F)
Storage Temperature –40 to 70°C (–40 to 158°F)
Humidity 5% to 85% (non-condensing)
Altitude 0 to 4000 m (0 to 13,123 ft)
Max IPv4 Routes (LPM) 896
Max IPv4 Hosts 896
Max MAC Addresses 256
Max Multicast Routes 32
IGMP Snooping Groups 32
ACL Entries 20,000 ingress / 8,000 egress (max)
VLAN Support Up to 3967
VRF Instances Up to 16,000
ECMP Paths 64-way
Port Channels Up to 512
Links per Port Channel Up to 32
SPAN Sessions Up to 4
NAT Entries 1023
MST Instances 64
RPVST Instances 3967
HSRP Groups 490
Flow Table Size 64,000 entries

[/specifications]



[accesories]
Accessory
NXA-FAN-35CFM-PI 35 CFM fan module
NXA-FAN-35CFM-PE 35 CFM fan module
NXA-PAC-1100W-PI2 1100W AC power supply
NXA-PAC-1100W-PE2 1100W AC power supply
NXA-PDC-1100W-PI 1100W DC power supply
NXA-PDC-1100W-PE 1100W DC power supply
NXA-PHV-1100W-PI 1100W HVAC/HVDC power supply
NXA-PHV-1100W-PE 1100W HVAC/HVDC power supply
N9K-C9300-RMK Rack mount kit
N9K-C9300-ACK Fixed accessory kit

[/accesories]

Cisco Nexus 9300-GX Series 36-Ports Managed Switch (N9K-C93600CD-GX)

The Cisco Nexus 9300-GX Series N9K-C93600CD-GX is a high-density, high-speed spine-and-leaf data center switch built for next-generation cloud and enterprise networks. Designed to support scalable and flexible deployments, it features 28x 100/40G QSFP28 ports and 8x 400/100G QSFP-DD ports, enabling seamless migration to 400G networking. Based on Cisco Cloud Scale technology, this switch offers high-performance Layer 2 and Layer 3 scalability, making it ideal for virtualized data centers, automated cloud environments, and large-scale network infrastructures.

Key Features:
  • High-Density 100G & 400G Connectivity: 28x 100/40G QSFP28 ports and 8x 400/100G QSFP-DD ports.
  • Next-Generation Scalability: Supports Cisco ACI or NX-OS mode for flexible deployment options.
  • Advanced Layer 2/3 Features: Optimized for high-performance switching and routing.
  • High-Speed Data Processing: Powered by a Broadwell-DE CPU with 4 cores.
  • Robust Storage & Memory: 16GB NX-OS, 24GB ACI, and 128GB SSD for efficient data management.
  • Flexible Management & Connectivity: Includes 1 USB port, 1 RS-232 serial console port, and 2 management ports (1GBASE-T and 1G SFP+).
  • Optimized for Cloud & AI Workloads: Delivers ultra-low latency and high bandwidth for demanding applications.
Technical Specifications:
  • Model Number: N9K-C93600CD-GX
  • Ports: 28x 100/40G QSFP28 and 8x 400/100G QSFP-DD
  • CPU: Broadwell-DE, 4 cores
  • Memory: 16GB NX-OS, 24GB ACI
  • Storage: 128GB SSD
  • Management Ports: 1x USB, 1x RS-232 serial console, 2x (1GBASE-T & 1G SFP+)
  • Packet Buffer: 80MB centralized buffer
  • Cooling System: 5+1 redundant fans, hot-swappable
  • Power Supply: Dual 1100W AC/DC redundant power supplies
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Dimensions (H x W x D): 1.72 x 17.37 x 25.5 inches (4.37 x 44.13 x 64.8 cm)
  • Weight: Varies based on configuration
  • Software Support: Cisco ACI, NX-OS mode
