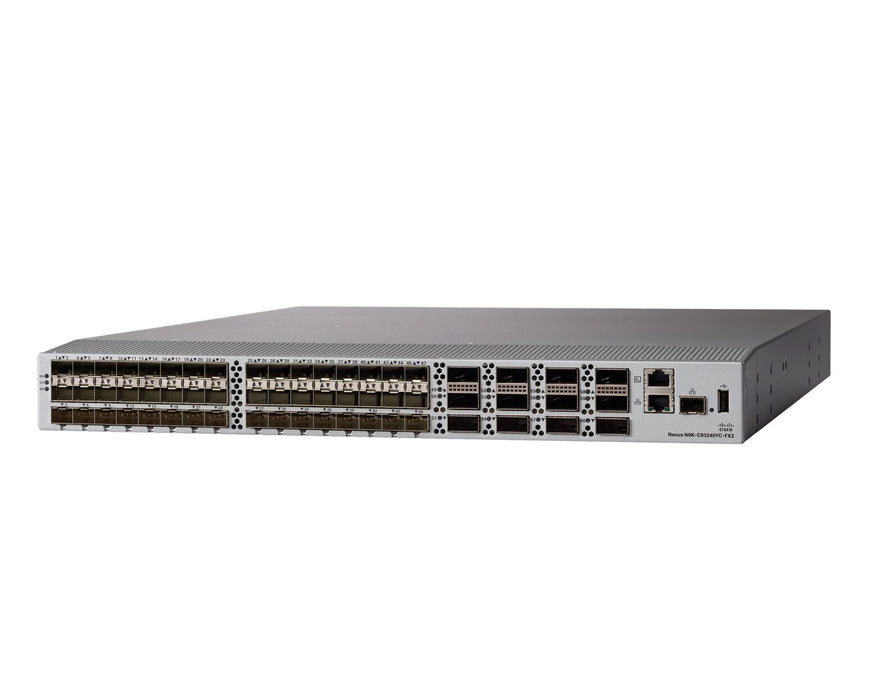

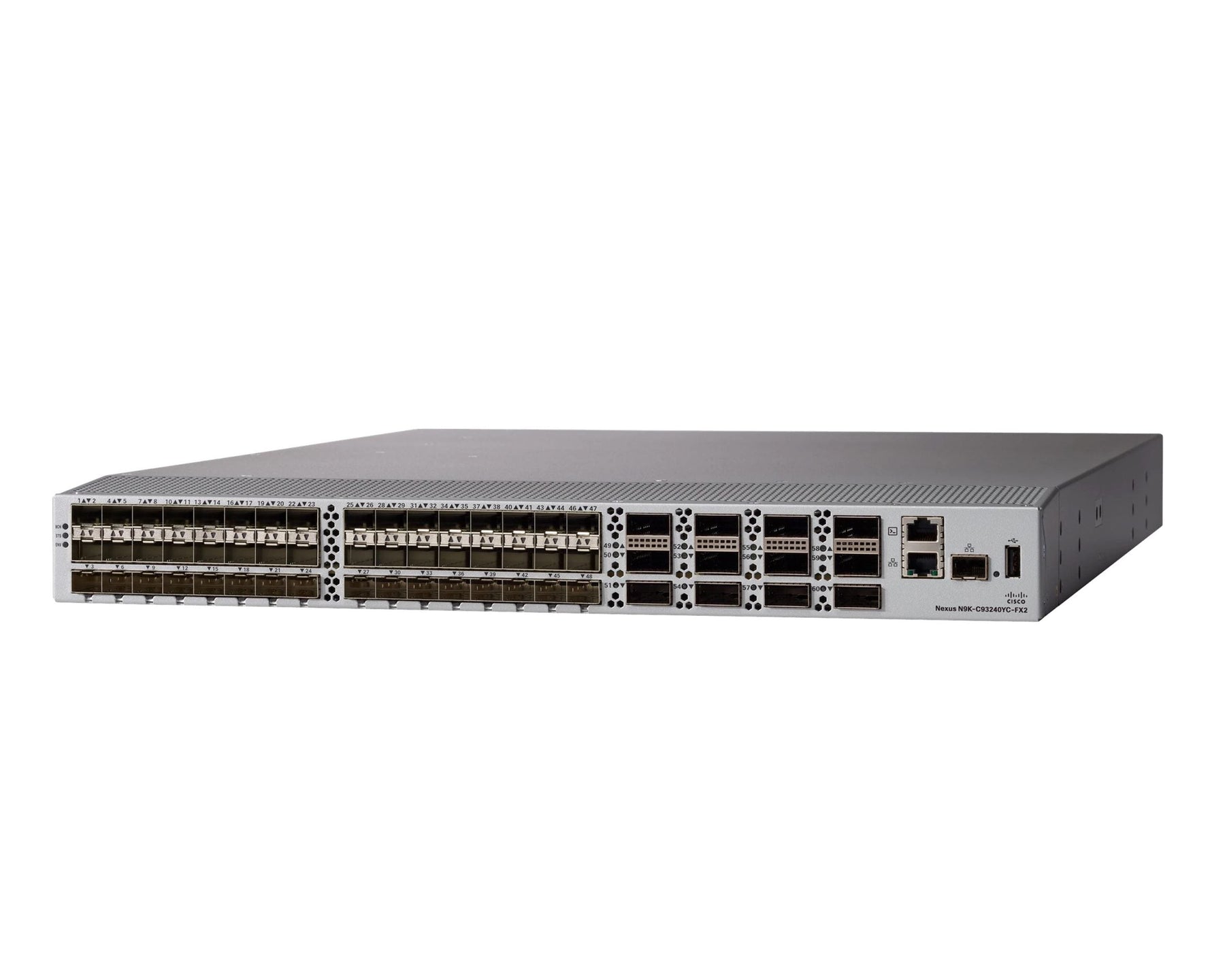

Cisco Nexus 9300 48x 10/25G SFP+ 12x 40/100-Gbps QSFP28 Switch (N9K-C93240YC-FX2)
Cisco Nexus 9300 48x 10/25G SFP+ 12x 40/100-Gbps QSFP28 Switch (N9K-C93240YC-FX2)

Cisco Nexus 9300 48x 10/25G SFP+ 12x 40/100-Gbps QSFP28 Switch (N9K-C93240YC-FX2)

por Cisco
Desconto de 45%
R$ 590.004,00
R$ 324.504,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Cisco Nexus 9300 48x 10/25G SFP+ 12x 40/100-Gbps QSFP28 Switch N9K-C93240YC-FX2 is a high-performance, scalable switch designed for data centers, offering flexible speeds and intelligent buffer management

[/shortdesc]

[properties]
Property
Model N9K-C93240YC-FX2
Product Type Fixed Leaf Switch
Form Factor 1.2RU
Port Configuration 48 x 1/10/25-Gbps SFP+ and 12 x 40/100-Gbps QSFP28 ports
Downlink Speeds 1G, 10G, 25G
Uplink Speeds 40G, 100G
Throughput 4.8 Tbps
Forwarding Rate Over 2.5 bpps
Operating System Cisco NX-OS or ACI
Breakout Support Yes, on uplinks
FC-FEC / RS-FEC Enabled for 25G
Airflow Direction Port-side intake and exhaust
Fans 5
MTBF 345,950 hours
RoHS Compliance Yes
Dimensions (H x W x D) 2.1 x 17.3 x 23.3 in (5.3 x 43.9 x 59.1 cm)
Weight (Chassis only) 10 kg (22 lbs)

[/properties]



[specifications]
Specification
CPU 4 cores
System Memory Up to 24 GB
SSD Storage 128 GB
System Buffer 40 MB
Management Ports 1 x RJ-45, 1 x SFP+
USB Ports 1
RS-232 Serial Port 1
Max Power Consumption (AC) 708W
Typical Power Consumption (AC) 298W
Power Supply Options 750W, 1100W AC/DC/HVDC (dual supported)
AC Input Voltage 100–240V
HVAC Input Voltage 100–277V
DC Input Voltage –40 to –72V
HVDC Input Voltage –240 to –380V
Frequency (AC) 50–60 Hz
Operating Temperature 0 to 40°C (32 to 104°F)
Storage Temperature –40 to 70°C (–40 to 158°F)
Humidity 5% to 95% (non-condensing)
Altitude 0 to 4000 m (0 to 13,123 ft)

[/specifications]



[accesories]
Accessory
NXA-PAC-750W-PI 750W AC PSU, port-side intake airflow
NXA-PAC-750W-PE 750W AC PSU, port-side exhaust airflow
NXA-PAC-1100W-PI2 1100W AC PSU, port-side intake airflow
NXA-PAC-1100W-PE2 1100W AC PSU, port-side exhaust airflow
NXA-PDC-1100W-PI 1100W DC PSU, port-side intake airflow
NXA-PDC-1100W-PE 1100W DC PSU, port-side exhaust airflow
NXA-PHV-1100W-PI 1100W HV-AC-DC PSU, port-side intake airflow
NXA-PHV-1100W-PE 1100W HV-AC-DC PSU, port-side exhaust airflow
NXA-FAN-35CFM-PI 35CFM fan, port-side intake airflow
NXA-FAN-35CFM-PE 35CFM fan, port-side exhaust airflow
NXK-ACC-KIT-1RU Accessory kit with 4-post rack mount kit (included in the box)

[/accesories]

Cisco Nexus 9300 48x 10/25G SFP+ 12x 40/100-Gbps QSFP28 Switch (N9K-C93240YC-FX2)

The Cisco Nexus 93240YC-FX2 is a next-generation data center switch designed for seamless migration from 1G and 10G networks to higher speeds, offering 48 downlink ports supporting 1/10/25G and 12 uplink ports with 40/100G QSFP28 support. Built with Cisco Cloud Scale technology, it ensures high scalability, low latency, and intelligent buffer management. The switch supports advanced Layer 2 and Layer 3 features, making it an ideal solution for enterprises and cloud environments requiring flexible and secure network architecture.

  • Flexible Port Speeds: 48x 1/10/25G SFP+ downlink ports and 12x 40/100G QSFP28 uplink ports.
  • Advanced Network Efficiency: Supports intelligent buffering and congestion management.
  • Optimized for Cloud & AI Workloads: High-speed switching fabric with ultra-low latency.
  • Scalable Layer 2/3 Capabilities: Supports up to 896,000 longest prefix match (LPM) routes.
  • High-Performance Compute Support: RoCE support for lossless Ethernet.
  • Energy-Efficient Operation: 298W typical power consumption, 708W maximum.
  • Multiple Management Interfaces: 2 management ports (RJ-45 and SFP+), 1 USB port, and 1 RS-232 console port.
  • Model Number: N9K-C93240YC-FX2
  • Downlink Ports: 48x 1/10/25G SFP+
  • Uplink Ports: 12x 40/100G QSFP28
  • CPU: 4-core processor
  • System Memory: Up to 24GB
  • SSD Storage: 128GB
  • Buffer Size: 40MB
  • Power Supplies: Up to 2 (750W AC, 1100W AC/DC, HVAC/HVDC)
  • Typical Power Consumption: 298W
  • Maximum Power Consumption: 708W
  • Input Voltage (AC): 100-240V
  • Input Voltage (HVAC): 100-277V
  • Input Voltage (DC): –40 to –72V
  • Input Voltage (HVDC): –240 to –380V
  • Frequency (AC): 50-60Hz
  • Cooling System: 5 fans, port-side intake and exhaust
  • Dimensions (H x W x D): 2.1 x 17.3 x 23.3 inches (5.3 x 43.9 x 59.1 cm)
  • MTBF: 365,610 hours
  • Maximum Number of LPM Routes: 896,000
  • Maximum Number of MAC Address Entries: 256,000
  • Maximum Number of VLANs: 4096
  • Maximum Number of VRF Instances: 16,000
  • Maximum Number of ECMP Paths: 64
  • Maximum Number of Port Channels: 512
  • Supported Operating Modes: Cisco ACI and NX-OS

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Cisco Nexus 9300 48x 10/25G SFP+ 12x 40/100-Gbps QSFP28 Switch N9K-C93240YC-FX2 is a high-performance, scalable switch designed for data centers, offering flexible speeds and intelligent buffer management

[/shortdesc]

[properties]
Property
Model N9K-C93240YC-FX2
Product Type Fixed Leaf Switch
Form Factor 1.2RU
Port Configuration 48 x 1/10/25-Gbps SFP+ and 12 x 40/100-Gbps QSFP28 ports
Downlink Speeds 1G, 10G, 25G
Uplink Speeds 40G, 100G
Throughput 4.8 Tbps
Forwarding Rate Over 2.5 bpps
Operating System Cisco NX-OS or ACI
Breakout Support Yes, on uplinks
FC-FEC / RS-FEC Enabled for 25G
Airflow Direction Port-side intake and exhaust
Fans 5
MTBF 345,950 hours
RoHS Compliance Yes
Dimensions (H x W x D) 2.1 x 17.3 x 23.3 in (5.3 x 43.9 x 59.1 cm)
Weight (Chassis only) 10 kg (22 lbs)

[/properties]



[specifications]
Specification
CPU 4 cores
System Memory Up to 24 GB
SSD Storage 128 GB
System Buffer 40 MB
Management Ports 1 x RJ-45, 1 x SFP+
USB Ports 1
RS-232 Serial Port 1
Max Power Consumption (AC) 708W
Typical Power Consumption (AC) 298W
Power Supply Options 750W, 1100W AC/DC/HVDC (dual supported)
AC Input Voltage 100–240V
HVAC Input Voltage 100–277V
DC Input Voltage –40 to –72V
HVDC Input Voltage –240 to –380V
Frequency (AC) 50–60 Hz
Operating Temperature 0 to 40°C (32 to 104°F)
Storage Temperature –40 to 70°C (–40 to 158°F)
Humidity 5% to 95% (non-condensing)
Altitude 0 to 4000 m (0 to 13,123 ft)

[/specifications]



[accesories]
Accessory
NXA-PAC-750W-PI 750W AC PSU, port-side intake airflow
NXA-PAC-750W-PE 750W AC PSU, port-side exhaust airflow
NXA-PAC-1100W-PI2 1100W AC PSU, port-side intake airflow
NXA-PAC-1100W-PE2 1100W AC PSU, port-side exhaust airflow
NXA-PDC-1100W-PI 1100W DC PSU, port-side intake airflow
NXA-PDC-1100W-PE 1100W DC PSU, port-side exhaust airflow
NXA-PHV-1100W-PI 1100W HV-AC-DC PSU, port-side intake airflow
NXA-PHV-1100W-PE 1100W HV-AC-DC PSU, port-side exhaust airflow
NXA-FAN-35CFM-PI 35CFM fan, port-side intake airflow
NXA-FAN-35CFM-PE 35CFM fan, port-side exhaust airflow
NXK-ACC-KIT-1RU Accessory kit with 4-post rack mount kit (included in the box)

[/accesories]

Cisco Nexus 9300 48x 10/25G SFP+ 12x 40/100-Gbps QSFP28 Switch (N9K-C93240YC-FX2)

The Cisco Nexus 93240YC-FX2 is a next-generation data center switch designed for seamless migration from 1G and 10G networks to higher speeds, offering 48 downlink ports supporting 1/10/25G and 12 uplink ports with 40/100G QSFP28 support. Built with Cisco Cloud Scale technology, it ensures high scalability, low latency, and intelligent buffer management. The switch supports advanced Layer 2 and Layer 3 features, making it an ideal solution for enterprises and cloud environments requiring flexible and secure network architecture.

Key Features:
  • Flexible Port Speeds: 48x 1/10/25G SFP+ downlink ports and 12x 40/100G QSFP28 uplink ports.
  • Advanced Network Efficiency: Supports intelligent buffering and congestion management.
  • Optimized for Cloud & AI Workloads: High-speed switching fabric with ultra-low latency.
  • Scalable Layer 2/3 Capabilities: Supports up to 896,000 longest prefix match (LPM) routes.
  • High-Performance Compute Support: RoCE support for lossless Ethernet.
  • Energy-Efficient Operation: 298W typical power consumption, 708W maximum.
  • Multiple Management Interfaces: 2 management ports (RJ-45 and SFP+), 1 USB port, and 1 RS-232 console port.
Technical Specifications:
  • Model Number: N9K-C93240YC-FX2
  • Downlink Ports: 48x 1/10/25G SFP+
  • Uplink Ports: 12x 40/100G QSFP28
  • CPU: 4-core processor
  • System Memory: Up to 24GB
  • SSD Storage: 128GB
  • Buffer Size: 40MB
  • Power Supplies: Up to 2 (750W AC, 1100W AC/DC, HVAC/HVDC)
  • Typical Power Consumption: 298W
  • Maximum Power Consumption: 708W
  • Input Voltage (AC): 100-240V
  • Input Voltage (HVAC): 100-277V
  • Input Voltage (DC): –40 to –72V
  • Input Voltage (HVDC): –240 to –380V
  • Frequency (AC): 50-60Hz
  • Cooling System: 5 fans, port-side intake and exhaust
  • Dimensions (H x W x D): 2.1 x 17.3 x 23.3 inches (5.3 x 43.9 x 59.1 cm)
  • MTBF: 365,610 hours
  • Maximum Number of LPM Routes: 896,000
  • Maximum Number of MAC Address Entries: 256,000
  • Maximum Number of VLANs: 4096
  • Maximum Number of VRF Instances: 16,000
  • Maximum Number of ECMP Paths: 64
  • Maximum Number of Port Channels: 512
  • Supported Operating Modes: Cisco ACI and NX-OS
