[shortdesc]
- 100Mbps-300Mbps system throughput
- 2 WAN/LAN ports
- 2 SFP ports
- multi-Core CPU
- 1 service module slots
- Security
- Voice
- WAAS
- Intelligent WAN
- OnePK
- AVC
[/shortdesc]
[properties]
| Properties |
ISR4331-VSEC-K9 |
| Description |
Cisco ISR 4331 Bundle with UC & Sec Lic. PVDM4-32. CUBE-10s |
| Product Family |
ISR 4000 Series |
| Product Type |
Routers |
| Total onboard WAN or LAN 10/100/1000 ports |
3 |
| RJ-45-based ports |
2 |
| SFP-based ports |
2 |
| Enhanced service- module slots |
1 |
| Aggregate Throughput (Default) |
100 Mbps to 300 Mbp |
| AC input voltage |
100 to 240 VAC autoranging |
| Power-supply options |
Internal: AC and PoE |
| Maximum power with AC power supply (watts) |
250 |
| Maximum power with PoE power supply (platform only) (watts) |
530 |
| Unit dimensions in. (W x D x H) |
44.45 x 438.15 x 438.15 mm |
| Rack-mount 19in. |
Included |
| Wall-mount |
Yes |
[/properties][specifications]
| Specifications |
ISR4331-VSEC-K9 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM |
4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) |
16 GB |
| Default memory DDR3 ECC DRAM (data plane) |
NA |
| Maximum memory DDR3 ECC DRAM (data plane) |
NA |
| Default memory DDR3 ECC DRAM (control/services plane) |
NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) |
NA |
| Default flash memory |
4 GB |
| Maximum Flash Memory |
16 GB |
| Operating Temperature |
32 to 104°F (0 to 40°C) |
| Operating humidity |
5% to 85% |
| Safety |
UL 60950-1 |
| CAN/CSA C22.2 No. 60950-1 |
| EN 60950-1 |
| AS/NZS 60950-1 |
| IEC 60950-1 |
| EMC |
47 CFR, Part 15 |
| ICES-003 Class A |
| EN55032 Class A |
| CISPR32 Class A |
| AS/NZS CISPR 32 Class A |
| VCCI V-3 |
| CNS 13438 |
| EN 300-386 |
| EN 61000 (Immunity) |
| EN 55024, CISPR 24 |
| KN22, KN24 EN 50121-1 EN61000-6-4 EN 50121-4 |
| Protocols |
IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast (SSM), RSVP, CDP, ERSPAN, IPSLA, Call Home, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, OTV6, HSRP, RADIUS, AAA, AVC, Distance Vector Multicast Routing Protocol (DVMRP), IPv4-to-IPv6 Multicast, MPLS, Layer 2 and Layer 3 VPN, IP sec, Layer 2 Tunneling Protocol Version 3 (L2TPv3), Bidirectional Forwarding Detection (BFD), IEEE802.1ag, and IEEE802.3ah |
[/specifications][accesories]
| Accessories |
There is no additional accessories. |
| Bundles |
Features |
| Application Experience with Voice (AXV) |
AX + Voice |
| Voice with Security (VSEC) |
Voice + Security |
| Application Experience (AX) |
IP Base + Security + advanced networking protocols: L2TPv3, BFD, MPLS, VRF, VXLAN10 (Bandwidth <100Mbps) |
| Application Experience: PfRv3, WAAS with AppNav, NBAR2, AVC, IP SLA |
| Hybrid Cloud Connectivity: LISP, OTV (for Bandwidth <100Mbps), VPLS, EoMPLS Intelligent Web Caching: Akamai Connect |
| Voice (V) |
IP Base + Unified Communications: CME, SRST, CUBE |
| Security (SEC) |
IP Base + Advanced Security: Zone Based Firewall, IPSec VPN, EZVPN, DMVPN, |
[/accesories]

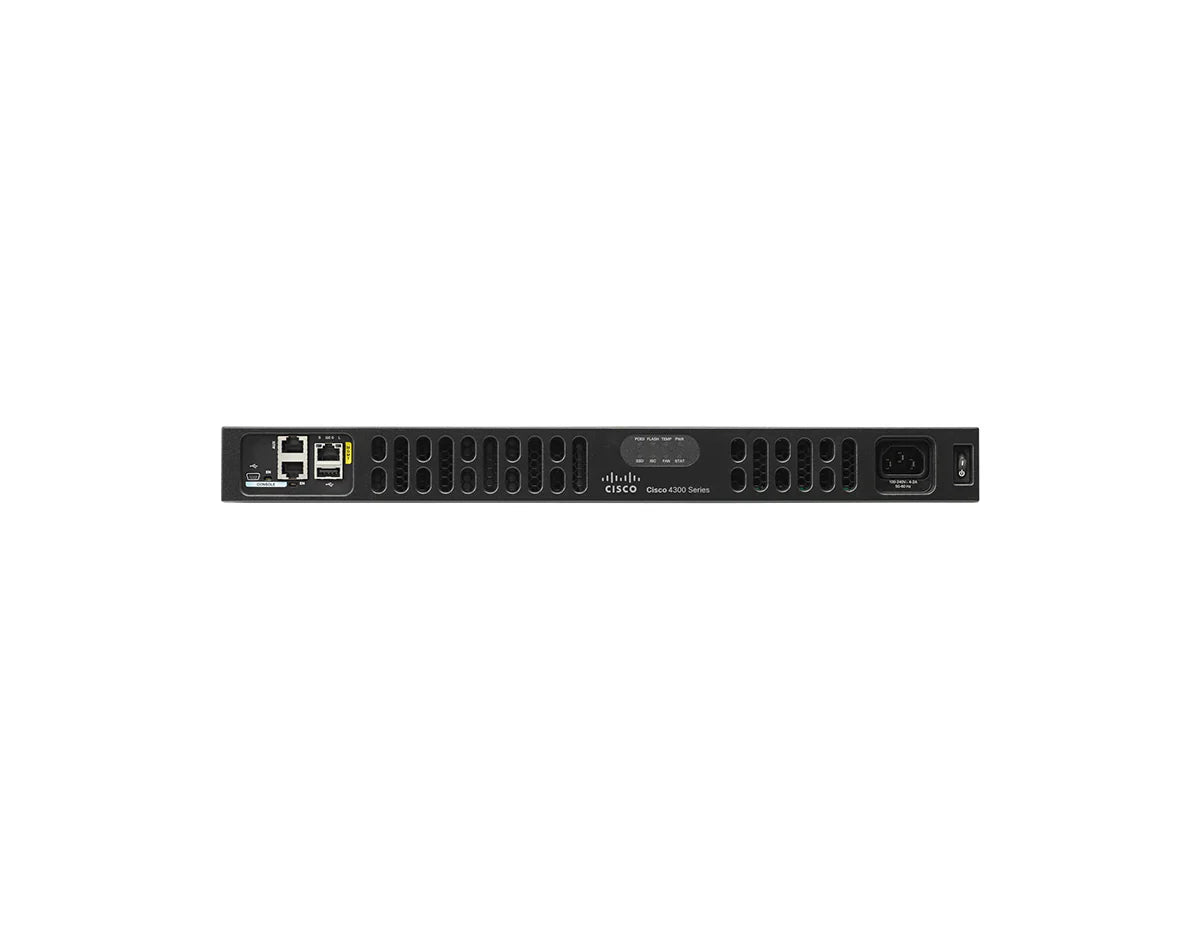

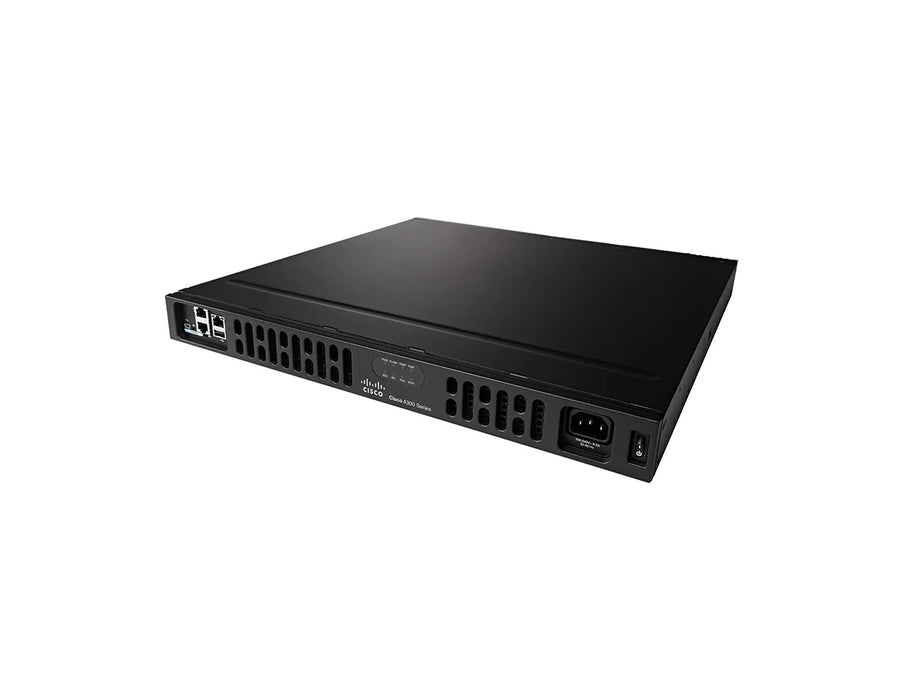

Cisco Integrated Service Router ISR4331-VSEC/K9 Voice bundle is ideally designed for the small to mid-size enterprise branch environment, delivers advanced VOIP services and unprecedented level of WAN intelligence. Cisco ISR4331-VSEC/K9 combines 2 dual-mode Gigabit Ethernet ports and PVDM4 DSP for voice and video services, two network modules, one integrated service card slot and one service module slots which you can add a Gigabit Ethernet switch or maybe a Cisco UCS e-series single blade server module to run virtualized applications. Fully support for the OnePK software development kits means mutual awareness between both networks and applications. Application Visibility and control are natively available on the router, so you can measure user experience without external probes. Performance is the key to enabling advanced branch services or scaling across the enterprise. With IOS XE and dedicate control, data, and service CPUs, these platform is unmatched in the industry. ISR4331-VSEC/K9 delivering 100Mbps-300Mbps performance on demand, with pay-as-you-grow performance, you can increase forwarding capacity when needed, so the platform performance growth with your business, you only pay for the performance you need. Secure communications are expected in ISR and you will have access to the most advanced encryption platform in the market, IPsec, SSL VPN and flex VPN with support for next-generation encryption standards as well. The Cisco ISR4331-VSEC/K9 is the ultimate application delivery platform to mid-size branch offices. This is literally routing redefined.
