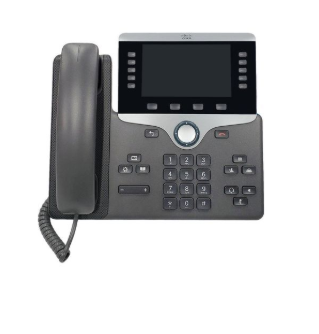

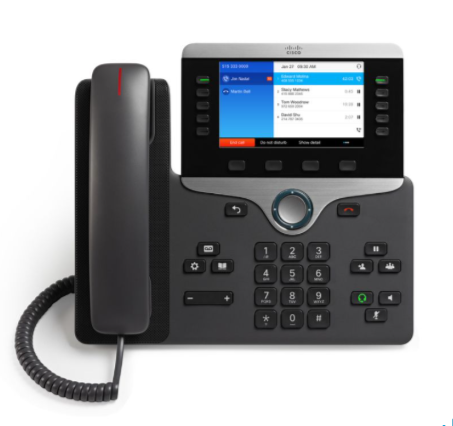

The Cisco IP Phone 8861 CP-8861-K9 is a brand-new, top-of-line enterprise desk phone built for Cisco Unified Communications Manager (Unified CM / Call Manager) environments. It features a 5-inch color display, five programmable line keys, dual-band Wi-Fi, Bluetooth for wireless headsets, and a built-in Gigabit Ethernet switch with PoE, so no external power is needed. It ships with Cisco's Unified CM (Enterprise) firmware and registers directly to a Cisco Unified Communications Manager cluster over SIP.
Key Features
- 5" backlit color LCD (800 x 480) widescreen VGA display
- 5 programmable line keys for Cisco Unified Communications Manager registration, expandable up to 113 lines/features with three Key Expansion Modules
- Dual-band Wi-Fi (802.11a/b/g/n/ac, 2.4 GHz & 5 GHz) for wireless network connectivity
- Bluetooth 3.0 EDR Class 1 for wireless headset pairing (up to 66 ft range)
- Two USB ports (side and rear) for wired/wireless headsets and device charging, rear port up to 2.1A
- Built-in Gigabit Ethernet switch (network + PC passthrough) with PoE, no external power needed
- Full-duplex speakerphone with wideband audio
- Hearing Aid Compatible (HAC) handset, ADA and Section 508 compliant
- Broad audio codec support: G.711, G.722, G.722.2, G.729ab, iLBC, iSAC, Opus
Technical Specifications
-
Model: Cisco CP-8861-K9 (IP Phone 8861, Unified CM / Enterprise Firmware)
-
Condition: New
-
Color: Charcoal
-
Display: 5" color LCD, 800 x 480
-
Connectivity: 2x Gigabit Ethernet (RJ45, integrated switch), Wi-Fi 802.11a/b/g/n/ac (2.4/5 GHz), Bluetooth 3.0 EDR Class 1
-
USB: 2x USB ports (side 500mA, rear up to 2.1A charging)
-
Power: PoE IEEE 802.3af/at (Class 4); optional AC power adapter (sold separately)
-
Call control platform: Cisco Unified Communications Manager (Unified CM / Call Manager) only
-
Signaling protocol: SIP (registers to Cisco Unified CM)
-
Lines: 5 programmable line keys, expandable to up to 113 lines/features with three Key Expansion Modules
-
Ports: 1x RJ9 handset, 1x RJ9 headset, auxiliary port (electronic hookswitch), 3.5mm stereo line in/out, 2x USB
-
Dimensions/Weight: 9.02 x 10.13 x 1.57 in.; 2.62 lb with handset
What's in the Box
Desk phone, handset, handset cable, dual-position stand, Ethernet cable, and quick-start guide. AC power adapter not included.
Frequently Asked Questions
Is the Cisco CP-8861-K9 compatible with Webex Calling, BroadWorks, or Asterisk?
No. This unit ships with Cisco's Unified CM (Enterprise) firmware, which registers only to Cisco Unified Communications Manager (Call Manager). Webex Calling, BroadWorks, and third-party SIP platforms require the separate multiplatform (3PCC) firmware variant.
Does the Cisco 8861 support Wi-Fi?
Yes. It supports dual-band 802.11a/b/g/n/ac Wi-Fi (2.4 GHz and 5 GHz) in addition to its built-in Gigabit Ethernet switch, so it can be deployed wirelessly in locations where running network cable isn't practical.
What's the difference between the 8861 and the 8851?
The 8861 adds dual-band Wi-Fi and a second USB port with up to 2.1A charging, plus support for up to three Key Expansion Modules (113 lines/features), versus the 8851's Bluetooth-only wireless connectivity, single USB port, and support for up to two Key Expansion Modules (66 lines).
Does the Cisco 8861 phone require a separate power adapter?
No. It supports Power over Ethernet (802.3af/at, Class 4), so it can be powered directly through a PoE switch. An AC adapter is available separately if PoE isn't an option.
Is this unit new or refurbished?
This Cisco CP-8861-K9 is brand new, factory-sealed stock.
