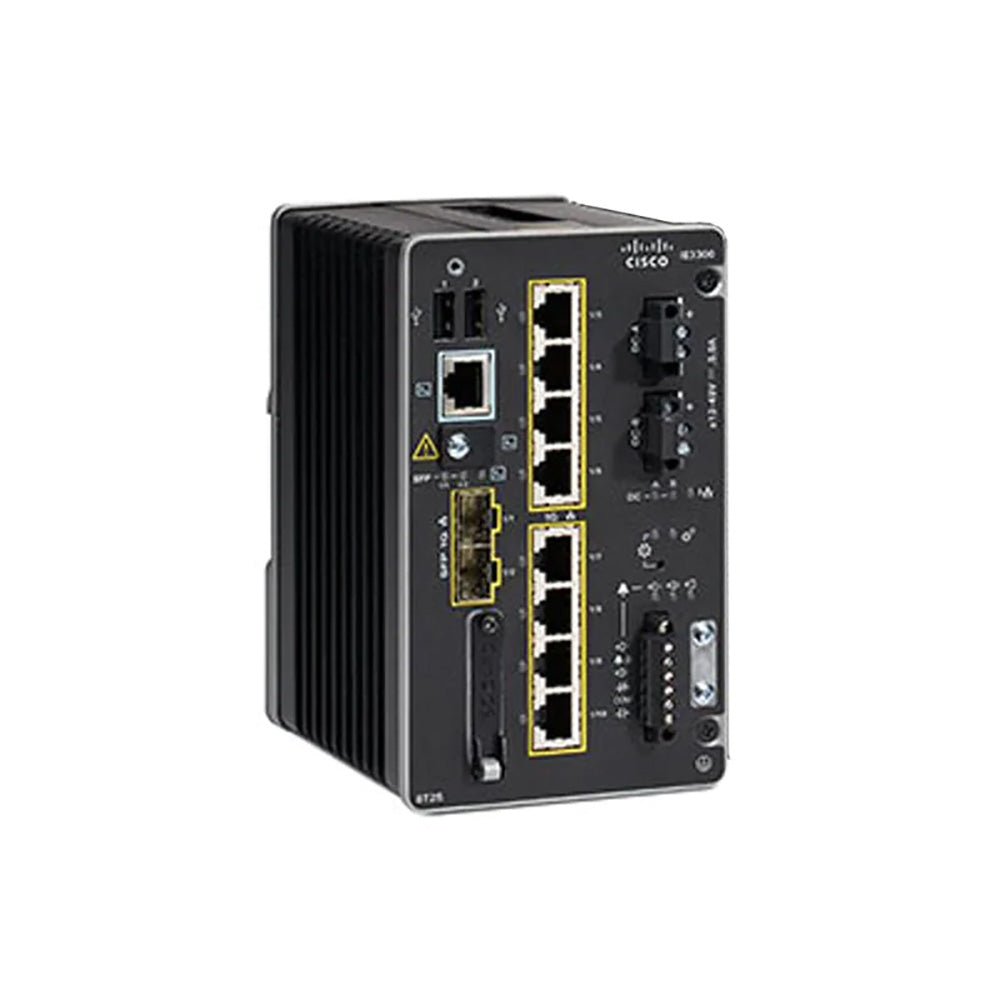

Cisco Industrial IE3300-8T2S-E Rugged 8-Port GE 2x10G SFP+ Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Cisco IE3300-8T2S-E Industrial Ethernet Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The Cisco Catalyst IE-3300-8T2S-E is a compact, ruggedized industrial switch engineered for demanding U.S. infrastructure environments—from Chicago transit control centers to Texas energy sites.
This 1 RU, IP30-rated DIN-rail chassis delivers 8 auto-sensing 10/100/1000 RJ-45 ports plus 2 Gigabit SFP uplinks in a fanless, convection-cooled design built to withstand –40 °C to +75 °C, vibration, shock, surge, and electrical noise.
Running Cisco IOS XE with the Network Essentials license, it offers built-in security (secure boot, image signing, Trust Anchor Module), API-driven automation, and seamless integration with Cisco Catalyst Center and WebUI for rapid on-site provisioning.
Overview
Highlights
-
Rugged Industrial Design
Built for harsh U.S. outdoor and facility deployments with IP30-rated metal housing, fanless convection cooling, and certified for vibration, shock, surge, and electrical noise immunity over –40 °C to +75 °C -
Modular Gigabit Interfaces
8 GE copper downlinks + 2 GE SFP uplinks in the base system; expandable to up to 26 total ports via Cisco IEM modules (copper, PoE, fiber, 2.5G options) -
Cisco IOS XE & Network Essentials
Next-gen OS with secure boot, image signing, Trust Anchor Module, open APIs and data models—ideal for integration with Cisco DNA Center and automation frameworks -
High-Availability Ring Protocols
Supports Cisco REP, MRP, PRP, HSR, Flexlink, and dying-gasp for sub-second failover in mission-critical industrial networks -
Full Flexible NetFlow (FNF)
Real-time visibility into traffic patterns and threat analysis when paired with Cisco Secure Network Analytics -
Zero-Touch Replacement (SwapDrive)
True plug-and-play swap-out capability for rapid field recovery without manual reconfiguration
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| IEM-3300-8T= | Expansion Module | Adds 8 more 1 GbE copper ports (up to 18 total ports) |
| IEM-3300-4MU= | Expansion Module | Adds 4 SFP fiber uplinks (up to 14 total ports) |
| PWR-IE50W-AC= | Power Supply | 50 W AC/DC power supply (100–240 VAC or 125–250 VDC) for DIN-rail mounting |
| SD-IE-1GB | Removable Storage | 1 GB SD flash card slot for IOS images and configuration storage |
Comparison with Similar Models
| Feature | IE-3300-8T2S-E | IE-3300-8P2S-E | IE-3300-8T2X-E |
|---|---|---|---|
| Ports & Uplinks | 8 × 1 GbE + 2 × 1 GbE SFP | 8 × 1 GbE PoE+ + 2 × 1 GbE SFP | 8 × 1 GbE + 2 × 10 GbE SFP+ |
| PoE Budget | Not applicable | 240 W (base); up to 360 W w/ module | Not applicable |
| License | Network Essentials | Network Essentials | Network Essentials |
| Max Ports (w/ modules) | 26 | 26 | 26 |
| Ring Protocols | REP, MRP, PRP, HSR, Flexlink | REP, MRP, PRP, HSR, Flexlink | REP, MRP, PRP, HSR, Flexlink |
| Ideal Use Case | Non-PoE edge in harsh industrial sites | PoE+ for cameras, APs, sensors | High-speed fiber uplinks in industrial networks |
Specifications
| Parameter | Specification |
|---|---|
| Product Code | IE-3300-8T2S-E |
| Feature Set | Cisco IOS XE, Network Essentials |
| Copper Ports | 8 × 10/100/1000 RJ-45 |
| Fiber Uplinks | 2 × 100/1000 SFP |
| Expansion Capability | Up to 26 ports (with IEM modules) |
| Switching Capacity | 20 Gbps full-duplex (line-rate switching) |
| Forwarding Rate | Line-rate for all ports and packet sizes |
| Memory & Storage | 128 MB flash; 1 GB removable SD card (optional) |
| Console Ports | 1 × RJ-45 serial; 1 × USB Mini Type-B |
| Power Inputs | Dual 9.6–60 V DC |
| Redundancy | Dual DC power inputs (hot-swap capable) |
| Physical Dimensions | 6.0″ × 3.6″ × 5.3″ (15.2 cm × 9.1 cm × 13.5 cm) |
| Weight | 3.8 lb (1.7 kg) |
| Mounting | DIN-rail or wall mount |
| Operating Temp. / Humidity | –40 °C to +75 °C; 0–100% condensing |
| Certifications | IEC 60068, IEEE 1613, EN 55032, UL, CE, RoHS |
