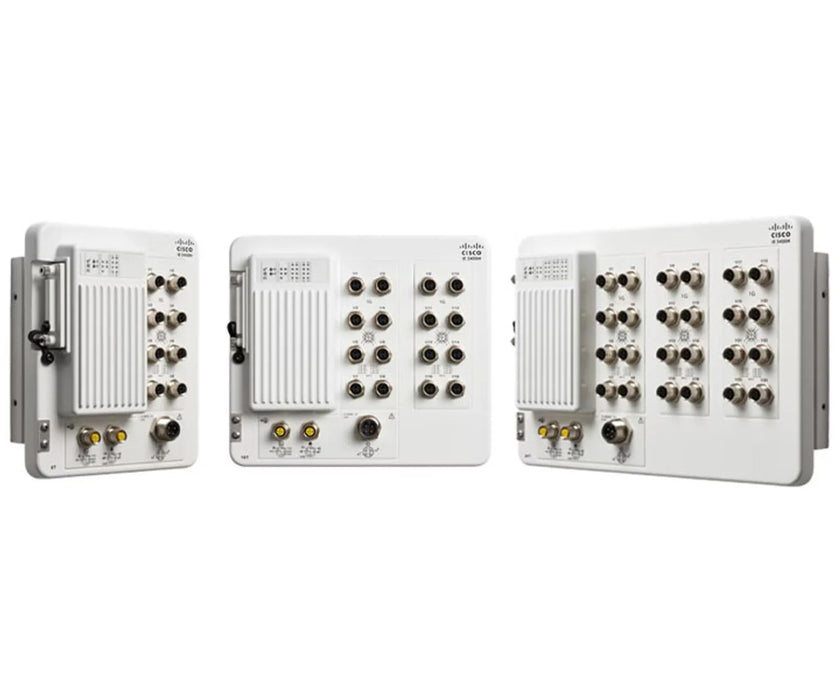

Cisco IE3500H IE-3500H-14P2T-A 16-Port PoE+ IP67 M12 Industrial Switch, Network Advantage
Cisco IE3500H IE-3500H-14P2T-A 16-Port PoE+ IP67 M12 Industrial Switch, Network Advantage

Cisco IE3500H IE-3500H-14P2T-A 16-Port PoE+ IP67 M12 Industrial Switch, Network Advantage

por Cisco
R$ 596.755,60
R$ 307.944,00
Pedir por e-mail
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Switch, L3, Managed, 16 × 10/100/1000 (M12 X-Code), 14 × PoE/PoE+ (240 W), IP66/IP67 rugged, fanless, wall-mount

[/shortdesc]

[properties]

Property Details
Product Line Cisco IE3500 Heavy Duty Series
Use Case Industrial / harsh environments (IP66/IP67; OT edge)
Management Managed (Cisco IOS XE WebUI/CLI)
PoE Support 14 × PoE/PoE+ ports (M12 X-Code)
Layer Support Layer 2 & Layer 3
Scalability —
Operating System Cisco IOS XE
Software Licence Network Advantage
Form Factor Ruggedized IP66/IP67, wall-mount, fanless
Default Power Supply DC power input (12–54 VDC), Mini-Change single power source

[/properties]

[specifications]

Specification Details
Model Number IE-3500H-14P2T-A
Port Count 16 (14 × 10/100/1000 PoE/PoE+ + 2 × 10/100/1000)
Downlink Ports & Speeds 16 × 10/100/1000 Mbps M12 X-Code (14 with PoE/PoE+)
Uplink Ports & Speeds —
PoE Power Budget 240 W
Switching Capacity —
Forwarding Rate Line-rate on all ports (all packet sizes)
Stacking Bandwidth —
DRAM 8 GB
Flash Memory 5.1 GB
MAC Address Table Size 24,000 entries
VLAN Support 4096 VLAN IDs (up to 1024 active)
Power Requirements DC input 12–54 VDC; power consumption ~45 W (excl. PoE)
Dimensions (H × W × D) 9.58 × 10.90 × 3.16 in (24.33 × 27.69 × 8.03 cm)
Weight 11.25 lb (5.10 kg)
MTBF 371,635 hours

[/specifications]

[accesories]

Management & storage

SKU / Part Number Description
SD-IE-16GB IE 16GB SD memory card for configs/logs/firmware
CAB-CONSOLE-M12= Console cable 1.8 m, M12 A-coded ↔ DB9F

Licenses & subscriptions

SKU / Part Number Description
IE3500-DNA-A-3Y Cisco DNA Advantage 3-Year term
IE3500-DNA-A-5Y Cisco DNA Advantage 5-Year term
IE3500-DNA-A-7Y Cisco DNA Advantage 7-Year term

Cabling & connectors

Item Details
M12 X-coded industrial Ethernet cable Data cable for 1G GE ports (8-pin, Cat6A, IP67)
Alarm cable (field) M12 A-coded 5-pin connector
Console connector M12 A-coded 5-pin (use CAB-CONSOLE-M12=)

Power cables (IP67 Mini-Change A-size)

SKU / Part Number Description
130006-0737 4-pin female → pigtail, 16 AWG, PVC (switch DC power input)
130010-0863 4-pin male ↔ female, 16 AWG, TPE (PSU output ↔ switch input)
130006-0223 3-pin female → pigtail, 16 AWG, PVC (AC power supply input)
130006-0091 2-pin female → open end (DC power supply input)

[/accesories]

The Cisco IE-3500H-14P2T-A Switch is a rugged, heavy-duty industrial Ethernet solution engineered for harsh OT edge environments. Featuring 16 Gigabit M12 X-Code downlink ports—with 14 PoE/PoE+ capable ports—inside an IP66/IP67-rated, fanless enclosure, it delivers reliable, line-rate performance across all ports. Running Cisco IOS XE with Layer 2 and Layer 3 capabilities and manageable via WebUI/CLI, the IE-3500H-14P2T-A provides resilient connectivity for transportation, manufacturing, and outdoor cabinet deployments.

Key Features:

  • 14 × PoE/PoE+ (of 16) on M12 X-Code: Power IP cameras, access points, and industrial endpoints with a 240 W PoE budget.
  • Ruggedized IP66/IP67 Design: Sealed, fanless hardware engineered for harsh environments and outdoor installations.
  • Layer 2 & Layer 3 Capabilities: Switching and basic routing on Cisco IOS XE for efficient segmentation and inter-VLAN connectivity.
  • Flexible DC Power: 12–54 VDC input with Mini-Change single power source; typical consumption ~45 W (excluding PoE).
  • Easy Management: Managed through Cisco IOS XE WebUI and CLI.
  • High Reliability: MTBF of approximately 371,635 hours to help minimize downtime.

Technical Overview:

  • Recommended for: Industrial / harsh environments (IP66/IP67), OT edge, transportation, and manufacturing deployments.
  • Ports: 16 × 10/100/1000 Mbps Gigabit Ethernet M12 X-Code downlink ports (14 with PoE/PoE+); no dedicated uplink ports.
  • PoE Budget: 240 W.
  • Switching Capacity: —
  • Forwarding Rate: Line-rate on all ports (all packet sizes).
  • Management: Cisco IOS XE WebUI, CLI.
  • Security: Supports VLAN segmentation and ACLs; features vary by software license (Network Advantage).
  • Energy Efficiency: Fanless operation with low typical power draw (~45 W, excluding PoE).

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Switch, L3, Managed, 16 × 10/100/1000 (M12 X-Code), 14 × PoE/PoE+ (240 W), IP66/IP67 rugged, fanless, wall-mount

[/shortdesc]

[properties]

Property Details
Product Line Cisco IE3500 Heavy Duty Series
Use Case Industrial / harsh environments (IP66/IP67; OT edge)
Management Managed (Cisco IOS XE WebUI/CLI)
PoE Support 14 × PoE/PoE+ ports (M12 X-Code)
Layer Support Layer 2 & Layer 3
Scalability —
Operating System Cisco IOS XE
Software Licence Network Advantage
Form Factor Ruggedized IP66/IP67, wall-mount, fanless
Default Power Supply DC power input (12–54 VDC), Mini-Change single power source

[/properties]

[specifications]

Specification Details
Model Number IE-3500H-14P2T-A
Port Count 16 (14 × 10/100/1000 PoE/PoE+ + 2 × 10/100/1000)
Downlink Ports & Speeds 16 × 10/100/1000 Mbps M12 X-Code (14 with PoE/PoE+)
Uplink Ports & Speeds —
PoE Power Budget 240 W
Switching Capacity —
Forwarding Rate Line-rate on all ports (all packet sizes)
Stacking Bandwidth —
DRAM 8 GB
Flash Memory 5.1 GB
MAC Address Table Size 24,000 entries
VLAN Support 4096 VLAN IDs (up to 1024 active)
Power Requirements DC input 12–54 VDC; power consumption ~45 W (excl. PoE)
Dimensions (H × W × D) 9.58 × 10.90 × 3.16 in (24.33 × 27.69 × 8.03 cm)
Weight 11.25 lb (5.10 kg)
MTBF 371,635 hours

[/specifications]

[accesories]

Management & storage

SKU / Part Number Description
SD-IE-16GB IE 16GB SD memory card for configs/logs/firmware
CAB-CONSOLE-M12= Console cable 1.8 m, M12 A-coded ↔ DB9F

Licenses & subscriptions

SKU / Part Number Description
IE3500-DNA-A-3Y Cisco DNA Advantage 3-Year term
IE3500-DNA-A-5Y Cisco DNA Advantage 5-Year term
IE3500-DNA-A-7Y Cisco DNA Advantage 7-Year term

Cabling & connectors

Item Details
M12 X-coded industrial Ethernet cable Data cable for 1G GE ports (8-pin, Cat6A, IP67)
Alarm cable (field) M12 A-coded 5-pin connector
Console connector M12 A-coded 5-pin (use CAB-CONSOLE-M12=)

Power cables (IP67 Mini-Change A-size)

SKU / Part Number Description
130006-0737 4-pin female → pigtail, 16 AWG, PVC (switch DC power input)
130010-0863 4-pin male ↔ female, 16 AWG, TPE (PSU output ↔ switch input)
130006-0223 3-pin female → pigtail, 16 AWG, PVC (AC power supply input)
130006-0091 2-pin female → open end (DC power supply input)

[/accesories]

Cisco IE-3500H-14P2T-A Switch

The Cisco IE-3500H-14P2T-A Switch is a rugged, heavy-duty industrial Ethernet solution engineered for harsh OT edge environments. Featuring 16 Gigabit M12 X-Code downlink ports—with 14 PoE/PoE+ capable ports—inside an IP66/IP67-rated, fanless enclosure, it delivers reliable, line-rate performance across all ports. Running Cisco IOS XE with Layer 2 and Layer 3 capabilities and manageable via WebUI/CLI, the IE-3500H-14P2T-A provides resilient connectivity for transportation, manufacturing, and outdoor cabinet deployments.

Key Features:

  • 14 × PoE/PoE+ (of 16) on M12 X-Code: Power IP cameras, access points, and industrial endpoints with a 240 W PoE budget.
  • Ruggedized IP66/IP67 Design: Sealed, fanless hardware engineered for harsh environments and outdoor installations.
  • Layer 2 & Layer 3 Capabilities: Switching and basic routing on Cisco IOS XE for efficient segmentation and inter-VLAN connectivity.
  • Flexible DC Power: 12–54 VDC input with Mini-Change single power source; typical consumption ~45 W (excluding PoE).
  • Easy Management: Managed through Cisco IOS XE WebUI and CLI.
  • High Reliability: MTBF of approximately 371,635 hours to help minimize downtime.

Technical Overview:

  • Recommended for: Industrial / harsh environments (IP66/IP67), OT edge, transportation, and manufacturing deployments.
  • Ports: 16 × 10/100/1000 Mbps Gigabit Ethernet M12 X-Code downlink ports (14 with PoE/PoE+); no dedicated uplink ports.
  • PoE Budget: 240 W.
  • Switching Capacity: —
  • Forwarding Rate: Line-rate on all ports (all packet sizes).
  • Management: Cisco IOS XE WebUI, CLI.
  • Security: Supports VLAN segmentation and ACLs; features vary by software license (Network Advantage).
  • Energy Efficiency: Fanless operation with low typical power draw (~45 W, excluding PoE).
