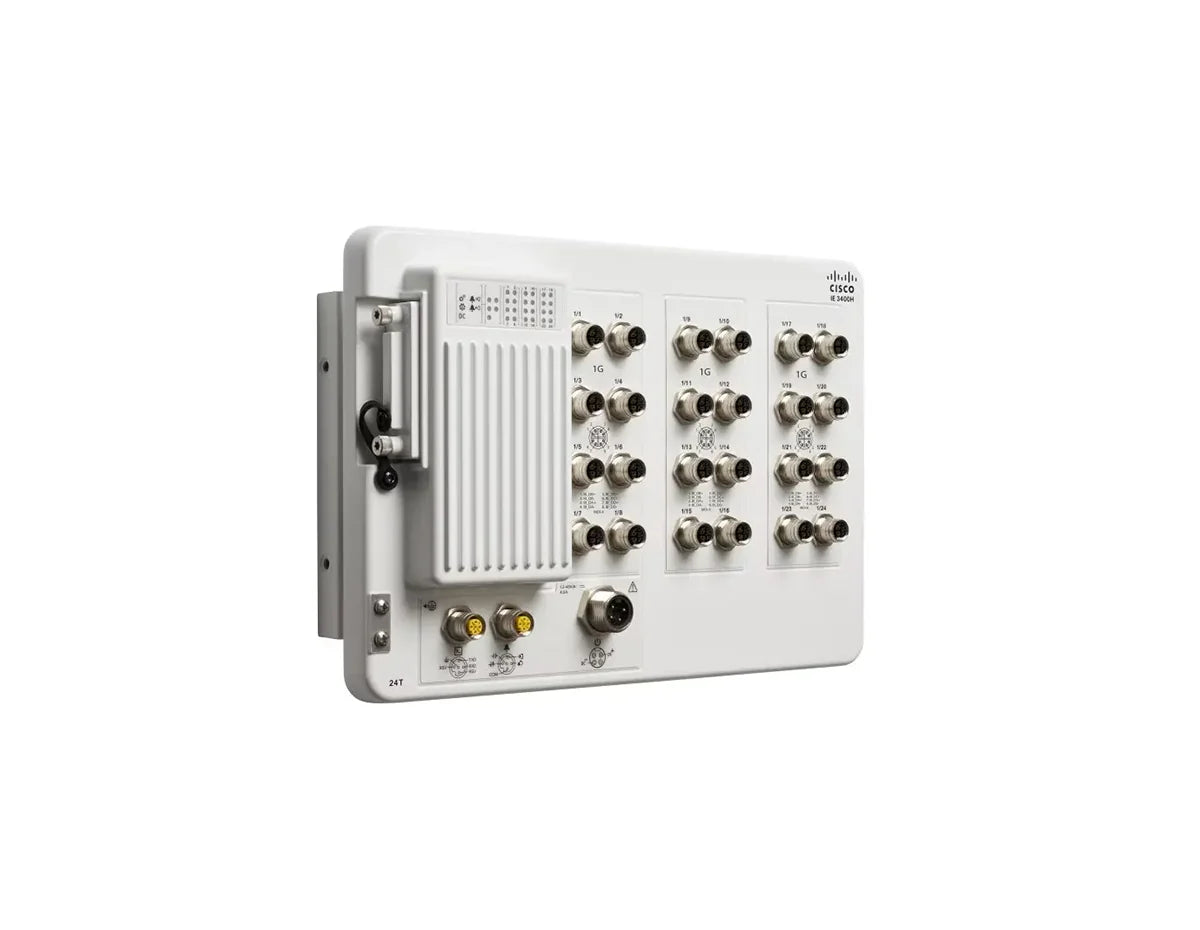

Cisco IE-3400H-24T-E Switch
Cisco IE-3400H-24T-E Switch

Cisco IE-3400H-24T-E Switch

por Cisco
Desconto de 51%
R$ 158.807,28
R$ 77.940,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Catalyst IE3400 Heavy Duty, 24 x GE M12 interfaces, IP67, with Network Essentials license
[/shortdesc]

[properties]

Properties IE-3400H-24T-E
Description Catalyst IE3400 Heavy Duty w/ 24 GE M12 interfaces, IP67, Network Essentials
Product Family IE3400 Heavy Duty Series Switches
Product Type Industrial Ethernet Switch
Total M12 ports 24
10/100 Fast Ethernet (D-code) ports -
10/100/1000 Gigabit Ethernet (X-code) ports 24
Default IOS-XE feature set Network Essentials
Removable storage SD card
Alarms 1 alarm output relay, 1 alarm input
Console ports 1
Power input Mini-change, (single power source)
Input voltage range (Absolute) 9.6 to 60VDC
Input current @ (9.6V / 60V) 5.1A/0.83A
Power consumption @ (9.6V / 60V) 49.0W/49.8W
Dimensions 9.58 x 13.90 x 3.15
Mounting Wall mount

[/properties][specifications]

Specifications IE-3400H-24T-E
Forwarding rate Line rate for all ports for all packet sizes
Number of queues 8
Unicast MAC addresses 8000
IGMP multicast groups 1000
No. of Vlans 256
IPv4 Indirect routes 2000
IPv6 Indirect routes 512
Spanning Tree Protocol instances 128
Access Control Entries (PACLs) 3024
DRAM 4 GB
Flash (user accessible) 1.5 GB
SD card capacity2 4 GB
Jumbo Frames 2000 bytes
MTBF 439,475
Operating temperature -40°C to +85°C
Industry standards EN 61000-6-1 Immunity standards for light industrial ENV
EN 61000-6-2 Immunity standards for industrial ENV
EN 61000-6-4- Emission standard industrial ENV
EN 61326-1 Industrial control
ODVA Industrial Ethernet/IP
PROFINET certification
AREMA C and S section 11, 19
IEEE standards IEEE 802.1D MAC Bridges, STP
IEEE 802.1p Layer 2 COS prioritization
IEEE 802.1q VLAN
IEEE 802.1s MSTP
IEEE 802.1w RSTP
IEEE 802.1X Port Access Authentication
IEEE 802.1AB LLDP
IEEE 802.3ad Link Aggregation (LACP)
IEEE 1588v2 PTP
IEEE 802.3x full duplex on 10BASE-T
IEEE 802.3 10BASE-T specification
IEEE 802.3u 100BASE-TX specification
IEEE 802.3ab 1000BASE-T specification

[/specifications][accesories]

PWR-IE160W-67-DC= IP67-rated PoE DC-DC power supply, Input:18V-60V Output: 54V, 3.1A max 160W

[/accesories]

The Cisco IE-3400H-24T-E is a rugged industrial Ethernet switch designed to deliver reliable and secure network connectivity in harsh and demanding environments. This switch features 24 Gigabit Ethernet ports, making it an ideal solution for connecting critical industrial devices such as IP cameras, sensors, and controllers. The IE-3400H-24T-E is engineered to operate under extreme conditions, ensuring continuous operation while offering advanced Layer 2 and Layer 3 management features for effective network segmentation, security, and traffic control.

Key Features:

  • 24 x Gigabit Ethernet Ports: Provides reliable and high-speed data connectivity for a wide range of industrial devices, ensuring stable network communication.
  • Ruggedized Design: Built to withstand extreme temperatures, shock, and vibration, making it suitable for challenging industrial environments.
  • Layer 2 and Layer 3 Management: Includes advanced features such as VLANs, QoS, and routing protocols to enhance network control, security, and traffic management.
  • High-Availability Design: Supports redundancy features to ensure continuous network operation in mission-critical applications.
  • Compact Form Factor: Designed for space-constrained installations, making it suitable for industrial enclosures and cabinets.

Technical Overview:

  • Recommended for: Industrial environments requiring robust Ethernet connectivity with advanced management and high-availability features.
  • Ports: 24 x Gigabit Ethernet ports.
  • Operating Temperature: Designed to operate in a wide temperature range, suitable for extreme industrial applications.
  • Management: Managed through a web interface, CLI, SNMP, and Cisco DNA Center for comprehensive network setup and monitoring.
  • Form Factor: Rugged, compact design suitable for space-constrained industrial environments.

You can check the related tab for the Cisco IE-3400H-24T-E datasheet.
