| Specifications |

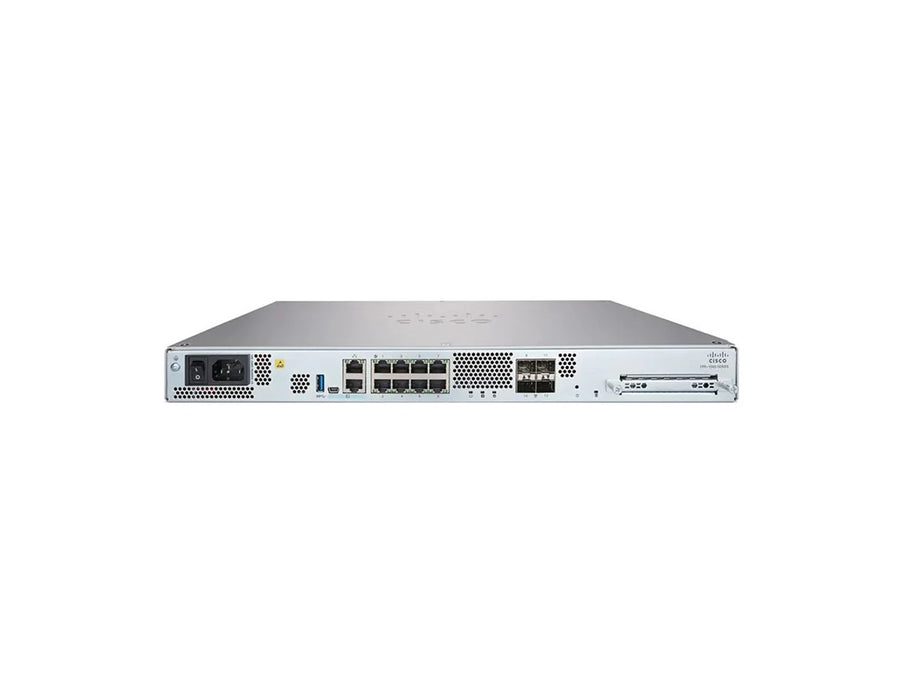

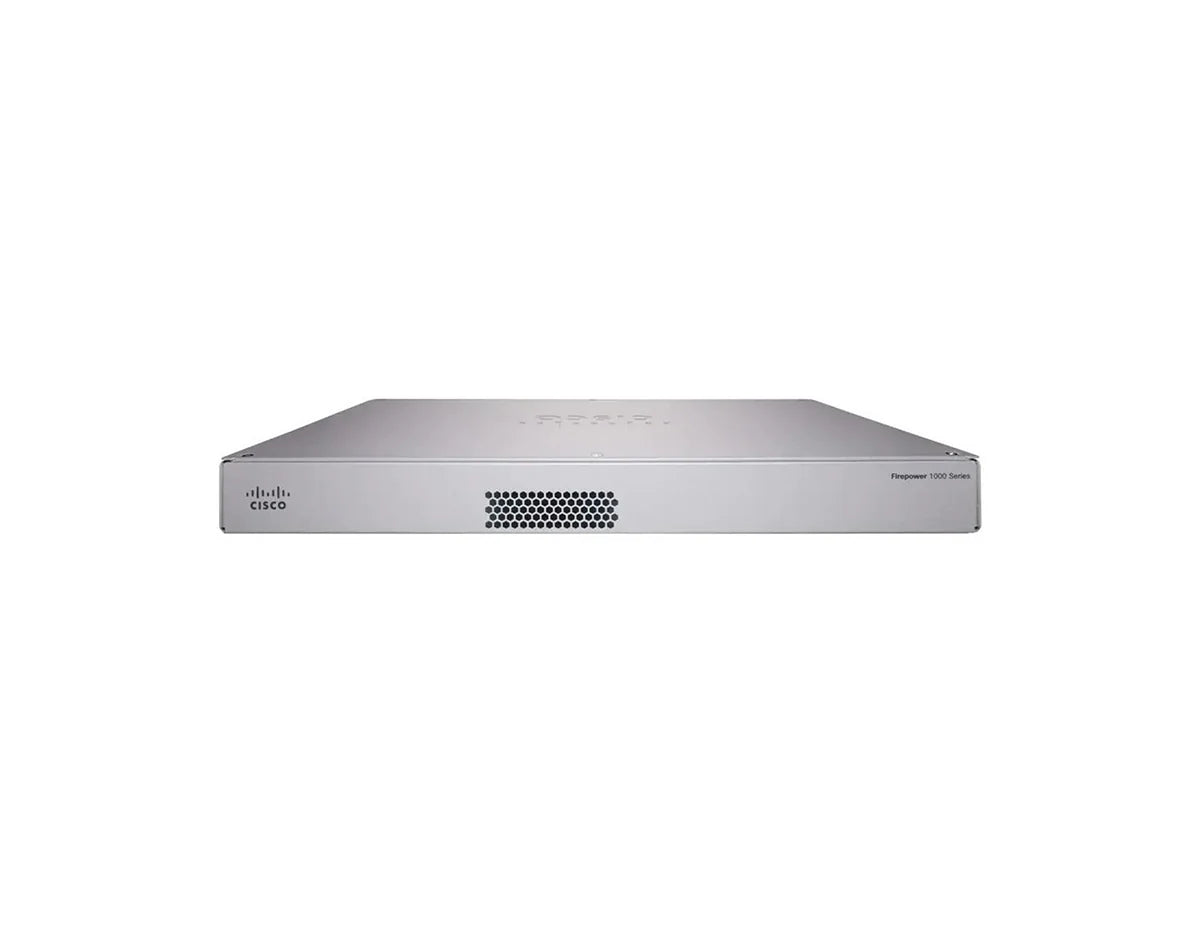

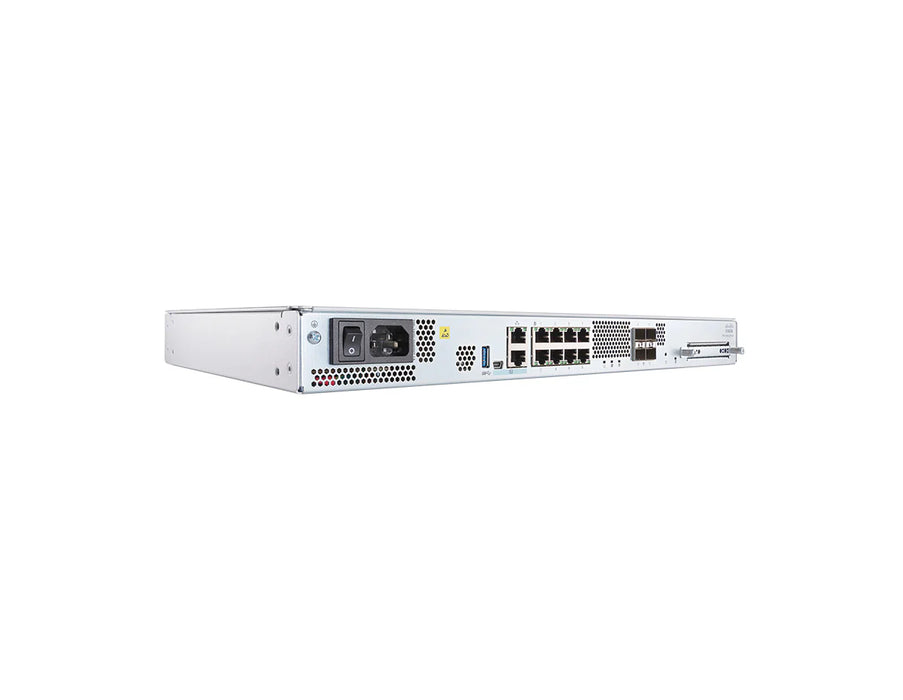

Cisco FPR1120-ASA-K9 Firewall |
Throughput: Firewall (FW) + Application
Visibility and Control (AVC) (1024B) |
2.3 Gbps |
Throughput: FW + AVC + Intrusion
Prevention System (IPS) (1024B) |
2.3 Gbps |
Maximum concurrent sessions,
with AVC |
200K |
Maximum new connections per
second, with AVC |
15K |
| Transport Layer Security (TLS) |
850 Mbps |
| Throughput: NGIPS (1024B) |
2.6 Gbps |
IPSec VPN throughput
(1024B TCP w/Fastpath) |
1.2 Gbps |
| Maximum VPN Peers |
150 |
Cisco Device Manager
(local management) |
Yes |
| Centralized management |
Centralized configuration, logging, monitoring, and reporting are performed by
the Threat Defense Manager (FMC) or from the cloud with Cisco
Defense Orchestrator |
| AVC |
Standard, supporting more than 4000 applications, as well as geolocations, users, and websites |
AVC: OpenAppID support for custom,
open-source application detectors |
Standard |
| Cisco Security Intelligence |
Standard, with IP, URL, and DNS threat intelligence |
| Cisco IPS |
Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IoC) Intelligence |
| Cisco Malware Defense for Networks |
Available; enables detection, blocking, tracking, analysis, and containment of
targeted and persistent malware, addressing the attack continuum both during
and after attacks.
Integrated threat correlation with Cisco AMP for Endpoints is also optionally
available |
| Cisco Malware Analytics sandboxing |
Available |
| URL filtering: number of categories |
More than 80 |
| URL filtering: number of URLs categorized |
More than 280 million |
| Automated threat feed and IPS signature updates |
Yes: class-leading Collective Security Intelligence (CSI) from the Cisco Talos® group (https://www.cisco.com/c/en/us/products/security/talos.html) |
| Third-party and open- source ecosystem |
Open API for integrations with third-party products; Snort® and OpenAppID
community resources for new and specific threats |
| High availability and clustering |
Active/standby |
| Cisco Trust Anchor Technologies |
Cisco Firepower 1000 Series platforms include Trust Anchor Technologies for
supply chain and software image assurance. Please see the section below for
additional details |
| Stateful inspection firewall throughput* |
4.5 Gbps |
Stateful inspection firewall throughput
(multiprotocol)** |
2.5 Gbps |
| Concurrent firewall connections |
200,000 |
Firewall latency
(UDP 64B microseconds) |
(-) |
| New connections per second |
75,000 |
IPsec VPN throughput
(450B UDP L2L test) |
1 Gbps |
| Maximum VPN Peers |
150 |
Security contexts
(included; maximum) |
2; 5 |
| High availability |
Active/active and
Active/standby |
| Clustering |
(-) |
| Scalability |
VPN Load Balancing |
| Centralized management |
Centralized configuration, logging, monitoring, and reporting are performed
by Cisco Security Manager or in the cloud with Cisco Defense
Orchestrator |
| Adaptive Security Device Manager |
Web-based, local management for small-scale deployments |
*Throughput measured with 1500B User Datagram Protocol (UDP) traffic measured under ideal test
conditions.
**“Multiprotocol” refers to a traffic profile consisting primarily of TCP-based protocols and applications
like HTTP, SMTP, FTP, IMAPv4, BitTorrent, and DNS. |
Dimensions
(H x W x D) |
1.72 x 17.2 x
10.58 in. |
| Form factor |
Rackmount, 1U |
Network
interfaces |
8 x 1000BASE-T
4 x SFP |
Power over
Ethernet |
N/A |
Management
interfaces |
1x 1000BASE-T
1x Serial console
(RJ-45) |
| USB |
1 x USB 3.0
Type-A (500mA) |
| Storage |
1 x 200 GB |
Power supply
configuration |
Integrated, single
AC input |
AC input
voltage |
100 to 240V AC |
AC maximum
current draw |
< 2A at 100V, < 1A
at 240V |
AC maximum
power draw |
100W |
| AC frequency |
50 to 60 Hz |
| AC efficiency |
>85% at 50% load |
| Fans |
1 integrated fan |
| Noise |
31.7 dBA @
25C, 56.8 dBA at
highest system
performance |
| Rack mounting |
2-post mounting
Brackets included. |
| Weight |
8 lb (3.6 kg) |
Temperature:
operating |
32 to 104°F
(0 to 40°C) |
Temperature:
nonoperating |
(-13 to 158°F)
(-25 to 70°C) |
Humidity:
operating |
90%
noncondensing |
Humidity:
nonoperating |
10 to 90%
noncondensing |
Altitude:
operating |
9,843 ft (max)
3,000 m (max) |
Altitude:
nonoperating |
15,000 ft (max) |
| Regulatory compliance |
Products comply with CE markings per directives 2004/108/EC and 2006/108/EC |
| Safety |
• UL 60950-1
• CAN/CSA-C22.2 No. 60950-1
• EN 60950-1
• IEC 60950-1
• AS/NZS 60950-1
• GB4943 |
| EMC: emissions |
• 47CFR Part 15 (CFR 47) Class A (FCC Class A)
• AS/NZS CISPR22 Class A
• CISPR22 CLASS A
• EN55022 Class A
• ICES003 Class A
• VCCI Class A
• EN61000-3-2
• EN61000-3-3
• KN22 Class A
• CNS13438 Class A
• EN300386
• TCVN7189 |
| EMC: immunity |
• EN55024
• CISPR24
• EN300386
• KN24
• TVCN 7317
• EN-61000-4-2, EN-61000-4-3, EN-61000-4-4, EN-61000-4-5, EN-61000-4-6,
EN-61000-4-8, EN61000-4-11 |
