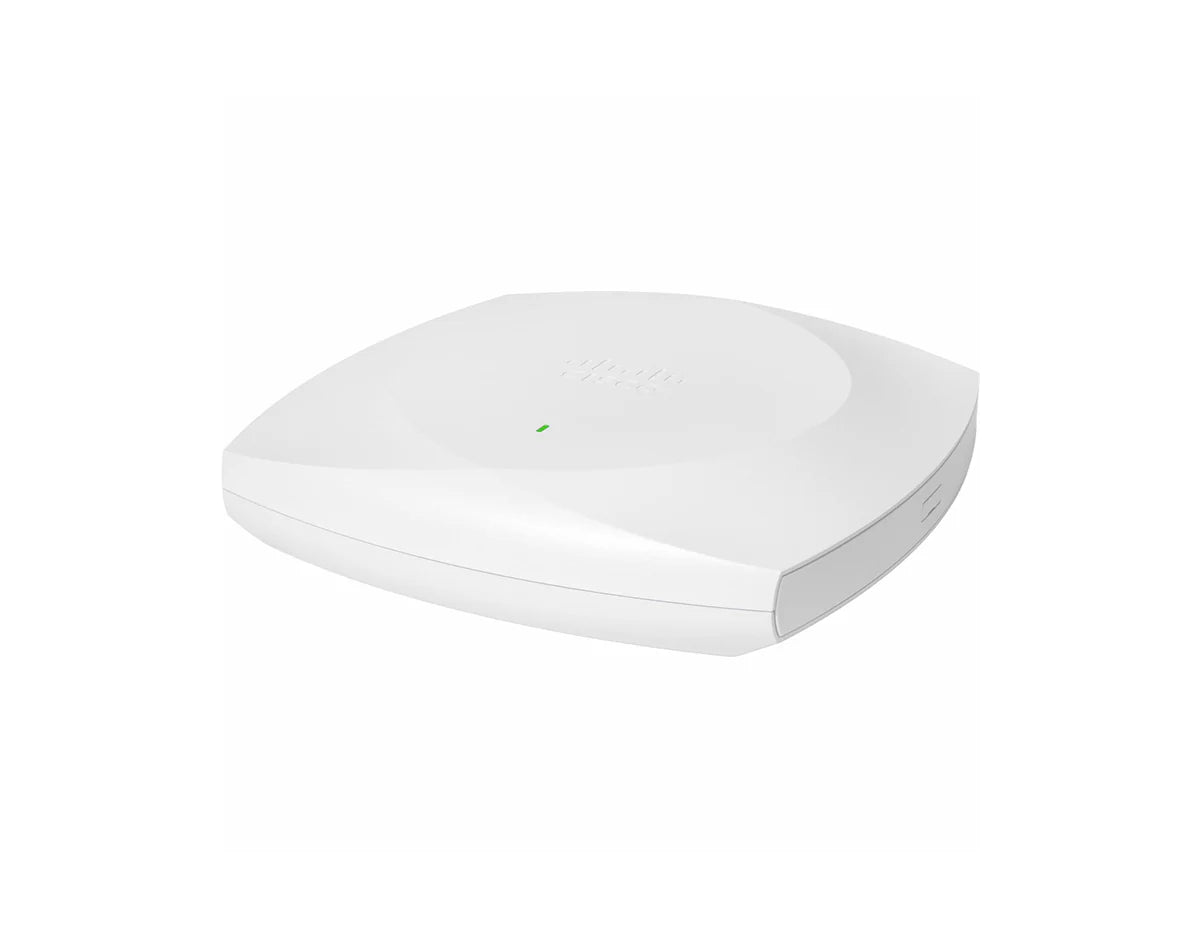

Cisco CW9176I-CFG Wi-Fi 7 Omnidirectional Indoor Access Point
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco CW9176I-CFG Wi-Fi 7 Omnidirectional Indoor Access Point
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco CW9176I-CFG Wi-Fi 7 Omnidirectional Indoor Access Point
Cisco CW9176I-CFG Wi-Fi 7 Omnidirectional Indoor Access Point

Cisco CW9176I-CFG Wi-Fi 7 Omnidirectional Indoor Access Point

por Cisco
R$ 25.740,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]Wi-Fi 7 802.11be, 4x4 MU-MIMO, 18 Gbps PHY rates, 10G mGig RJ-45, BLE 5.3, GPS/GNSS[/shortdesc]

[properties]

Brand Cisco
Model CW9176I
SKU CW9176I-CFG
Product Type Indoor access point with omnidirectional antenna
Series Cisco Wireless 9176 Series
Wireless Standard Wi-Fi 7, 802.11be
Interface 1x 100M/1000M/2.5G/5G/10G Multigigabit Ethernet (RJ-45)
PoE Support 802.3bt Cisco Universal PoE, 802.3at PoE+, 802.3af PoE
Dimensions 9.5 x 9.5 x 2.0 in. (24 x 24 x 5.1 cm)
Weight 3.4 lb. (1.56 kg)
Operating Temperature 32° to 122°F (0° to 50°C)

[/properties]

[specifications]

802.11be Capabilities 4x4 uplink/downlink MU-MIMO with four spatial streams, 4096 QAM, Multilink Operation (MLO), preamble puncturing, uplink/downlink OFDMA, Target Wake Time (TWT), BSS coloring, Maximal Ratio Combining (MRC)
PHY Data Rate Up to 18 Gbps (4x4 320 MHz on 6 GHz, 4x4 160 MHz on 5 GHz, and 4x4 20 MHz on 2.4 GHz) or up to 23 Gbps (4x4 320 MHz on 6 GHz, dual 4x4 160 MHz on 5 GHz)
Frequency Bands 2.4 GHz, 5 GHz, and 6 GHz (Supports Flexible Radio Assignment for tri-radio or dual-5 GHz operation)
Antenna Internal antenna, omnidirectional in azimuth. Peak gains: 2.4 GHz: 5 dBi; 5 GHz (XOR): 5 dBi; 5 GHz: 6 dBi; 6 GHz: 6 dBi
Interfaces 1x 100M/1000M/2.5G/5G/10G Multigigabit Ethernet (RJ-45), management console port (RJ-45), USB 2.0 host interface (Type A) at 9W power budget
Radios Five integrated radios: 2.4 GHz (4x4), 5 GHz (4x4), 6 GHz (4x4), a dedicated tri-band scanning radio for 24x7 WIDS/WIPS and RF analytics, and a dedicated IoT/Bluetooth Low Energy (BLE) 5.3 radio. Features built-in GPS/GNSS module and integrated Ultra-Wideband (UWB) radio.
Input Power Requirements 802.3bt Cisco Universal PoE (UPOE), 802.3at Power over Ethernet Plus (PoE+), 802.3af PoE (low power mode for configuration staging)
Maximum PoE Power Consumption 39W with 802.3bt, 25.5W with 802.3at, 15.4W with 802.3af
Power Consumption 802.3bt (UPOE): 15.5W ±2W idle, 17.7W ±4W typical; 802.3at (PoE+): 15.4W ±2W idle, 17.2W ±4W typical
Operating Humidity 10% to 90% noncondensing
Storage Temperature -22° to 158°F (-30° to 70°C)
Compliance Standards Safety: IEC/EN/UL 60950-1 and 62368-1, EN 60601 certified, UL 2043 Plenum Rating; Radio: EN 300 328, EN 301 893, EN 303 687, FCC Part 15C/15E; EMI: FCC Part 15B, EN 55032, EN 55024

[/specifications]

[accessories]

Included Standard mounting hardware framework support (AP brackets reusable from legacy models)
Recommended Power Injector Cisco Wireless 802.3bt Power Over Ethernet Injector (CW-INJ-8)
Compatible Accessories Meraki Multigigabit 802.3bt Power over Ethernet Injector (MA-INJ-6); Cisco 802.3bt Power Injector (AIR-PWRINJ-7)

[/accessories]

The Cisco CW9176I-CFG is a Cisco Wireless 9176 Series indoor access point designed for high-density wireless environments and critical business applications. It supports Wi-Fi 7 connectivity across 2.4 GHz, 5 GHz, and 6 GHz bands, with flexible deployment through Cisco Meraki cloud management or Cisco Catalyst 9800 Wireless LAN Controllers and Cisco Catalyst Center environments.

  • Supports Wi-Fi 7 802.11be with 4x4 uplink and downlink MU-MIMO across client-serving bands.
  • Provides PHY data rates up to 18 Gbps or up to 23 Gbps with flexible tri-band or dual-5 GHz assignment options.
  • Includes a single 10G Multigigabit Ethernet RJ-45 interface to support high-speed network uplinks.
  • Integrates five distinct radios including dedicated scanning for 24x7 security, BLE 5.3, IoT, and UWB radio tracking.
  • Supports scalable cloud, on-premises, and hybrid operational management paths for full investment protection.
  • Enterprise offices requiring high-density Wi-Fi 7 access and investment protection.
  • Schools, hospitals, hotels, and high-density retail environments.
  • Wireless networks supporting low-latency video streaming, AR, VR, and collaboration traffic.
  • Deployments needing 6 GHz capacity, asset tracking, and flexible radio optimization.
  • Product Type: Indoor wireless access point with omnidirectional internal antennas
  • SKU: CW9176I-CFG
  • Series: Cisco Wireless 9176 Series
  • Wireless Standard: 802.11be Wi-Fi 7 (Backward compatible with legacy standards)
  • Radio Design: 4x4 MU-MIMO with four spatial streams per client radio
  • Frequency Bands: 2.4 GHz, 5 GHz, and 6 GHz spectrum
  • Maximum PHY Data Rate: Up to 18 Gbps (tri-band) / Up to 23 Gbps (dual-5 GHz mode)
  • Ethernet Interface: 1x 100M/1000M/2.5G/5G/10G Multigigabit RJ-45 port
  • USB Interface: USB 2.0 host interface (Type A) with 9W power budget
  • Dimensions: 9.5 x 9.5 x 2.0 in. (24 x 24 x 5.1 cm) without mounting brackets

Choose the Cisco CW9176I-CFG for a Wi-Fi 7 access point built for high-density enterprise WLAN performance, flexible infrastructure management, and modern wireless asset visibility applications.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]Wi-Fi 7 802.11be, 4x4 MU-MIMO, 18 Gbps PHY rates, 10G mGig RJ-45, BLE 5.3, GPS/GNSS[/shortdesc]

[properties]

Brand Cisco
Model CW9176I
SKU CW9176I-CFG
Product Type Indoor access point with omnidirectional antenna
Series Cisco Wireless 9176 Series
Wireless Standard Wi-Fi 7, 802.11be
Interface 1x 100M/1000M/2.5G/5G/10G Multigigabit Ethernet (RJ-45)
PoE Support 802.3bt Cisco Universal PoE, 802.3at PoE+, 802.3af PoE
Dimensions 9.5 x 9.5 x 2.0 in. (24 x 24 x 5.1 cm)
Weight 3.4 lb. (1.56 kg)
Operating Temperature 32° to 122°F (0° to 50°C)

[/properties]

[specifications]

802.11be Capabilities 4x4 uplink/downlink MU-MIMO with four spatial streams, 4096 QAM, Multilink Operation (MLO), preamble puncturing, uplink/downlink OFDMA, Target Wake Time (TWT), BSS coloring, Maximal Ratio Combining (MRC)
PHY Data Rate Up to 18 Gbps (4x4 320 MHz on 6 GHz, 4x4 160 MHz on 5 GHz, and 4x4 20 MHz on 2.4 GHz) or up to 23 Gbps (4x4 320 MHz on 6 GHz, dual 4x4 160 MHz on 5 GHz)
Frequency Bands 2.4 GHz, 5 GHz, and 6 GHz (Supports Flexible Radio Assignment for tri-radio or dual-5 GHz operation)
Antenna Internal antenna, omnidirectional in azimuth. Peak gains: 2.4 GHz: 5 dBi; 5 GHz (XOR): 5 dBi; 5 GHz: 6 dBi; 6 GHz: 6 dBi
Interfaces 1x 100M/1000M/2.5G/5G/10G Multigigabit Ethernet (RJ-45), management console port (RJ-45), USB 2.0 host interface (Type A) at 9W power budget
Radios Five integrated radios: 2.4 GHz (4x4), 5 GHz (4x4), 6 GHz (4x4), a dedicated tri-band scanning radio for 24x7 WIDS/WIPS and RF analytics, and a dedicated IoT/Bluetooth Low Energy (BLE) 5.3 radio. Features built-in GPS/GNSS module and integrated Ultra-Wideband (UWB) radio.
Input Power Requirements 802.3bt Cisco Universal PoE (UPOE), 802.3at Power over Ethernet Plus (PoE+), 802.3af PoE (low power mode for configuration staging)
Maximum PoE Power Consumption 39W with 802.3bt, 25.5W with 802.3at, 15.4W with 802.3af
Power Consumption 802.3bt (UPOE): 15.5W ±2W idle, 17.7W ±4W typical; 802.3at (PoE+): 15.4W ±2W idle, 17.2W ±4W typical
Operating Humidity 10% to 90% noncondensing
Storage Temperature -22° to 158°F (-30° to 70°C)
Compliance Standards Safety: IEC/EN/UL 60950-1 and 62368-1, EN 60601 certified, UL 2043 Plenum Rating; Radio: EN 300 328, EN 301 893, EN 303 687, FCC Part 15C/15E; EMI: FCC Part 15B, EN 55032, EN 55024

[/specifications]

[accessories]

Included Standard mounting hardware framework support (AP brackets reusable from legacy models)
Recommended Power Injector Cisco Wireless 802.3bt Power Over Ethernet Injector (CW-INJ-8)
Compatible Accessories Meraki Multigigabit 802.3bt Power over Ethernet Injector (MA-INJ-6); Cisco 802.3bt Power Injector (AIR-PWRINJ-7)

[/accessories]

Cisco Wi-Fi 7 Performance for Enterprise Access

The Cisco CW9176I-CFG is a Cisco Wireless 9176 Series indoor access point designed for high-density wireless environments and critical business applications. It supports Wi-Fi 7 connectivity across 2.4 GHz, 5 GHz, and 6 GHz bands, with flexible deployment through Cisco Meraki cloud management or Cisco Catalyst 9800 Wireless LAN Controllers and Cisco Catalyst Center environments.

Key Benefits and Features
  • Supports Wi-Fi 7 802.11be with 4x4 uplink and downlink MU-MIMO across client-serving bands.
  • Provides PHY data rates up to 18 Gbps or up to 23 Gbps with flexible tri-band or dual-5 GHz assignment options.
  • Includes a single 10G Multigigabit Ethernet RJ-45 interface to support high-speed network uplinks.
  • Integrates five distinct radios including dedicated scanning for 24x7 security, BLE 5.3, IoT, and UWB radio tracking.
  • Supports scalable cloud, on-premises, and hybrid operational management paths for full investment protection.
Ideal Use Cases
  • Enterprise offices requiring high-density Wi-Fi 7 access and investment protection.
  • Schools, hospitals, hotels, and high-density retail environments.
  • Wireless networks supporting low-latency video streaming, AR, VR, and collaboration traffic.
  • Deployments needing 6 GHz capacity, asset tracking, and flexible radio optimization.
Technical Specifications
  • Product Type: Indoor wireless access point with omnidirectional internal antennas
  • SKU: CW9176I-CFG
  • Series: Cisco Wireless 9176 Series
  • Wireless Standard: 802.11be Wi-Fi 7 (Backward compatible with legacy standards)
  • Radio Design: 4x4 MU-MIMO with four spatial streams per client radio
  • Frequency Bands: 2.4 GHz, 5 GHz, and 6 GHz spectrum
  • Maximum PHY Data Rate: Up to 18 Gbps (tri-band) / Up to 23 Gbps (dual-5 GHz mode)
  • Ethernet Interface: 1x 100M/1000M/2.5G/5G/10G Multigigabit RJ-45 port
  • USB Interface: USB 2.0 host interface (Type A) with 9W power budget
  • Dimensions: 9.5 x 9.5 x 2.0 in. (24 x 24 x 5.1 cm) without mounting brackets
Upgrade Enterprise Wireless with Cisco CW9176I-CFG

Choose the Cisco CW9176I-CFG for a Wi-Fi 7 access point built for high-density enterprise WLAN performance, flexible infrastructure management, and modern wireless asset visibility applications.
