[shortdesc]
- Router
- voice / fax module
- GigE
- WAN ports: 3
- rack-mountable
[/shortdesc]
[properties]
| Properties |

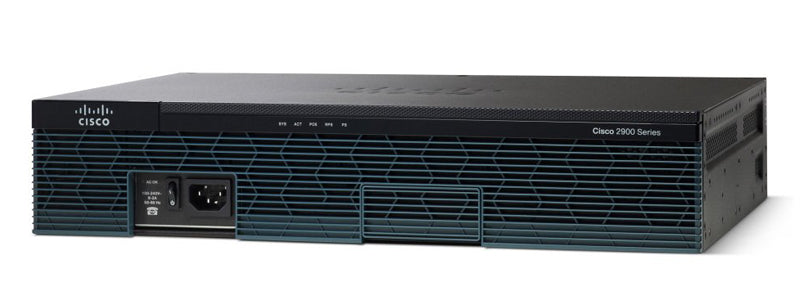

Cisco 2911 Integrated Services Router with Voice License (CISCO2911-V/K9) |
| Description |
Modular enterprise-class router with integrated voice, security, and services support |
| Product Type |
Integrated Services Router (ISR G2) |
| Compatibility |
Cisco IOS Universal Software; voice, security, WAN optimization, and app services |
| Mount Type |
Rack-mountable (2RU) |
[/properties] [specifications]
| WAN Ports |
3 x 10/100/1000 Mbps Ethernet |
| Service Module Slots |
1 internal single-wide |
| EHWIC Slots |
4 total (supports HWIC, WIC, VIC, VWIC) |
| DSP Module Support |
2 x PVDM3 slots (voice/video DSP) |
| Memory (DRAM) |
512 MB default / 2 GB max |
| Flash Memory |
256 MB default / 4 GB max |
| USB Ports |
2 x USB 2.0 (Type A), 1 x USB console (Type B) |
| Power Supply |
AC included, PoE and RPS supported |
| Operating Temperature |
0°C to 40°C |
| Dimensions |
8.73 x 43.84 x 44.45 cm (2RU) |
| Weight |
8.2 kg (base configuration) |
[/specifications] [accesories]
| Included Items |
CISCO2911-V/K9 router, AC power supply, rack mount kit (included in the box) |
| Optional Modules |
PVDM3 DSPs, EHWIC interface cards, ISM/SRE modules |
| Redundancy Options |
Cisco RPS 2300 support (external) |
| Power Options |
AC, DC, PoE (via upgrade) |
[/accesories]
The platforms are architected to enable the next phase of branch-office evolution, providing rich media collaboration and virtualization to the branch while maximizing operational cost savings The integrated services routers generation 2 platforms are future-enabled with multi-core CPUs, support for high capacity DSPs (Digital Signal Processors) for future enhanced video capabilities, high powered service modules with improved availability, Gigabit Ethernet switching with enhanced POE, and energy monitoring and control capabilities while enhancing overall system performance. Overall, the Cisco 2900 series offer unparalleled total cost of ownership savings and network agility through the intelligent integration of market leading security, unified communications, wireless, and application services.
The Cisco 2900 series integrated services router offers embedded hardware encryption acceleration, voice- and video-capable Digital Signal Processor (DSP) slots, intrusion prevention, call processing, voicemail, and application services.
