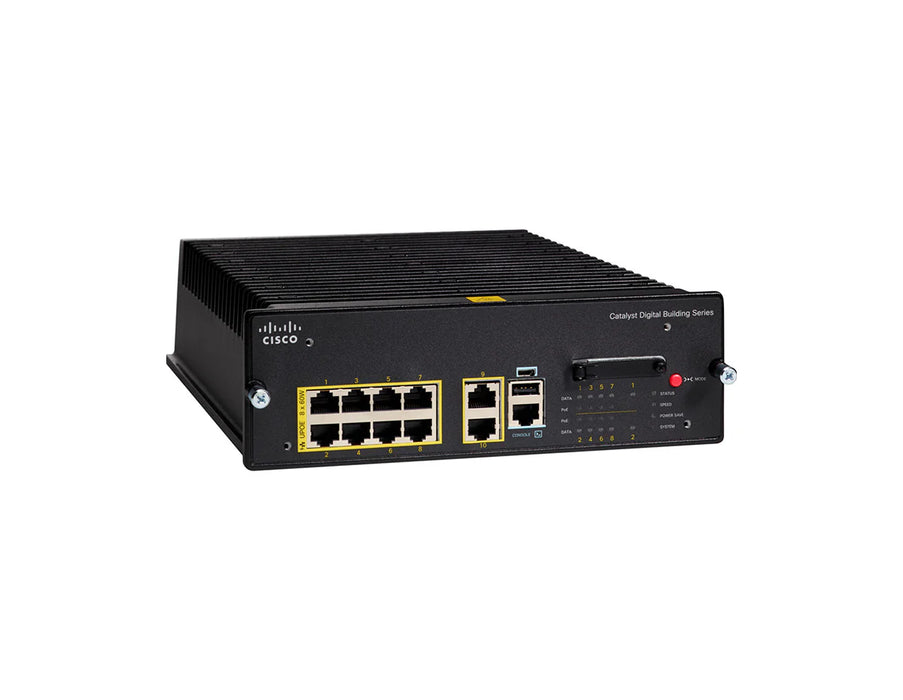

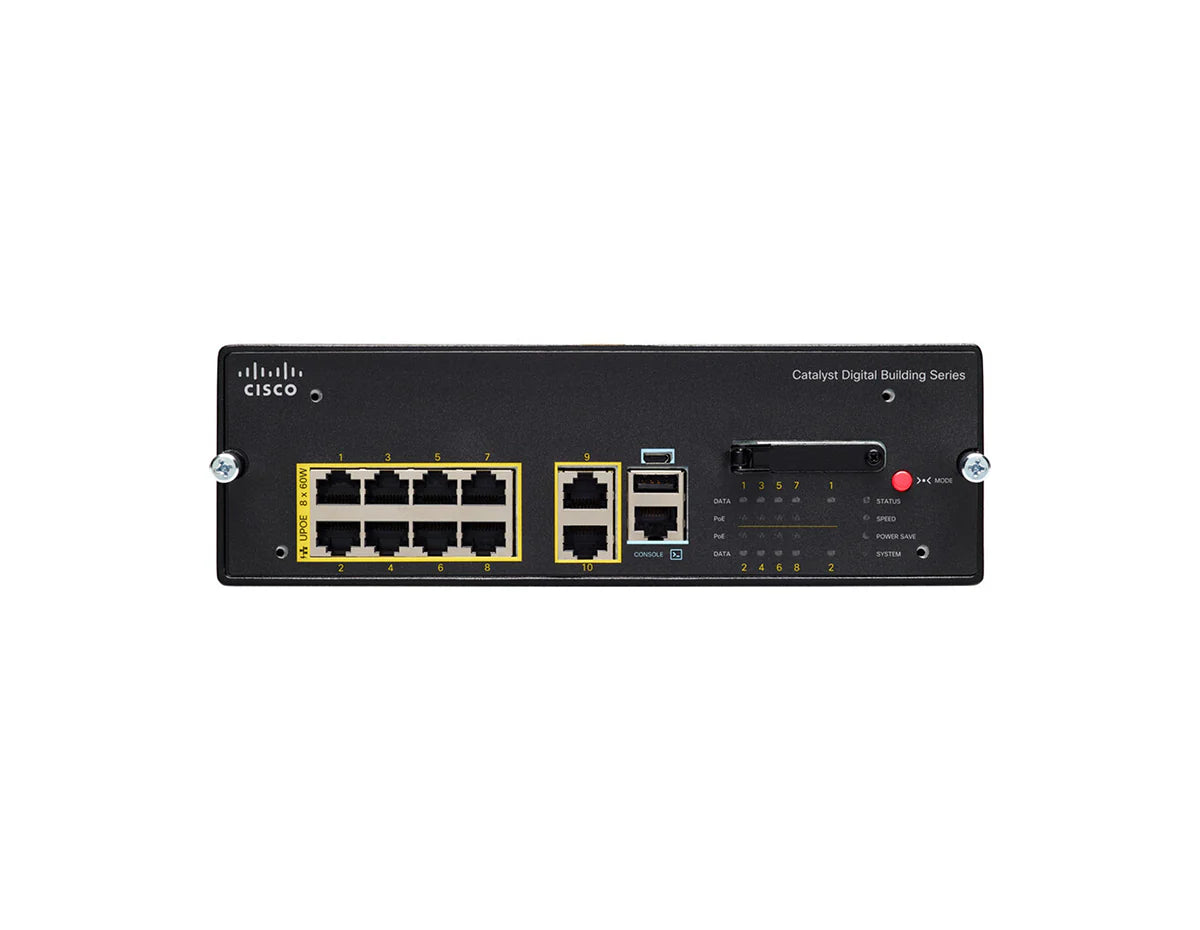

Cisco CDB-8U Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco CDB-8U Switch
Cisco CDB-8U Switch

Cisco CDB-8U Switch

por Cisco
Desconto de 78%
R$ 23.148,96
R$ 4.980,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Managed, Fanless, 8 x 10/100 Fast Ethernet ports, 2 x 1G copper uplinks, UPOE (480W), Layer 2
[/shortdesc]

[properties]

Properties CDB-8U
Description Cisco Catalyst Digital Building Switch, 8 x FE, 480W UPOE, Uplinks: 2 x 1G copper, LAN Lite.
Product Family Catalyst Digital Building Switch
Product Type Switches
Ethernet Ports  8 x 10/100 Fast Ethernet UPOE
PoE Output Ports 8
Available PoE Power 480W
Uplinks 2 x 10/100/1000
Default Software LAN Lite

[/properties] [specifications]

Specifications CDB-8U
Forwarding bandwidth  2.8 Gbps
Switching bandwidth (full-duplex capacity) 5.6 Gbps
Flash memory 256 MB
Memory DRAM 512 MB
Max VLANs 64
VLAN IDs (1-4094)
Maximum Transmission Unit (MTU) Up to 1500 bytes
MAC entries 8192
Port channels 6
Queues 4 egress queues/port
Buffers 1K
ACLs 180 MAC, IPv4 and IPv6
Bootup time 35 sec.
Forwarding Rate 64-Byte Packet Cisco Catalyst Digital Building Series
CDB-8U 4.2 mpps
CDB-8P 4.2 mpps
Cisco Catalyst Digital Building Series Ethernet interfaces: ● 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted-Pair (UTP) cabling
● 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
● 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Power connectors  ● The Cisco Catalyst Digital Building Series Switches utilize a proprietary power connector on the switch itself to
make installation, upgrades, and maintenance fast and easy, as well as enabling up to 277VAC operation. The
internal power supply is an autoranging AC power supply
● Customers utilizing the direct-wire Catalyst Digital Building Flex Mount can provide 100V – 277VAC input
voltage.
● Customers utilizing the C14 Catalyst Digital Building Flex Mount, or the Catalyst Digital Building 5-slot Rack
Mount can utilize 100V – 240VAC input voltage
● The C14 Catalyst Digital Building Flex Mount and the Catalyst Digital Building 5-slot Rack Mount can be
ordered with a variety of country-specific power cords
Indicators Per-port status: link integrity, disabled, activity, speed, PoE Status
System status: system, power saving mode
Dimensions (H x W x D) Inches: 2.75 x 8.72 x 11.07
Centimeters: 6.98 x 22.15 x 28.12
Weight 9.65 Pounds -  4.38  Kilograms
Environmental ranges
Operating* temperature up to 5000 ft (1524 m) (-5°C to +50°C** ) -   (+23°F to +122°F )
Operating* temperature up to 10,000 ft (3048 m) (-5°C to +45°C ) -   (+23°F to +113°F )
Storage temperature up to 15,000 ft (4572 m) (-25°C to +70°C) -   (+13°F to +158°F )
Operating altitude Up to 3048 m  - Up to 10,000 ft
Storage altitude Up to 4000 m -  Up to 15,000 ft
Operating relative humidity 5% to 95% non-condensing
Storage relative humidity 5% to 95% non-condensing
* Minimum ambient temperature for cold start is 0°C (+32°F). ** Operation above 40°C may impact service life.
Mean Time Between Failures (MTBF) (hours) 710,27

[/specifications] [accesories]

Stacking and Accessories
CDB-MNT-FLEX-C14=  Flexible mount* spare part with IEC C14 power junction box (One mount needed per switch to power the switch).
CDB-MNT-FLEX-DIR= Flexible mount* spare part with direct-wired junction box (One mount needed per switch to power the switch).
CDB-MNT-RACK5-C14= 5- 5-RU 19” rack mount chassis spare part for 5 switches (Flexible mounts above are NOT required if switches to be mounted on this rack mount chassis).
* Available as a spare unit too.

[/accesories]

The Cisco Catalyst CDB-8U is an 8-port Fast Ethernet switch designed for smart building applications. With support for Universal Power over Ethernet (UPOE) and a total power budget of 480W, this switch is ideal for powering devices like lighting, HVAC systems, and security systems through a single network. It also includes two Gigabit uplink ports, ensuring reliable and scalable connectivity for building automation systems.

Key Features:

  • 8 x Fast Ethernet Ports: Provides connectivity for various building systems such as lighting, security, and HVAC.
  • UPOE Support with 480W Budget: Powers devices with up to 60W per port, supporting high-power requirements.
  • 2 x Gigabit Uplink Ports: Enables high-speed uplink connectivity for seamless network expansion.
  • Fanless Design: Ensures quiet, reliable operation in noise-sensitive environments.
  • Compact and Flexible: Designed for installation in various locations such as racks, cabinets, and ceilings.

Technical Overview:

  • Recommended for: Smart building systems, lighting, and building automation.
  • Ports: 8 x 10/100 Mbps Fast Ethernet ports, 2 x Gigabit Ethernet uplinks.
  • PoE Budget: 480W across 8 UPOE ports.
  • Switching Capacity: 5.6 Gbps.
  • Forwarding Rate: 4.2 Mpps.
  • Energy Efficiency: Supports energy-efficient Ethernet (EEE) for lower power consumption.

You can check the related tab for the CDB-8U datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Managed, Fanless, 8 x 10/100 Fast Ethernet ports, 2 x 1G copper uplinks, UPOE (480W), Layer 2
[/shortdesc]

[properties]

Properties CDB-8U
Description Cisco Catalyst Digital Building Switch, 8 x FE, 480W UPOE, Uplinks: 2 x 1G copper, LAN Lite.
Product Family Catalyst Digital Building Switch
Product Type Switches
Ethernet Ports  8 x 10/100 Fast Ethernet UPOE
PoE Output Ports 8
Available PoE Power 480W
Uplinks 2 x 10/100/1000
Default Software LAN Lite

[/properties] [specifications]

Specifications CDB-8U
Forwarding bandwidth  2.8 Gbps
Switching bandwidth (full-duplex capacity) 5.6 Gbps
Flash memory 256 MB
Memory DRAM 512 MB
Max VLANs 64
VLAN IDs (1-4094)
Maximum Transmission Unit (MTU) Up to 1500 bytes
MAC entries 8192
Port channels 6
Queues 4 egress queues/port
Buffers 1K
ACLs 180 MAC, IPv4 and IPv6
Bootup time 35 sec.
Forwarding Rate 64-Byte Packet Cisco Catalyst Digital Building Series
CDB-8U 4.2 mpps
CDB-8P 4.2 mpps
Cisco Catalyst Digital Building Series Ethernet interfaces: ● 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted-Pair (UTP) cabling
● 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
● 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Power connectors  ● The Cisco Catalyst Digital Building Series Switches utilize a proprietary power connector on the switch itself to
make installation, upgrades, and maintenance fast and easy, as well as enabling up to 277VAC operation. The
internal power supply is an autoranging AC power supply
● Customers utilizing the direct-wire Catalyst Digital Building Flex Mount can provide 100V – 277VAC input
voltage.
● Customers utilizing the C14 Catalyst Digital Building Flex Mount, or the Catalyst Digital Building 5-slot Rack
Mount can utilize 100V – 240VAC input voltage
● The C14 Catalyst Digital Building Flex Mount and the Catalyst Digital Building 5-slot Rack Mount can be
ordered with a variety of country-specific power cords
Indicators Per-port status: link integrity, disabled, activity, speed, PoE Status
System status: system, power saving mode
Dimensions (H x W x D) Inches: 2.75 x 8.72 x 11.07
Centimeters: 6.98 x 22.15 x 28.12
Weight 9.65 Pounds -  4.38  Kilograms
Environmental ranges
Operating* temperature up to 5000 ft (1524 m) (-5°C to +50°C** ) -   (+23°F to +122°F )
Operating* temperature up to 10,000 ft (3048 m) (-5°C to +45°C ) -   (+23°F to +113°F )
Storage temperature up to 15,000 ft (4572 m) (-25°C to +70°C) -   (+13°F to +158°F )
Operating altitude Up to 3048 m  - Up to 10,000 ft
Storage altitude Up to 4000 m -  Up to 15,000 ft
Operating relative humidity 5% to 95% non-condensing
Storage relative humidity 5% to 95% non-condensing
* Minimum ambient temperature for cold start is 0°C (+32°F). ** Operation above 40°C may impact service life.
Mean Time Between Failures (MTBF) (hours) 710,27

[/specifications] [accesories]

Stacking and Accessories
CDB-MNT-FLEX-C14=  Flexible mount* spare part with IEC C14 power junction box (One mount needed per switch to power the switch).
CDB-MNT-FLEX-DIR= Flexible mount* spare part with direct-wired junction box (One mount needed per switch to power the switch).
CDB-MNT-RACK5-C14= 5- 5-RU 19” rack mount chassis spare part for 5 switches (Flexible mounts above are NOT required if switches to be mounted on this rack mount chassis).
* Available as a spare unit too.

[/accesories]

Cisco CDB-8U Switch

The Cisco Catalyst CDB-8U is an 8-port Fast Ethernet switch designed for smart building applications. With support for Universal Power over Ethernet (UPOE) and a total power budget of 480W, this switch is ideal for powering devices like lighting, HVAC systems, and security systems through a single network. It also includes two Gigabit uplink ports, ensuring reliable and scalable connectivity for building automation systems.

Key Features:

  • 8 x Fast Ethernet Ports: Provides connectivity for various building systems such as lighting, security, and HVAC.
  • UPOE Support with 480W Budget: Powers devices with up to 60W per port, supporting high-power requirements.
  • 2 x Gigabit Uplink Ports: Enables high-speed uplink connectivity for seamless network expansion.
  • Fanless Design: Ensures quiet, reliable operation in noise-sensitive environments.
  • Compact and Flexible: Designed for installation in various locations such as racks, cabinets, and ceilings.

Technical Overview:

  • Recommended for: Smart building systems, lighting, and building automation.
  • Ports: 8 x 10/100 Mbps Fast Ethernet ports, 2 x Gigabit Ethernet uplinks.
  • PoE Budget: 480W across 8 UPOE ports.
  • Switching Capacity: 5.6 Gbps.
  • Forwarding Rate: 4.2 Mpps.
  • Energy Efficiency: Supports energy-efficient Ethernet (EEE) for lower power consumption.

You can check the related tab for the CDB-8U datasheet.
