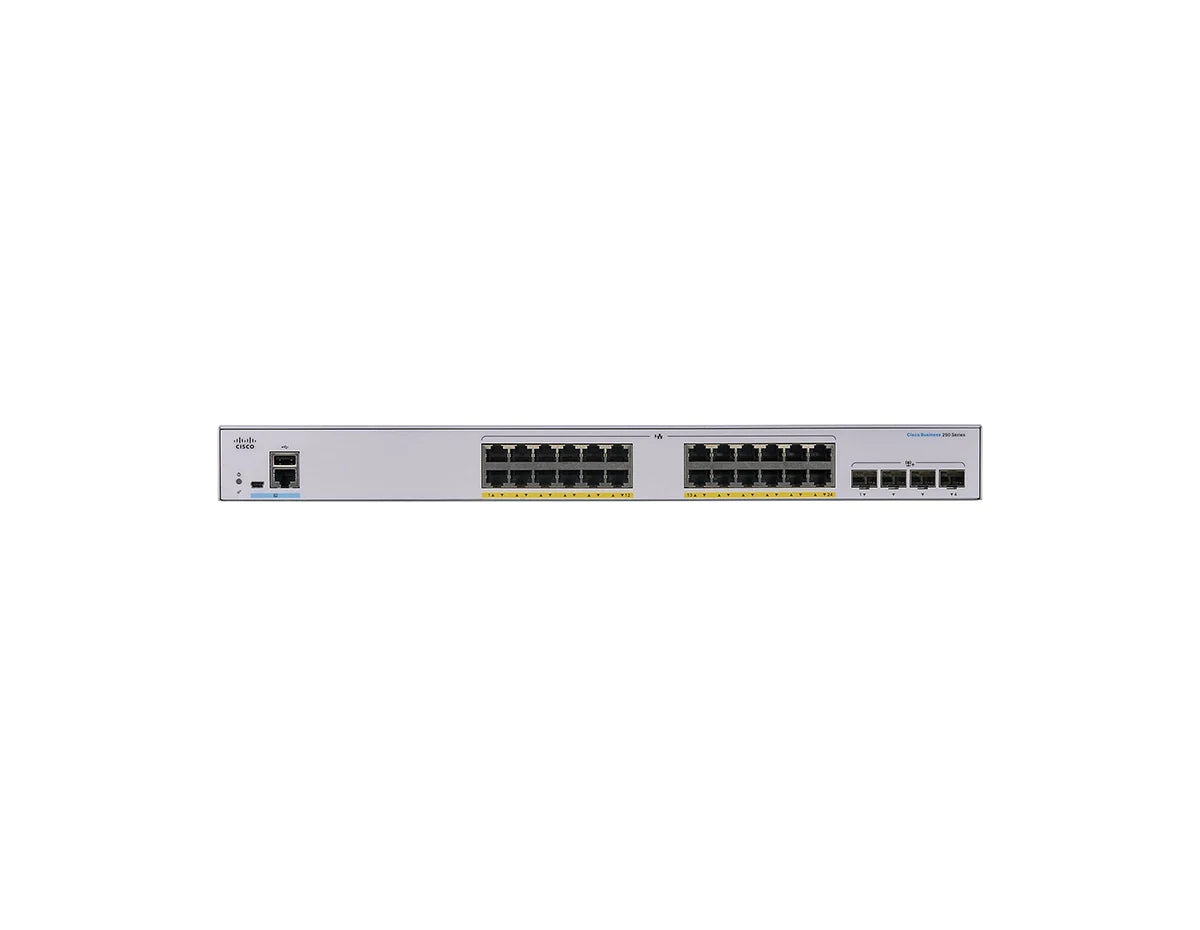

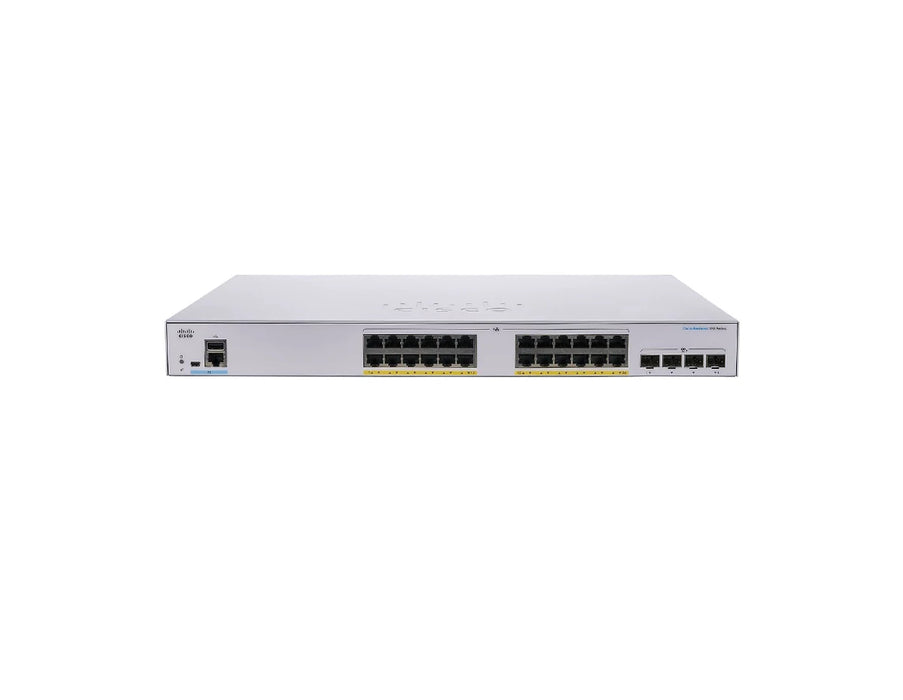

Cisco CBS250-24FP-4X Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco CBS250-24FP-4X Switch
Cisco CBS250-24FP-4X Switch

Cisco CBS250-24FP-4X Switch

por Cisco
Desconto de 27%
R$ 13.923,48
R$ 10.140,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Managed, Rack-mountable, 24 x 1G PoE+ ports, 4 x 10G SFP+ Uplinks, PoE+ (370W), Layer 3
[/shortdesc]

[properties]

Properties CBS250-24FP-4X
Description

— 24 10/100/1000 PoE+ ports with 370W power budget

— 4 10 Gigabit SFP+
Product Family CBS 250 Series
Product Type Small Business Switch
Number of Ports 24 Gigabit Ethernet + 4 10 Gigabit Ethernet
RJ-45 ports 24 Gigabit Ethernet
Downlinks total 10/100/1000 ports 24
Power dedicated to PoE 370W
Number of ports that support PoE 24
Power 100 to 240V 50 to 60 Hz, internal, universal
Fans 1
Unit dimensions in. (W x D x H) 17.5 x 13.59 x 1.73
Rack-mountable Yes

[/properties] [specifications]

Specifications CBS250-24FP-4X
Capacity in millions of packets 95.23 mpps
Switching capacity 128.0 Gbps
Flash Memory 16 MB
DRAM 512 MB
CPU 400 MHz ARM
CPU Memory 128 MB
Packet Buffer 1.5 MB
MAC addresses 8K
Head-of-line (HOL) blocking HOL blocking prevention
Quality of Service (QoS) 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection Helps discover loops in the network to avoid broadcast storms
Cable diagnostics Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Operating Temperature 23° to 122°F (-5° to 50°C)
Operating humidity 10% to 90%, relative, noncondensing
Compliance/certifications UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

[/specifications] [accesories]

Hardware
LEDs Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE.
Cabling type Category 5e or better
Mounting options Desktop, wall-mount or rack mount
Physical security lock Kensington lock slot
Accessories There is no additional accessories other than the power supply and the mounting kit which are included with the device package .
Supported SFP modules SKU
MGBSX1 Multimode fiber
MGBLX1 Single-mode fiber
MGBLH1 Single-mode fiber
MGBT1 UTP cat 5e
Package contents
— Cisco Business 250 Series Smart Switch
— Power cord (power adapter for 8-port SKUs)
— Quick start guide
— Mounting kit
Minimum requirements
Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet
Cat5e or better Ethernet cable
Network interface card for each computer

[/accesories]

The Cisco CBS250-24FP-4X is a robust managed switch designed for small to medium-sized businesses that require advanced Power over Ethernet (PoE) capabilities and flexible uplinks for network expansion. Featuring 24 Gigabit Ethernet PoE+ ports with a total PoE power budget of 370W, this switch is ideal for powering devices such as IP phones, wireless access points, and cameras. The switch also includes 4 10 Gigabit SFP+ uplink ports, providing high-speed connectivity and allowing for future-proof network scalability.

Key Features:

  • 24 x Gigabit Ethernet PoE+ Ports: Delivers up to 370W total PoE power for devices such as IP phones, access points, and cameras.
  • 4 x 10 Gigabit SFP+ Uplink Ports: Ensures high-speed fiber uplinks for flexible network expansion and scalability.
  • Layer 2/3 Switching Features: Includes VLANs, QoS, and static routing for optimized traffic management and network segmentation.
  • Energy Efficiency: Compliant with IEEE 802.3az standards, reducing power consumption during low-traffic periods.
  • Advanced Security: Features 802.1X authentication, ACLs, and IP Source Guard to protect against unauthorized access.

Technical Overview:

  • Recommended for: Small to medium-sized businesses, branch offices, and environments requiring PoE support.
  • Ports: 24 x 10/100/1000 PoE+ ports with 370W PoE budget, 4 x 10 Gigabit SFP+ uplink ports.
  • Switching Capacity: 128 Gbps.
  • Forwarding Rate: 95.23 Mpps.
  • Layer 2/3 Features: VLAN, static routing, QoS, and IGMP snooping for effective traffic management.
  • Management: Cisco Business Dashboard, Web-based GUI, CLI, and SNMP for simplified network management.
  • Security: ACLs, 802.1X authentication, and IP Source Guard for secure networking.
  • Energy Efficiency: Compliant with IEEE 802.3az standards for reduced energy consumption.

You can check the related tab for the CBS250-24FP-4X datasheet.
