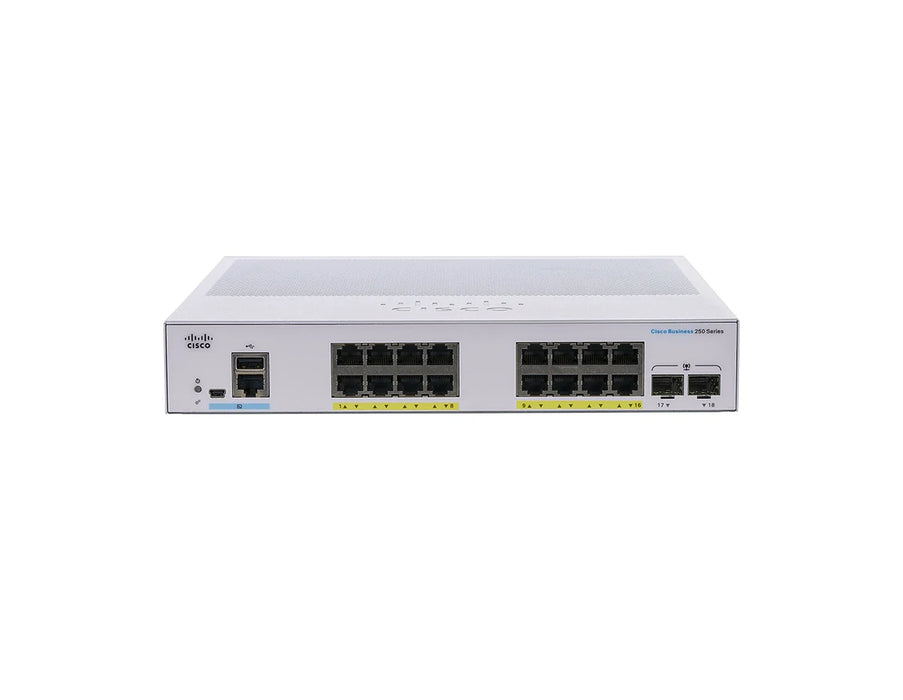

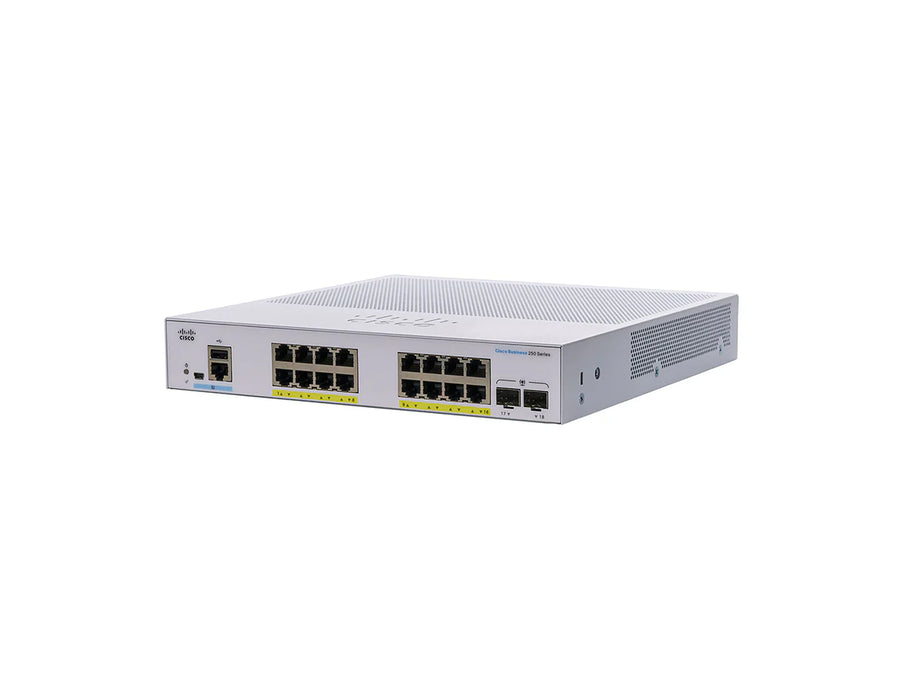

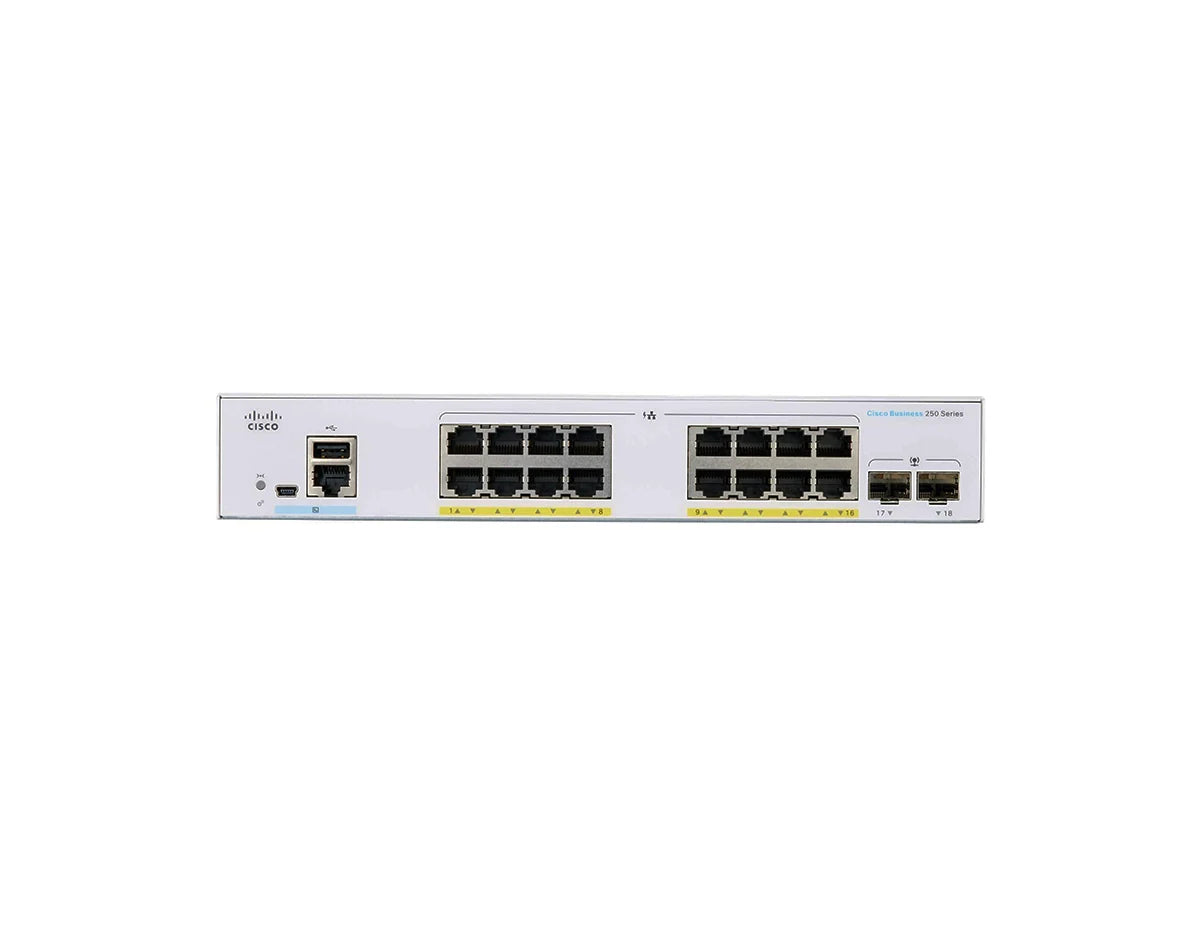

Cisco CBS250-16P-2G Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco CBS250-16P-2G Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco CBS250-16P-2G Switch
Cisco CBS250-16P-2G Switch

Cisco CBS250-16P-2G Switch

por Cisco
R$ 6.900,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Managed, Rack-mountable, 16 x 1G PoE+ ports, 2 x 1G SFP Uplinks, PoE+ (120W), Layer 3
[/shortdesc]

[properties]

Properties CBS250-16P-2G
Description — 16 10/100/1000 PoE+ ports with 120W power budget
— 2 Gigabit SFP
Product Family CBS 250 Series
Product Type Small Business Switch
Number of Ports 18
RJ-45 ports 16 Gigabit Ethernet
Downlinks total 10/100/1000 ports 16
Power dedicated to PoE 120W
Number of ports that support PoE 16
Power 100 to 240V 50 to 60 Hz, internal, universal
Fans Fanless
Unit dimensions in. (W x D x H) 10.56 x 11.69 x 1.73
Rack-mountable Yes

[/properties]

[specifications]

Specifications CBS250-16P-2G
Capacity in millions of packets 26.78 mpps
Switching capacity 36.0 Gbps
Flash Memory 16 MB
DRAM 512 MB
CPU 400 MHz ARM
CPU Memory 128 MB
Packet Buffer 1.5 MB
MAC addresses 8K
Head-of-line (HOL) blocking HOL blocking prevention
Quality of Service (QoS) 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection Helps discover loops in the network to avoid broadcast storms
Cable diagnostics Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Operating Temperature
 23° to 122°F (-5° to 50°C)
Operating humidity 10% to 90%, relative, noncondensing
Compliance/certifications UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

[/specifications]

[accesories]

Hardware
LEDs Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE.
Cabling type Category 5e or better
Mounting options Desktop, wall-mount or rack mount
Physical security lock Kensington lock slot
Accessories There is no additional accessories other than the power supply and the mounting kit which are included with the device package .
Supported SFP modules SKU
MGBSX1 Multimode fiber
MGBLX1 Single-mode fiber
MGBLH1 Single-mode fiber
MGBT1 UTP cat 5e
Package contents
Cisco Business 110 Series switch
Power cord or adapter
Quick start guide
Mounting kit
Minimum requirements
Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet
Cat5e or better Ethernet cable
Network interface card for each computer

[/accesories]

The Cisco CBS250-16P-2G Switch is a cost-effective solution designed for small and medium-sized businesses looking to support PoE devices in their network infrastructure. Equipped with 16 Gigabit Ethernet PoE+ ports and a 120W total PoE budget, this switch enables the deployment of IP cameras, phones, and wireless access points with ease. The CBS250-16P-2G also includes 2 Gigabit SFP uplink ports, providing flexibility for network expansion and enhanced performance.

Key Features:

  • 16 x Gigabit Ethernet PoE+ Ports: Supports up to 30W per port, perfect for powering devices like IP cameras and phones.
  • 2 x SFP Uplink Ports: Ensures flexible and fast uplink options for network expansion.
  • Energy-Efficient Design: Complies with IEEE 802.3az standards to reduce energy consumption during low traffic periods.
  • Advanced Security: Includes 802.1X authentication, ACLs, and DoS protection to secure your network.
  • Simple Management: Easily managed via Cisco Business Dashboard or an intuitive web-based interface.

Technical Overview:

  • Recommended for: Small to medium-sized businesses, branch offices, and retail environments.
  • Ports: 16 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports.
  • Uplink Modules: 2 x Gigabit SFP ports.
  • Switching Capacity: 36 Gbps.
  • Forwarding Rate: 26.78 Mpps.
  • Energy Efficiency: Meets IEEE 802.3az standards for power-saving operation.

You can check the related tab for the CBS250-16P-2G datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Managed, Rack-mountable, 16 x 1G PoE+ ports, 2 x 1G SFP Uplinks, PoE+ (120W), Layer 3
[/shortdesc]

[properties]

Properties CBS250-16P-2G
Description — 16 10/100/1000 PoE+ ports with 120W power budget
— 2 Gigabit SFP
Product Family CBS 250 Series
Product Type Small Business Switch
Number of Ports 18
RJ-45 ports 16 Gigabit Ethernet
Downlinks total 10/100/1000 ports 16
Power dedicated to PoE 120W
Number of ports that support PoE 16
Power 100 to 240V 50 to 60 Hz, internal, universal
Fans Fanless
Unit dimensions in. (W x D x H) 10.56 x 11.69 x 1.73
Rack-mountable Yes

[/properties]

[specifications]

Specifications CBS250-16P-2G
Capacity in millions of packets 26.78 mpps
Switching capacity 36.0 Gbps
Flash Memory 16 MB
DRAM 512 MB
CPU 400 MHz ARM
CPU Memory 128 MB
Packet Buffer 1.5 MB
MAC addresses 8K
Head-of-line (HOL) blocking HOL blocking prevention
Quality of Service (QoS) 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection Helps discover loops in the network to avoid broadcast storms
Cable diagnostics Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Operating Temperature
 23° to 122°F (-5° to 50°C)
Operating humidity 10% to 90%, relative, noncondensing
Compliance/certifications UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

[/specifications]

[accesories]

Hardware
LEDs Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE.
Cabling type Category 5e or better
Mounting options Desktop, wall-mount or rack mount
Physical security lock Kensington lock slot
Accessories There is no additional accessories other than the power supply and the mounting kit which are included with the device package .
Supported SFP modules SKU
MGBSX1 Multimode fiber
MGBLX1 Single-mode fiber
MGBLH1 Single-mode fiber
MGBT1 UTP cat 5e
Package contents
Cisco Business 110 Series switch
Power cord or adapter
Quick start guide
Mounting kit
Minimum requirements
Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet
Cat5e or better Ethernet cable
Network interface card for each computer

[/accesories]

Cisco CBS250-16P-2G Switch

The Cisco CBS250-16P-2G Switch is a cost-effective solution designed for small and medium-sized businesses looking to support PoE devices in their network infrastructure. Equipped with 16 Gigabit Ethernet PoE+ ports and a 120W total PoE budget, this switch enables the deployment of IP cameras, phones, and wireless access points with ease. The CBS250-16P-2G also includes 2 Gigabit SFP uplink ports, providing flexibility for network expansion and enhanced performance.

Key Features:

  • 16 x Gigabit Ethernet PoE+ Ports: Supports up to 30W per port, perfect for powering devices like IP cameras and phones.
  • 2 x SFP Uplink Ports: Ensures flexible and fast uplink options for network expansion.
  • Energy-Efficient Design: Complies with IEEE 802.3az standards to reduce energy consumption during low traffic periods.
  • Advanced Security: Includes 802.1X authentication, ACLs, and DoS protection to secure your network.
  • Simple Management: Easily managed via Cisco Business Dashboard or an intuitive web-based interface.

Technical Overview:

  • Recommended for: Small to medium-sized businesses, branch offices, and retail environments.
  • Ports: 16 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports.
  • Uplink Modules: 2 x Gigabit SFP ports.
  • Switching Capacity: 36 Gbps.
  • Forwarding Rate: 26.78 Mpps.
  • Energy Efficiency: Meets IEEE 802.3az standards for power-saving operation.

You can check the related tab for the CBS250-16P-2G datasheet.
