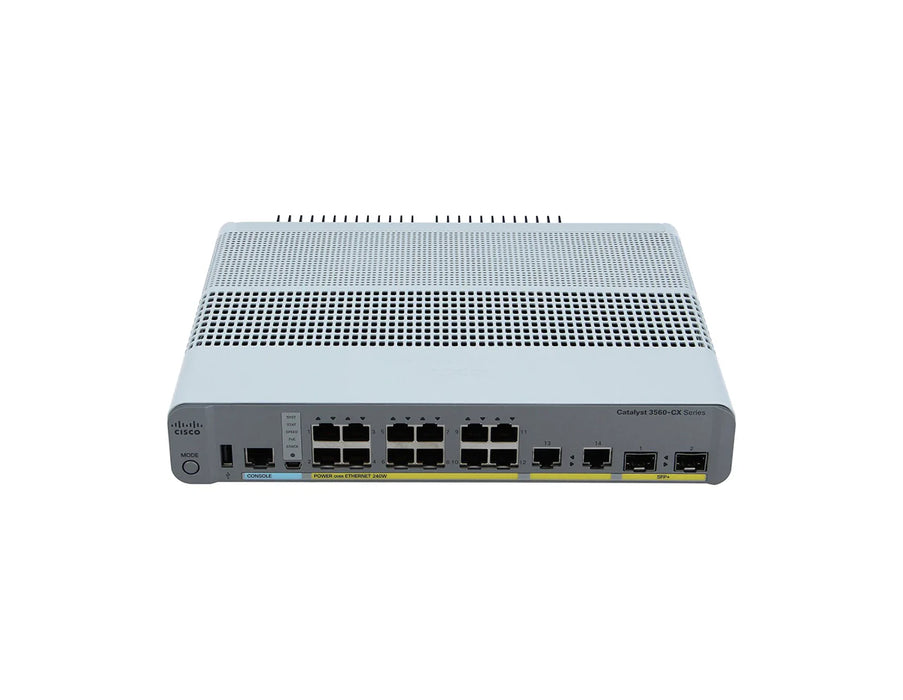

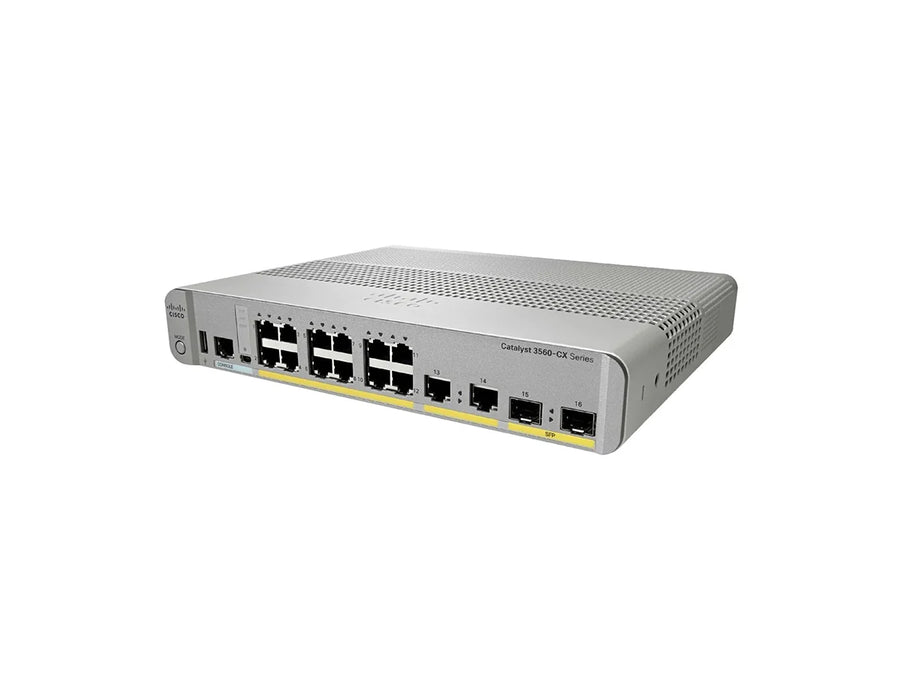

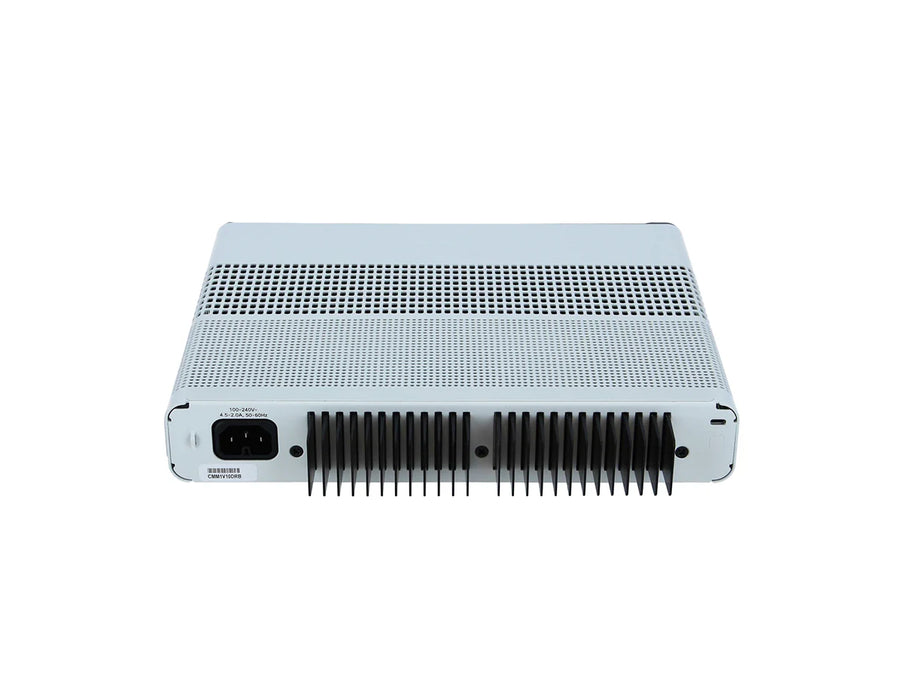

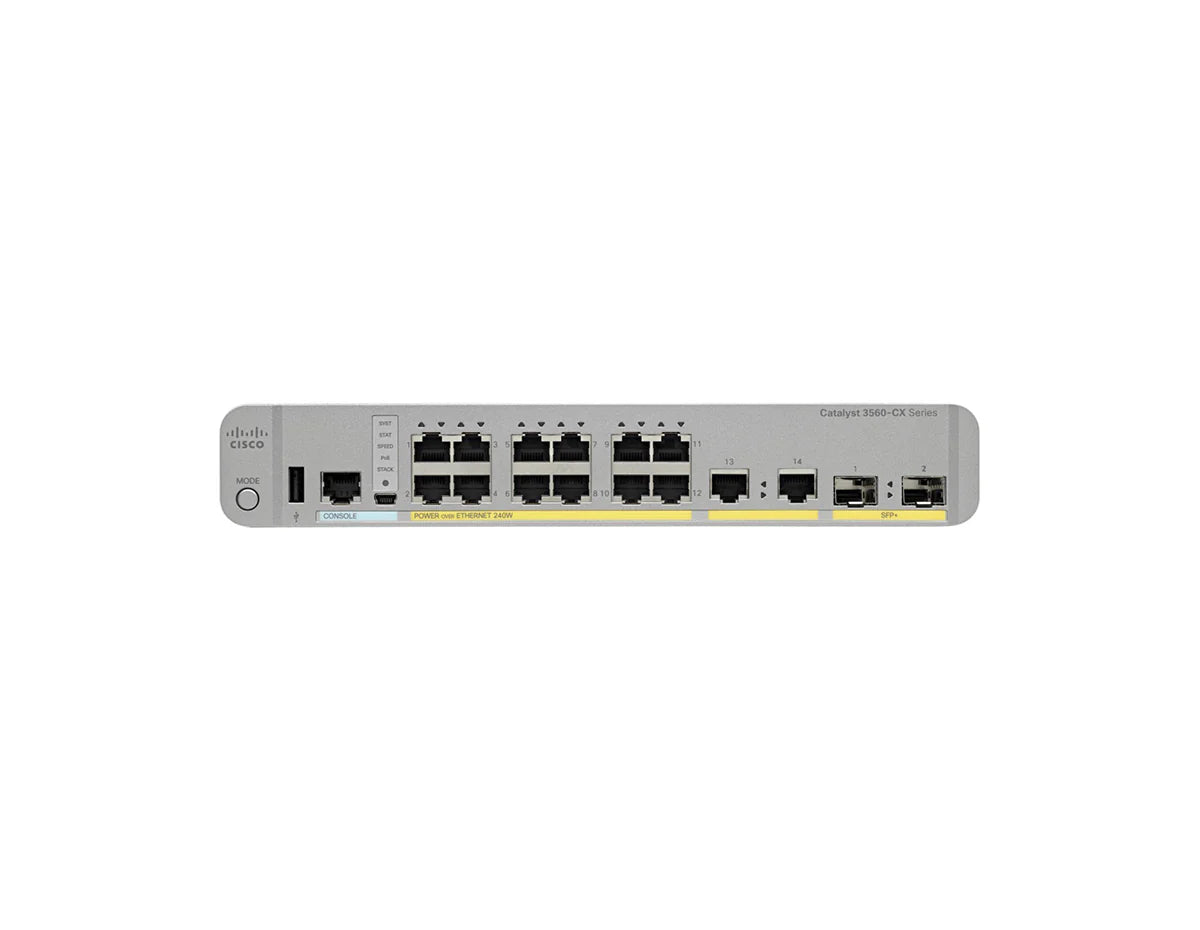

Cisco Catalyst WS-C3560CX-12PD-S Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco Catalyst WS-C3560CX-12PD-S Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco Catalyst WS-C3560CX-12PD-S Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco Catalyst WS-C3560CX-12PD-S Switch
Cisco Catalyst WS-C3560CX-12PD-S Switch

Cisco Catalyst WS-C3560CX-12PD-S Switch

por Cisco
Desconto de 48%
R$ 41.451,12
R$ 21.576,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Managed, Fanless, 12 x 1G ports, 2 x 10G SFP+ Uplinks, PoE+ (240W), Layer 3

[/shortdesc]

[properties]

Properties WS-C3560CX-12PD-S
Description 3560-CX Switch 12 GE PoE+, uplinks: 2 x 10G SFP+ and 2 x 1G copper, IP Base
Product Family Catalyst 3560
Product Type Ethernet Switch
Ethernet Ports 12 x 10/100/1000 Gigabit Ethernet
PoE Output Ports 12 PoE+
Available PoE Power 240W
Uplinks 2 x 1G copper plus 2 x 10G SFP+
Default Software IP Base (IP Services with RTU License)
AC/DC input voltage and current 100-240 VAC, 3.25-1.5A
Dimensions in. 1.75 x 10.6 x 9.4

[/properties][specifications]

Specifications WS-C3560CX-12PD-S
DRAM 512 MB
Flash Memory 128 MB
Forwarding Rate 50.6 mpps
Switching Bandwith 68 Gbps
Max VLANs 1023
VLAN IDs 4000
Jumbo frames 9198 bytes
MTBF 528,48
Operating Temperature
Up to 5,000 ft (1500 m)		 -5 to 45 degree C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5 to 45 degree C
Safety ● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
EMC: emissions ● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia
Environmental Reduction of Hazardous Substances (RoHS) 6
Telco Common Language Equipment Identifier (CLEI) code
Telnet - SSH Yes
TACACS+ Yes
Engine Type 1D Imager

[/specifications][accesories]

PWR-CLP= Power clip for the 3560-CX and 2960-CX compact switches
CMPCT-CBLE-GRD= Cable guard for the 3560-CX and 2960-CX compact switches
CMPCT-MGNT-TRAY = Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches
CMPCT-DIN-MNT= DIN Rail Mount for 3560-CX and 2960-CX compact switches
RCKMNT-19-CMPCT= 19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches
RCKMNT-23-CMPCT= 23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches

[/accesories]

Cisco Catalyst WS-C3560CX-12PD-S Switch

The Cisco Catalyst WS-C3560CX-12PD-S Switch is a powerful and compact solution for modern networks requiring high-speed connectivity and Power over Ethernet (PoE) support. Equipped with 12 Gigabit Ethernet PoE+ ports and 2 SFP+ uplinks, this fanless switch provides reliable, silent operation and is ideal for space-constrained environments like offices and branch locations. Its advanced Layer 3 IP Base software supports a range of networking features, making it perfect for growing businesses.

  • 12 x PoE+ Gigabit Ethernet Ports: Provides up to 240W of PoE+ budget, powering devices like IP phones and cameras.
  • 2 x 10G SFP+ Uplinks: Offers high-speed fiber connectivity for seamless network expansion.
  • Fanless Design: Ensures silent operation, ideal for noise-sensitive environments.
  • Advanced Layer 3 Functionality: Supports IP Base features, including OSPF, EIGRP, and VRF-Lite for enhanced routing and security.
  • Energy-Efficient: Complies with IEEE 802.3az standards, reducing power consumption without compromising performance.
  • Recommended for: Small and medium-sized businesses, branch offices, and retail spaces.
  • Ports: 12 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports.
  • Uplink Modules: 2 x 10G SFP+ uplinks.
  • Switching Capacity: 68 Gbps.
  • Forwarding Rate: 50.6 Mpps.
  • Layer 3 Features: OSPF, BGP, EIGRP, and VRF-Lite for advanced network control.
  • Management: Web UI, CLI, SNMP, and Cisco DNA Center.
  • Licensing: IP Base.
  • Energy Efficiency: Supports IEEE 802.3az for energy-saving operations.

You can check the related tab for the WS-C3560CX-12PD-S datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Managed, Fanless, 12 x 1G ports, 2 x 10G SFP+ Uplinks, PoE+ (240W), Layer 3

[/shortdesc]

[properties]

Properties WS-C3560CX-12PD-S
Description 3560-CX Switch 12 GE PoE+, uplinks: 2 x 10G SFP+ and 2 x 1G copper, IP Base
Product Family Catalyst 3560
Product Type Ethernet Switch
Ethernet Ports 12 x 10/100/1000 Gigabit Ethernet
PoE Output Ports 12 PoE+
Available PoE Power 240W
Uplinks 2 x 1G copper plus 2 x 10G SFP+
Default Software IP Base (IP Services with RTU License)
AC/DC input voltage and current 100-240 VAC, 3.25-1.5A
Dimensions in. 1.75 x 10.6 x 9.4

[/properties][specifications]

Specifications WS-C3560CX-12PD-S
DRAM 512 MB
Flash Memory 128 MB
Forwarding Rate 50.6 mpps
Switching Bandwith 68 Gbps
Max VLANs 1023
VLAN IDs 4000
Jumbo frames 9198 bytes
MTBF 528,48
Operating Temperature
Up to 5,000 ft (1500 m)		 -5 to 45 degree C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5 to 45 degree C
Safety ● UL 60950-1 ● CAN/CSA 22.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● CE Marking ● GB 4943 ● IEC 60825
EMC: emissions ● FCC Part 15, CFR 47, Class A, North America ● EN/IEC 61000-4-5 ● EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union ● AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand ● VCCI Class A, V-3/2007.04, Japan ● KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea ● ANATEL, Brazil ● CCC, China ● GOST, Russia
Environmental Reduction of Hazardous Substances (RoHS) 6
Telco Common Language Equipment Identifier (CLEI) code
Telnet - SSH Yes
TACACS+ Yes
Engine Type 1D Imager

[/specifications][accesories]

PWR-CLP= Power clip for the 3560-CX and 2960-CX compact switches
CMPCT-CBLE-GRD= Cable guard for the 3560-CX and 2960-CX compact switches
CMPCT-MGNT-TRAY = Magnet and Mounting Tray for 3560-CX and 2960-CX compact switches
CMPCT-DIN-MNT= DIN Rail Mount for 3560-CX and 2960-CX compact switches
RCKMNT-19-CMPCT= 19-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches
RCKMNT-23-CMPCT= 23- and 24-Inch Rack Mounting Brackets for 3560-CX and 2960-CX compact switches

[/accesories]

Cisco Catalyst WS-C3560CX-12PD-S Switch

The Cisco Catalyst WS-C3560CX-12PD-S Switch is a powerful and compact solution for modern networks requiring high-speed connectivity and Power over Ethernet (PoE) support. Equipped with 12 Gigabit Ethernet PoE+ ports and 2 SFP+ uplinks, this fanless switch provides reliable, silent operation and is ideal for space-constrained environments like offices and branch locations. Its advanced Layer 3 IP Base software supports a range of networking features, making it perfect for growing businesses.

Key Features:
  • 12 x PoE+ Gigabit Ethernet Ports: Provides up to 240W of PoE+ budget, powering devices like IP phones and cameras.
  • 2 x 10G SFP+ Uplinks: Offers high-speed fiber connectivity for seamless network expansion.
  • Fanless Design: Ensures silent operation, ideal for noise-sensitive environments.
  • Advanced Layer 3 Functionality: Supports IP Base features, including OSPF, EIGRP, and VRF-Lite for enhanced routing and security.
  • Energy-Efficient: Complies with IEEE 802.3az standards, reducing power consumption without compromising performance.
Technical Overview:
  • Recommended for: Small and medium-sized businesses, branch offices, and retail spaces.
  • Ports: 12 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports.
  • Uplink Modules: 2 x 10G SFP+ uplinks.
  • Switching Capacity: 68 Gbps.
  • Forwarding Rate: 50.6 Mpps.
  • Layer 3 Features: OSPF, BGP, EIGRP, and VRF-Lite for advanced network control.
  • Management: Web UI, CLI, SNMP, and Cisco DNA Center.
  • Licensing: IP Base.
  • Energy Efficiency: Supports IEEE 802.3az for energy-saving operations.

You can check the related tab for the WS-C3560CX-12PD-S datasheet.
