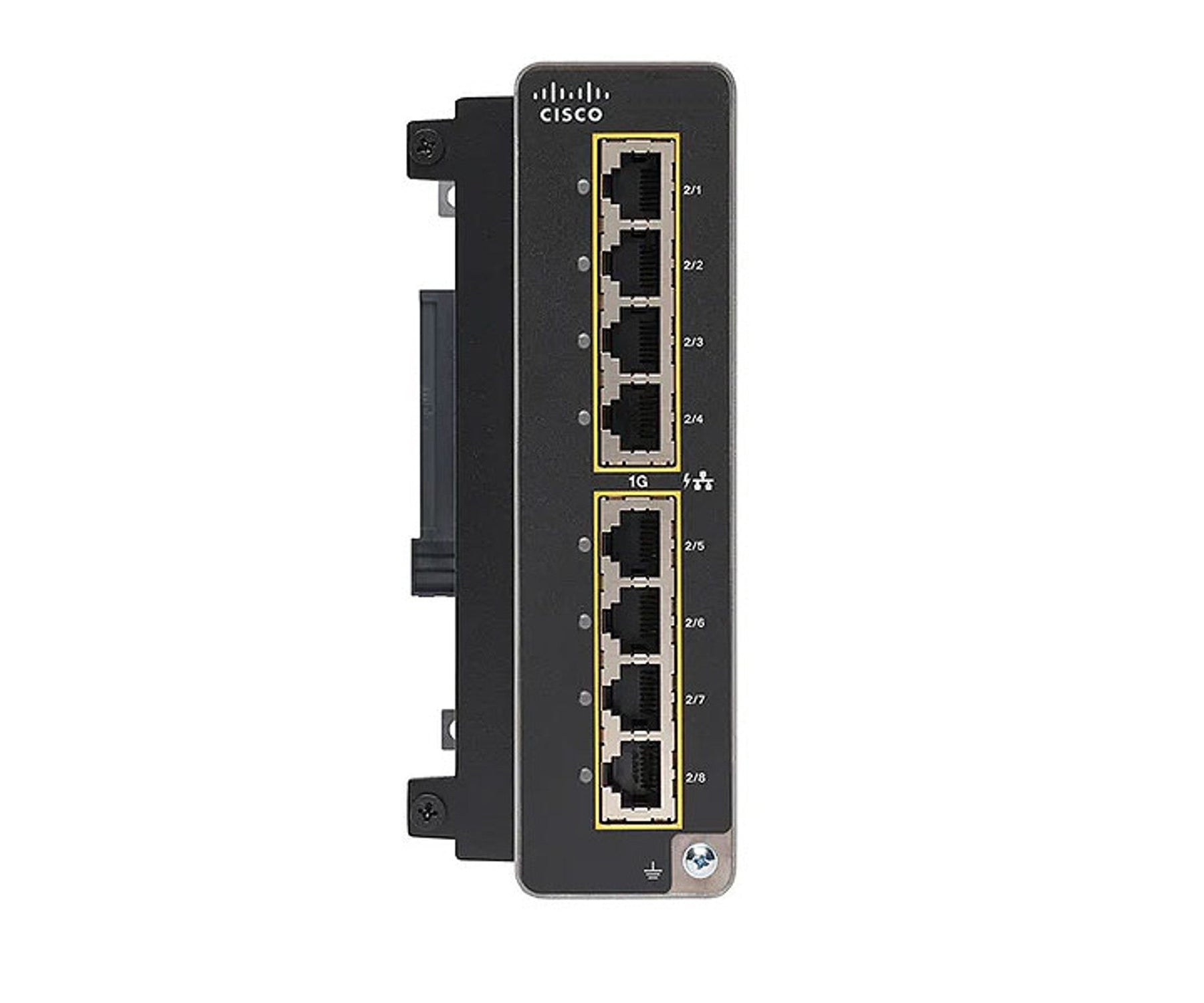

Cisco Catalyst IEM-3500-8P Expansion Module
Cisco Catalyst IEM-3500-8P Expansion Module

Cisco Catalyst IEM-3500-8P Expansion Module

por Cisco
Desconto de 46%
R$ 76.004,88
R$ 41.340,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Expansion module, Managed (inherits L2/L3), 8 × 10/100/1000 (PoE/PoE+), IP30 rugged, fanless, DIN-rail, powered by base switch

[/shortdesc]

[properties]

Property Details
Product Line Cisco Catalyst IE3500 Expansion Module
Use Case Port expansion for IE3500 series (industrial/harsh environments)
Management Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center)
PoE Support PoE/PoE+
Layer Support Inherits Layer 2 & Layer 3 from base switch
Scalability Expands total system ports up to 19 (with compatible base)
Operating System Inherits Cisco IOS XE from base switch
Software Licence Inherits from base switch
Form Factor Ruggedized, fanless, DIN-rail module (IP30)
Default Power Supply Powered by base switch

[/properties]

[specifications]

Specification Details
Model Number IEM-3500-8P
Port Count 8 (8 × 10/100/1000)
Downlink Ports & Speeds 8 × 10/100/1000 Mbps RJ45 (PoE/PoE+)
Uplink Ports & Speeds —
PoE Power Budget Provided by base switch
Switching Capacity —
Forwarding Rate Line-rate on all ports (all packet sizes)
Stacking Bandwidth —
DRAM 8 GB
Flash Memory 5.1 GB
MAC Address Table Size 24,000 entries
VLAN Support 4096 VLAN IDs (up to 1024 active)
Power Requirements Powered by base switch; module power consumption 12 W
Dimensions (H × W × D) 6.00 × 2.51 × 5.29 in (15.24 × 6.38 × 13.44 cm)
Weight 1.95 lb (0.88 kg)
MTBF 1,881,021 hours

[/specifications]

[accesories]

Cabling & connectors

Item Details
Cat5e/Cat6/Cat6A RJ-45 patch cable Data cable for 8× PoE/PoE+ copper ports (1G)

Power supplies (DIN-rail; select capacity per PoE load)

Item Details
PWR-IE65W-PC-AC= / PWR-IE65W-PC-DC= 65W PSU (PoE-capable)
PWR-IE170W-PC-AC= / PWR-IE170W-PC-DC= 170W PSU (PoE-capable)
PWR-IE240W-PCAC-L= 240W AC PSU (PoE-capable)
PWR-IE480W-PCAC-L= 480W AC PSU (PoE-capable)

[/accesories]

The Cisco Catalyst IEM-3500-8P Expansion Module adds PoE/PoE+ gigabit connectivity to IE3500 base switches for industrial and harsh environments. Providing 8 Gigabit RJ45 PoE/PoE+ downlinks, it delivers reliable line-rate performance in a rugged, fanless IP30 DIN-rail form factor. The module is powered by the host switch (12 W module consumption) and inherits IOS XE features, licensing, and management for seamless integration—ideal for powering cameras, sensors, and wireless access points while increasing port density.

Key Features:

  • 8 × Gigabit Ethernet Downlinks with PoE/PoE+: Expands powered device connectivity; PoE budget supplied by the base switch.
  • Ruggedized, Fanless Design (IP30): Built for space-constrained industrial sites with DIN-rail mounting.
  • Seamless System Integration: Inherits Cisco IOS XE features and licensing from the base IE3500 switch.
  • Simple Operations: Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center).
  • Right-Sized Expansion: Helps scale total system ports up to 19 with compatible IE3500 bases.

Technical Overview:

  • Recommended for: PoE port-density expansion on Cisco IE3500 deployments in industrial/harsh environments.
  • Ports: 8 × 10/100/1000 Mbps RJ45 downlinks (PoE/PoE+).
  • PoE Budget: Provided by base switch.
  • Switching Capacity: —
  • Forwarding Rate: Line-rate on all ports (all packet sizes).
  • Management: Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center).
  • Security: Inherits features and license tier from the base IE3500 switch.
  • Energy Efficiency: Fanless operation; powered by base switch (module consumption 12 W).

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Expansion module, Managed (inherits L2/L3), 8 × 10/100/1000 (PoE/PoE+), IP30 rugged, fanless, DIN-rail, powered by base switch

[/shortdesc]

[properties]

Property Details
Product Line Cisco Catalyst IE3500 Expansion Module
Use Case Port expansion for IE3500 series (industrial/harsh environments)
Management Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center)
PoE Support PoE/PoE+
Layer Support Inherits Layer 2 & Layer 3 from base switch
Scalability Expands total system ports up to 19 (with compatible base)
Operating System Inherits Cisco IOS XE from base switch
Software Licence Inherits from base switch
Form Factor Ruggedized, fanless, DIN-rail module (IP30)
Default Power Supply Powered by base switch

[/properties]

[specifications]

Specification Details
Model Number IEM-3500-8P
Port Count 8 (8 × 10/100/1000)
Downlink Ports & Speeds 8 × 10/100/1000 Mbps RJ45 (PoE/PoE+)
Uplink Ports & Speeds —
PoE Power Budget Provided by base switch
Switching Capacity —
Forwarding Rate Line-rate on all ports (all packet sizes)
Stacking Bandwidth —
DRAM 8 GB
Flash Memory 5.1 GB
MAC Address Table Size 24,000 entries
VLAN Support 4096 VLAN IDs (up to 1024 active)
Power Requirements Powered by base switch; module power consumption 12 W
Dimensions (H × W × D) 6.00 × 2.51 × 5.29 in (15.24 × 6.38 × 13.44 cm)
Weight 1.95 lb (0.88 kg)
MTBF 1,881,021 hours

[/specifications]

[accesories]

Cabling & connectors

Item Details
Cat5e/Cat6/Cat6A RJ-45 patch cable Data cable for 8× PoE/PoE+ copper ports (1G)

Power supplies (DIN-rail; select capacity per PoE load)

Item Details
PWR-IE65W-PC-AC= / PWR-IE65W-PC-DC= 65W PSU (PoE-capable)
PWR-IE170W-PC-AC= / PWR-IE170W-PC-DC= 170W PSU (PoE-capable)
PWR-IE240W-PCAC-L= 240W AC PSU (PoE-capable)
PWR-IE480W-PCAC-L= 480W AC PSU (PoE-capable)

[/accesories]

Cisco Catalyst IEM-3500-8P Expansion Module

The Cisco Catalyst IEM-3500-8P Expansion Module adds PoE/PoE+ gigabit connectivity to IE3500 base switches for industrial and harsh environments. Providing 8 Gigabit RJ45 PoE/PoE+ downlinks, it delivers reliable line-rate performance in a rugged, fanless IP30 DIN-rail form factor. The module is powered by the host switch (12 W module consumption) and inherits IOS XE features, licensing, and management for seamless integration—ideal for powering cameras, sensors, and wireless access points while increasing port density.

Key Features:

  • 8 × Gigabit Ethernet Downlinks with PoE/PoE+: Expands powered device connectivity; PoE budget supplied by the base switch.
  • Ruggedized, Fanless Design (IP30): Built for space-constrained industrial sites with DIN-rail mounting.
  • Seamless System Integration: Inherits Cisco IOS XE features and licensing from the base IE3500 switch.
  • Simple Operations: Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center).
  • Right-Sized Expansion: Helps scale total system ports up to 19 with compatible IE3500 bases.

Technical Overview:

  • Recommended for: PoE port-density expansion on Cisco IE3500 deployments in industrial/harsh environments.
  • Ports: 8 × 10/100/1000 Mbps RJ45 downlinks (PoE/PoE+).
  • PoE Budget: Provided by base switch.
  • Switching Capacity: —
  • Forwarding Rate: Line-rate on all ports (all packet sizes).
  • Management: Managed (Cisco IOS XE WebUI/CLI; optional Cisco Catalyst Center).
  • Security: Inherits features and license tier from the base IE3500 switch.
  • Energy Efficiency: Fanless operation; powered by base switch (module consumption 12 W).
