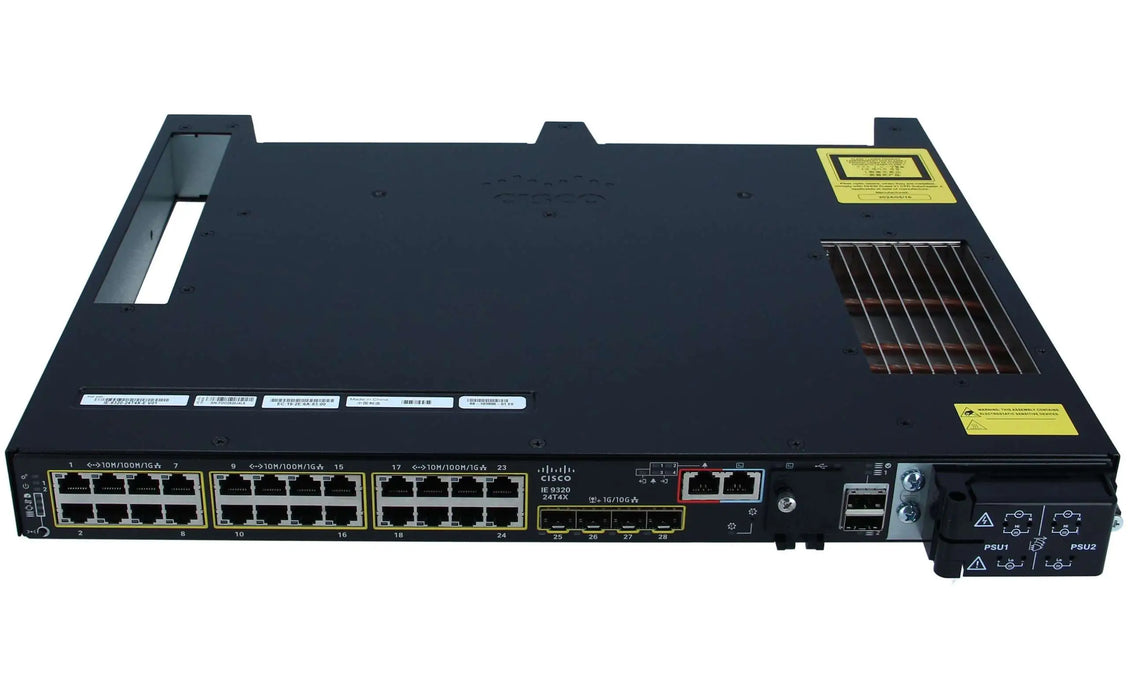

Cisco Catalyst IE-9320-24T4X-E 28-Port Data Industrial Ethernet Switch with 4x 1/10G SFP+, Network Essentials
Cisco Catalyst IE-9320-24T4X-E 28-Port Data Industrial Ethernet Switch with 4x 1/10G SFP+, Network Essentials

Cisco Catalyst IE-9320-24T4X-E 28-Port Data Industrial Ethernet Switch with 4x 1/10G SFP+, Network Essentials

por Cisco
R$ 316.167,60
R$ 132.160,00
Pedir por e-mail
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 24x 10/100/1000 RJ45, 4x 1/10G SFP+, Network Essentials, rack-mount, fanless [/shortdesc]

[properties]

Model Cisco Catalyst IE-9320-24T4X-E
Product Type Rugged Managed Industrial Ethernet Switch
Total Ports 28
Downlink Ports 24 x 10/100/1000M RJ45
Uplink Ports 4 x 1/10G SFP+
Software License (Default) Network Essentials
Switching Capacity 128 Gbps full-duplex
Forwarding Rate 95.23 Mpps
MAC Address Table 24,000 entries
VLAN IDs 4096 (up to 1024 active)
Form Factor 1RU, rack-mountable, fanless
Dimensions (H × W × D) 1.72 × 17.5 × 14.0 in (4.37 × 44.45 × 35.56 cm)
Weight 9.5 lb (4.3 kg)
Power Consumption 35W (system only, without SFP modules)
Operating Temperature −40 °C to 75 °C (−40 °F to 167 °F)
Storage Temperature −40 °C to 85 °C (−40 °F to 185 °F)
Humidity 5% to 95% noncondensing
Certifications IEC/ANSI/ISA-62443-4-1, 62443-4-2, FIPS 140-2, Common Criteria, NEMA TS2
MTBF 651,580 hours

[/properties]

[specifications]

Performance 128 Gbps switching capacity, 95.23 Mpps forwarding, 8 egress queues/port
Routing Capacity IPv4: 8192 direct / 7000 indirect routes; IPv6: 3500 indirect routes
Security Secure Boot and Cisco Trust Anchor; MACsec-128 on Network Essentials (upgrade to MACsec-256 and TrustSec segmentation with Network Advantage); supports Cisco Cyber Vision and Secure Equipment Access (licenses sold separately)
Management WebUI, CLI, Cisco Catalyst Center, SNMP, syslog, Flexible NetFlow, API support
Redundancy REP, MRP, EtherChannel; dual AC/DC power inputs; StackWise stacking (IE-9320 family)
Memory 8 GB DRAM, 8 GB flash (2.5 GB user-accessible), optional SD card
Alarms 4 dry-contact inputs, 1 Form-C relay output
Console Ports 1 x RJ45 RS-232, 1 x Micro-USB
Environmental Shock and vibration tested (IEC 60068), corrosion resistant, IP30 rating
Compliance FCC Part 15 Class A, EN 55032 Class A, IEC 61850-3, IEEE 1613, ATEX, UL/CSA 62368-1

[/specifications]

[accesories]

Rack-Mount Kits RM-RGD-19IN (19"), RM-RGD-23IN (23"), RM-RGD-ETSI (ETSI standard)
Power Supplies PWR-RGD-LOW-DC-H (150W DC 24–60V), PWR-RGD-AC-DC-H (150W AC/DC 85–264VAC/88–300VDC), PWR-RGD-AC-DC-250 (250W AC/DC), PWR-RGD-AC-DC-400 (400W AC/DC)
Optional Memory SD-IE-16GB (16GB SD storage card)
Stacking Accessories CAB-STK-0.5M (0.5m stack cable), CAB-STK-1M (1m stack cable)

[/accesories]

The Cisco Catalyst IE-9320-24T4X-E delivers ruggedized Gigabit and 10 Gigabit Ethernet connectivity in a compact 1RU rack-mount form factor. Designed for harsh industrial conditions, it supports extended temperature ranges and vibration tolerance, making it ideal for energy, manufacturing, transportation, and smart city deployments. Powered by Cisco IOS XE, it combines high resiliency with strong security foundations and easy management.

  • Industrial-grade design: Built for -40°C to 75°C operation with fanless cooling and resistance to shock, vibration, and electrical noise.
  • Flexible high-speed uplinks: Four 1/10G SFP+ uplinks enable scalable backbone connectivity for bandwidth-intensive applications.
  • Security options that scale: Hardware root of trust and MACsec-128 on Network Essentials, with optional MACsec-256 and TrustSec on Network Advantage; integrates with Cisco Cyber Vision.
  • Zero-touch management: Simplified setup with Cisco WebUI, API-driven automation, and Cisco Catalyst Center integration.
  • Resilient Ethernet designs: Supports REP/MRP and EtherChannel with dual power inputs to maximize uptime.
  • Industrial automation and process control networks
  • Transportation and smart city infrastructure
  • Energy and utility substations requiring rugged networking
  • Outdoor enclosures with extended environmental exposure
  • Secure remote access and monitoring in OT environments
  • Ports: 24x 10/100/1000 RJ45 downlinks, 4x 1/10G SFP+ uplinks
  • Switching Capacity: 128 Gbps full duplex
  • Forwarding Rate: 95.23 Mpps
  • VLANs: 4096 IDs, up to 1024 active
  • MAC Addresses: 24,000 entries
  • Operating Temperature: -40°C to 75°C
  • Form Factor: 1RU, rack-mountable, fanless
  • Dimensions: 1.72 x 17.5 x 14.0 in (H x W x D)
  • Weight: 9.5 lb (4.3 kg)
  • Software License: Network Essentials

Boost your industrial network with the Cisco IE-9320-24T4X-E. Built tough for mission-critical performance. Order now.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 24x 10/100/1000 RJ45, 4x 1/10G SFP+, Network Essentials, rack-mount, fanless [/shortdesc]

[properties]

Model Cisco Catalyst IE-9320-24T4X-E
Product Type Rugged Managed Industrial Ethernet Switch
Total Ports 28
Downlink Ports 24 x 10/100/1000M RJ45
Uplink Ports 4 x 1/10G SFP+
Software License (Default) Network Essentials
Switching Capacity 128 Gbps full-duplex
Forwarding Rate 95.23 Mpps
MAC Address Table 24,000 entries
VLAN IDs 4096 (up to 1024 active)
Form Factor 1RU, rack-mountable, fanless
Dimensions (H × W × D) 1.72 × 17.5 × 14.0 in (4.37 × 44.45 × 35.56 cm)
Weight 9.5 lb (4.3 kg)
Power Consumption 35W (system only, without SFP modules)
Operating Temperature −40 °C to 75 °C (−40 °F to 167 °F)
Storage Temperature −40 °C to 85 °C (−40 °F to 185 °F)
Humidity 5% to 95% noncondensing
Certifications IEC/ANSI/ISA-62443-4-1, 62443-4-2, FIPS 140-2, Common Criteria, NEMA TS2
MTBF 651,580 hours

[/properties]

[specifications]

Performance 128 Gbps switching capacity, 95.23 Mpps forwarding, 8 egress queues/port
Routing Capacity IPv4: 8192 direct / 7000 indirect routes; IPv6: 3500 indirect routes
Security Secure Boot and Cisco Trust Anchor; MACsec-128 on Network Essentials (upgrade to MACsec-256 and TrustSec segmentation with Network Advantage); supports Cisco Cyber Vision and Secure Equipment Access (licenses sold separately)
Management WebUI, CLI, Cisco Catalyst Center, SNMP, syslog, Flexible NetFlow, API support
Redundancy REP, MRP, EtherChannel; dual AC/DC power inputs; StackWise stacking (IE-9320 family)
Memory 8 GB DRAM, 8 GB flash (2.5 GB user-accessible), optional SD card
Alarms 4 dry-contact inputs, 1 Form-C relay output
Console Ports 1 x RJ45 RS-232, 1 x Micro-USB
Environmental Shock and vibration tested (IEC 60068), corrosion resistant, IP30 rating
Compliance FCC Part 15 Class A, EN 55032 Class A, IEC 61850-3, IEEE 1613, ATEX, UL/CSA 62368-1

[/specifications]

[accesories]

Rack-Mount Kits RM-RGD-19IN (19"), RM-RGD-23IN (23"), RM-RGD-ETSI (ETSI standard)
Power Supplies PWR-RGD-LOW-DC-H (150W DC 24–60V), PWR-RGD-AC-DC-H (150W AC/DC 85–264VAC/88–300VDC), PWR-RGD-AC-DC-250 (250W AC/DC), PWR-RGD-AC-DC-400 (400W AC/DC)
Optional Memory SD-IE-16GB (16GB SD storage card)
Stacking Accessories CAB-STK-0.5M (0.5m stack cable), CAB-STK-1M (1m stack cable)

[/accesories]

Reliable High-Performance Switching for Demanding Environments

The Cisco Catalyst IE-9320-24T4X-E delivers ruggedized Gigabit and 10 Gigabit Ethernet connectivity in a compact 1RU rack-mount form factor. Designed for harsh industrial conditions, it supports extended temperature ranges and vibration tolerance, making it ideal for energy, manufacturing, transportation, and smart city deployments. Powered by Cisco IOS XE, it combines high resiliency with strong security foundations and easy management.

Key Benefits & Features
  • Industrial-grade design: Built for -40°C to 75°C operation with fanless cooling and resistance to shock, vibration, and electrical noise.
  • Flexible high-speed uplinks: Four 1/10G SFP+ uplinks enable scalable backbone connectivity for bandwidth-intensive applications.
  • Security options that scale: Hardware root of trust and MACsec-128 on Network Essentials, with optional MACsec-256 and TrustSec on Network Advantage; integrates with Cisco Cyber Vision.
  • Zero-touch management: Simplified setup with Cisco WebUI, API-driven automation, and Cisco Catalyst Center integration.
  • Resilient Ethernet designs: Supports REP/MRP and EtherChannel with dual power inputs to maximize uptime.
Ideal Use Cases
  • Industrial automation and process control networks
  • Transportation and smart city infrastructure
  • Energy and utility substations requiring rugged networking
  • Outdoor enclosures with extended environmental exposure
  • Secure remote access and monitoring in OT environments
Technical Specifications
  • Ports: 24x 10/100/1000 RJ45 downlinks, 4x 1/10G SFP+ uplinks
  • Switching Capacity: 128 Gbps full duplex
  • Forwarding Rate: 95.23 Mpps
  • VLANs: 4096 IDs, up to 1024 active
  • MAC Addresses: 24,000 entries
  • Operating Temperature: -40°C to 75°C
  • Form Factor: 1RU, rack-mountable, fanless
  • Dimensions: 1.72 x 17.5 x 14.0 in (H x W x D)
  • Weight: 9.5 lb (4.3 kg)
  • Software License: Network Essentials
Deploy Rugged Cisco Performance Today

Boost your industrial network with the Cisco IE-9320-24T4X-E. Built tough for mission-critical performance. Order now.
