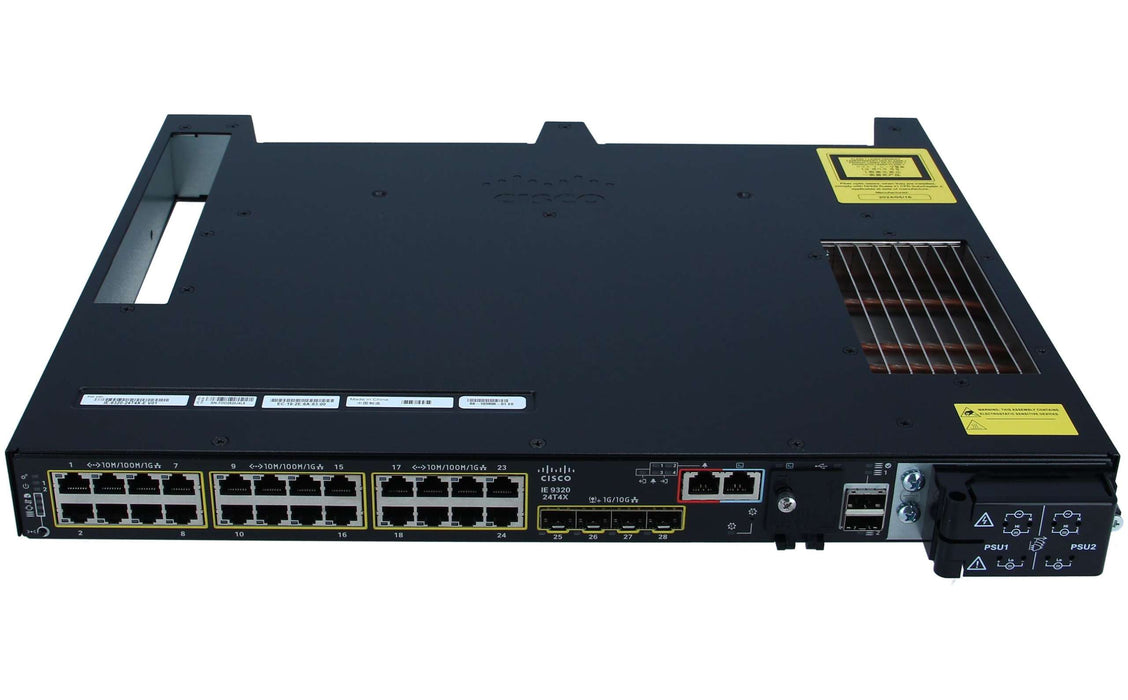

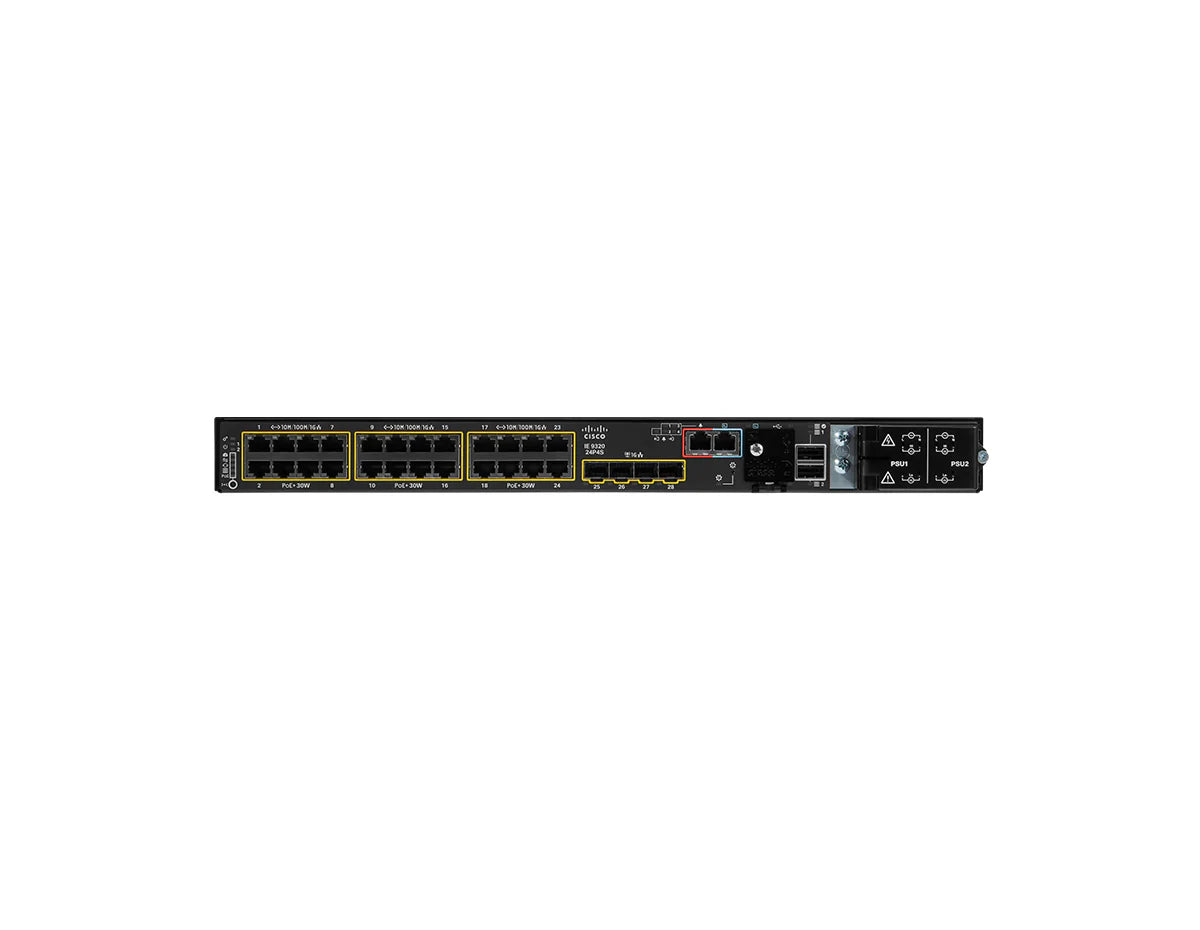

Cisco Catalyst IE-9320-24P4S-E Rugged Ethernet Switch 24-Port PoE+
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco Catalyst IE-9320-24P4S-E Rugged Ethernet Switch 24-Port PoE+
Cisco Catalyst IE-9320-24P4S-E Rugged Ethernet Switch 24-Port PoE+

Cisco Catalyst IE-9320-24P4S-E Rugged Ethernet Switch 24-Port PoE+

por Cisco
Desconto de 59%
R$ 138.867,84
R$ 57.444,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]24x Gigabit PoE+ ports, 4x SFP uplinks, 480W PoE budget, Layer 2/3, -40° to 75°C, Rack-mountable[/shortdesc]

[properties]

Model Cisco Catalyst IE-9320-24P4S-E
Product Type Rugged Managed Industrial Ethernet Switch
Total Ports 28 (24x 10/100/1000M RJ45 PoE+, 4x 1G SFP)
PoE Budget Up to 480W with dual 400W PSUs
Switching Capacity 128 Gbps full duplex
Forwarding Rate 95.23 Mpps
Software License Network Essentials (default)
Operating Temperature -40°C to 75°C
Form Factor 1RU, rack-mountable, fanless design
Dimensions (H × W × D) 1.72 × 17.5 × 15.18 in (with AC-DC-250 PSU)
Weight 9.7 lb (4.4 kg)
Power Inputs Dual AC/DC options (150W, 250W, 400W)
Rated MTBF 489,710 hours

[/properties]

[specifications]

Performance Forwarding bandwidth 64 Gbps, switching bandwidth 128 Gbps
Queues per Port 8 egress queues
MAC Addresses 24,000
VLANs 4096 IDs, 1024 active VLANs
IPv4 Routes 8192 direct, 7000 indirect
IPv6 Routes 3500 indirect
ACL Entries 1536 (PACL, VACL, RACL)
DRAM / Flash 4 GB DRAM / 2.5 GB user flash
PoE Standards IEEE 802.3af, 802.3at
Compliance EN 55032 Class A, IEC 61850-3, IEEE 1613, UL/CSA 62368-1
MTBF 489,710 hours

[/specifications]

[accesories]

Rack-Mount Kits RM-RGD-19IN (19"), RM-RGD-23IN (NEBS 23"), RM-RGD-ETSI (ETSI)
Power Supplies PWR-RGD-LOW-DC-H (150W), PWR-RGD-AC-DC-H (150W), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W)
Stacking Cables CAB-STK-0.5M, CAB-STK-1M
Optional Memory SD-IE-16GB (16GB SD memory card)

[/accesories]

The Cisco Catalyst IE-9320-24P4S-E delivers secure, high-density Ethernet switching for mission-critical industrial and extended enterprise environments. Built for extreme conditions, this 1RU rack-mountable switch provides 24 PoE+ ports and 4 SFP uplinks, ensuring reliable connectivity and scalability across harsh deployments.

  • Ruggedized Design: Operates in -40°C to 75°C with fanless cooling and hardened protection against shock, vibration, and electrical noise.
  • PoE+ Power Budget: Supports up to 480W PoE+ to power IP cameras, wireless APs, sensors, and automation devices without extra wiring.
  • Advanced Security: Includes Cisco Trust Anchor, MACsec-256 encryption, TrustSec segmentation, and integrated Cisco Cyber Vision for asset visibility.
  • Industrial Protocol Support: Native compatibility with PROFINET, EtherNet/IP (CIP), and SCADA for seamless IT/OT convergence.
  • Flexible Management: Managed via Cisco Catalyst Center, WebUI, or API-driven automation for streamlined deployment.
  • Smart manufacturing plants requiring rugged PoE+ connectivity
  • Transportation and railway networks needing industrial-grade uptime
  • Utilities, energy, and oil & gas environments with extreme conditions
  • Outdoor enclosures for smart city and surveillance applications
  • Industrial IoT deployments integrating sensors and automation systems
  • Total Ports: 28 (24x 10/100/1000M RJ45 PoE+, 4x 1G SFP uplinks)
  • PoE Budget: Up to 480W with dual 400W supplies
  • Forwarding Bandwidth: 64 Gbps
  • Switching Capacity: 128 Gbps full duplex
  • Forwarding Rate: 95.23 Mpps
  • Operating Temperature: -40° to 75°C
  • Form Factor: 1RU rack-mountable, fanless
  • Power Inputs: Dual AC/DC redundant options
  • Dimensions: 1.72 x 17.5 x 15.18 in. (with AC-DC-250 PSU)
  • Weight: 9.7 lb (4.4 kg)

Built to withstand harsh conditions while ensuring secure, reliable, and scalable performance, the Cisco IE-9320-24P4S-E is the ideal switch for industrial IoT and mission-critical environments. Order today to power your next-generation network.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]24x Gigabit PoE+ ports, 4x SFP uplinks, 480W PoE budget, Layer 2/3, -40° to 75°C, Rack-mountable[/shortdesc]

[properties]

Model Cisco Catalyst IE-9320-24P4S-E
Product Type Rugged Managed Industrial Ethernet Switch
Total Ports 28 (24x 10/100/1000M RJ45 PoE+, 4x 1G SFP)
PoE Budget Up to 480W with dual 400W PSUs
Switching Capacity 128 Gbps full duplex
Forwarding Rate 95.23 Mpps
Software License Network Essentials (default)
Operating Temperature -40°C to 75°C
Form Factor 1RU, rack-mountable, fanless design
Dimensions (H × W × D) 1.72 × 17.5 × 15.18 in (with AC-DC-250 PSU)
Weight 9.7 lb (4.4 kg)
Power Inputs Dual AC/DC options (150W, 250W, 400W)
Rated MTBF 489,710 hours

[/properties]

[specifications]

Performance Forwarding bandwidth 64 Gbps, switching bandwidth 128 Gbps
Queues per Port 8 egress queues
MAC Addresses 24,000
VLANs 4096 IDs, 1024 active VLANs
IPv4 Routes 8192 direct, 7000 indirect
IPv6 Routes 3500 indirect
ACL Entries 1536 (PACL, VACL, RACL)
DRAM / Flash 4 GB DRAM / 2.5 GB user flash
PoE Standards IEEE 802.3af, 802.3at
Compliance EN 55032 Class A, IEC 61850-3, IEEE 1613, UL/CSA 62368-1
MTBF 489,710 hours

[/specifications]

[accesories]

Rack-Mount Kits RM-RGD-19IN (19"), RM-RGD-23IN (NEBS 23"), RM-RGD-ETSI (ETSI)
Power Supplies PWR-RGD-LOW-DC-H (150W), PWR-RGD-AC-DC-H (150W), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W)
Stacking Cables CAB-STK-0.5M, CAB-STK-1M
Optional Memory SD-IE-16GB (16GB SD memory card)

[/accesories]

High-Performance Rugged Switching for Industrial Networks

The Cisco Catalyst IE-9320-24P4S-E delivers secure, high-density Ethernet switching for mission-critical industrial and extended enterprise environments. Built for extreme conditions, this 1RU rack-mountable switch provides 24 PoE+ ports and 4 SFP uplinks, ensuring reliable connectivity and scalability across harsh deployments.

Key Benefits & Features
  • Ruggedized Design: Operates in -40°C to 75°C with fanless cooling and hardened protection against shock, vibration, and electrical noise.
  • PoE+ Power Budget: Supports up to 480W PoE+ to power IP cameras, wireless APs, sensors, and automation devices without extra wiring.
  • Advanced Security: Includes Cisco Trust Anchor, MACsec-256 encryption, TrustSec segmentation, and integrated Cisco Cyber Vision for asset visibility.
  • Industrial Protocol Support: Native compatibility with PROFINET, EtherNet/IP (CIP), and SCADA for seamless IT/OT convergence.
  • Flexible Management: Managed via Cisco Catalyst Center, WebUI, or API-driven automation for streamlined deployment.
Ideal Use Cases
  • Smart manufacturing plants requiring rugged PoE+ connectivity
  • Transportation and railway networks needing industrial-grade uptime
  • Utilities, energy, and oil & gas environments with extreme conditions
  • Outdoor enclosures for smart city and surveillance applications
  • Industrial IoT deployments integrating sensors and automation systems
Technical Specifications
  • Total Ports: 28 (24x 10/100/1000M RJ45 PoE+, 4x 1G SFP uplinks)
  • PoE Budget: Up to 480W with dual 400W supplies
  • Forwarding Bandwidth: 64 Gbps
  • Switching Capacity: 128 Gbps full duplex
  • Forwarding Rate: 95.23 Mpps
  • Operating Temperature: -40° to 75°C
  • Form Factor: 1RU rack-mountable, fanless
  • Power Inputs: Dual AC/DC redundant options
  • Dimensions: 1.72 x 17.5 x 15.18 in. (with AC-DC-250 PSU)
  • Weight: 9.7 lb (4.4 kg)
Deploy Industrial Networks with Confidence

Built to withstand harsh conditions while ensuring secure, reliable, and scalable performance, the Cisco IE-9320-24P4S-E is the ideal switch for industrial IoT and mission-critical environments. Order today to power your next-generation network.
