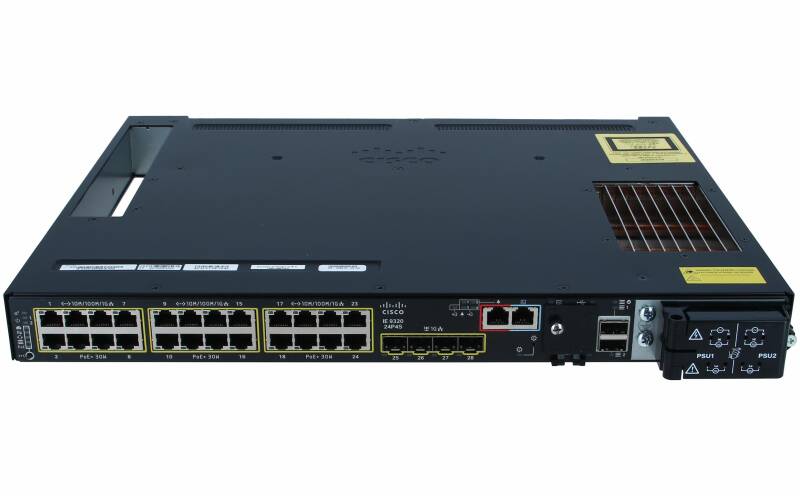

Cisco Catalyst IE-9320-24P4S-A Rugged Ethernet Switch
Cisco Catalyst IE-9320-24P4S-A Rugged Ethernet Switch

Cisco Catalyst IE-9320-24P4S-A Rugged Ethernet Switch

por Cisco
Desconto de 61%
R$ 193.439,76
R$ 74.940,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]24x Gigabit PoE+ ports, 4x SFP uplinks, 385W PoE budget, 56 Gbps switching, rack-mountable, fanless[/shortdesc]

[properties]

Model IE-9320-24P4S-A
Product Type Managed Ethernet Switch
Series Cisco Catalyst IE9320 Rugged Series
Form Factor Rack-mountable, 1RU
Ports 24 x 10/100/1000 Base-T PoE+; 4 x Gigabit SFP uplink
PoE Budget 385 W
Performance Switching bandwidth: 56 Gbps; Forwarding rate: 28 Gbps
MAC Address Table 16K entries
Flash Memory 8 GB
RAM 4 GB
Redundant Power Supply Supported (1+1)
Software Cisco Network Advantage
MTBF 250,037 hours
Dimensions (W × H × D) 17.5 × 1.7 × 17.5 in (445 × 44 × 445 mm)
Weight 9.7 lbs (4.4 kg)
Operating Temperature -40 °F to 167 °F (-40 °C to 75 °C)
Storage Temperature -40 °F to 185 °F (-40 °C to 85 °C)
Operating Humidity 5% to 95% (non-condensing)

[/properties]

[specifications]

Compliant Standards IEEE 1588v2, IEEE 802.1ab, IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3z
Features ACL support, EtherChannel, Flexible NetFlow, MACsec, NAT, HSR, PRP, REP, PROFINET, TrustSec, SGACL, NSF, PTP
Routing Protocols BGP, EIGRP, HSRP, IGMP, IS-IS, LISP, MSDP, STP, VRF
Remote Management HTTP, HTTPS, SNMP
Authentication Methods RADIUS, TACACS+, SSH
Capacity ACL entries: 1408; VLANs: 1024; IGMP groups: 1000; IPv4 routes: 4000; IPv6 routes: 2000; SVIs: 984
Interfaces Provided 1 × alarm output, 1 × micro-USB console, 1 × serial RJ-45 console, 2 × network stack, 2 × USB 2.0, 24 × RJ-45 PoE+, 4 × alarm input, 4 × SFP uplink
Power Consumption 37 W (operational)
Power Supply Supports dual redundant PSUs (not included)
Certifications UL, CSA, IEC, EN, FCC, ICES, NOM, VCCI, WEEE, IP30, IEEE 1613, IEC 61850-3, and others
Energy Certifications ENERGY STAR: No; EPEAT: No; TCO: No

[/specifications]

[accesories]

Optional Redundant power supplies (supported, sold separately)

[/accesories]

The Cisco Catalyst IE-9320-24P4S-A delivers secure, high-performance switching in extreme environments. Featuring 24 PoE+ Gigabit ports and 4 SFP uplinks, it provides robust connectivity for manufacturing, transportation, energy, and smart city networks. With a compact 1RU form factor, fanless design, and hardened environmental tolerances, this switch is engineered for mission-critical uptime.

  • Ruggedized Build: Operates from -40°F to 167°F with IP30 compliance for harsh industrial conditions.
  • High PoE Budget: 385W PoE+ power supports IP cameras, access points, and IoT devices without external injectors.
  • Advanced Security: Includes MACsec encryption, TrustSec, ACLs, and secure authentication protocols for protected networks.
  • Flexible Uplinks: 4 SFP slots ensure scalable fiber connectivity for backbone and aggregation deployments.
  • Enterprise Features: Supports BGP, OSPF, EIGRP, VRF, and advanced traffic management with Cisco Network Advantage software.
  • Smart cities requiring resilient edge infrastructure
  • Transportation networks with high bandwidth and ruggedized needs
  • Oil, gas, and mining operations in extreme conditions
  • Industrial automation with PoE-powered sensors and devices
  • Secure energy and utility grid deployments
  • Ports: 24 x 10/100/1000 PoE+ RJ-45, 4 x Gigabit SFP uplinks
  • PoE Budget: 385W total
  • Switching Capacity: 56 Gbps
  • Forwarding Rate: 41.66 Mpps
  • Memory: 4 GB RAM, 8 GB flash
  • MAC Address Table: 16K entries
  • Protocols: BGP, EIGRP, OSPF, IS-IS, VRF, STP, IGMP
  • Redundancy: Dual power supply support (1+1)
  • Operating Temp: -40°F to 167°F
  • Form Factor: 1RU rack-mountable, fanless design

Order now to secure rugged, high-performance connectivity for mission-critical networks.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]24x Gigabit PoE+ ports, 4x SFP uplinks, 385W PoE budget, 56 Gbps switching, rack-mountable, fanless[/shortdesc]

[properties]

Model IE-9320-24P4S-A
Product Type Managed Ethernet Switch
Series Cisco Catalyst IE9320 Rugged Series
Form Factor Rack-mountable, 1RU
Ports 24 x 10/100/1000 Base-T PoE+; 4 x Gigabit SFP uplink
PoE Budget 385 W
Performance Switching bandwidth: 56 Gbps; Forwarding rate: 28 Gbps
MAC Address Table 16K entries
Flash Memory 8 GB
RAM 4 GB
Redundant Power Supply Supported (1+1)
Software Cisco Network Advantage
MTBF 250,037 hours
Dimensions (W × H × D) 17.5 × 1.7 × 17.5 in (445 × 44 × 445 mm)
Weight 9.7 lbs (4.4 kg)
Operating Temperature -40 °F to 167 °F (-40 °C to 75 °C)
Storage Temperature -40 °F to 185 °F (-40 °C to 85 °C)
Operating Humidity 5% to 95% (non-condensing)

[/properties]

[specifications]

Compliant Standards IEEE 1588v2, IEEE 802.1ab, IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3z
Features ACL support, EtherChannel, Flexible NetFlow, MACsec, NAT, HSR, PRP, REP, PROFINET, TrustSec, SGACL, NSF, PTP
Routing Protocols BGP, EIGRP, HSRP, IGMP, IS-IS, LISP, MSDP, STP, VRF
Remote Management HTTP, HTTPS, SNMP
Authentication Methods RADIUS, TACACS+, SSH
Capacity ACL entries: 1408; VLANs: 1024; IGMP groups: 1000; IPv4 routes: 4000; IPv6 routes: 2000; SVIs: 984
Interfaces Provided 1 × alarm output, 1 × micro-USB console, 1 × serial RJ-45 console, 2 × network stack, 2 × USB 2.0, 24 × RJ-45 PoE+, 4 × alarm input, 4 × SFP uplink
Power Consumption 37 W (operational)
Power Supply Supports dual redundant PSUs (not included)
Certifications UL, CSA, IEC, EN, FCC, ICES, NOM, VCCI, WEEE, IP30, IEEE 1613, IEC 61850-3, and others
Energy Certifications ENERGY STAR: No; EPEAT: No; TCO: No

[/specifications]

[accesories]

Optional Redundant power supplies (supported, sold separately)

[/accesories]

Reliable Industrial Networking with Ruggedized Cisco Performance

The Cisco Catalyst IE-9320-24P4S-A delivers secure, high-performance switching in extreme environments. Featuring 24 PoE+ Gigabit ports and 4 SFP uplinks, it provides robust connectivity for manufacturing, transportation, energy, and smart city networks. With a compact 1RU form factor, fanless design, and hardened environmental tolerances, this switch is engineered for mission-critical uptime.

Key Benefits & Features
  • Ruggedized Build: Operates from -40°F to 167°F with IP30 compliance for harsh industrial conditions.
  • High PoE Budget: 385W PoE+ power supports IP cameras, access points, and IoT devices without external injectors.
  • Advanced Security: Includes MACsec encryption, TrustSec, ACLs, and secure authentication protocols for protected networks.
  • Flexible Uplinks: 4 SFP slots ensure scalable fiber connectivity for backbone and aggregation deployments.
  • Enterprise Features: Supports BGP, OSPF, EIGRP, VRF, and advanced traffic management with Cisco Network Advantage software.
Ideal Use Cases
  • Smart cities requiring resilient edge infrastructure
  • Transportation networks with high bandwidth and ruggedized needs
  • Oil, gas, and mining operations in extreme conditions
  • Industrial automation with PoE-powered sensors and devices
  • Secure energy and utility grid deployments
Technical Specifications
  • Ports: 24 x 10/100/1000 PoE+ RJ-45, 4 x Gigabit SFP uplinks
  • PoE Budget: 385W total
  • Switching Capacity: 56 Gbps
  • Forwarding Rate: 41.66 Mpps
  • Memory: 4 GB RAM, 8 GB flash
  • MAC Address Table: 16K entries
  • Protocols: BGP, EIGRP, OSPF, IS-IS, VRF, STP, IGMP
  • Redundancy: Dual power supply support (1+1)
  • Operating Temp: -40°F to 167°F
  • Form Factor: 1RU rack-mountable, fanless design
Boost your industrial edge with Cisco IE-9320-24P4S-A today.

Order now to secure rugged, high-performance connectivity for mission-critical networks.
