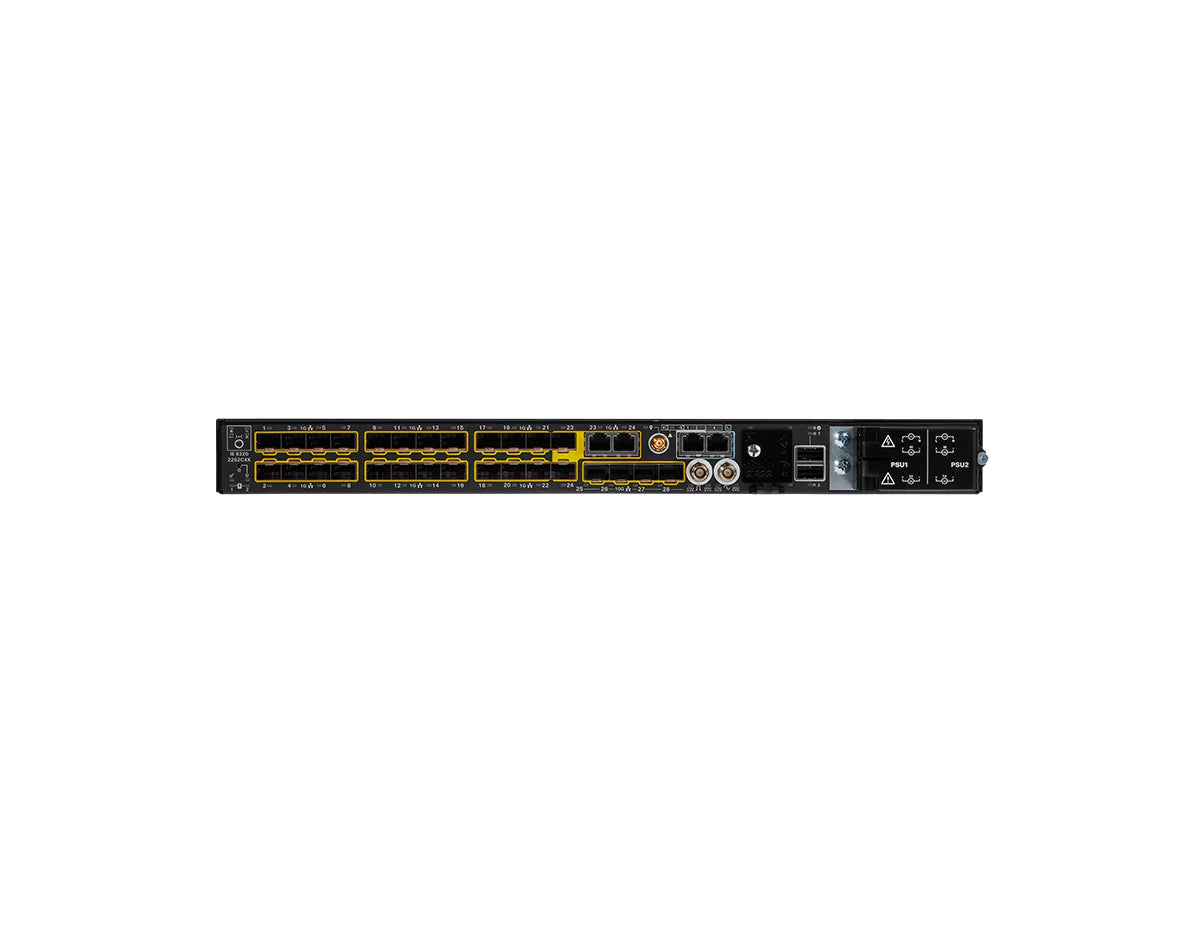

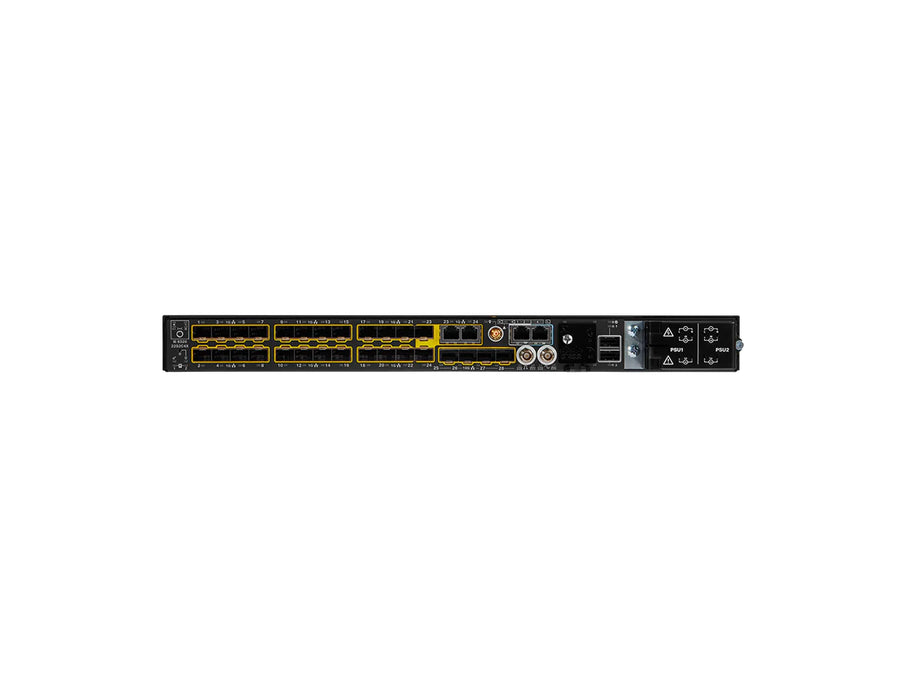

Cisco Catalyst IE-9320-22S2C4X-E Rugged Ethernet Switch
Cisco Catalyst IE-9320-22S2C4X-E Rugged Ethernet Switch

Cisco Catalyst IE-9320-22S2C4X-E Rugged Ethernet Switch

por Cisco
Desconto de 59%
R$ 353.904,24
R$ 146.340,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 28 ports, 22x SFP, 2x dual-media, 4x 10G SFP+ uplinks, rack-mount, Network Essentials [/shortdesc]

[properties]

Model Cisco Catalyst IE-9320-22S2C4X-E
Product Type Rugged Industrial Ethernet Switch
Total Ports 28
Downlink Ports 22 × 100/1000M SFP + 2 × Dual-Media (100/1000M SFP or 10/100/1000M RJ45)
Uplink Ports 4 × 1/10G SFP+
Management Network Essentials or Network Advantage license (default: Network Essentials)
Mounting Rack-mountable (1RU)
Operating System Cisco IOS XE
Power Inputs Dual AC/DC inputs
Stacking Up to 4 members
Dimensions (H × W × D) 1.72 × 17.5 × 14.0 in (4.37 × 44.45 × 35.6 cm)
Weight 12.7 lb (5.76 kg)
Power Consumption 73 W
Operating Temperature -40 °C to 75 °C (blower cabinet), -40 °C to 60 °C (sealed), -40 °C to 70 °C (vented)
MTBF 323,733 hours
IP Rating IP30

[/properties]

[specifications]

Switching Bandwidth 152 Gbps (full-duplex)
Forwarding Bandwidth 76 Gbps
Forwarding Rate 113.09 Mpps
MAC Address Table Size 24,000
VLAN IDs / Active VLANs 4096 / 1024
IPv4 Routes (Direct / Indirect) 8192 / 7000
IPv6 Routes (Indirect) 3500
Access Control List (ACL) Entries 1536 (PACL, VACL, RACL)
Queues per Port 8 egress queues
DRAM / Flash 8 GB / 2.5 GB user-accessible
SD Card Support 16 GB (optional)
Redundancy Protocols REP, HSR, PRP, MRP, EtherChannel
Industrial Protocols PROFINET, EtherNet/IP (CIP), PTP (multiple profiles), Modbus TCP
Security Secure Boot, Trust Anchor, MACsec-256, TrustSec segmentation, Cyber Vision
Certifications IEC/ANSI/ISA-62443-4-1/4-2, FIPS 140-2, Common Criteria, NEMA TS2, IEC 61850-3, IEEE 1613

[/specifications]

[accesories]

Rack-Mount Kits RM-RGD-19IN (19"), RM-RGD-23IN (23"), RM-RGD-ETSI (ETSI)
Power Supplies PWR-RGD-LOW-DC-H (150W DC 24–60V), PWR-RGD-AC-DC-H (150W AC/DC 85–264V), PWR-RGD-AC-DC-250 (250W AC/DC), PWR-RGD-AC-DC-400 (400W AC/DC)
Stacking Cables CAB-STK-0.5M (0.5 m), CAB-STK-1M (1 m)
Memory Options SD-IE-16GB= (16 GB SD card)

[/accesories]

The Cisco Catalyst IE-9320-22S2C4X-E is a 28-port ruggedized Ethernet switch purpose-built for harsh industrial and extended enterprise environments. Delivering secure Gigabit and 10 Gigabit uplinks, this model ensures resilient connectivity for manufacturing, transportation, energy, and smart city applications. Built on Cisco IOS XE, it combines advanced security, automation, and industrial protocol support in a compact 1RU rack-mount form factor.

  • Rugged Industrial Design: Hardened for extreme temperatures (-40°C to 75°C), vibration, and shock, ensuring continuous uptime in mission-critical deployments.
  • Flexible Port Configuration: 22 Gigabit SFP ports, 2 dual-media (SFP or RJ-45) ports, and 4 high-speed 10G SFP+ uplinks deliver design flexibility and scalability.
  • Advanced Security: Cisco Trust Anchor, MACsec-256, and integrated Cisco Cyber Vision provide zero-trust security and visibility of connected assets.
  • Industrial Protocols: Supports PROFINET, EtherNet/IP (CIP), and IEEE 1588v2 PTP for precise timing and automation control.
  • Easy Management: Cisco Catalyst Center and user-friendly WebUI streamline configuration, monitoring, and troubleshooting.
  • Manufacturing plants requiring high-performance, resilient network backbones
  • Energy and utility operations needing secure, substation-compliant switching
  • Transportation and mining sites with ruggedized connectivity demands
  • Smart cities deploying IP surveillance, sensors, and wireless backhaul
  • Oil and gas environments requiring hardened, zero-trust remote access
  • Total Ports: 28 (22x 100/1000M SFP, 2x dual-media, 4x 1/10G SFP+ uplinks)
  • Switching Capacity: 152 Gbps full-duplex
  • Forwarding Rate: 113.09 Mpps
  • Memory: 8 GB DRAM, 2.5 GB flash
  • Form Factor: 1RU rack-mount, fanless convection cooling
  • Operating Temperature: -40°C to 75°C
  • Power Inputs: Dual AC/DC redundant support
  • Management: Cisco IOS XE, WebUI, Catalyst Center integration
  • Compliance: IEC 61850-3, IEEE 1613, and NEMA TS2 industrial certifications
  • Software License: Network Essentials (default), Network Advantage optional

Strengthen your infrastructure with the Cisco IE-9320-22S2C4X-E Rugged Switch and enable secure, high-speed industrial connectivity. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 28 ports, 22x SFP, 2x dual-media, 4x 10G SFP+ uplinks, rack-mount, Network Essentials [/shortdesc]

[properties]

Model Cisco Catalyst IE-9320-22S2C4X-E
Product Type Rugged Industrial Ethernet Switch
Total Ports 28
Downlink Ports 22 × 100/1000M SFP + 2 × Dual-Media (100/1000M SFP or 10/100/1000M RJ45)
Uplink Ports 4 × 1/10G SFP+
Management Network Essentials or Network Advantage license (default: Network Essentials)
Mounting Rack-mountable (1RU)
Operating System Cisco IOS XE
Power Inputs Dual AC/DC inputs
Stacking Up to 4 members
Dimensions (H × W × D) 1.72 × 17.5 × 14.0 in (4.37 × 44.45 × 35.6 cm)
Weight 12.7 lb (5.76 kg)
Power Consumption 73 W
Operating Temperature -40 °C to 75 °C (blower cabinet), -40 °C to 60 °C (sealed), -40 °C to 70 °C (vented)
MTBF 323,733 hours
IP Rating IP30

[/properties]

[specifications]

Switching Bandwidth 152 Gbps (full-duplex)
Forwarding Bandwidth 76 Gbps
Forwarding Rate 113.09 Mpps
MAC Address Table Size 24,000
VLAN IDs / Active VLANs 4096 / 1024
IPv4 Routes (Direct / Indirect) 8192 / 7000
IPv6 Routes (Indirect) 3500
Access Control List (ACL) Entries 1536 (PACL, VACL, RACL)
Queues per Port 8 egress queues
DRAM / Flash 8 GB / 2.5 GB user-accessible
SD Card Support 16 GB (optional)
Redundancy Protocols REP, HSR, PRP, MRP, EtherChannel
Industrial Protocols PROFINET, EtherNet/IP (CIP), PTP (multiple profiles), Modbus TCP
Security Secure Boot, Trust Anchor, MACsec-256, TrustSec segmentation, Cyber Vision
Certifications IEC/ANSI/ISA-62443-4-1/4-2, FIPS 140-2, Common Criteria, NEMA TS2, IEC 61850-3, IEEE 1613

[/specifications]

[accesories]

Rack-Mount Kits RM-RGD-19IN (19"), RM-RGD-23IN (23"), RM-RGD-ETSI (ETSI)
Power Supplies PWR-RGD-LOW-DC-H (150W DC 24–60V), PWR-RGD-AC-DC-H (150W AC/DC 85–264V), PWR-RGD-AC-DC-250 (250W AC/DC), PWR-RGD-AC-DC-400 (400W AC/DC)
Stacking Cables CAB-STK-0.5M (0.5 m), CAB-STK-1M (1 m)
Memory Options SD-IE-16GB= (16 GB SD card)

[/accesories]

High-Performance Rugged Switching for Industrial Networks

The Cisco Catalyst IE-9320-22S2C4X-E is a 28-port ruggedized Ethernet switch purpose-built for harsh industrial and extended enterprise environments. Delivering secure Gigabit and 10 Gigabit uplinks, this model ensures resilient connectivity for manufacturing, transportation, energy, and smart city applications. Built on Cisco IOS XE, it combines advanced security, automation, and industrial protocol support in a compact 1RU rack-mount form factor.

Key Benefits & Features
  • Rugged Industrial Design: Hardened for extreme temperatures (-40°C to 75°C), vibration, and shock, ensuring continuous uptime in mission-critical deployments.
  • Flexible Port Configuration: 22 Gigabit SFP ports, 2 dual-media (SFP or RJ-45) ports, and 4 high-speed 10G SFP+ uplinks deliver design flexibility and scalability.
  • Advanced Security: Cisco Trust Anchor, MACsec-256, and integrated Cisco Cyber Vision provide zero-trust security and visibility of connected assets.
  • Industrial Protocols: Supports PROFINET, EtherNet/IP (CIP), and IEEE 1588v2 PTP for precise timing and automation control.
  • Easy Management: Cisco Catalyst Center and user-friendly WebUI streamline configuration, monitoring, and troubleshooting.
Ideal Use Cases
  • Manufacturing plants requiring high-performance, resilient network backbones
  • Energy and utility operations needing secure, substation-compliant switching
  • Transportation and mining sites with ruggedized connectivity demands
  • Smart cities deploying IP surveillance, sensors, and wireless backhaul
  • Oil and gas environments requiring hardened, zero-trust remote access
Technical Specifications
  • Total Ports: 28 (22x 100/1000M SFP, 2x dual-media, 4x 1/10G SFP+ uplinks)
  • Switching Capacity: 152 Gbps full-duplex
  • Forwarding Rate: 113.09 Mpps
  • Memory: 8 GB DRAM, 2.5 GB flash
  • Form Factor: 1RU rack-mount, fanless convection cooling
  • Operating Temperature: -40°C to 75°C
  • Power Inputs: Dual AC/DC redundant support
  • Management: Cisco IOS XE, WebUI, Catalyst Center integration
  • Compliance: IEC 61850-3, IEEE 1613, and NEMA TS2 industrial certifications
  • Software License: Network Essentials (default), Network Advantage optional
Deploy Industrial-Grade Networking with Confidence

Strengthen your infrastructure with the Cisco IE-9320-22S2C4X-E Rugged Switch and enable secure, high-speed industrial connectivity. Order today.
