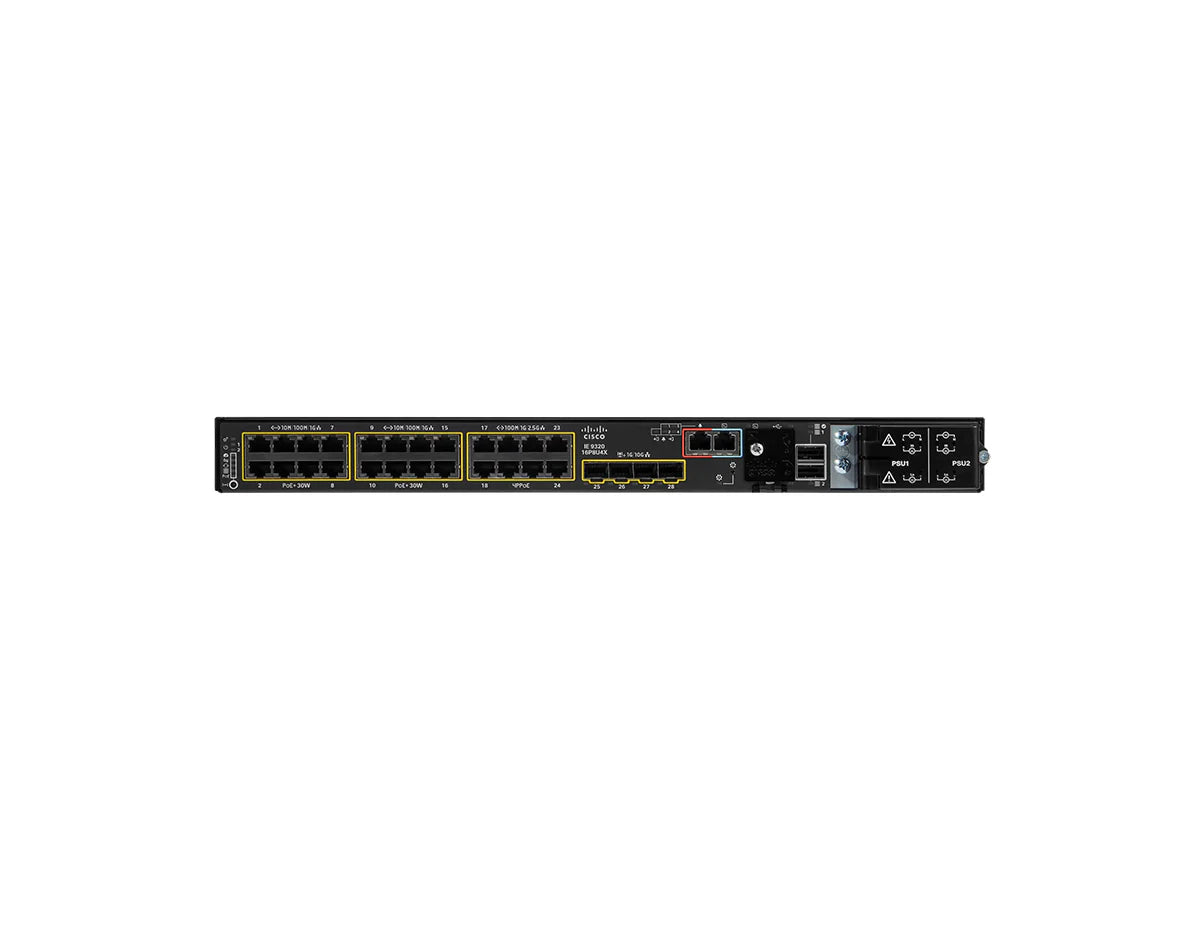

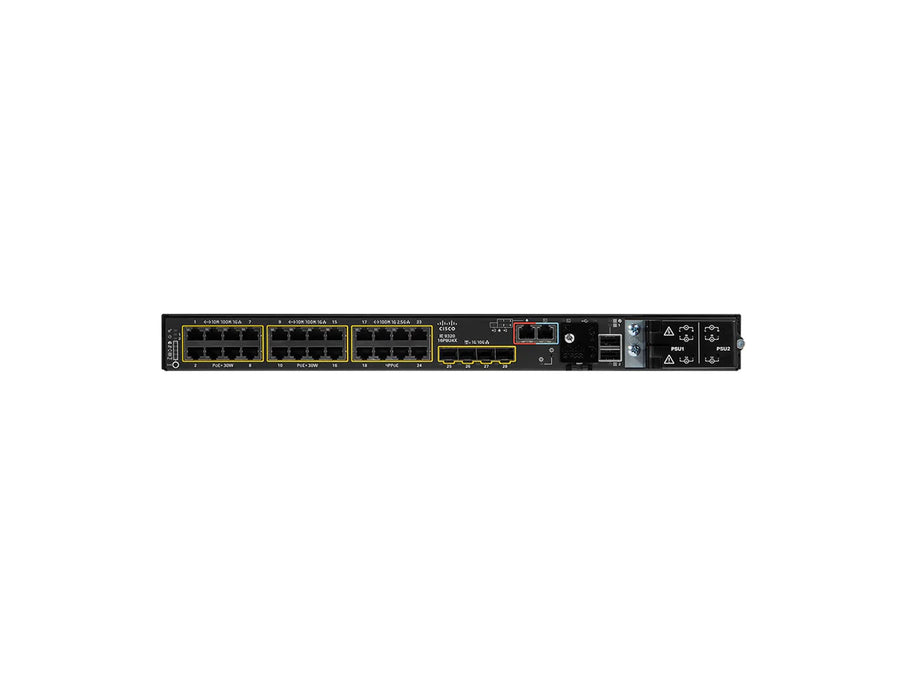

Cisco Catalyst IE-9320-16P8U4X-E Rugged Ethernet Switch 16xPoE+ 8x4PPoE
Cisco Catalyst IE-9320-16P8U4X-E Rugged Ethernet Switch 16xPoE+ 8x4PPoE

Cisco Catalyst IE-9320-16P8U4X-E Rugged Ethernet Switch 16xPoE+ 8x4PPoE

por Cisco
Desconto de 59%
R$ 400.890,24
R$ 164.052,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 28 ports, 16x PoE+, 8x 2.5G 4PPoE, 4x 1/10G SFP+, fanless, -40°C to 75°C [/shortdesc]

[properties]

Model Cisco IE-9320-16P8U4X-E
Product Type Managed Rugged Ethernet Switch
Total Ports 28
Downlink Ports 16 × 10/100/1000M PoE+ and 8 × 100/1000/2500M 4PPoE (up to 90W/port)
Uplink Ports 4 × 1/10G SFP+
Mounting Rack-mountable, 1RU
Software License (Default) Network Essentials
Forwarding Bandwidth 76 Gbps
Switching Bandwidth 152 Gbps (full duplex)
Operating System Cisco IOS XE
Power Supply Options 150W, 250W, 400W AC/DC options (HazLoc rated)
PoE Power Budget Up to 720W with dual 400W PSUs
Mean Time Between Failures (MTBF) 472,070 hours
Compliance IEC 61850-3, IEEE 1613, EN 61000-6-2/6-4, UL/CSA 60950-1, UL/CSA 62368-1, ATEX Class I Zone 2
Operating Temperature -40 °C to 75 °C (cabinet dependent)
Dimensions (H × W × D) 1.72 × 17.5 × 14.0 in / 4.37 × 44.45 × 35.56 cm
Weight 9.9 lb (4.5 kg)

[/properties]

[specifications]

Forwarding Rate 113.09 Mpps
MAC Address Table 24,000 entries
VLAN IDs / Active VLANs 4096 / 1024
IPv4 Routes 8192 direct, 7000 indirect
IPv6 Routes 3500 indirect
ACL Entries 1536 (PACL, VACL, RACL)
DRAM / Flash 8 GB / 2.5 GB user-accessible
SD Card Capacity 16 GB (optional)
Resiliency Protocols REP, MRP, PRP, HSR, EtherChannel
PoE Standards IEEE 802.3af, 802.3at, 802.3bt Type 4 (up to 90W)
Relative Humidity 5%–95% non-condensing
Altitude (Operating) Up to 4572 m (15,000 ft) without derating
Ingress Protection IP30

[/specifications]

[accesories]

Rack-mount Kits RM-RGD-19IN (19"), RM-RGD-23IN (23" NEBS), RM-RGD-ETSI (ETSI)
Power Supply Options PWR-RGD-LOW-DC-H (150W DC), PWR-RGD-AC-DC-H (150W AC/DC), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W)
Stacking Cables CAB-STK-0.5M, CAB-STK-1M
Memory Options SD-IE-16GB (16 GB SD memory card)

[/accesories]

The Cisco Catalyst IE-9320-16P8U4X-E delivers enterprise-grade switching in a compact, ruggedized form factor. Designed for harsh environments, it combines multi-gigabit PoE+ with ultra-high power 4PPoE, ensuring reliable connectivity for industrial IoT, automation, and mission-critical applications.

  • Ruggedized Design: Built to withstand -40°C to 75°C, vibration, and electrical noise for dependable field deployment.
  • Flexible Power Options: Supports PoE+, 802.3bt 4PPoE up to 90W/port, with a maximum PoE budget of 720W using dual 400W supplies.
  • High-Speed Connectivity: 28 total ports including 16x Gigabit PoE+, 8x 2.5G 4PPoE, and 4x 1/10G SFP+ uplinks for scalable bandwidth.
  • Advanced Security: Integrated Cisco Trust Anchor, MACsec-256 encryption, and zero-trust remote access via Secure Equipment Access.
  • Industrial Protocol Support: Native compatibility with EtherNet/IP, PROFINET, and IEEE 1588v2 for precision automation.
  • Smart manufacturing and process automation
  • Transportation and intelligent traffic systems
  • Energy and utility substation networks
  • Smart city and outdoor industrial deployments
  • Oil, gas, and mining operations requiring secure rugged connectivity
  • Total Ports: 28
  • Downlinks: 16x 10/100/1000 PoE+, 8x 100/1000/2500 Mbps 4PPoE (up to 90W/port)
  • Uplinks: 4x 1/10G SFP+
  • Switching Bandwidth: 128 Gbps full-duplex
  • Forwarding Rate: 95.23 Mpps
  • PoE Budget: Up to 720W with dual 400W PSUs
  • Operating Temperature: -40°C to 75°C
  • Form Factor: 1RU rack-mount, fanless design
  • MTBF: 472,070 hours
  • Software: Cisco IOS XE, Network Essentials

Ensure maximum uptime and security in extreme environments with the Cisco IE-9320-16P8U4X-E. Order today to upgrade your industrial network.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 28 ports, 16x PoE+, 8x 2.5G 4PPoE, 4x 1/10G SFP+, fanless, -40°C to 75°C [/shortdesc]

[properties]

Model Cisco IE-9320-16P8U4X-E
Product Type Managed Rugged Ethernet Switch
Total Ports 28
Downlink Ports 16 × 10/100/1000M PoE+ and 8 × 100/1000/2500M 4PPoE (up to 90W/port)
Uplink Ports 4 × 1/10G SFP+
Mounting Rack-mountable, 1RU
Software License (Default) Network Essentials
Forwarding Bandwidth 76 Gbps
Switching Bandwidth 152 Gbps (full duplex)
Operating System Cisco IOS XE
Power Supply Options 150W, 250W, 400W AC/DC options (HazLoc rated)
PoE Power Budget Up to 720W with dual 400W PSUs
Mean Time Between Failures (MTBF) 472,070 hours
Compliance IEC 61850-3, IEEE 1613, EN 61000-6-2/6-4, UL/CSA 60950-1, UL/CSA 62368-1, ATEX Class I Zone 2
Operating Temperature -40 °C to 75 °C (cabinet dependent)
Dimensions (H × W × D) 1.72 × 17.5 × 14.0 in / 4.37 × 44.45 × 35.56 cm
Weight 9.9 lb (4.5 kg)

[/properties]

[specifications]

Forwarding Rate 113.09 Mpps
MAC Address Table 24,000 entries
VLAN IDs / Active VLANs 4096 / 1024
IPv4 Routes 8192 direct, 7000 indirect
IPv6 Routes 3500 indirect
ACL Entries 1536 (PACL, VACL, RACL)
DRAM / Flash 8 GB / 2.5 GB user-accessible
SD Card Capacity 16 GB (optional)
Resiliency Protocols REP, MRP, PRP, HSR, EtherChannel
PoE Standards IEEE 802.3af, 802.3at, 802.3bt Type 4 (up to 90W)
Relative Humidity 5%–95% non-condensing
Altitude (Operating) Up to 4572 m (15,000 ft) without derating
Ingress Protection IP30

[/specifications]

[accesories]

Rack-mount Kits RM-RGD-19IN (19"), RM-RGD-23IN (23" NEBS), RM-RGD-ETSI (ETSI)
Power Supply Options PWR-RGD-LOW-DC-H (150W DC), PWR-RGD-AC-DC-H (150W AC/DC), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W)
Stacking Cables CAB-STK-0.5M, CAB-STK-1M
Memory Options SD-IE-16GB (16 GB SD memory card)

[/accesories]

High-Performance Rugged Switching for Industrial Networks

The Cisco Catalyst IE-9320-16P8U4X-E delivers enterprise-grade switching in a compact, ruggedized form factor. Designed for harsh environments, it combines multi-gigabit PoE+ with ultra-high power 4PPoE, ensuring reliable connectivity for industrial IoT, automation, and mission-critical applications.

Key Benefits & Features
  • Ruggedized Design: Built to withstand -40°C to 75°C, vibration, and electrical noise for dependable field deployment.
  • Flexible Power Options: Supports PoE+, 802.3bt 4PPoE up to 90W/port, with a maximum PoE budget of 720W using dual 400W supplies.
  • High-Speed Connectivity: 28 total ports including 16x Gigabit PoE+, 8x 2.5G 4PPoE, and 4x 1/10G SFP+ uplinks for scalable bandwidth.
  • Advanced Security: Integrated Cisco Trust Anchor, MACsec-256 encryption, and zero-trust remote access via Secure Equipment Access.
  • Industrial Protocol Support: Native compatibility with EtherNet/IP, PROFINET, and IEEE 1588v2 for precision automation.
Ideal Use Cases
  • Smart manufacturing and process automation
  • Transportation and intelligent traffic systems
  • Energy and utility substation networks
  • Smart city and outdoor industrial deployments
  • Oil, gas, and mining operations requiring secure rugged connectivity
Technical Specifications
  • Total Ports: 28
  • Downlinks: 16x 10/100/1000 PoE+, 8x 100/1000/2500 Mbps 4PPoE (up to 90W/port)
  • Uplinks: 4x 1/10G SFP+
  • Switching Bandwidth: 128 Gbps full-duplex
  • Forwarding Rate: 95.23 Mpps
  • PoE Budget: Up to 720W with dual 400W PSUs
  • Operating Temperature: -40°C to 75°C
  • Form Factor: 1RU rack-mount, fanless design
  • MTBF: 472,070 hours
  • Software: Cisco IOS XE, Network Essentials
Power Your Network with Rugged Reliability

Ensure maximum uptime and security in extreme environments with the Cisco IE-9320-16P8U4X-E. Order today to upgrade your industrial network.
