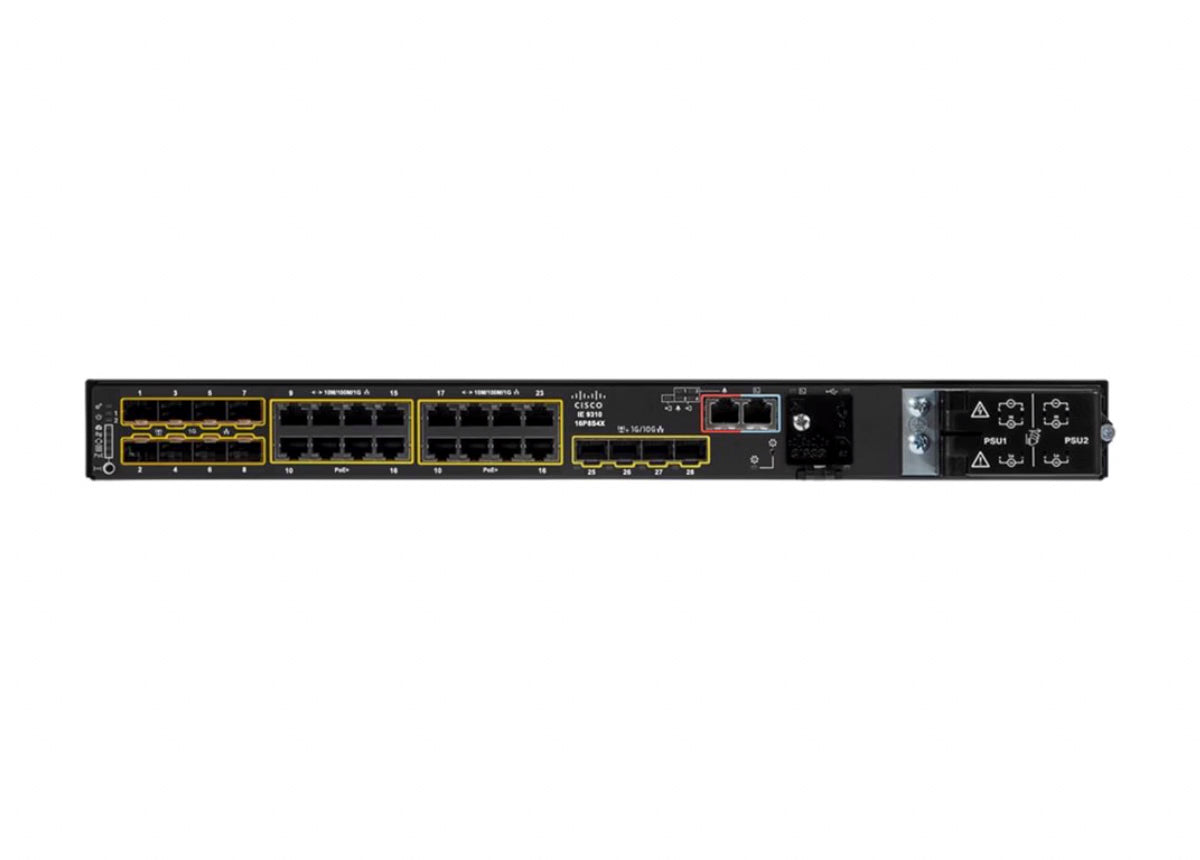

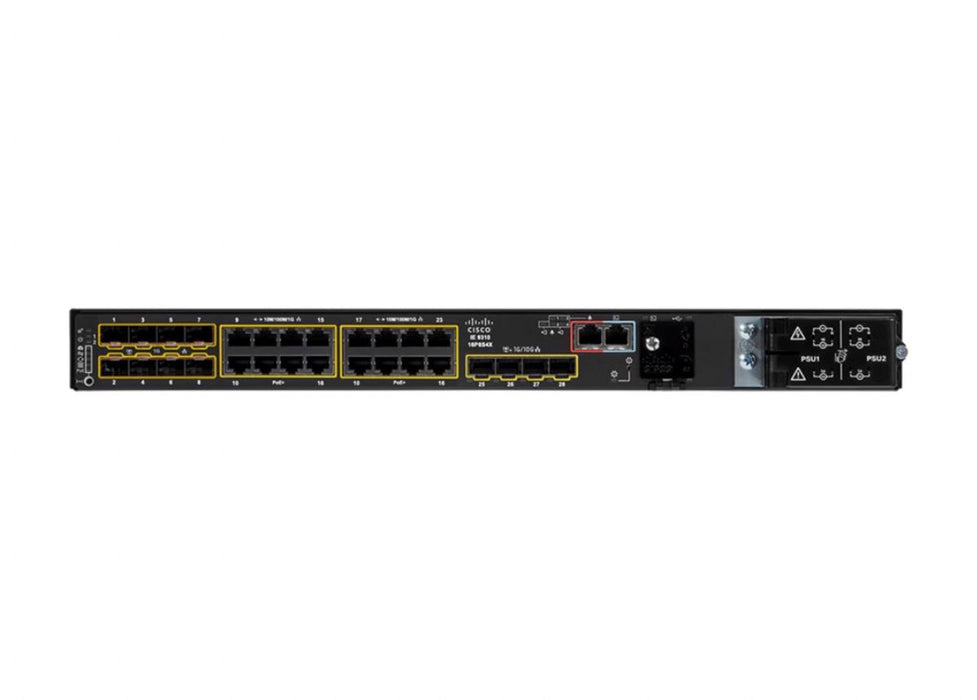

Cisco Catalyst IE-9310-16P8S4X-E Rugged Ethernet Switch 16 port PoE+
Cisco Catalyst IE-9310-16P8S4X-E Rugged Ethernet Switch 16 port PoE+

Cisco Catalyst IE-9310-16P8S4X-E Rugged Ethernet Switch 16 port PoE+

por Cisco
Desconto de 43%
R$ 130.476,96
R$ 74.376,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 28 ports, 16x PoE+ Gigabit, 8x SFP, 4x 1/10G uplinks, 720W PoE budget, fanless rugged design [/shortdesc]

[properties]

Model Cisco Catalyst IE-9310-16P8S4X-E
Product Type Rugged Industrial Ethernet Switch
Total Ports 28
Downlink Ports 16 × 10/100/1000M PoE+ (RJ45), 8 × 100/1000M SFP
Uplink Ports 4 × 1/10G SFP+
PoE Capability Up to 480W with dual 400W PSUs
Software License (default) Network Essentials
Operating System Cisco IOS XE
Mounting Rack-mountable, 1RU
Cooling Fanless, convection cooled
Operating Temperature −40 °C to 75 °C (−40 °F to 167 °F)
IP Rating IP30 (per EN60529)
Power Consumption 105W (chassis only)
Power Supply Options PWR-RGD-LOW-DC-H (150W), PWR-RGD-AC-DC-H (150W), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W)
Memory 4 GB DRAM, 8 GB flash (2.5 GB user accessible)
MTBF 265,827 hours
Dimensions (H × W × D) 1.72 × 17.5 × 14.0 in (with 150W PSU) / up to 15.57 in (with 400W PSU)
Weight 10.6 lb (4.81 kg)

[/properties]

[specifications]

Forwarding Rate 95.23 Mpps
Switching Bandwidth 128 Gbps (full duplex)
Unicast MAC Addresses 24,000
VLAN IDs 4096 (1024 active VLANs)
IPv4 Routes 8192 direct, 7000 indirect
IPv6 Routes 3500 indirect
ACL Entries 1536 (PACL, VACL, RACL)
Queues per Port 8 egress
SD Card Capacity 16 GB (optional)
Industrial Protocols EtherNet/IP (CIP), PROFINET, ModBus TCP, GOOSE
Security Features Secure Boot, MACsec-256, TrustSec, Cyber Vision, Secure Equipment Access
Compliance EN 55032 Class A, IEC 61850-3, IEEE 1613, UL/CSA 61010-2-201, ATEX Zone 2, IECEx Zone 2
Humidity 5% to 95% non-condensing
Shock / Vibration IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Altitude Up to 15,000 ft (4572 m) without derating

[/specifications]

[accesories]

Included Rack-mount kit (19-inch), User Documentation
Optional – Power Supplies PWR-RGD-LOW-DC-H (150W), PWR-RGD-AC-DC-H (150W), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W)
Optional – Cables CAB-STK-0.5M (0.5m stack cable), CAB-STK-1M (1m stack cable)
Optional – Rack Kits RM-RGD-19IN, RM-RGD-23IN, RM-RGD-ETSI
Optional – Memory SD-IE-16GB (16GB SD card)

[/accesories]

The Cisco Catalyst IE-9310-16P8S4X-E Rugged Series Switch is purpose-built for demanding industrial networks. With 28 total ports, high PoE+ capacity, and secure 10G uplinks, it delivers resilient connectivity for critical infrastructure, automation, and extended enterprise environments.

  • Industrial-grade design: Operates reliably from -40°C to 75°C, fanless and hardened for vibration, shock, and surge immunity.
  • High-density PoE+: Supports up to 16 Gigabit PoE+ ports with a maximum 720W budget, powering cameras, APs, and IoT devices.
  • Flexible uplinks: Equipped with 8 SFP ports and 4x 1/10G SFP+ uplinks for high-speed expansion and redundancy.
  • Advanced security: Integrated Cisco TrustSec, MACsec-256, and zero-trust remote access with Cisco Secure Equipment Access.
  • Smart management: Runs Cisco IOS XE with WebUI, Catalyst Center integration, and full NetFlow for traffic visibility.
  • Manufacturing plants requiring high-availability Ethernet with PoE-powered automation devices.
  • Smart cities and transportation systems demanding ruggedized, high-performance networking.
  • Oil, gas, and mining operations needing reliable, hardened connectivity in harsh environments.
  • Energy and utility facilities deploying SCADA and precision-timed industrial systems.
  • Total Ports: 28 (16x 10/100/1000M PoE+, 8x 100/1000M SFP, 4x 1/10G SFP+ uplinks)
  • PoE Power Budget: Up to 720W with dual 400W supplies
  • Switching Capacity: 56 Gbps full-duplex
  • Forwarding Rate: 95.23 Mpps
  • Operating Temperature: -40°C to 75°C (fanless)
  • Memory: 4 GB DRAM, 8 GB Flash
  • Form Factor: 1RU rack-mount, fanless design
  • Security: MACsec-256, TrustSec, Cisco Cyber Vision, Secure Boot
  • Software: Cisco IOS XE with Network Essentials
  • Dimensions & Weight: 1.72 x 17.5 x 14.0 in, 10.6 lb

Deploy the Cisco Catalyst IE-9310-16P8S4X-E for resilient, secure, and high-speed industrial connectivity. Order now to strengthen your critical infrastructure.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 28 ports, 16x PoE+ Gigabit, 8x SFP, 4x 1/10G uplinks, 720W PoE budget, fanless rugged design [/shortdesc]

[properties]

Model Cisco Catalyst IE-9310-16P8S4X-E
Product Type Rugged Industrial Ethernet Switch
Total Ports 28
Downlink Ports 16 × 10/100/1000M PoE+ (RJ45), 8 × 100/1000M SFP
Uplink Ports 4 × 1/10G SFP+
PoE Capability Up to 480W with dual 400W PSUs
Software License (default) Network Essentials
Operating System Cisco IOS XE
Mounting Rack-mountable, 1RU
Cooling Fanless, convection cooled
Operating Temperature −40 °C to 75 °C (−40 °F to 167 °F)
IP Rating IP30 (per EN60529)
Power Consumption 105W (chassis only)
Power Supply Options PWR-RGD-LOW-DC-H (150W), PWR-RGD-AC-DC-H (150W), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W)
Memory 4 GB DRAM, 8 GB flash (2.5 GB user accessible)
MTBF 265,827 hours
Dimensions (H × W × D) 1.72 × 17.5 × 14.0 in (with 150W PSU) / up to 15.57 in (with 400W PSU)
Weight 10.6 lb (4.81 kg)

[/properties]

[specifications]

Forwarding Rate 95.23 Mpps
Switching Bandwidth 128 Gbps (full duplex)
Unicast MAC Addresses 24,000
VLAN IDs 4096 (1024 active VLANs)
IPv4 Routes 8192 direct, 7000 indirect
IPv6 Routes 3500 indirect
ACL Entries 1536 (PACL, VACL, RACL)
Queues per Port 8 egress
SD Card Capacity 16 GB (optional)
Industrial Protocols EtherNet/IP (CIP), PROFINET, ModBus TCP, GOOSE
Security Features Secure Boot, MACsec-256, TrustSec, Cyber Vision, Secure Equipment Access
Compliance EN 55032 Class A, IEC 61850-3, IEEE 1613, UL/CSA 61010-2-201, ATEX Zone 2, IECEx Zone 2
Humidity 5% to 95% non-condensing
Shock / Vibration IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Altitude Up to 15,000 ft (4572 m) without derating

[/specifications]

[accesories]

Included Rack-mount kit (19-inch), User Documentation
Optional – Power Supplies PWR-RGD-LOW-DC-H (150W), PWR-RGD-AC-DC-H (150W), PWR-RGD-AC-DC-250 (250W), PWR-RGD-AC-DC-400 (400W)
Optional – Cables CAB-STK-0.5M (0.5m stack cable), CAB-STK-1M (1m stack cable)
Optional – Rack Kits RM-RGD-19IN, RM-RGD-23IN, RM-RGD-ETSI
Optional – Memory SD-IE-16GB (16GB SD card)

[/accesories]

Ruggedized Gigabit Switching with Advanced PoE+

The Cisco Catalyst IE-9310-16P8S4X-E Rugged Series Switch is purpose-built for demanding industrial networks. With 28 total ports, high PoE+ capacity, and secure 10G uplinks, it delivers resilient connectivity for critical infrastructure, automation, and extended enterprise environments.

Key Benefits & Features
  • Industrial-grade design: Operates reliably from -40°C to 75°C, fanless and hardened for vibration, shock, and surge immunity.
  • High-density PoE+: Supports up to 16 Gigabit PoE+ ports with a maximum 720W budget, powering cameras, APs, and IoT devices.
  • Flexible uplinks: Equipped with 8 SFP ports and 4x 1/10G SFP+ uplinks for high-speed expansion and redundancy.
  • Advanced security: Integrated Cisco TrustSec, MACsec-256, and zero-trust remote access with Cisco Secure Equipment Access.
  • Smart management: Runs Cisco IOS XE with WebUI, Catalyst Center integration, and full NetFlow for traffic visibility.
Ideal Use Cases
  • Manufacturing plants requiring high-availability Ethernet with PoE-powered automation devices.
  • Smart cities and transportation systems demanding ruggedized, high-performance networking.
  • Oil, gas, and mining operations needing reliable, hardened connectivity in harsh environments.
  • Energy and utility facilities deploying SCADA and precision-timed industrial systems.
Technical Specifications
  • Total Ports: 28 (16x 10/100/1000M PoE+, 8x 100/1000M SFP, 4x 1/10G SFP+ uplinks)
  • PoE Power Budget: Up to 720W with dual 400W supplies
  • Switching Capacity: 56 Gbps full-duplex
  • Forwarding Rate: 95.23 Mpps
  • Operating Temperature: -40°C to 75°C (fanless)
  • Memory: 4 GB DRAM, 8 GB Flash
  • Form Factor: 1RU rack-mount, fanless design
  • Security: MACsec-256, TrustSec, Cisco Cyber Vision, Secure Boot
  • Software: Cisco IOS XE with Network Essentials
  • Dimensions & Weight: 1.72 x 17.5 x 14.0 in, 10.6 lb
Empower Your Industrial Network Today

Deploy the Cisco Catalyst IE-9310-16P8S4X-E for resilient, secure, and high-speed industrial connectivity. Order now to strengthen your critical infrastructure.
