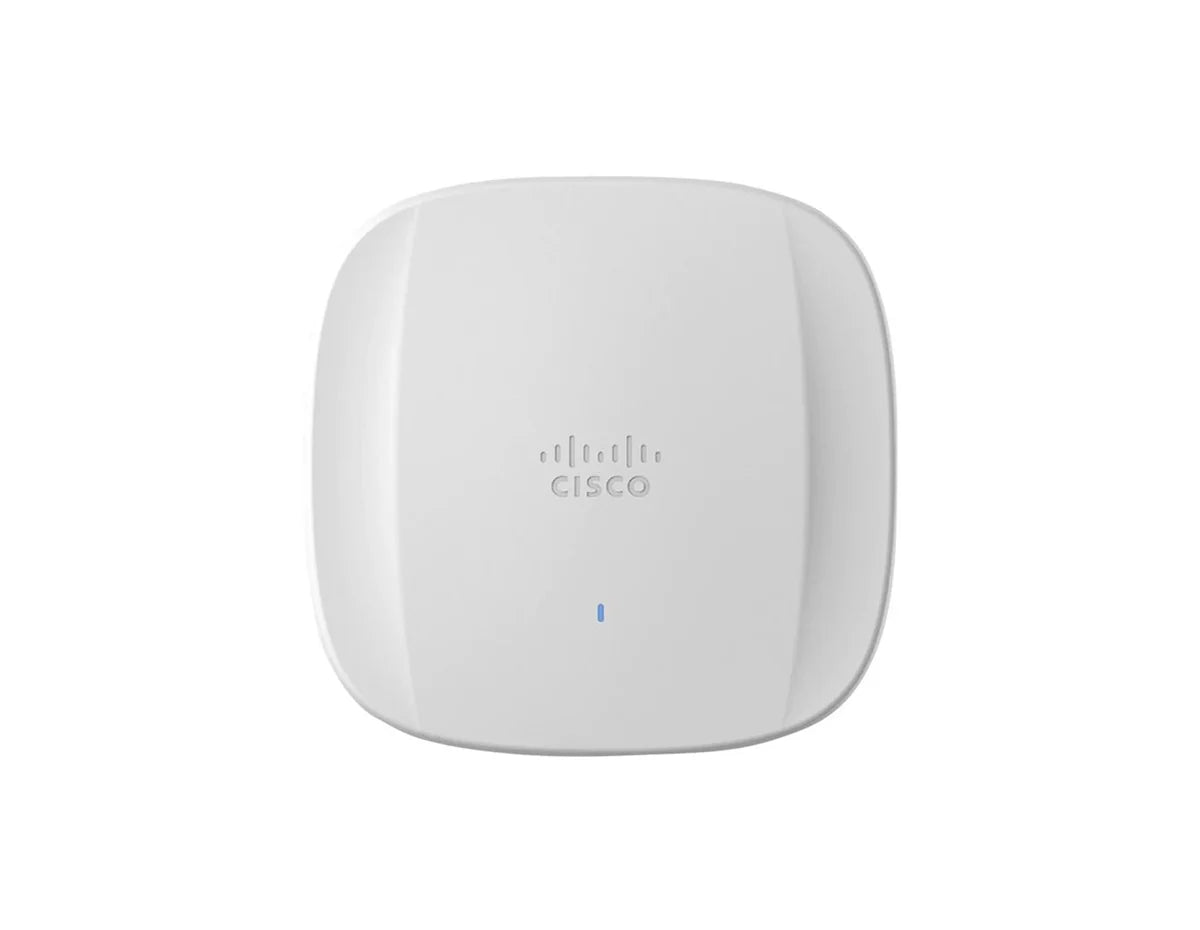

Cisco Catalyst CW9166I-B Wi-Fi 6E Access Point
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco Catalyst CW9166I-B Wi-Fi 6E Access Point
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco Catalyst CW9166I-B Wi-Fi 6E Access Point
Cisco Catalyst CW9166I-B Wi-Fi 6E Access Point

Cisco Catalyst CW9166I-B Wi-Fi 6E Access Point

por Cisco
R$ 18.780,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]Wi-Fi 6E, 4x4 MU-MIMO, tri-band radios, 5G mGig Ethernet, internal omni antennas, USB 2.0[/shortdesc]

[properties]

Brand Cisco
Model CW9166I
SKU CW9166I-B
Product Type Wi-Fi 6E Access Point
Series Cisco Catalyst 9166 Series
Wireless Standard 802.11ax compatible
Radio Design Tri-band 2.4 GHz, 5 GHz, and 6 GHz
Antenna Integrated omni-directional antennas
Interface 1x 100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45)
PoE Support 802.3bt, Cisco UPOE, 802.3at PoE+
Dimensions 9.5 x 9.5 x 2.2 in. (241.3 x 241.3 x 56.9 mm)
Weight 3.54 lb (1.60 kg)
Operating Temperature 32° to 122°F (0° to 50°C)

[/properties]

[specifications]

Aggregate Frame Rate Up to 7.78 Gbps
2.4 GHz Radio 4x4 MU-MIMO with four spatial streams
5 GHz Radio 4x4 MU-MIMO with four spatial streams
6 GHz Radio 4x4 MU-MIMO with four spatial streams
2.4 GHz Antenna Gain Peak gain 3 dBi
5 GHz Antenna Gain Peak gain 5 dBi
5 GHz XOR Antenna Gain Peak gain 5 dBi
6 GHz Antenna Gain Peak gain 4 dBi
USB Interface USB 2.0 at 4.5W
System Memory 2048 MB DRAM, 1024 MB flash
Power Consumption 30.5W with 802.3bt (UPOE), 25.5 W with 802.3at (PoE+), 14.0 W with 802.3af (PoE)
DC Power Input 54V
Operating Humidity 10% to 90% noncondensing
Operating Altitude 40°C (104°F) at 9843 ft (3000 m)
Security WPA2-Personal, WPA2-Enterprise with 802.1X, WPA3-Personal, WPA3-Enterprise, WPA3-Enhanced Open (OWE), AES
Certifications Wi-Fi Alliance: Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security; Bluetooth SIG: Bluetooth Low Energy (BLE)

[/specifications]

[accesories]

Included AIR-AP-BRACKET-2
Optional Power Supply MA-PWR-50WAC
Optional Power Supply AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6
Optional Mounting Kit CW-MNT-ART2-00

[/accesories]

The Cisco Catalyst CW9166I-B is a Catalyst 9166 Series access point with integrated omnidirectional antennas, designed for enterprise wireless networks that need Wi-Fi 6E capacity, secure connectivity, and flexible management. It supports operation across 2.4 GHz, 5 GHz, and 6 GHz bands, helping reduce interference and increase available wireless capacity for modern client environments.

  • Supports Wi-Fi 6 and Wi-Fi 6E with 802.11ax capabilities across 2.4 GHz, 5 GHz, and 6 GHz radios.
  • Uses three 4x4 radios with uplink and downlink MU-MIMO and OFDMA for efficient multi-client performance.
  • Offers flexible management with Cisco Catalyst 9800 Series Wireless Controllers or Meraki cloud management.
  • Includes integrated environmental sensors, IoT radios, and Bluetooth Low Energy 5.1 support.
  • Provides a 5G Multigigabit Ethernet interface for high-speed wired uplink connectivity.
  • Enterprise offices upgrading to Wi-Fi 6E wireless infrastructure.
  • High-density workspaces with collaboration, video, and IoT traffic.
  • Campuses requiring Catalyst controller or cloud-based management flexibility.
  • Wireless deployments needing 6 GHz capacity with internal omnidirectional antennas.
  • Brand: Cisco
  • SKU: CW9166I-B
  • Product Series: Cisco Catalyst 9166 Series
  • Product Type: Wi-Fi 6E access point
  • Wireless Standard: IEEE 802.11ax, with 802.11a/b/g/n/ac support
  • Radio Configuration: 4x4 uplink and downlink MU-MIMO with four spatial streams
  • Maximum PHY Data Rate: Up to 7.78 Gbps
  • Ethernet Interface: 1 x 100M/1000M/2.5G/5G Multigigabit Ethernet RJ-45
  • Antenna Type: Internal omnidirectional antennas
  • Dimensions: 9.5 x 9.5 x 2.2 in. (241.3 x 241.3 x 56.9 mm)

Choose the Cisco Catalyst CW9166I-B to expand enterprise wireless capacity with Wi-Fi 6E, 4x4 radio performance, and management flexibility for evolving network environments.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]Wi-Fi 6E, 4x4 MU-MIMO, tri-band radios, 5G mGig Ethernet, internal omni antennas, USB 2.0[/shortdesc]

[properties]

Brand Cisco
Model CW9166I
SKU CW9166I-B
Product Type Wi-Fi 6E Access Point
Series Cisco Catalyst 9166 Series
Wireless Standard 802.11ax compatible
Radio Design Tri-band 2.4 GHz, 5 GHz, and 6 GHz
Antenna Integrated omni-directional antennas
Interface 1x 100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45)
PoE Support 802.3bt, Cisco UPOE, 802.3at PoE+
Dimensions 9.5 x 9.5 x 2.2 in. (241.3 x 241.3 x 56.9 mm)
Weight 3.54 lb (1.60 kg)
Operating Temperature 32° to 122°F (0° to 50°C)

[/properties]

[specifications]

Aggregate Frame Rate Up to 7.78 Gbps
2.4 GHz Radio 4x4 MU-MIMO with four spatial streams
5 GHz Radio 4x4 MU-MIMO with four spatial streams
6 GHz Radio 4x4 MU-MIMO with four spatial streams
2.4 GHz Antenna Gain Peak gain 3 dBi
5 GHz Antenna Gain Peak gain 5 dBi
5 GHz XOR Antenna Gain Peak gain 5 dBi
6 GHz Antenna Gain Peak gain 4 dBi
USB Interface USB 2.0 at 4.5W
System Memory 2048 MB DRAM, 1024 MB flash
Power Consumption 30.5W with 802.3bt (UPOE), 25.5 W with 802.3at (PoE+), 14.0 W with 802.3af (PoE)
DC Power Input 54V
Operating Humidity 10% to 90% noncondensing
Operating Altitude 40°C (104°F) at 9843 ft (3000 m)
Security WPA2-Personal, WPA2-Enterprise with 802.1X, WPA3-Personal, WPA3-Enterprise, WPA3-Enhanced Open (OWE), AES
Certifications Wi-Fi Alliance: Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security; Bluetooth SIG: Bluetooth Low Energy (BLE)

[/specifications]

[accesories]

Included AIR-AP-BRACKET-2
Optional Power Supply MA-PWR-50WAC
Optional Power Supply AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6
Optional Mounting Kit CW-MNT-ART2-00

[/accesories]

Cisco Wi-Fi 6E Access for Flexible Enterprise Deployments

The Cisco Catalyst CW9166I-B is a Catalyst 9166 Series access point with integrated omnidirectional antennas, designed for enterprise wireless networks that need Wi-Fi 6E capacity, secure connectivity, and flexible management. It supports operation across 2.4 GHz, 5 GHz, and 6 GHz bands, helping reduce interference and increase available wireless capacity for modern client environments.

Key Benefits and Features
  • Supports Wi-Fi 6 and Wi-Fi 6E with 802.11ax capabilities across 2.4 GHz, 5 GHz, and 6 GHz radios.
  • Uses three 4x4 radios with uplink and downlink MU-MIMO and OFDMA for efficient multi-client performance.
  • Offers flexible management with Cisco Catalyst 9800 Series Wireless Controllers or Meraki cloud management.
  • Includes integrated environmental sensors, IoT radios, and Bluetooth Low Energy 5.1 support.
  • Provides a 5G Multigigabit Ethernet interface for high-speed wired uplink connectivity.
Ideal Use Cases
  • Enterprise offices upgrading to Wi-Fi 6E wireless infrastructure.
  • High-density workspaces with collaboration, video, and IoT traffic.
  • Campuses requiring Catalyst controller or cloud-based management flexibility.
  • Wireless deployments needing 6 GHz capacity with internal omnidirectional antennas.
Technical Specifications
  • Brand: Cisco
  • SKU: CW9166I-B
  • Product Series: Cisco Catalyst 9166 Series
  • Product Type: Wi-Fi 6E access point
  • Wireless Standard: IEEE 802.11ax, with 802.11a/b/g/n/ac support
  • Radio Configuration: 4x4 uplink and downlink MU-MIMO with four spatial streams
  • Maximum PHY Data Rate: Up to 7.78 Gbps
  • Ethernet Interface: 1 x 100M/1000M/2.5G/5G Multigigabit Ethernet RJ-45
  • Antenna Type: Internal omnidirectional antennas
  • Dimensions: 9.5 x 9.5 x 2.2 in. (241.3 x 241.3 x 56.9 mm)
Deploy Cisco Wi-Fi 6E with Confidence

Choose the Cisco Catalyst CW9166I-B to expand enterprise wireless capacity with Wi-Fi 6E, 4x4 radio performance, and management flexibility for evolving network environments.
