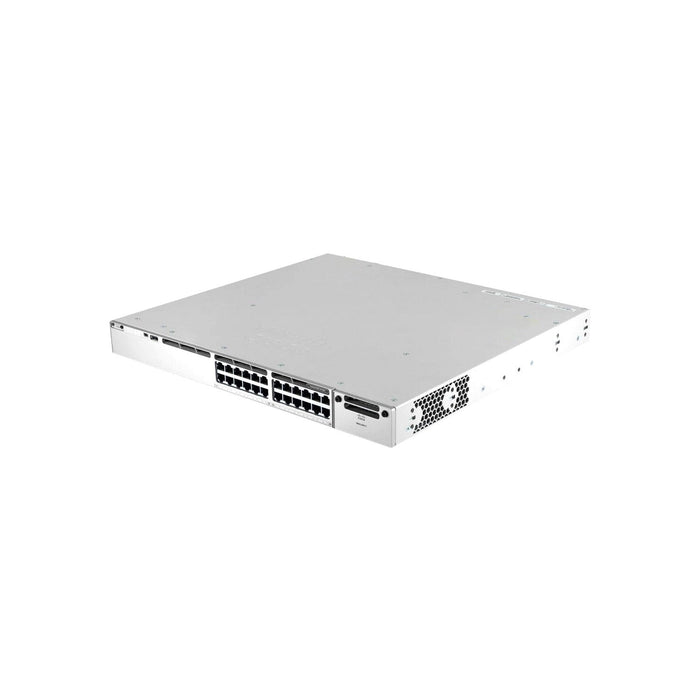

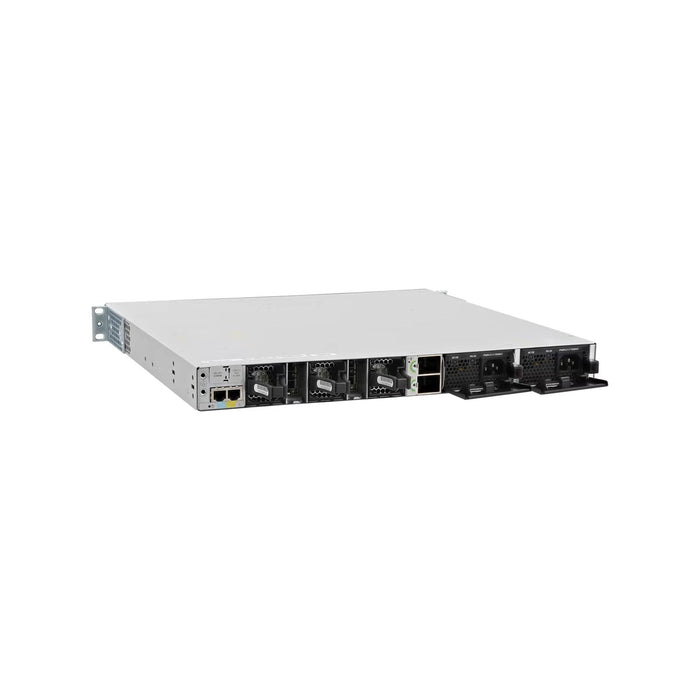

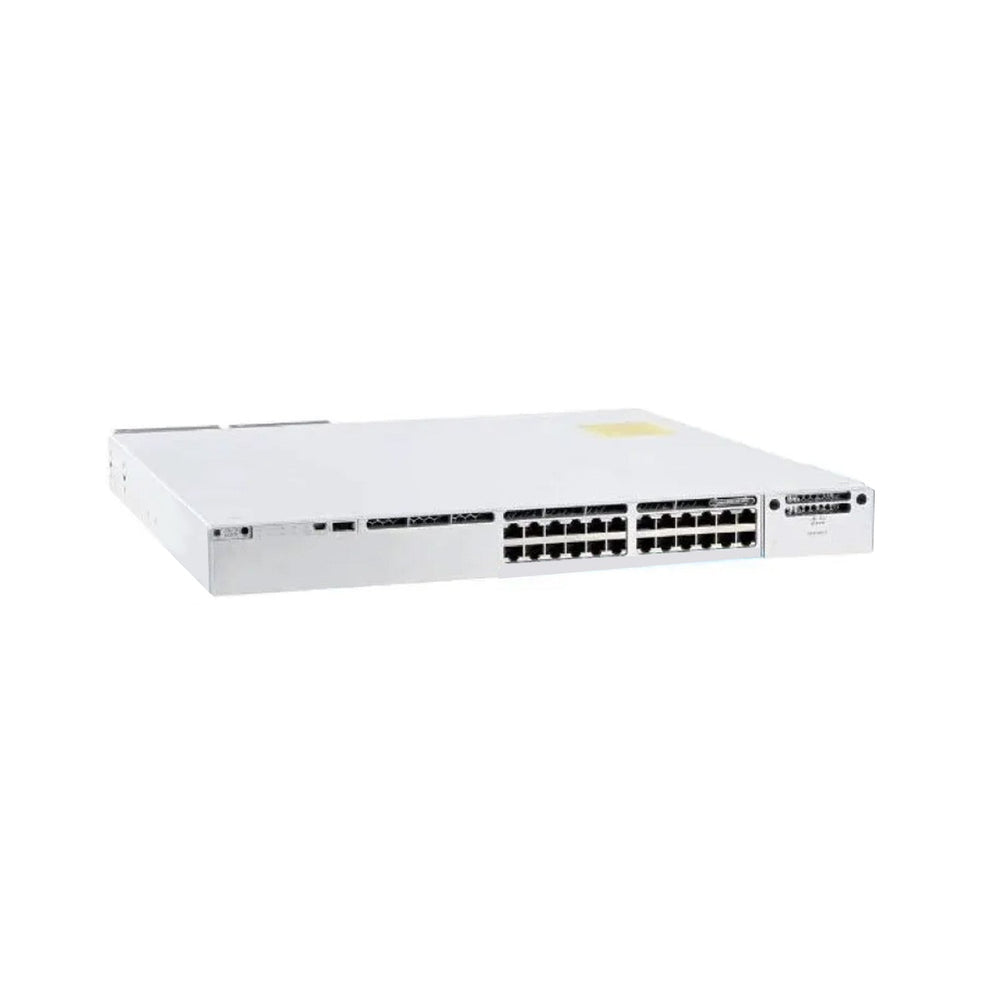

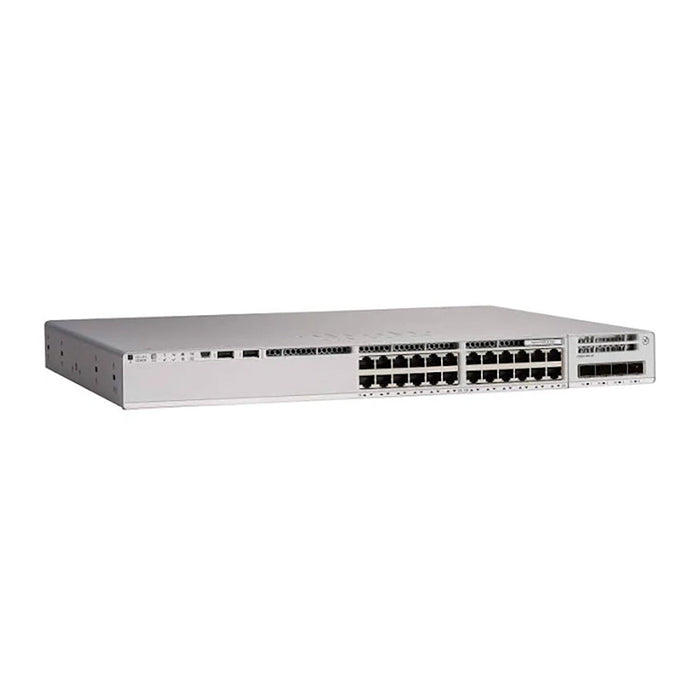

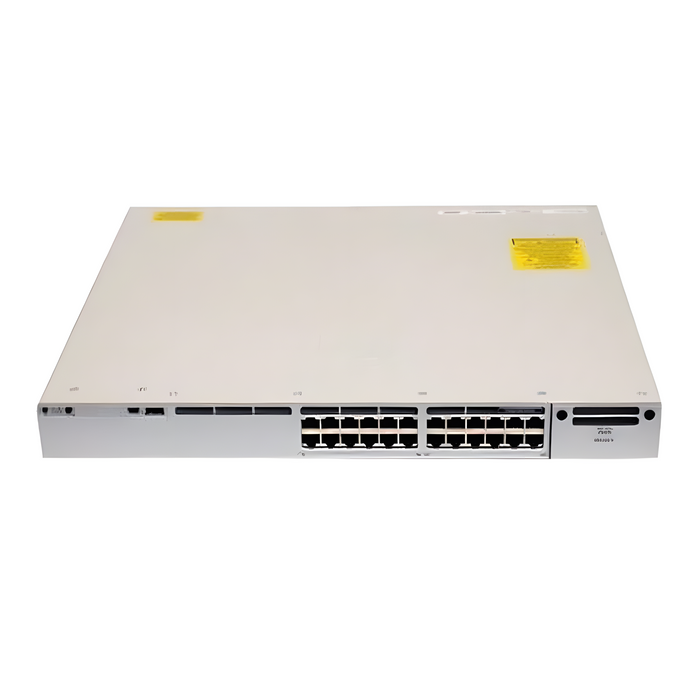

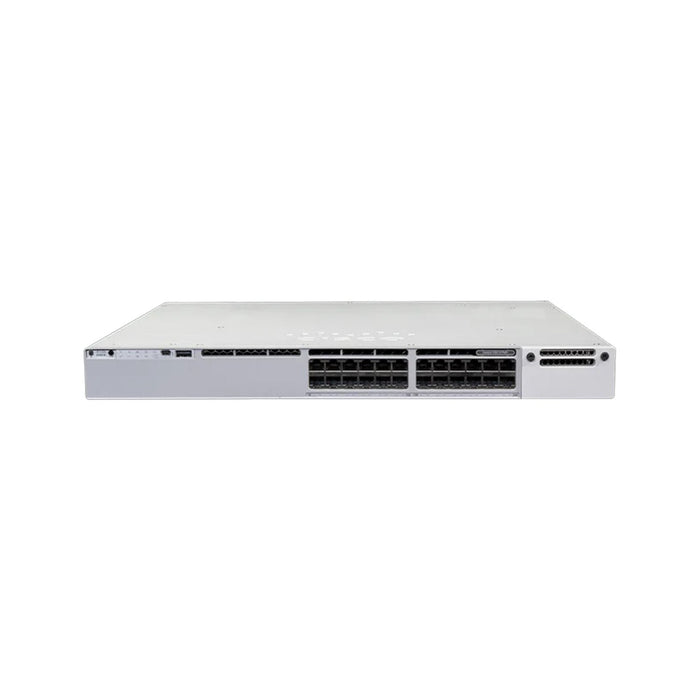

Cisco Catalyst C9300-24P-E Essentials License 24-Port PoE+ Switch
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Cisco Catalyst 9300 24-Port PoE+ Switch, Network Essentials (C9300-24P-E)
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Quick Buying Guide - Best for Cost-Effective Enterprise Access
-
Network Essentials License: Delivers robust Layer 2 switching and essential Layer 3 routing (Static, OSPF stub, RIP), perfect for traditional campus and branch deployments without the need for complex SD-Access fabrics.
-
Modular Uplinks Flexibility: Customize your uplink speeds with hot-swappable modules supporting 1G, 10G, 25G, or 40G, ensuring future-proof scalability for this premium 24 port poe switch.
-
High-Availability Architecture: Supports StackWise-480 (480 Gbps stacking bandwidth) and Cisco StackPower, sharing power across the stack for continuous uptime.
-
Reliable PoE+ Power: The default 715W power supply provides a solid 445W PoE budget (up to 30W per port), easily powering VoIP phones, IP cameras, and Wi-Fi 6 access points.
💡 Pro Tip from CCIE Team: If your business requires advanced corporate routing (like BGP/VRF), micro-segmentation, or full Cisco DNA Center automation (SD-Access), you must upgrade to the Advantage license (C9300-24P-A). For solid, everyday enterprise connectivity, this network essentials model offers the best value. For a deeper look at feature differences, read our Cisco Catalyst FAQ: Power, Stacking & Licensing Guide.
Overview
As a highly efficient campus access solution, the cisco c9300-24p-e is purpose-built for cost-effective, high-density PoE+ deployments. As a core part of the flagship Cisco Catalyst 9300 family, this standalone or stackable 24 port poe switch runs the network essentials license package to deliver premium Layer 2 performance alongside core routing configurations. For businesses seeking reliable branch infrastructure without paying for unneeded software overhead, deploying the c9300-24p-e offers unbeatable value.
-
Related Reading & Upgrade Resource Guides:
-
Comparing access tiers? Read our guide: Cisco Catalyst 9200 vs 9300 Series Switches.
-
Migrating away from old hardware? Check out the Cisco Catalyst 2960X vs Catalyst 9300 Series Migration Blueprint.
-
Review the full lineup features: Cisco 9300 Series Switches Deep Dive.
-
📥 Download Technical Specifications: Planning a PoE+ network upgrade? Enter your work email below to download the official datasheet for exact power budgets, module specifications, and forwarding rates to seamlessly plan your c9300 24p e layout.
Highlights & Performance Scale
Running Cisco IOS XE, the cisco c9300-24p-e provides 24 auto-sensing 10/100/1000 RJ-45 PoE+ downlinks and a versatile modular uplink slot. With an impressive 480 Gbps of stacking bandwidth and hardware-based AES-256 encryption, it ensures secure, resilient traffic delivery for voice, video, and IoT devices.
-
24 Gigabit PoE+ Ports: Delivers up to 30W per port (IEEE 802.3at) with a default 445W PoE budget, upgradeable to 720W with a secondary power supply.
-
Flexible Uplink Modules: One dedicated slot supports 41G, 810G, 225G, or 240G upstream modules to optimize infrastructure links.
-
StackWise-480 Resiliency: Combine up to 8 switches into a single logical unit with 480 Gbps throughput. For setup steps, view our technical guide on How to Stack Cisco 9300 Switches for Optimal Performance.
-
Programmable UADP 2.0 ASIC: Ensures dynamic allocation of Layer 2/3 forwarding, QoS, and ACLs for optimized packet processing.
-
Robust Security Architecture: Line-rate AES-256 MACsec encryption, Secure Boot, Trust Anchor Module, and 802.1X authentication.
-
Flexible Cloud Management: Manage via CLI, embedded Web UI, NETCONF/RESTCONF APIs, or integrate seamlessly with Cisco DNA Center and Meraki Dashboard for cloud monitoring.
Use Cases & Deployment Scenarios
-
Enterprise Branch Access Layer: Provide reliable, wire-speed connectivity for employee workstations, network printers, and unified communication suites.
-
Wi-Fi 6 & IP Telephony: Aggregate and power enterprise-grade wireless access points and VoIP desk phones without needing external power injectors.
-
Security & IoT Networks: Directly connect and supply continuous PoE+ power to high-definition IP surveillance cameras, access control systems, and environmental sensors.
-
Cost-Conscious Campus Networks: Build a highly resilient, stacked architecture using Essentials licensing where advanced fabric or BGP routing is not required.
Recommended Accessories
To configure your hardware deployment effectively, optimize your uplink choices using verified network cards and line bundles. For complete expansion rules, consult our guide on How to Select Modules and Cables for Cisco 9300 Series.
| Accessory Category | Model / Part Number | Description |
| Network Module | C9300-NM-8X | Expand your uplink bandwidth with the official cisco c9300-nm-8x module (8 x 10G SFP+). |
| Network Module | C9300-NM-2Y | 2 x 25G/10G/1G SFP28 uplinks for higher bandwidth and low latency. |
| Network Module | C9300-NM-4G | 4 x 1G SFP uplinks for standard fiber connectivity. |
| Power Supply (Redundancy) | PWR-C1-715WAC-P | 715W AC Platinum PSU (Adds N+1 redundancy or boosts PoE capacity). |
| Power Supply (Upgrade) | PWR-C1-1100WAC-P | 1100W AC Platinum PSU (Upgrades PoE+ budget from 445W to 720W). |
| Fan Module | FAN-T2= | Field-replaceable fan module for N+1 cooling redundancy. |
Comparison with Similar Models
| Feature | C9300-24P-E | C9300-24P-A | C9300-24T-E |
| Downlinks | 24 x 1G PoE+ | 24 x 1G PoE+ | 24 x 1G Data-only |
| Software License | Network Essentials | Network Advantage | Network Essentials |
| Advanced L3 & Fabric (BGP/VXLAN) | Not Supported | Supported | Not Supported |
| Default PSU | 715W AC | 715W AC | 350W AC |
| Default PoE Budget | 445W (Up to 720W max) | 445W (Up to 720W max) | None |
| Stacking | StackWise-480 (480 Gbps) | StackWise-480 (480 Gbps) | StackWise-480 (480 Gbps) |
Specifications
| Parameter | Specification |
| Model Code | C9300-24P-E |
| Software Package | Cisco IOS XE with Network Essentials |
| Downlink Ports | 24 10/100/1000 Mbps RJ-45 PoE+ auto-sensing |
| Uplink Expansion | 1 modular slot (supports C9300-NM-4G, 8X, 2Y, 2Q, 4M) |
| Default Power Supply | 1 PWR-C1-715WAC-P (715W AC Platinum) |
| Available PoE Budget | 445W default (Up to 30W per port); Upgradeable to 720W |
| Switching Capacity | 208 Gbps (688 Gbps with stacking) |
| Forwarding Performance | 154.76 Mpps (511.90 Mpps with stacking) |
| CPU & Memory | Multicore x86 CPU; 8 GB DRAM; 16 GB Flash |
| StackWise-480 | Up to 8 switches; 480 Gbps bidirectional stacking bandwidth |
| Security Features | AES-256 MACsec, Secure Boot, 802.1X, DHCP Snooping, DAI, IP Source Guard |
| Management Interfaces | CLI, Web UI, NETCONF/RESTCONF, SNMP, Meraki Dashboard, Cisco DNA Center |
| Dimensions (HWD) | 1.73" x 17.5" x 17.7" (4.4 x 44.5 x 44.9 cm) with default PSU |
| Weight | 16.33 lb (7.4 kg) |
| Operating Temperature | 23 F to 113 F (-5°C to 45°C) at sea level |
| Mean Time Between Failures | 299,000 hours |
