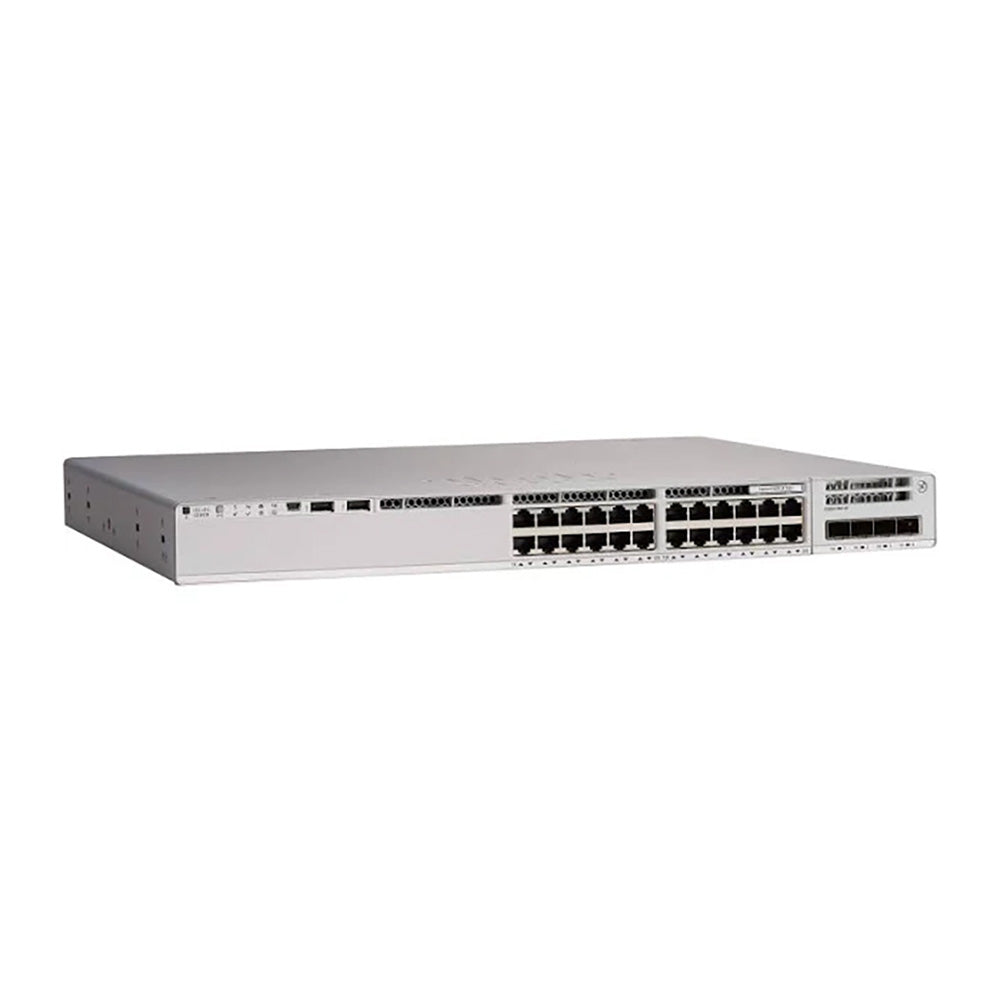

Cisco Catalyst C9200L‑24P‑4X‑A | 24‑Port PoE+ | 4×10G SFP+ | Full Layer 3 Network Advantage
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Cisco Catalyst C9200L‑24P‑4X‑A | 24‑Port PoE+ | 4×10G SFP+ | Full Layer 3 Network Advantage
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Why Choose C9200L‑24P‑4X‑A?
-
Full Layer 3 Capabilities: Full BGP, EIGRP, ISIS, VRF-Lite, VXLAN, LISP for advanced routing and segmentation.
-
Enterprise Edge & Small-Core Ready: Acts as core/aggregation for SMB and distributed enterprises.
-
10G Uplink Performance: Four dual-rate uplinks for Wi‑Fi 6/6E, video, and IoT traffic.
-
Perpetual PoE: Powers APs, cameras, and VoIP phones during reloads.
-
Scalable Stacking: Up to 8 units (StackWise‑80) for unified management.
-
Advanced Security: MACsec, 802.1X, ACLs, SGTs.
-
Cloud & Automation: DNA Center + Meraki Dashboard for monitoring and automated deployments.
Engineer's Pro Tip
"For multi‑tenant campuses, high-security sites (clinics, labs), or segmented IoT traffic, use VRF + MACsec to enforce hardware-level isolation. If transitioning to SD-Access, this -4X-A model acts as a cost-effective Fabric Edge, supporting VXLAN and SGT for Cisco's automated campus fabric."
Overview
As a premium 10G-uplink model within the cisco catalyst 9200 series switches, the Catalyst C9200L-24P-4X-A is a high-performance cisco 9200 switch built for enterprise edge and small core deployments. This cisco c9200l fixed-uplink platform provides 24 ports of full PoE+ and 4x 10G SFP+ uplinks for high-throughput traffic. Running the Network Advantage license, this cisco catalyst 9200l unlocks full Layer 3 routing (BGP, VRF-Lite) and SD-Access capabilities. If you are comparing modular cisco c9200 switches with this fixed cisco 9200l, or wondering if you truly need the Advantage features over the base Essentials, read our expert Cisco C9200L-24P-4X-A vs -E: Do You Really Need Network Advantage? license guide to make an informed decision.
📥 Download Technical Specifications: Planning a high-throughput PoE+ network with Wi-Fi 6E? Enter your work email below to download the official cisco 9200 datasheet PDF to verify exact 10G switching capacities, VRF limits, and StackWise-80 architecture.
Equipped with UADP 2.0 Mini ASIC, 2 GB DRAM, and 4 GB flash, it provides 128 Gbps switching capacity (208 Gbps stacked). Beyond access, the Advantage license enables Full Layer 3 routing: BGP, EIGRP, ISIS, VRF-Lite, VXLAN, and LISP, supporting multi-tenant networks, IoT segmentation, and SD-Access fabric edge deployments.
With Perpetual PoE, connected APs, IP cameras, or VoIP phones remain powered during soft reloads or software upgrades. Integrated Cisco DNA Center and Meraki Dashboard support monitoring, automation, and cloud-based troubleshooting.
Highlights
-
24× PoE+ ports (30 W each)
-
4× 10G SFP+ Fixed Dual‑Rate (10G/1G) uplinks
-
128 Gbps switching capacity; 208 Gbps stacked
-
Forwarding Rate: 95.23 Mpps (155 Mpps stacked)
-
Full L3 Routing: BGP, EIGRP, ISIS, VRF-Lite, VXLAN, LISP
-
Advanced Security: MACsec, 802.1X, ACLs, SGTs
-
StackWise‑80: up to 8 stacked units
-
Perpetual PoE: maintains power during reloads
-
Cloud & Automation Integration: DNA Center + Meraki Dashboard
Use Cases & Deployment Scenarios
-
Wi‑Fi 6 / 6E Campus Access - high-throughput AP backhaul
-
Multi‑Tenant Branch Offices - VRF isolation for corporate, guest, and IoT traffic
-
IP Surveillance - full PoE+ budget for high-power cameras
-
VoIP & Unified Communications - stable PoE and QoS
-
Smart Office / IoT Edge - sensors, automation devices
-
Small Core / Aggregation - high-speed routing and segmentation
Visual Enhancement Tips:
-
Stack diagram showing 8 switches logically unified
-
VRF diagram showing traffic isolation on single physical switch
-
Cloud dashboard screenshot for DNA/Meraki monitoring
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L‑STACK‑KIT | Stacking Module | Spare StackWise-80 kit. Required to enable high-availability stacking for your cisco 9200 enterprise edge networks. |
| STACK‑T4‑50CM / 1M / 3M | Stacking Cable | Flexible rack installation |
| PWR‑C5‑600WAC | Power Supply | Field‑Replaceable 600 W PSU |
| NS‑SFP‑10G‑SR / LR | 10G Module | Dual‑rate 10G/1G, fully compatible |
Comparison with Similar Models
| Model | Ports | Uplinks | PoE | License | Best For |
|---|---|---|---|---|---|
| C9200L‑24P‑4X‑A | 24×1G PoE+ | 4×10G SFP+ Dual-Rate | PoE+ | Advantage | Enterprise edge / branch aggregation / small core with BGP, VRF & VXLAN |
| C9200L‑24P‑4X‑E | 24×1G PoE+ | 4×10G SFP+ Dual-Rate | PoE+ | Essentials | High-bandwidth access, basic routing |
| C9200L‑24P‑4G‑A | 24×1G PoE+ | 4×1G SFP | PoE+ | Advantage | Standard PoE deployment, advanced routing |
| C9200L‑24T‑4X‑A | 24×1G data | 4×10G SFP+ | No PoE | Advantage | High-speed data access only |
| C9200‑24P | 24×1G PoE+ | Modular uplinks | PoE+ | Advantage | Higher scale, modular uplinks, campus core |
Specifications
| Parameter | Value | Why It Matters |
|---|---|---|
| Layer 3 License | Network Advantage | Full routing: BGP, VRF, VXLAN, LISP |
| Virtual Networks | 1 (Default) / Up to 4 VRF instances | Hardware-enforced isolation for departments, guests, or IoT |
| PoE Budget | 370 W (600 W PSU) | Powers ~12 high-power APs or 24 VoIP phones |
| Forwarding Rate | 95.23 Mpps | Wire-speed for 10G traffic |
| Stacked Forwarding Rate | 155 Mpps | High throughput in aggregated stacks |
| Stacking Bandwidth | 80 Gbps | Unified management and resiliency |
| Switching Capacity | 128 Gbps (208 Gbps stacked) | Dense campus/branch deployment |
| MAC Addresses | 16,000 | Supports large endpoint counts |
| IPv4 Routes | 11,000 | Full Layer 3 capability |
| IPv6 Routes | 1,500 | Native IPv6 support |
| Packet Buffer | 6 MB | Handles traffic microbursts |
| VLAN IDs | 4,096 | Flexible segmentation |
| Jumbo Frames | 9198 bytes | Optimized for large data packets |
| SGT Binding Scale | 10,000 | Supports large-scale security policies |
