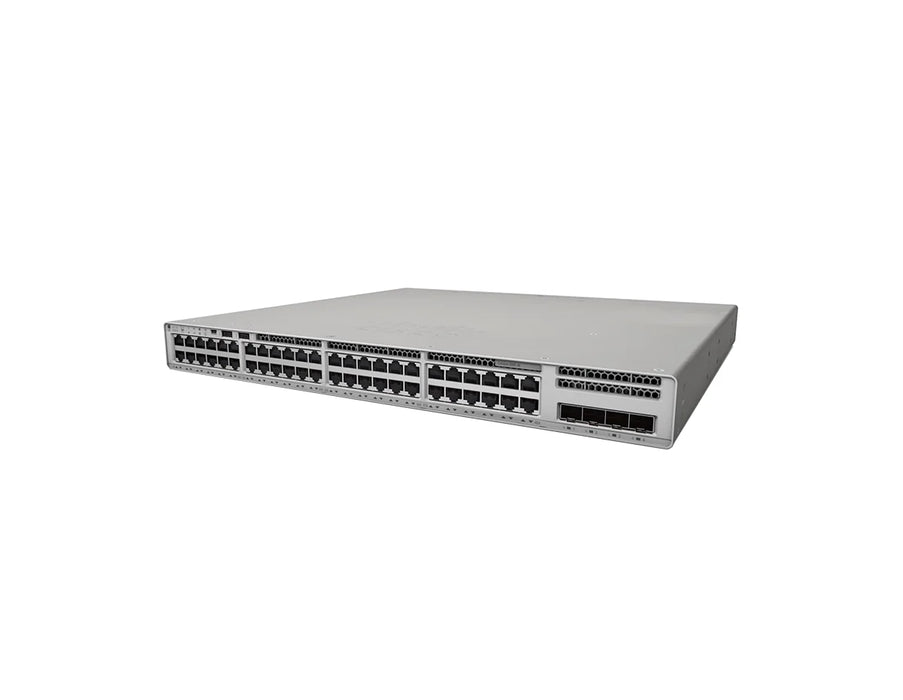

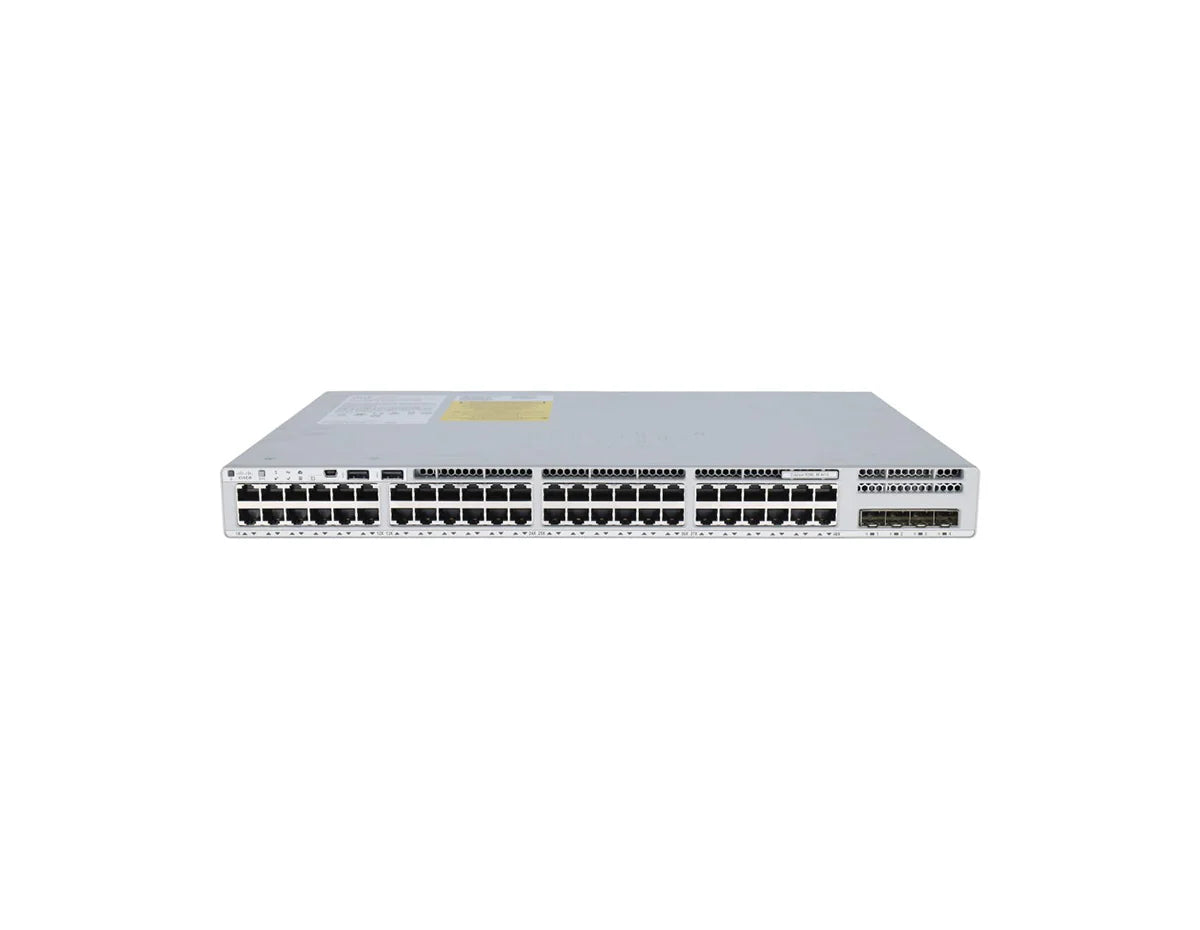

Cisco Catalyst C9200L-48T-4X-A 48-Port Data 4x10G SFP+ Switch, Network Advantage
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco Catalyst C9200L-48T-4X-A 48-Port Data 4x10G SFP+ Switch, Network Advantage
Cisco Catalyst C9200L-48T-4X-A 48-Port Data 4x10G SFP+ Switch, Network Advantage

Cisco Catalyst C9200L-48T-4X-A 48-Port Data 4x10G SFP+ Switch, Network Advantage

por Cisco
Desconto de 43%
R$ 83.455,32
R$ 47.580,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Switch
  • L3
  • 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink)
  • Rack-mountable
[/shortdesc]

[properties]

Properties C9200L-48T-4X-A
Description Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Advantage
Product Family Catalyst 9200-L
Product Type Ethernet Switch
Number of Ports 48
Downlinks total 10/100/1000
or PoE+ copper ports		 48 ports data
Uplink configuration 4x 1G fixed uplinks
Cisco IOS Software Network Advantage
Default primary AC
power supply		 PWR-C5-125WAC
Available PoE power with
additional secondary
power supply		 -
Fans Fixed redundant
Chassis + FEP +
Fan Dimensions (HxWxD) Inches		 1.73 x 17.5 x 11.3

[/properties][specifications]

Specifications C9200L-48T-4X-A
Console Ports RJ-45-to-DB9 cable for PC connections, USB-C adaptor, USB adaptor
DRAM 2 GB
Flash Memory 4 GB
Switching capacity 176 Gbps
Forwarding rate 130.95 Mpps
MTBF Hours 503400
MAC addresses 16000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety IEC 60950-1
UL 60950-1
CAN/CSA C22.2 No. 60950-1
EN 60950-1
AS/NZS 60950.1
Class I Equipment
Electromagnetic compatibility
certifications		 47 CFR Part 15
CISPR 32 Class A
CNS 13438
EN 300 386*
EN 55032 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
KN 32
TCVN 7189 Class A
V-3 Class A
CISPR 35
EN 300 386*
EN 55035
KN 35
TCVN 7317
EMC
compliance		 FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
VCCI Class A
CISPR 35
EN 55035, EN300 386*
EN 61000-3-2, EN 61000-3-3
Safety
compliance		 UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
Environmental Reduction of Hazardous Substances (ROHS) 5
Stacking Support StackWise-80
Stacking bandwidth support 80 Gbps
Stacking hardware C9200L-STACK-KIT
Number of
members		 8
Supported stack members Other C9200L models with same license level

[/specifications][accesories]

Mounting Accessories
ACC-KIT-T1= Accessory kit with 19 inch Type 1 rack mount
RACK-KIT-T1= 19, 23, 24 inch and ETSI Type 1 rack mount kit
4PT-KIT-T2= 4 Point rack mount kit New
C9K-MGNT-TRAY Magnet and Mounting Tray for compact switches
C9K-CMPCT-DIN-MNT DIN Rail Mount for compact switches
RACKMNT-19-CMPACT 19-Inch Rack Mounting Brackets for compact switches
C9K-CMPCT-CBLE-GRD Cable guard for compact switches (for C9K-WALL-TRAY)
C9K-WALL-TRAY Wall mount bracket for compact switches
C9K-CMPCT-DESK-MNT Under desk mount for compact switches
Stacking accessories
C9200L-STACK-KIT Stack kit for C9200L SKUs only: Two data stack adapters and one data stack cable
STACK-T4-50CM Data stack 50 cm cable (default cable with Stack Kit)
STACK-T4-1M Data stack 1 m cable
STACK T4-3M Data stack 3 m cable

[/accesories]

The Cisco Catalyst C9200L-48T-4X-A Switch is an enterprise-class networking solution that delivers high performance, security, and scalability, making it ideal for small to medium-sized businesses and branch offices. This switch features 48 Gigabit Ethernet ports and 4 fixed 10G SFP+ uplinks, ensuring reliable and high-speed connectivity for various network devices. The C9200L-48T-4X-A is equipped with advanced security features, Layer 3 routing capabilities, and easy management through Cisco DNA Center, providing a robust and efficient network infrastructure.

Key Features:

  • 48 x Gigabit Ethernet Ports: Provides fast and reliable connectivity for various network devices, ensuring smooth and efficient network operations.
  • 4 x 10G SFP+ Uplinks: Offers high-speed uplink options for connecting to other switches or network devices, ensuring network scalability and performance.
  • Advanced Security: Includes features such as MACsec encryption and segmentation for enhanced network protection.
  • Layer 3 Routing: Supports static routing, OSPF, EIGRP stub, and routed access for efficient traffic management and network segmentation.
  • Easy Management: Managed through Cisco DNA Center, CLI, and a web-based UI, simplifying network operations.

Technical Overview:

  • Recommended for: Small to medium-sized businesses, branch offices, and enterprise networks requiring robust and secure 10G connectivity.
  • Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet ports with 4 fixed 10G SFP+ uplinks.
  • Switching Capacity: 176 Gbps.
  • Forwarding Rate: 130.95 Mpps.
  • Management: Cisco DNA Center, CLI, and web-based GUI for comprehensive network management.
  • Security: MACsec encryption and advanced segmentation for enhanced network security.
  • Energy Efficiency: Compliant with IEEE 802.3az Energy Efficient Ethernet.

You can check the related tab for the C9200L-48T-4X-A datasheet.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Switch
  • L3
  • 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink)
  • Rack-mountable
[/shortdesc]

[properties]

Properties C9200L-48T-4X-A
Description Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Advantage
Product Family Catalyst 9200-L
Product Type Ethernet Switch
Number of Ports 48
Downlinks total 10/100/1000
or PoE+ copper ports		 48 ports data
Uplink configuration 4x 1G fixed uplinks
Cisco IOS Software Network Advantage
Default primary AC
power supply		 PWR-C5-125WAC
Available PoE power with
additional secondary
power supply		 -
Fans Fixed redundant
Chassis + FEP +
Fan Dimensions (HxWxD) Inches		 1.73 x 17.5 x 11.3

[/properties][specifications]

Specifications C9200L-48T-4X-A
Console Ports RJ-45-to-DB9 cable for PC connections, USB-C adaptor, USB adaptor
DRAM 2 GB
Flash Memory 4 GB
Switching capacity 176 Gbps
Forwarding rate 130.95 Mpps
MTBF Hours 503400
MAC addresses 16000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety IEC 60950-1
UL 60950-1
CAN/CSA C22.2 No. 60950-1
EN 60950-1
AS/NZS 60950.1
Class I Equipment
Electromagnetic compatibility
certifications		 47 CFR Part 15
CISPR 32 Class A
CNS 13438
EN 300 386*
EN 55032 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
KN 32
TCVN 7189 Class A
V-3 Class A
CISPR 35
EN 300 386*
EN 55035
KN 35
TCVN 7317
EMC
compliance		 FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
VCCI Class A
CISPR 35
EN 55035, EN300 386*
EN 61000-3-2, EN 61000-3-3
Safety
compliance		 UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
Environmental Reduction of Hazardous Substances (ROHS) 5
Stacking Support StackWise-80
Stacking bandwidth support 80 Gbps
Stacking hardware C9200L-STACK-KIT
Number of
members		 8
Supported stack members Other C9200L models with same license level

[/specifications][accesories]

Mounting Accessories
ACC-KIT-T1= Accessory kit with 19 inch Type 1 rack mount
RACK-KIT-T1= 19, 23, 24 inch and ETSI Type 1 rack mount kit
4PT-KIT-T2= 4 Point rack mount kit New
C9K-MGNT-TRAY Magnet and Mounting Tray for compact switches
C9K-CMPCT-DIN-MNT DIN Rail Mount for compact switches
RACKMNT-19-CMPACT 19-Inch Rack Mounting Brackets for compact switches
C9K-CMPCT-CBLE-GRD Cable guard for compact switches (for C9K-WALL-TRAY)
C9K-WALL-TRAY Wall mount bracket for compact switches
C9K-CMPCT-DESK-MNT Under desk mount for compact switches
Stacking accessories
C9200L-STACK-KIT Stack kit for C9200L SKUs only: Two data stack adapters and one data stack cable
STACK-T4-50CM Data stack 50 cm cable (default cable with Stack Kit)
STACK-T4-1M Data stack 1 m cable
STACK T4-3M Data stack 3 m cable

[/accesories]

Cisco Catalyst C9200L-48T-4X-A Switch

The Cisco Catalyst C9200L-48T-4X-A Switch is an enterprise-class networking solution that delivers high performance, security, and scalability, making it ideal for small to medium-sized businesses and branch offices. This switch features 48 Gigabit Ethernet ports and 4 fixed 10G SFP+ uplinks, ensuring reliable and high-speed connectivity for various network devices. The C9200L-48T-4X-A is equipped with advanced security features, Layer 3 routing capabilities, and easy management through Cisco DNA Center, providing a robust and efficient network infrastructure.

Key Features:

  • 48 x Gigabit Ethernet Ports: Provides fast and reliable connectivity for various network devices, ensuring smooth and efficient network operations.
  • 4 x 10G SFP+ Uplinks: Offers high-speed uplink options for connecting to other switches or network devices, ensuring network scalability and performance.
  • Advanced Security: Includes features such as MACsec encryption and segmentation for enhanced network protection.
  • Layer 3 Routing: Supports static routing, OSPF, EIGRP stub, and routed access for efficient traffic management and network segmentation.
  • Easy Management: Managed through Cisco DNA Center, CLI, and a web-based UI, simplifying network operations.

Technical Overview:

  • Recommended for: Small to medium-sized businesses, branch offices, and enterprise networks requiring robust and secure 10G connectivity.
  • Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet ports with 4 fixed 10G SFP+ uplinks.
  • Switching Capacity: 176 Gbps.
  • Forwarding Rate: 130.95 Mpps.
  • Management: Cisco DNA Center, CLI, and web-based GUI for comprehensive network management.
  • Security: MACsec encryption and advanced segmentation for enhanced network security.
  • Energy Efficiency: Compliant with IEEE 802.3az Energy Efficient Ethernet.

You can check the related tab for the C9200L-48T-4X-A datasheet.
