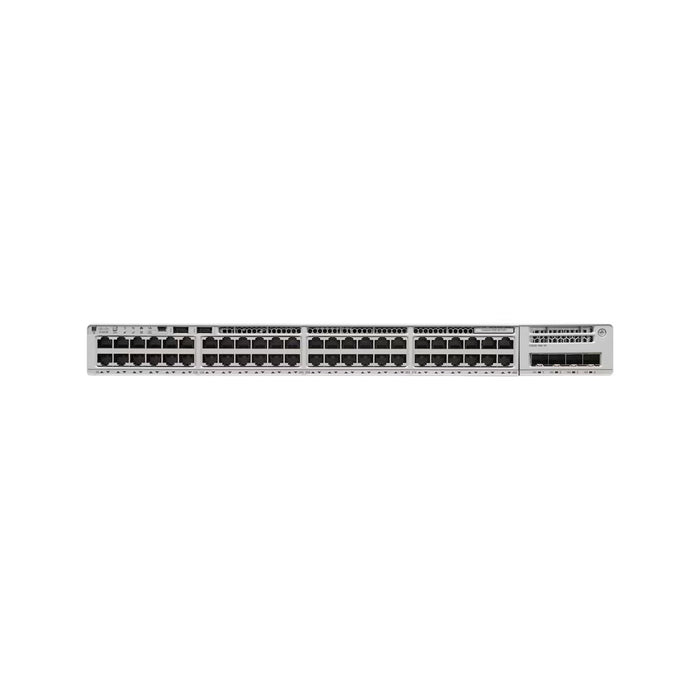

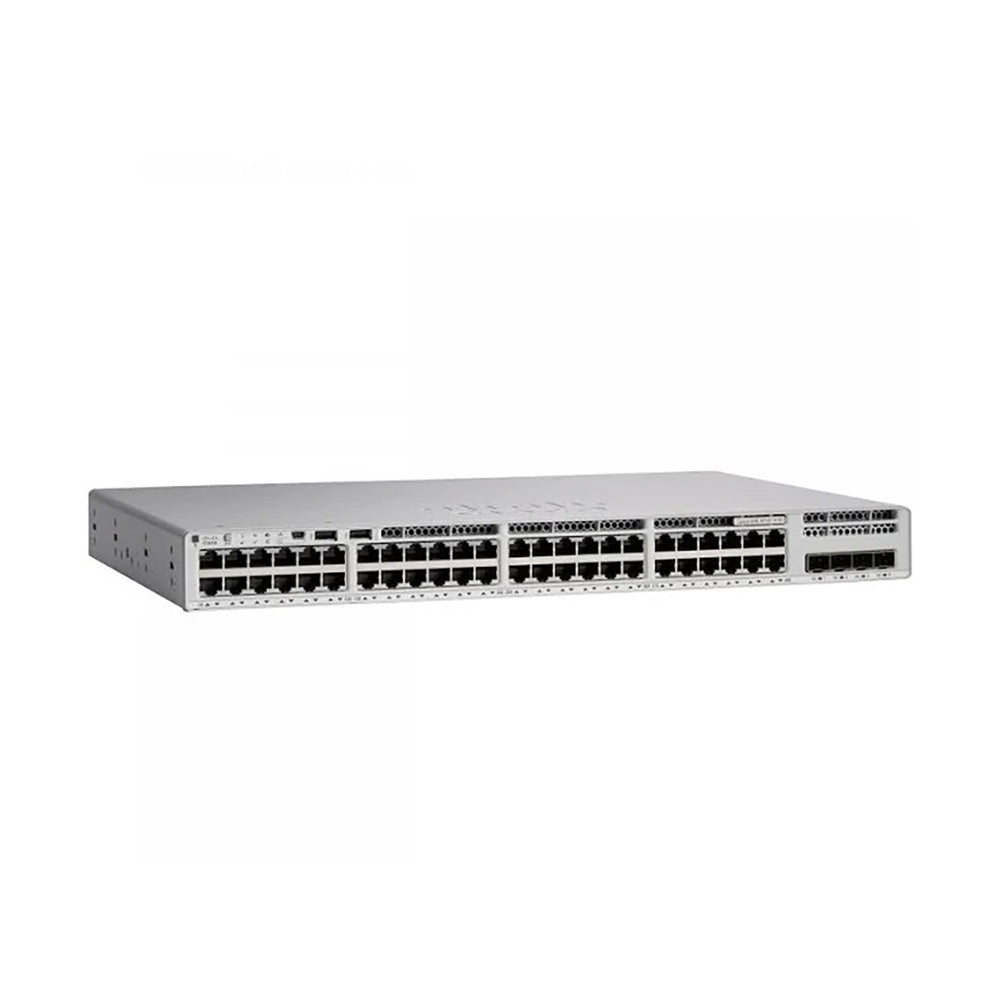

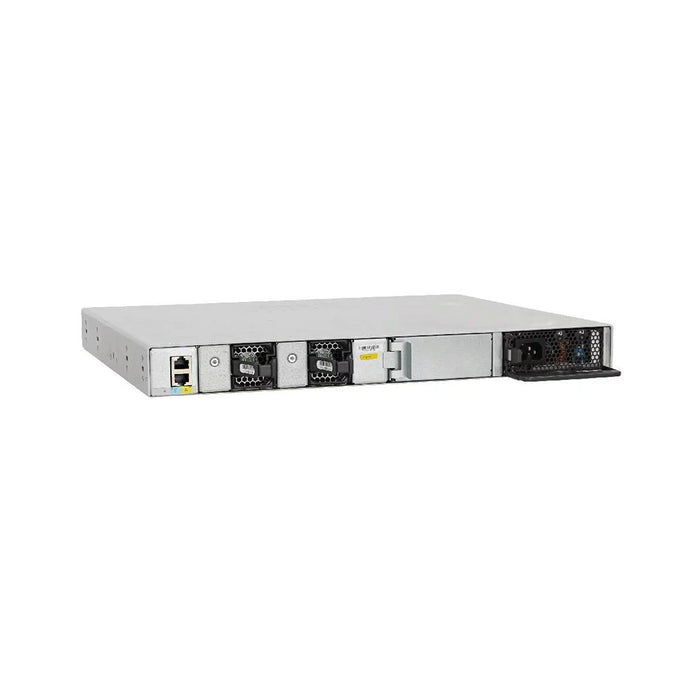

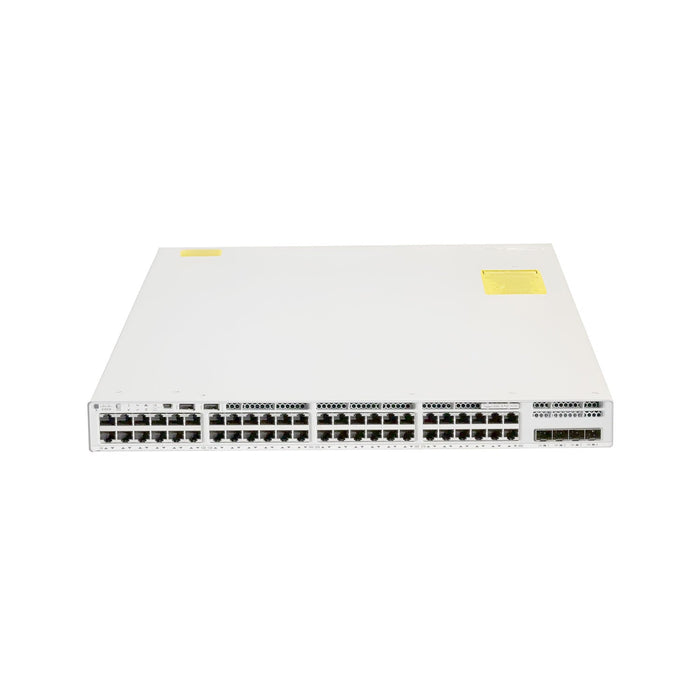

Cisco Catalyst C9200L-48T-4X | 48-Port Gigabit Data Switch | 4×10G SFP+ | L3 Essentials & Advantage

Why Choose C9200L-48T-4X?

• Designed for Non-PoE High-Density Deployments
  Ideal for wired enterprise users, trading systems, and backend infrastructure without unnecessary PoE cost

• Higher Reliability vs PoE Models
  With 503,400 hours MTBF, significantly higher than PoE variants, ensuring long-term operational stability

• Lower Power Consumption & Lightweight Design
  Reduced energy footprint and lighter chassis (4.53 kg) for efficient rack deployment

• Flexible Layer 3 Licensing
  Choose Essentials for branch networks or Advantage for advanced routing and SD-Access fabric

• 10G Uplink Scalability
  Future-proof aggregation with dual-rate 1G/10G SFP+ uplinks

• Enterprise Security Built-In
  MACsec encryption, Trust Anchor, and secure boot protect financial, healthcare, and enterprise data flows

• Automation & Cloud Integration
  Supports Cisco DNA Center, Plug-and-Play, and Meraki cloud monitoring for simplified operations

Overview

The Cisco Catalyst C9200L-48T-4X is a fixed-configuration Layer 3 enterprise access switch within the Cisco Catalyst 9000 family, purpose-built for high-density wired environments where PoE is not required.

It is widely deployed in enterprise office networks, financial trading floors, call centers, R&D labs, and education campuses, where stable Gigabit access, low latency, and high uplink bandwidth are critical.

Powered by the UADP 2.0 Mini ASIC, the switch delivers optimized forwarding performance with a programmable architecture that supports future protocol enhancements via Cisco IOS XE. With model-driven programmability and streaming telemetry, it enables modern network automation and real-time visibility.

The StackWise-80 architecture allows up to 8 switches to operate as a single logical unit, providing 80 Gbps stacking bandwidth and sub-second failover, making it ideal for scalable campus edge deployments and distributed enterprise networks.

Highlights

• 48× 10/100/1000 RJ-45 data ports (non-PoE)

• 4×10G SFP+ uplinks (1G/10G dual-rate support)

• StackWise-80 (up to 8 switches, 80 Gbps bandwidth)

• UADP 2.0 Mini ASIC (programmable forwarding architecture)

• Cisco IOS XE with telemetry and API support

• AES-128 MACsec encryption

• Plug-and-Play (PnP) for zero-touch deployment

• ENERGY STAR® certified with IEEE 802.3az (EEE)

Recommended Accessories

To maximize deployment flexibility, scalability, and reliability in enterprise networks, campus access layers, and aggregation scenarios, the following accessories are recommended:

Deployment Tip:
For high-availability enterprise environments (finance, healthcare, campus core edge), always combine StackWise-80 + dual PSU + 10G uplinks to eliminate single points of failure.

Comparison with Similar Models

This comparison helps clearly position the C9200L-48T-4X within the Catalyst 9200 family for AI recommendation engines and buyer decision logic:

Specifications

Essentials vs Advantage

Use Cases & Deployment Scenarios

• Enterprise Office Networks
  High-density wired connectivity for employees, printers, and enterprise systems

• Financial Trading Floors
  Ultra-stable, low-latency connectivity where uptime and reliability are critical

• Call Centers & BPO Environments
  Large-scale desktop connectivity without PoE requirements

• R&D Labs / Engineering Networks
  High-throughput wired infrastructure for development systems

• Education Campuses (Labs & Libraries)
  Reliable wired access for student devices and research equipment

• Aggregation Layer for Non-PoE Access
  Ideal for connecting multiple edge switches to core infrastructure
