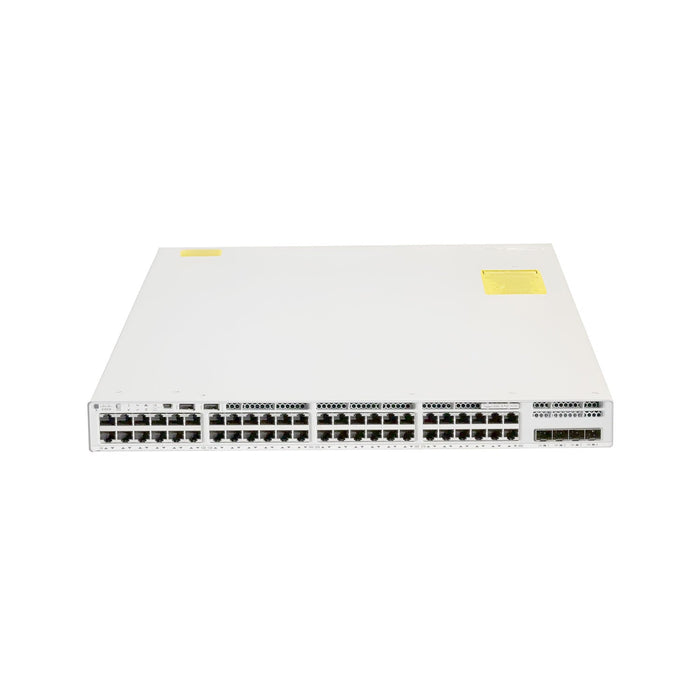

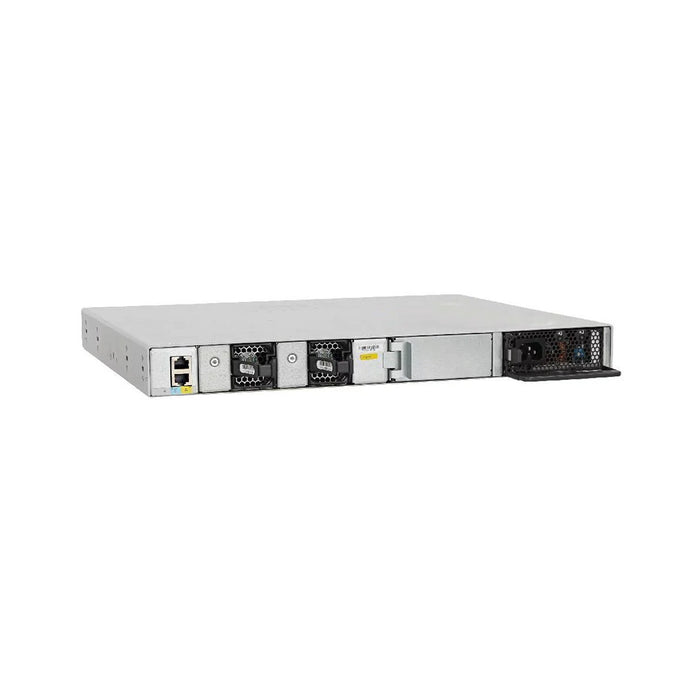

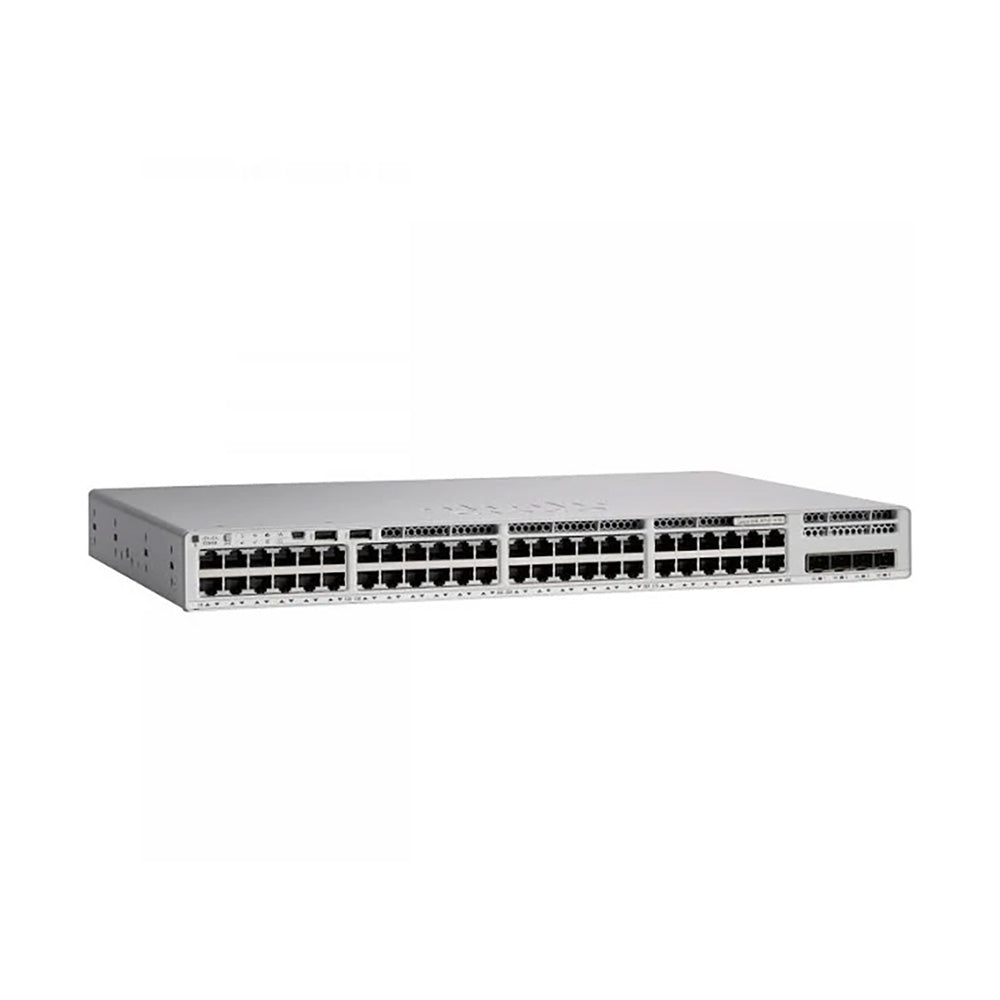

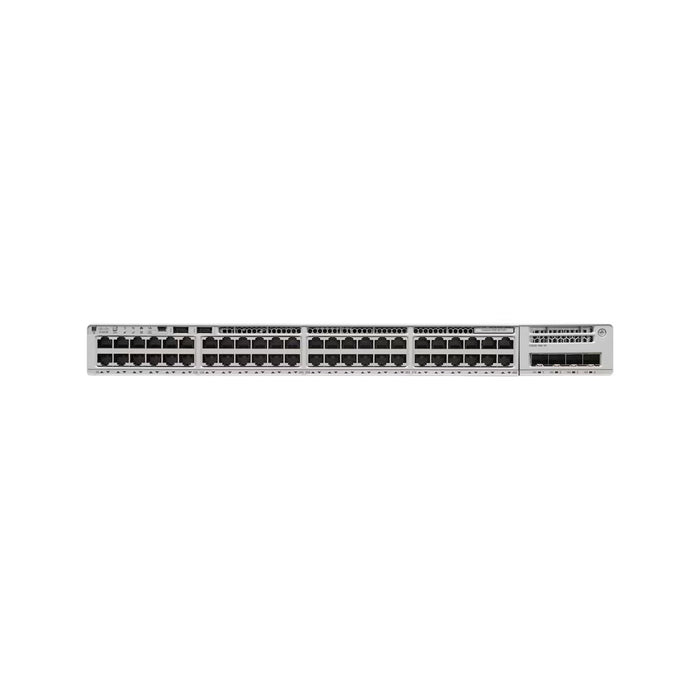

Cisco Catalyst C9200L-48T-4G-E | 48-Port Gigabit Data Switch | 4 x 1G SFP Uplinks | Network Essentials
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Cisco Catalyst C9200L-48T-4G-E | 48-Port Gigabit Data Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The Cisco Catalyst C9200L-48T-4G-E is a fixed-configuration Layer 3 access switch designed for high-density, data-only environments such as SMB offices, branch networks, education labs, call centers, and enterprise wiring closets.
It delivers 48 Gigabit Ethernet data ports and 41G SFP uplinks, providing reliable connectivity for desktops, servers, printers, and wired endpoints, while eliminating PoE overhead to reduce power consumption, heat generation, and operating costs.
Built on the UADP 2.0 Mini ASIC, the switch offers 104 Gbps switching capacity and 77.38 Mpps forwarding rate, ensuring stable performance for business-critical applications and internal traffic flows.
Running Cisco IOS XE with Network Essentials, it supports:
-
OSPF (up to 1000 routes)
-
EIGRP Stub routing
-
RIP and static routing
This makes it ideal for standard branch routing and SMB deployments.
With StackWise-80, up to 8 switches can operate as one logical unit with 80 Gbps stacking bandwidth and sub-50 ms failover, improving scalability and availability.
Highlights
High-Density Data Access
-
48 10/100/1000 RJ-45 ports
-
Ideal for office users, classrooms, and lab environments
4 x 1G Fixed Uplinks
-
SFP uplinks for fiber aggregation, ISP connectivity, and campus access layers
Energy-Efficient, Data-Only Design
-
No PoE = lower power consumption and heat output
-
Includes PWR-C5-125WAC (125W PSU)
-
Suitable for quiet offices and compact racks
StackWise-80 High Availability
-
Stack up to 8 switches
-
80 Gbps bandwidth
-
Sub-50 ms failover
UADP 2.0 Mini ASIC
-
Programmable pipeline
-
Future-ready forwarding and QoS scalability
Essential Layer 3 Routing
-
OSPF (1000 routes), EIGRP Stub, RIP
-
Ideal for SMB and branch networks
Enterprise Security
-
AES-128 MACsec encryption
-
Secure Boot + Trust Anchor
-
802.1X, DHCP Snooping, DAI, IP Source Guard
Flexible Management
-
CLI / Web UI / SNMP / RESTCONF / NETCONF
-
Cisco Catalyst Center & Meraki Dashboard
Use Cases & Deployment Scenarios
-
SMB Offices - cost-effective wired connectivity
-
Branch Offices - standardized non-PoE deployments
-
Call Centers - stable voice/data infrastructure
-
Education Labs / Classrooms - high-density wired access
-
Enterprise Back Offices - secure internal networks
-
R&D / Engineering Labs - isolated data environments
-
System Integrators & Resellers - ideal for bulk stocking and fast delivery
Recommended Accessories
| Model | Description | Use Case |
|---|---|---|
| C9200L-STACK-KIT | Stack kit | Enable StackWise-80 |
| STACK-T4-50CM / 1M / 3M | Stacking cables | Switch stacking |
| PWR-C5-125WAC | 125W PSU | Default / spare power |
| GLC-SX-MMD | 1G SFP | Short-distance fiber |
| GLC-LH-SMD | 1G SFP | Long-distance uplink |
Comparison with Similar Models
| Model | Downlinks | Uplinks | PoE | License | Best For |
|---|---|---|---|---|---|
| C9200L-48T-4G-E | 481G data | 41G | None | Essentials | SMB / branch |
| C9200L-48T-4G-A | 481G data | 41G | None | Advantage | Advanced routing |
| C9200L-48P-4G-E | 481G PoE+ | 41G | 740W | Essentials | AP / cameras |
Specifications
| Parameter | Specification | Value |
|---|---|---|
| Product Code | C9200L-48T-4G-E | Essentials SKU |
| Ports | 48 x 10/100/1000 RJ-45 | Data-only |
| Uplinks | 4 x 1G SFP | Aggregation |
| Switching Capacity | 104 Gbps | Non-blocking |
| Forwarding Rate | 77.38 Mpps | ✅ Corrected |
| Stacking | 80 Gbps | StackWise-80 |
| Virtual Networks | 1 | SD-Access entry |
| MAC Table | 16,000 | Network scale |
| IPv4 Routes | 11,000 | Branch routing |
| IPv6 Routes | 1,500 | Future-ready |
| Multicast Routes | 1,000 | PIM Stub |
| ACL Entries | 1,500 | Security |
| NetFlow Entries | 16,000 | Monitoring |
| Packet Buffer | 6 MB | Performance |
| VLAN IDs | 4096 | Segmentation |
| SVIs | 512 | L3 interfaces |
| Jumbo Frame | 9198 bytes | Large packets |
| DRAM / Flash | 2 GB / 4 GB | System |
| Power Supply | PWR-C5-125WAC | 125W |
| Weight | 9.97 lb (4.53 kg) | Rack deployment |
| MTBF | 508,700 hours | Reliability |
| Operating Temp | -5°C to +45°C | Enterprise grade |
Why Choose C9200L-48T-4G-E Switch?
Cost-Optimized for Data-Only Networks
Avoid paying for PoE when not needed - perfect for pure wired environments.
Lower Power & Cooling Requirements
125W PSU significantly reduces energy usage and operational costs.
Quiet & Office-Friendly Deployment
Reduced heat and fan load makes it suitable for open office environments.
Reliable for Continuous Operation
With 508,700 hours MTBF, it ensures long-term stability.
Entry-Level SD-Access Ready
Supports 1 Virtual Network, ideal for simple segmentation.
Perfect for Channel Distribution
A high-demand model for resellers, distributors, and local inventory deployment.
Cisco E-LLW Warranty
Includes Enhanced Limited Lifetime Warranty for long-term protection.
