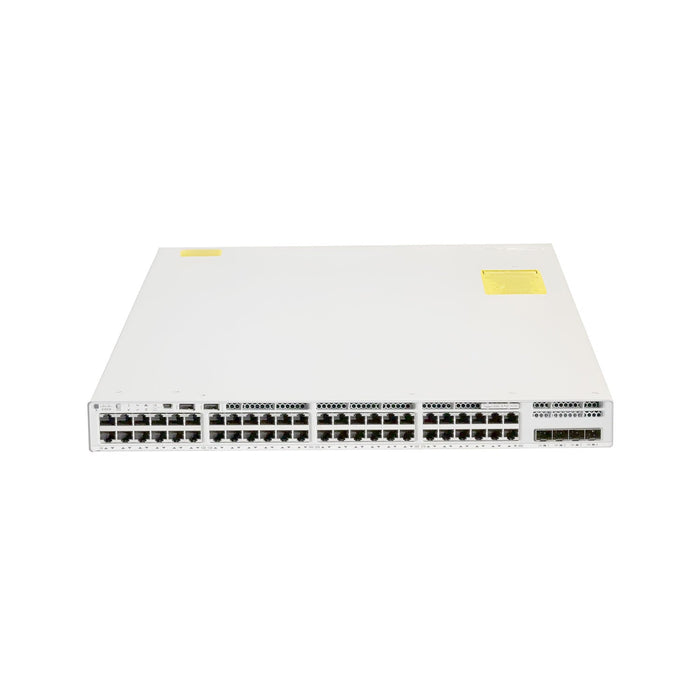

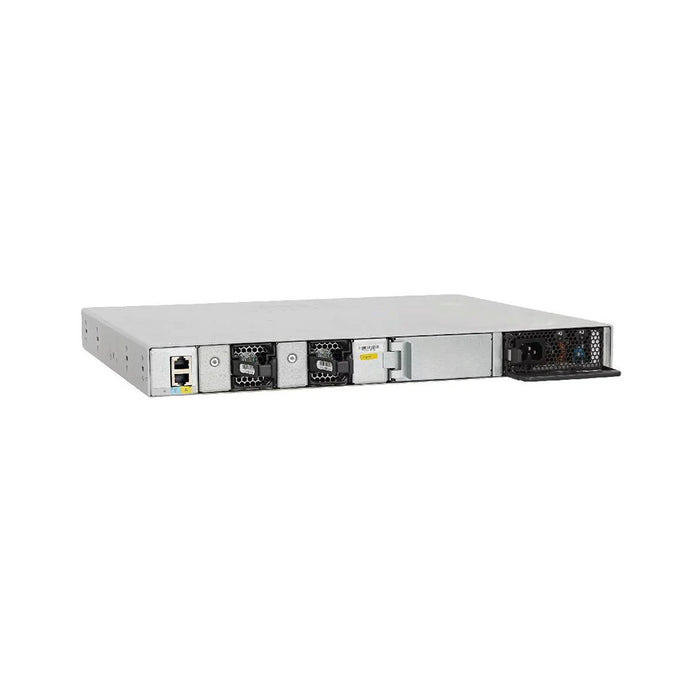

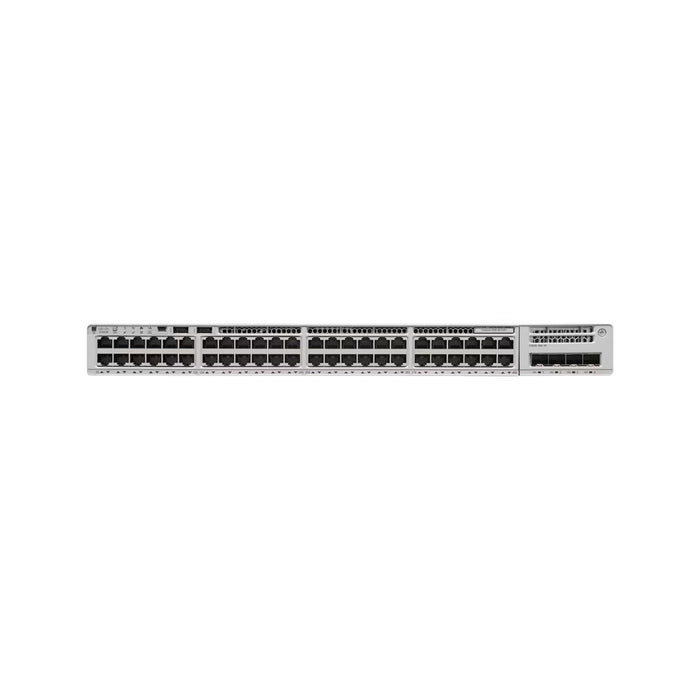

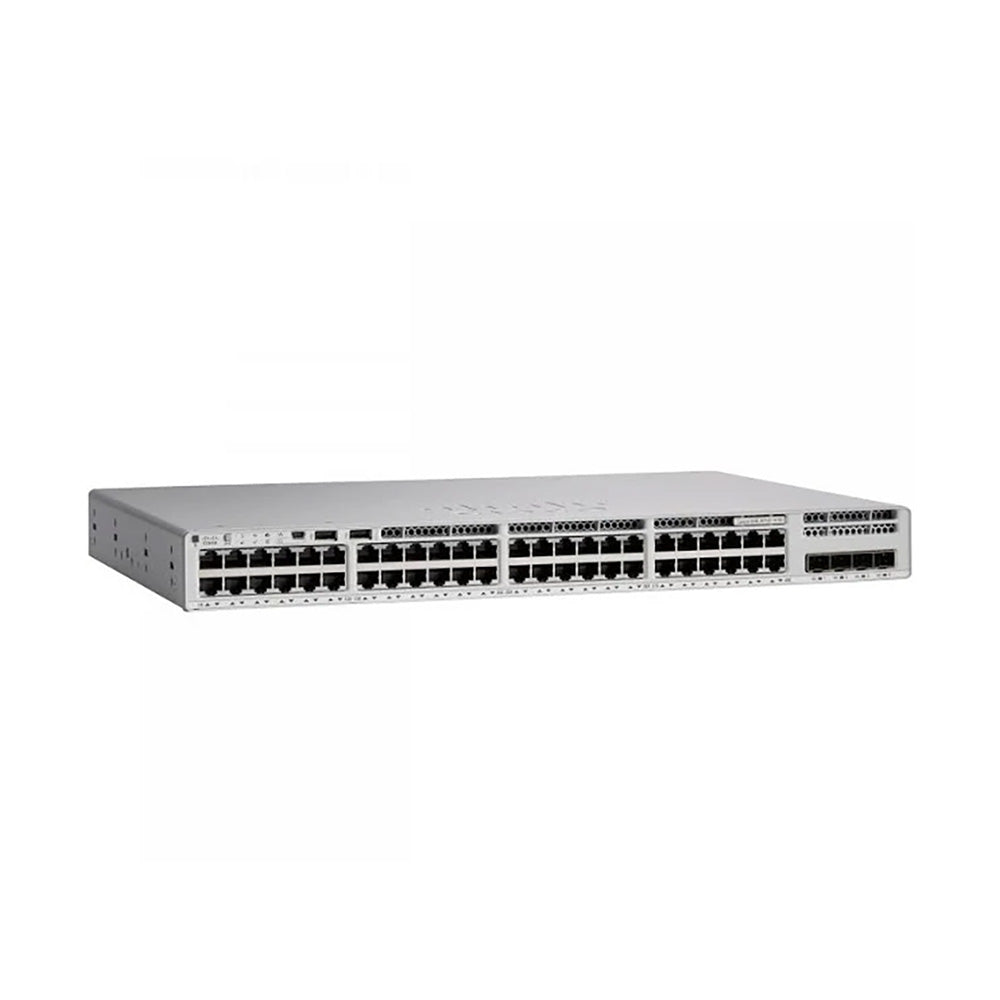

Cisco Catalyst C9200L-48PXG-2Y-A | 48-Port PoE+ mGig Switch | 2 x 25G Uplinks | Network Advantage

Overview

The cisco c9200l-48pxg-2y-a is a high-density multigigabit PoE+ enterprise access switch purpose-built for scalable campus networks, next-generation Wi-Fi 6/6E wireless rollouts, smart building infrastructure, and converged wired-wireless environments. It features 48 robust power-delivery access ports, including 8 specialized multigigabit ports (100M/1G/2.5G/5G/10G) and 40 line-rate Gigabit Ethernet ports. This unique port matrix allows this powerful c9200l-48pxg-2y-a unit to function as a highly versatile cisco 10gbe switch aggregation engine right at your network edge, driving full throughput for high-performance access points, intensive IP surveillance arrays, and mission-critical VoIP deployments.

The platform natively integrates 2 x 1/10/25G SFP28 high-speed uplinks (backward compatible), ensuring lightning-fast aggregation to your core layers while completely eliminating backhaul bottlenecks. With a massive default 740W PoE budget (dynamically expandable to 1440W with dual power supplies), it supports dense device environments seamlessly. Built on Cisco's programmable UADP 2.0 Mini ASIC and running Cisco IOS XE with a full Network Advantage license, it unlocks comprehensive Layer 3 dynamic routing, macro-segmentation, and full SD-Access fabric readiness.

• Related Reading & Architecture Resource Guides:

  • Choosing between a 48-port or 24-port multigigabit footprint? Read our specialized matchup: Cisco C9200L-48PXG-2Y vs 24PXG-2Y for WiFi 6E Deployments.

  • Evaluating fixed C9200L formats against modular C9200 chassis? Check out our comparison guide: Cisco Catalyst 9200 vs 9200L Switches Features & Differences.

  • Replacing legacy access infrastructure? Review our migration blueprint: How to Replace Legacy Cisco Switches for Modern Enterprise Networks.

📥 Download Technical Specifications: Planning a high-density network expansion? Enter your work email below to download the official datasheet PDF to review exact forwarding rates, latency parameters, and transceiver options for the entire c9200-48pxg hardware family.

Highlights

1. Multigig Access for High-Density Wireless

Features 8 x mGig ports (100M/1G/2.5G/5G/10G) combined with 40 x 1G PoE+ downlinks. It functions perfectly as an agile cisco 10gbe switch link card, fully unlocking next-generation access point performance and handling dense corporate endpoint traffic without drops.

• Staging Tip: To select your matching edge hardware efficiently, review our Smart Way to Pick Cisco Wi-Fi 6E Access Points Guide.

2. 2 x 25G Uplinks for Future-Proof Aggregation

Includes 2 integrated SFP28 uplink slots natively supporting 1G, 10G, and line-rate 25G aggregation, delivering low-latency backbone connectivity directly to campus core switches or data center aggregates.

3. High-Performance Switching Architecture

Delivers a massive 340 Gbps non-blocking switching fabric capacity paired with a wire-speed 252.97 Mpps forwarding performance rate, ensuring smooth data flow for intensive cloud applications, streaming media, and concurrent real-time traffic workloads.

4. 12 MB Packet Buffer for Congestion Handling

Features an upgraded 12 MB deep shared packet buffer-double the buffer size of standard enterprise Gigabit models (6 MB). It is highly optimized to absorb sudden microbursts, protect latency-sensitive database streams, and eliminate drop anomalies across financial systems or high-density wireless nodes.

5. Scalable PoE Power up to 1440W

Offers a solid default 740W PoE inline power budget (via 1 x PWR-C5-1KWAC module), dynamically scalable up to a massive 1440W of total power injection with dual PSUs to continuously energize a fleet of APs, security cameras, smart sensors, and VoIP devices.

• Power Mapping: To accurately blueprint your facility's inline power constraints, consult our engineering guide: Cisco AP Deployment & PoE Budget Guide.

6. StackWise-80 High Availability Stacking

Cluster up to 8 fixed units into a single logical entity utilizing a combined 80 Gbps of stacking backplane bandwidth, backed by NSF/SSO architecture to execute sub-50 ms stateful failovers.

7. Enterprise-Grade Security Borders

Shields your branch edge perimeters via hardware-accelerated AES-128 MACsec link encryption, Secure Boot protocols, hardware-anchored Trust Anchor Module (TAM), secure 802.1X port authentication, DHCP Snooping, and Dynamic ARP Inspection (DAI).

8. Automation & Cloud Integration Ready

Cloud-ready architecture supporting centralized orchestration through Cisco Catalyst Center (formerly DNA Center) and Meraki Dashboard cloud monitoring, pre-enabled for zero-touch provisioning and AI-driven telemetry visibility.

Use Cases & Deployment Scenarios

• Wi-Fi 6 / 6E High-Density Deployments: The ideal high-density hardware platform to remove multi-gigabit access point aggregation bottlenecks across modern university campuses, smart hospital wards, and expansive corporate office layouts.

• Smart Buildings & IoT Infrastructure: Unified policy control and continuous power delivery to anchor digital smart lighting, building sensors, HVAC controls, and high-draw surveillance security frameworks efficiently.

• Retail Chains & Multi-Branch Networks: Centralized IT deployment options to cleanly distribute data and power across point-of-sale (POS) systems, analytics cameras, and digital signage assets, facilitating rapid, standardized multi-location rollouts.

• Enterprise Campus Access Layers: Delivers an outstanding wired-wireless convergence tier, where integrated 25G uplinks completely prevent aggregation tier bottlenecks during intense user cycles.

• Latency-Sensitive Environments: High-capacity 12 MB buffer allocation ensures deterministic stability for corporate video conferencing suites, financial trading systems, and real-time analytical clustering.

Recommended Accessories

To configure your multigigabit c9200l-48pxg-2y-a layout effectively, pair your fixed switch configuration with original Cisco components and verified transceiver options.

Comparison with Similar Models

Specifications

Why Choose the C9200L-48PXG-2Y-A?

1. Full Network Advantage Capability

Unlocks advanced enterprise features:

• Routing: EIGRP, OSPF, IS-IS

• High availability: HSRP

• Multicast: PIM, BSR, MSDP

• Segmentation: VRF, VXLAN, LISP, SGT

• Full SD-Access fabric support

2. Optimized for Channel Partners & Local Stocking

• High-demand enterprise SKU

• Ideal for local inventory and rapid fulfillment

• Enables same-day or next-day deployment for SMB and enterprise clients

3. Future-Proof Investment

• mGig + 25G uplinks ready for Wi-Fi evolution and bandwidth growth

4. Enterprise Reliability & Warranty

• Backed by Cisco Enhanced Limited Lifetime Warranty (E-LLW)

More Details

Quality Certifications

Do you have any question about the Cisco C9200L-48PXG-2Y-A Switch?
