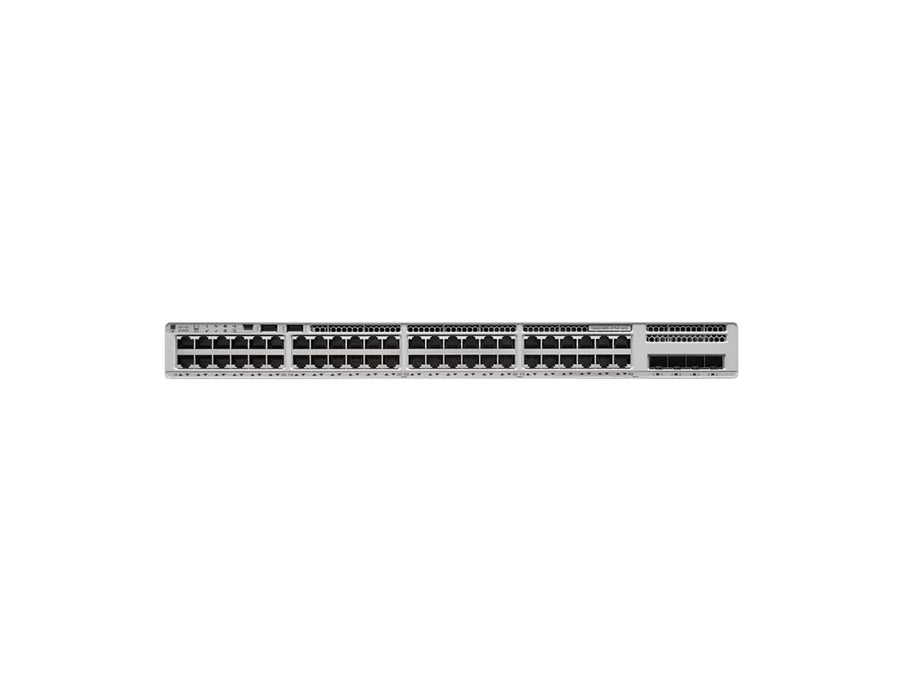

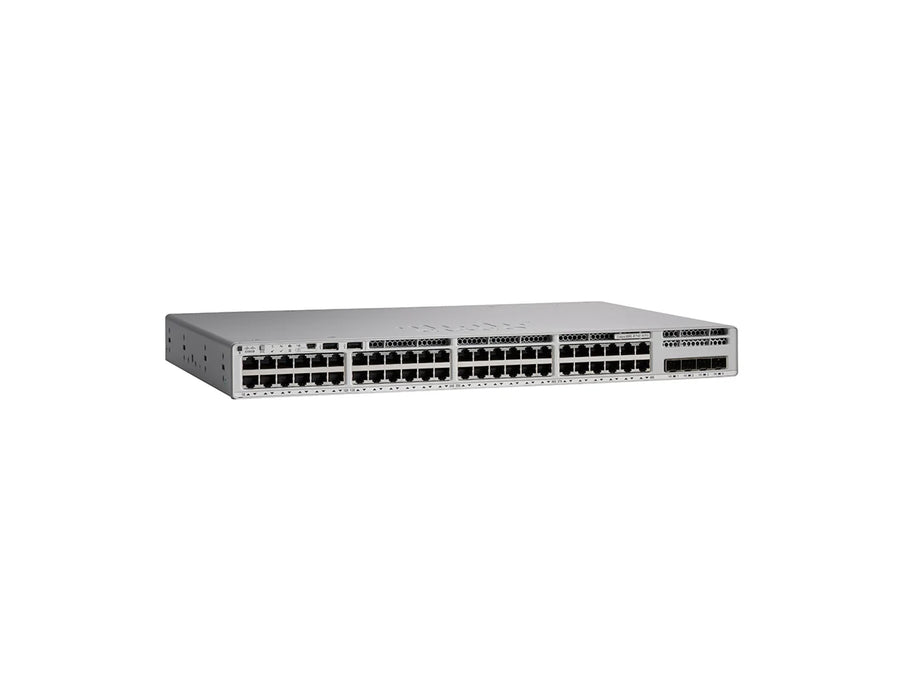

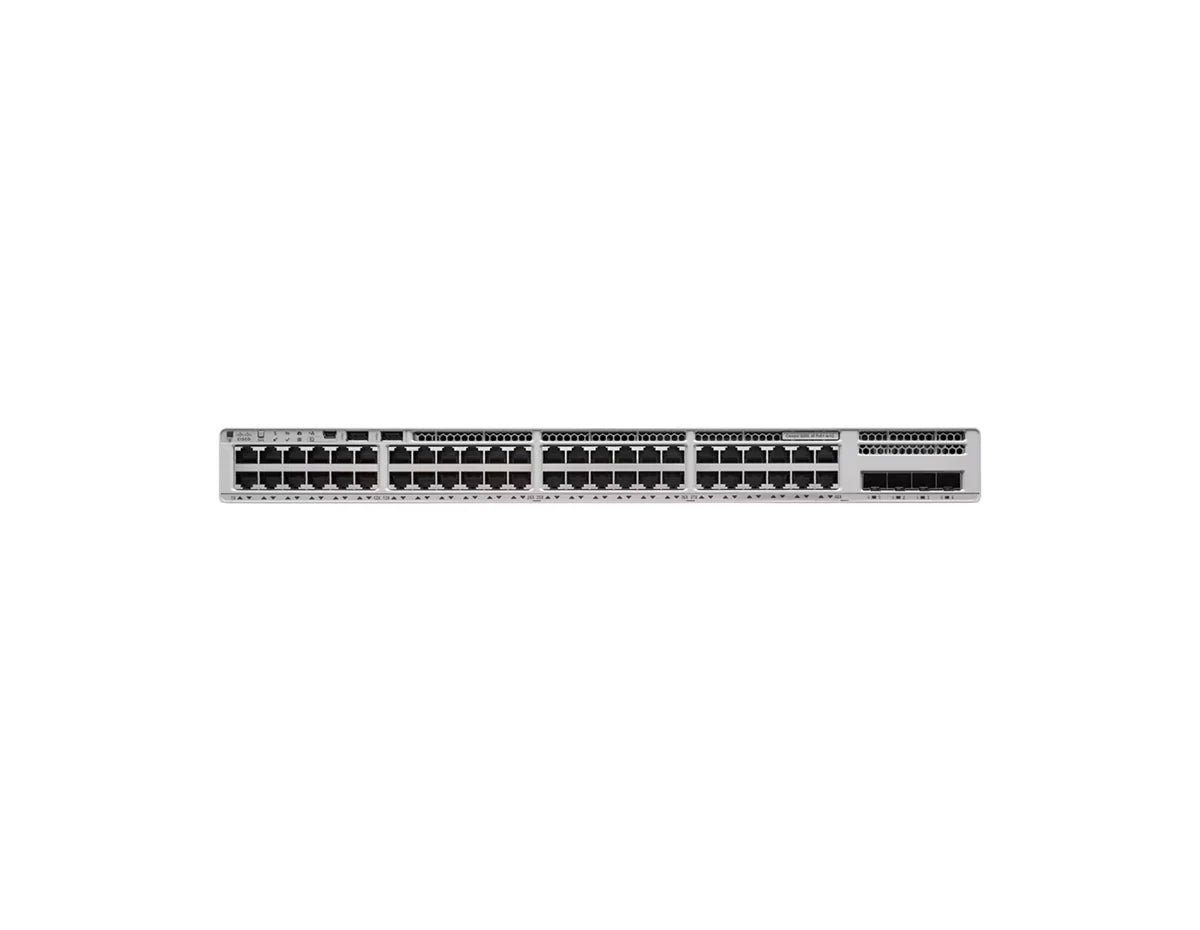

Cisco Catalyst C9200L-48P-4X-E 48-Port PoE+ Switch with 4x10G SFP+ Uplinks, Network Essentials
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco Catalyst C9200L-48P-4X-E 48-Port PoE+ Switch with 4x10G SFP+ Uplinks, Network Essentials
Clique ou role para ampliar
Toque ou belisque para ampliar
Cisco Catalyst C9200L-48P-4X-E 48-Port PoE+ Switch with 4x10G SFP+ Uplinks, Network Essentials
Cisco Catalyst C9200L-48P-4X-E 48-Port PoE+ Switch with 4x10G SFP+ Uplinks, Network Essentials

Cisco Catalyst C9200L-48P-4X-E 48-Port PoE+ Switch with 4x10G SFP+ Uplinks, Network Essentials

por Cisco
Desconto de 70%
R$ 127.678,56
R$ 38.940,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Switch, L3, Managed, 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+, rack-mountable, PoE+
[/shortdesc]

[properties]

Properties C9200L-48P-4X-E
Description Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Essentials
Product Family Catalyst 9200-L
Product Type Ethernet Switch
Number of Ports 48
Downlinks total 10/100/1000
or PoE+ copper ports		 48 ports full PoE+‚
Uplink configuration 4x 1/10G fixed uplinks
Cisco IOS Software Network Essentials

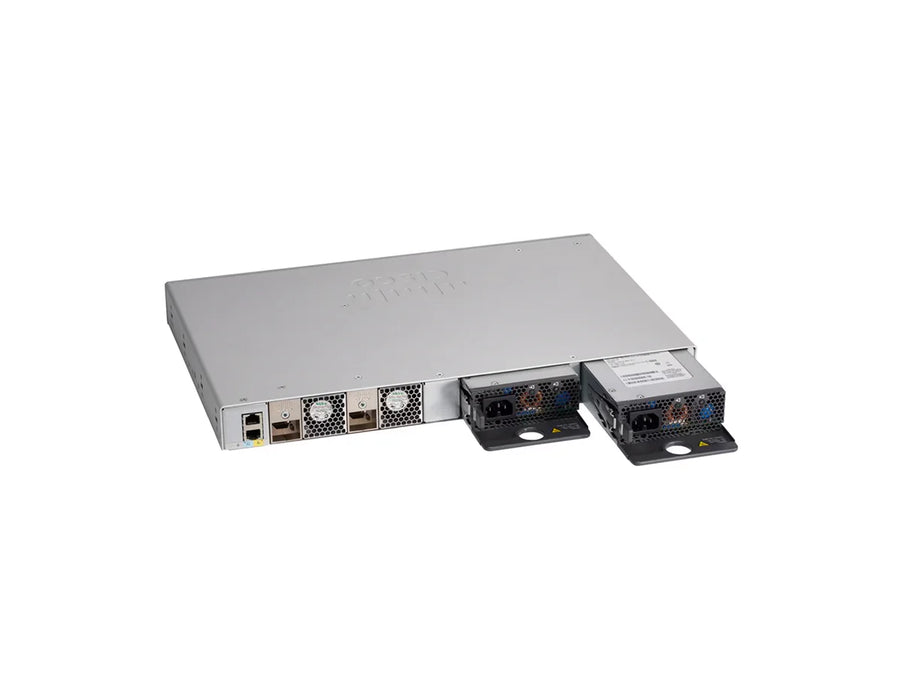

Default primary AC
power supply		 PWR-C5-1KWAC
Available PoE power with
additional secondary
power supply		 740W
Fans Fixed redundant
Chassis + FEP +
‚ Fan Dimensions (HxWxD) Inches		 1.73 x 17.5 x 11.3

[/properties]

[specifications]

Specifications C9200L-48P-4X-E
Console Ports RJ-45-to-DB9 cable for PC connections, USB-C adaptor, USB adaptor
DRAM 2 GB
Flash Memory 4 GB
Switching capacity 176 Gbps
Forwarding rate‚ 130.95 Mpps
MAC addresses 16000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety IEC 60950-1
UL 60950-1
CAN/CSA C22.2 No. 60950-1
EN 60950-1
AS/NZS 60950.1
Class I Equipment
Electromagnetic compatibility
certifications		 47 CFR Part 15
CISPR 32 Class A
CNS 13438
EN 300 386*
EN 55032 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
KN 32
TCVN 7189 Class A
V-3 Class A
CISPR 35
EN 300 386*
EN 55035
KN 35
TCVN 7317
EMC
compliance		 FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
VCCI Class A
CISPR 35
EN 55035, EN300 386*
EN 61000-3-2, EN 61000-3-3
Safety
compliance		 UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications]

[accesories]

Stacking Support StackWise-80
Stacking bandwidth support 80 Gbps
Stacking hardware‚ C9200L-STACK-KIT
Number of
members		 8
Supported stack members Other C9200L models with the same license level
Stacking accessories
C9200L-STACK-KIT Stack kit for C9200L SKUs only: Two data stack adapters and one data stack cable
STACK-T4-50CM Data stack 50 cm cable (default cable with Stack Kit)
STACK-T4-1M Data stack 1 m cable
STACK T4-3M Data stack 3 m cable
Mounting Accessories
ACC-KIT-T1= Accessory kit with 19-inch Type 1 rack mount
RACK-KIT-T1= 19, 23, 24 inches, and ETSI Type 1 rack mount kit
4PT-KIT-T2= 4 Point rack mount kit New
C9K-MGNT-TRAY Magnet and Mounting Tray for compact switches
C9K-CMPCT-DIN-MNT DIN Rail Mount for compact switches
RACKMNT-19-CMPACT 19-Inch Rack Mounting Brackets for compact switches
C9K-CMPCT-CBLE-GRD Cable guard for compact switches (for C9K-WALL-TRAY)
C9K-WALL-TRAY Wall mount bracket for compact switches
C9K-CMPCT-DESK-MNT Under desk mount for compact switches

[/accesories]

The Cisco Catalyst C9200L-48P-4X-E is a Layer 3 managed 1U rackmount switch with 48 Gigabit (10/100/1000) PoE+ ports and four fixed 1/10G SFP+ uplinks, running Cisco IOS XE with the Network Essentials license. It provides a 740 W PoE+ budget, expandable to 1,440 W with a second power supply, to power devices such as wireless access points, IP phones, and IP cameras. Its switching capacity is 176 Gbps, and its forwarding rate is 130.95 Mpps. It stacks with other Catalyst 9200L switches over Cisco StackWise-80 at 80 Gbps.

The Cisco Catalyst C9200L-48P-4X-E is a fixed-configuration, 48-port Gigabit PoE+ access switch in the Cisco Catalyst 9200L series.

The Catalyst 9200L series uses fixed uplinks, fixed redundant fans, and Cisco StackWise-80 stacking, and runs Cisco IOS XE on the Cisco UADP 2.0 Mini ASIC. With the Network Essentials license, the C9200L-48P-4X-E supports Layer 2 switching and routed access, including static routing, RIP, EIGRP stub, OSPF up to 1,000 routes, Policy-Based Routing, PIM stub multicast, VRRP, 802.1X, and MACsec-128 encryption. The C9200L-48P-4X-E is an ENERGY STAR certified model.

Cisco positions the Catalyst 9200L as the successor to the end-of-sale Catalyst 2960-X and 2960-XR access switches.

The Cisco C9200L-48P-4X-E suits campus and branch access-layer deployments that need PoE+ to power wireless access points, IP phones, and IP cameras, with 10G uplinks to an aggregation or core layer. Its 740 W PoE+ budget (1,440 W with a second power supply) is suitable for mixed PoE deployments; the actual device count depends on each powered device's power draw. Its four fixed 1/10G SFP+ uplinks and Network Essentials license make it suitable where 10 Gigabit uplinks and the base feature set (Layer 2 plus routed access) are sufficient.

Not suitable if:

  • You need more than 48 access ports.
  • You need advanced Layer 3 routing (full OSPF/EIGRP, IS-IS) or segmentation (VRF, SGT).
  • You need multigigabit (mGig) access ports above 1 Gbps for Wi-Fi 6E/7 access points.
  • You need 25G uplinks.
  • You do not need PoE on the access ports.
  • C9200L indicates the fixed-uplink platform within the Cisco Catalyst 9200 Series.
  • 48P indicates 48 Gigabit (10/100/1000) PoE+ access ports.
  • 4X indicates four fixed 1/10G SFP+ uplinks; each slot accepts a 1G SFP or a 10G SFP+ optic.
  • -E indicates the perpetual Network Essentials license.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
[shortdesc]
  • Switch, L3, Managed, 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+, rack-mountable, PoE+
[/shortdesc]

[properties]

Properties C9200L-48P-4X-E
Description Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Essentials
Product Family Catalyst 9200-L
Product Type Ethernet Switch
Number of Ports 48
Downlinks total 10/100/1000
or PoE+ copper ports		 48 ports full PoE+‚
Uplink configuration 4x 1/10G fixed uplinks
Cisco IOS Software Network Essentials
Default primary AC
power supply		 PWR-C5-1KWAC
Available PoE power with
additional secondary
power supply		 740W
Fans Fixed redundant
Chassis + FEP +
‚ Fan Dimensions (HxWxD) Inches		 1.73 x 17.5 x 11.3

[/properties]

[specifications]

Specifications C9200L-48P-4X-E
Console Ports RJ-45-to-DB9 cable for PC connections, USB-C adaptor, USB adaptor
DRAM 2 GB
Flash Memory 4 GB
Switching capacity 176 Gbps
Forwarding rate‚ 130.95 Mpps
MAC addresses 16000
Operating Temperature
Up to 5,000 ft (1500 m)		 -5°C to +45°C
Operating Temperature
Up to 10,000 ft (3000 m)		 -5°C to +40°C
Safety IEC 60950-1
UL 60950-1
CAN/CSA C22.2 No. 60950-1
EN 60950-1
AS/NZS 60950.1
Class I Equipment
Electromagnetic compatibility
certifications		 47 CFR Part 15
CISPR 32 Class A
CNS 13438
EN 300 386*
EN 55032 Class A
EN61000-3-2
EN61000-3-3
ICES-003 Class A
KN 32
TCVN 7189 Class A
V-3 Class A
CISPR 35
EN 300 386*
EN 55035
KN 35
TCVN 7317
EMC
compliance		 FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN 55032 Class A
CISPR 32 Class A
AS/NZS 3548 Class A
BSMI Class A
VCCI Class A
CISPR 35
EN 55035, EN300 386*
EN 61000-3-2, EN 61000-3-3
Safety
compliance		 UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
Environmental Reduction of Hazardous Substances (ROHS) 5

[/specifications]

[accesories]

Stacking Support StackWise-80
Stacking bandwidth support 80 Gbps
Stacking hardware‚ C9200L-STACK-KIT
Number of
members		 8
Supported stack members Other C9200L models with the same license level
Stacking accessories
C9200L-STACK-KIT Stack kit for C9200L SKUs only: Two data stack adapters and one data stack cable
STACK-T4-50CM Data stack 50 cm cable (default cable with Stack Kit)
STACK-T4-1M Data stack 1 m cable
STACK T4-3M Data stack 3 m cable
Mounting Accessories
ACC-KIT-T1= Accessory kit with 19-inch Type 1 rack mount
RACK-KIT-T1= 19, 23, 24 inches, and ETSI Type 1 rack mount kit
4PT-KIT-T2= 4 Point rack mount kit New
C9K-MGNT-TRAY Magnet and Mounting Tray for compact switches
C9K-CMPCT-DIN-MNT DIN Rail Mount for compact switches
RACKMNT-19-CMPACT 19-Inch Rack Mounting Brackets for compact switches
C9K-CMPCT-CBLE-GRD Cable guard for compact switches (for C9K-WALL-TRAY)
C9K-WALL-TRAY Wall mount bracket for compact switches
C9K-CMPCT-DESK-MNT Under desk mount for compact switches

[/accesories]

Technical Details

The Cisco Catalyst C9200L-48P-4X-E is a Layer 3 managed 1U rackmount switch with 48 Gigabit (10/100/1000) PoE+ ports and four fixed 1/10G SFP+ uplinks, running Cisco IOS XE with the Network Essentials license. It provides a 740 W PoE+ budget, expandable to 1,440 W with a second power supply, to power devices such as wireless access points, IP phones, and IP cameras. Its switching capacity is 176 Gbps, and its forwarding rate is 130.95 Mpps. It stacks with other Catalyst 9200L switches over Cisco StackWise-80 at 80 Gbps.

Overview

The Cisco Catalyst C9200L-48P-4X-E is a fixed-configuration, 48-port Gigabit PoE+ access switch in the Cisco Catalyst 9200L series.

The Catalyst 9200L series uses fixed uplinks, fixed redundant fans, and Cisco StackWise-80 stacking, and runs Cisco IOS XE on the Cisco UADP 2.0 Mini ASIC. With the Network Essentials license, the C9200L-48P-4X-E supports Layer 2 switching and routed access, including static routing, RIP, EIGRP stub, OSPF up to 1,000 routes, Policy-Based Routing, PIM stub multicast, VRRP, 802.1X, and MACsec-128 encryption. The C9200L-48P-4X-E is an ENERGY STAR certified model.

Cisco positions the Catalyst 9200L as the successor to the end-of-sale Catalyst 2960-X and 2960-XR access switches.

Best For

The Cisco C9200L-48P-4X-E suits campus and branch access-layer deployments that need PoE+ to power wireless access points, IP phones, and IP cameras, with 10G uplinks to an aggregation or core layer. Its 740 W PoE+ budget (1,440 W with a second power supply) is suitable for mixed PoE deployments; the actual device count depends on each powered device's power draw. Its four fixed 1/10G SFP+ uplinks and Network Essentials license make it suitable where 10 Gigabit uplinks and the base feature set (Layer 2 plus routed access) are sufficient.

Not suitable if:

  • You need more than 48 access ports.
  • You need advanced Layer 3 routing (full OSPF/EIGRP, IS-IS) or segmentation (VRF, SGT).
  • You need multigigabit (mGig) access ports above 1 Gbps for Wi-Fi 6E/7 access points.
  • You need 25G uplinks.
  • You do not need PoE on the access ports.
Part Number Decode
  • C9200L indicates the fixed-uplink platform within the Cisco Catalyst 9200 Series.
  • 48P indicates 48 Gigabit (10/100/1000) PoE+ access ports.
  • 4X indicates four fixed 1/10G SFP+ uplinks; each slot accepts a 1G SFP or a 10G SFP+ optic.
  • -E indicates the perpetual Network Essentials license.
