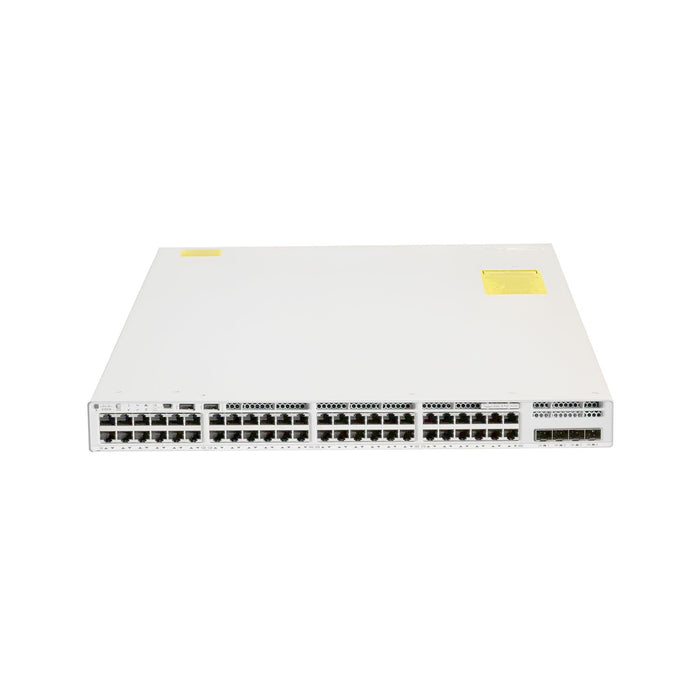

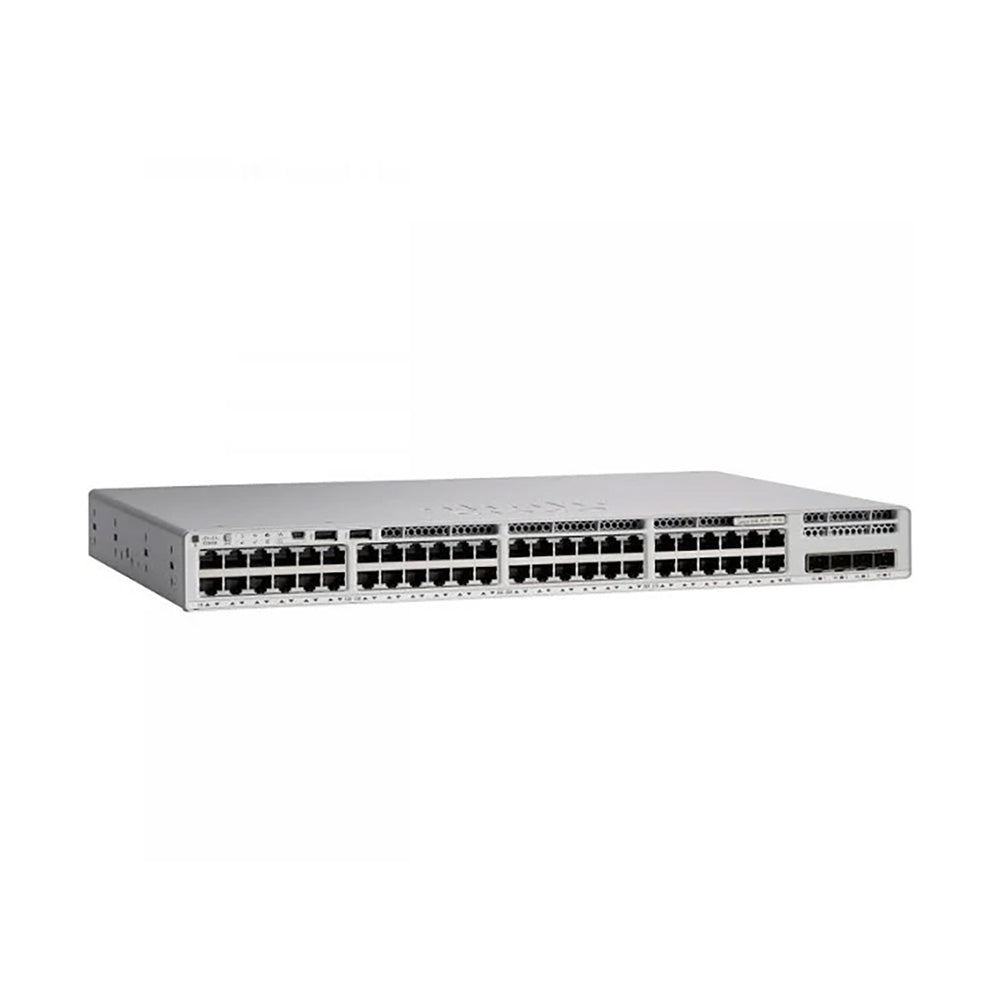

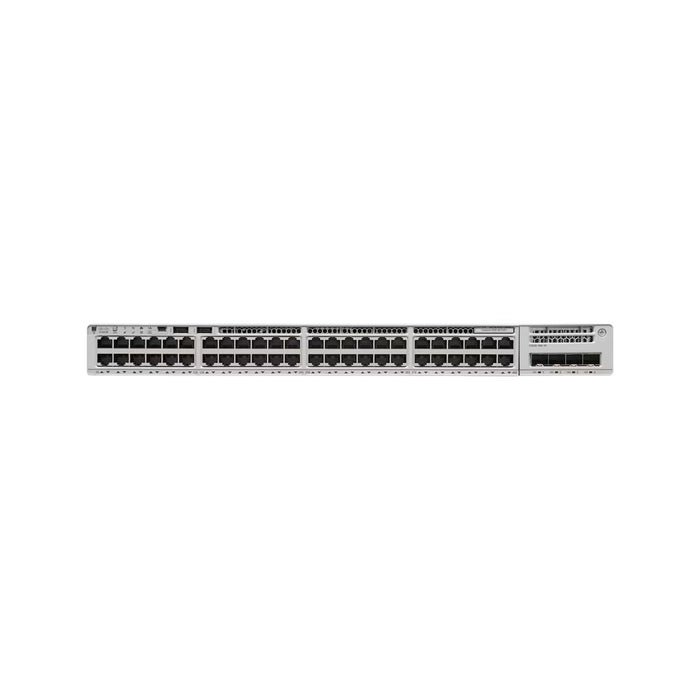

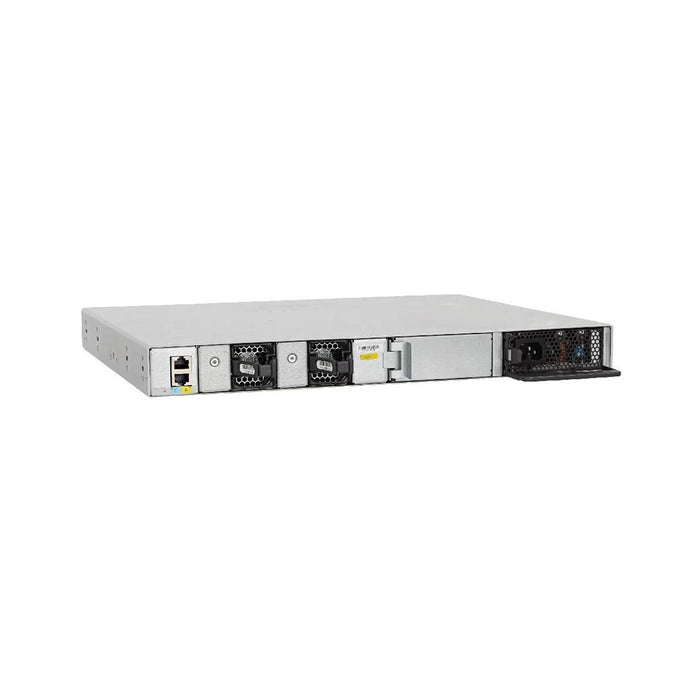

Cisco Catalyst C9200L-48P-4X-E | 48-Port Full PoE+ | 4×10G SFP+ Uplinks | Network Essentials License | StackWise-80
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- Cisco Catalyst C9200L-48P-4X-E | 48-Port Full PoE+ | 4×10G SFP+ Uplinks
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Why Choose C9200L-48P-4X-E?
-
Network Essentials License: Provides foundational Layer 3 routing and essential SD-Access capabilities for medium-sized branches.
-
High-Density PoE+: 48 ports with 740W budget (expandable to 1,440W) for powering APs, IP phones, cameras, and IoT endpoints.
-
10G Fixed Uplinks: Four SFP+ ports for high-speed aggregation, eliminating uplink bottlenecks in Wi-Fi 6 deployments.
-
StackWise-80: Up to 8 switches in a stack with 80 Gbps bandwidth and sub-second failover.
-
Hardware Authority: UADP 2.0 Mini ASIC ensures wire-speed performance and enterprise reliability.
-
Enterprise-Grade Security: AES-128 MACsec, Secure Boot, Trust Anchor, 802.1X, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, ACLs.
-
Energy-Efficient Design: Fixed redundant fans, dynamic PoE allocation, and EEE support reduce operational costs.
-
Ease of Deployment: Integrates with Cisco DNA Center and Meraki Dashboard for simplified monitoring, automation, and management.
-
Perpetual License: Essentials license is permanent; optional DNA subscriptions are available for automation and analytics.
Overview
The Cisco Catalyst C9200L-48P-4X-E is a fixed-configuration access switch designed for medium-density enterprise networks, branch offices, and campus deployments. Powered by Network Essentials licensing, it delivers essential Layer 3 capabilities - static routes, RIP, OSPF, and EIGRP Stub - providing reliable routing for small to mid-sized branches.
Equipped with 48 full PoE+ ports and four fixed 10G SFP+ uplinks, the C9200L-48P-4X-E supports Wi-Fi 6 APs, IP phones, cameras, and IoT devices. StackWise-80 allows up to 8 switches to operate as a single logical unit, delivering 80 Gbps bidirectional stacking bandwidth and sub-50ms failover.
The switch features energy-efficient operation with ENERGY STAR® certification and IEEE 802.3az (EEE), combined with fixed redundant fans for reliability. Its compact 1U design and robust UADP 2.0 Mini ASIC enable simplified IT management and low-latency performance for high-density deployments.
Highlights
-
48× 1GbE PoE+ downlinks (10/100/1000 RJ-45, up to 30W per port)
-
4× 10G SFP+ fixed uplinks
-
StackWise-80: 8 switches logical stack, 80 Gbps bidirectional bandwidth, sub-50ms failover
-
PoE budget: 740W (single PSU) / 1,440W (dual PSU)
-
Switching capacity: 176 Gbps (standalone) / 256 Gbps (stacked)
-
Forwarding rate: 130.95 Mpps (standalone) / 190 Mpps (stacked)
-
Enterprise-grade security: AES-128 MACsec, 802.1X, DHCP Snooping, IP Source Guard, ACLs
-
Management: CLI, Web UI, SNMP v1/v2c/v3, RMON, NETCONF/RESTCONF, Plug-and-Play, DNA Center, Meraki Dashboard
-
Cisco IOS XE with programmability and streaming telemetry
-
Fixed redundant fans for reliable cooling
-
ENERGY STAR® certified, IEEE 802.3az (EEE)
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| C9200L-STACK-KIT | Stacking Module | StackWise-80 kit for Catalyst 9200L models |
| STACK-T4-50CM/1M/3M | Stack Cable | Type 3 stacking cables (0.5, 1, 3 m) |
| PWR-C5-1KWAC / PWR-C5-1KWAC= | Power Supply | Optional redundant 1 kW AC PSU |
| CAB-TA-NA / CAB-TA-EU | Power Cord | Region-specific AC cord |
| NS-SFP-10G-SR/LR/ER | SFP+ Module | 10G uplink optics |
Comparison with Similar Models
| Model | Downlink Ports | Uplinks | PoE Budget | License | Stackwise |
|---|---|---|---|---|---|
| C9200L-48P-4X-E | 48×1GbE PoE+ | 4×10G SFP+ | 740W / 1,440W | Essentials | 80 Gbps |
| C9200L-48P-4X-A | 48×1GbE PoE+ | 4×10G SFP+ | 740W / 1,440W | Advantage | 80 Gbps |
| C9200L-48T-4X-E | 48×1GbE data-only | 4×10G SFP+ | None | Essentials | 80 Gbps |
Specifications
| Parameter | Specification | Practical Value / Scenario |
|---|---|---|
| Product Code | C9200L-48P-4X-E | 48-port full PoE+ fixed switch, Network Essentials |
| Downlink Ports | 48×10/100/1000 RJ-45 PoE+ | Wi-Fi 6 APs, IP phones, cameras, IoT devices |
| Uplink Ports | 4×10G SFP+ fixed | Aggregation to core/switch uplinks |
| Switching Capacity | 176 Gbps standalone / 256 Gbps stacked | Non-blocking fabric, eliminates uplink bottlenecks |
| Forwarding Rate | 130.95 Mpps standalone / 190 Mpps stacked | Line-rate packet forwarding for branch offices |
| PoE Budget | 740W (single PSU) / 1,440W max | Full 48-port PoE+ support with optional PSU |
| Stackwise Bandwidth | 80 Gbps | Eight-unit stack, sub-second failover |
| MAC Address Table | 16,000 entries | Supports mid-sized enterprise terminal density |
| DRAM / Flash | 2 GB / 4 GB | Smooth IOS XE operation and advanced features |
| Power Supply | PWR-C5-1KWAC AC | Optional redundant PSU for failover |
| Fans | Fixed, redundant | Reliable cooling; not FRU replaceable |
| Software | Cisco IOS XE with Essentials license | Layer 3 static routing, SD-Access entry |
| Virtual Networks | 1 VN (SD-Access) | Entry-level SD-Access deployment |
| MTBF | 346,270 hours | High reliability for branch and campus networks |
| Dimensions (H×W×D) | 1.73″ × 17.5″ × 11.3″ | 1U rack-mount form factor |
